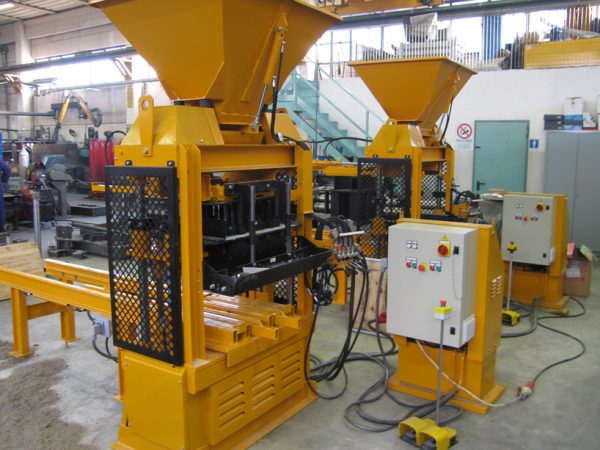

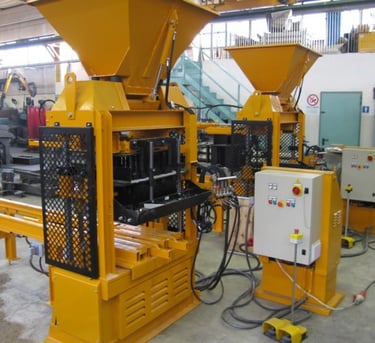

Weigh Systems for Concrete Batching systems

Weigh Systems for Concrete Batching systems

Enterprise Series indicator provides an easy-to-configure concrete batching system for small or portable concrete plants. The large color touchscreen makes it easy for operators to monitor material levels and access records for hundreds of mixes, customers, and tickets.

concrete batching system adds efficiency to concrete mixing processes. Operators can view material levels from two or five scales, and manually edit material amounts and moisture compensation percentages for complete batching control

Weigh Systems Concrete Batcher

Powered by Series indicator

Large color touchscreen display

Remote batching through web server integration

Front panel control switches and emergency stop

Automatic or manual batching modes

Configurable from two to five scales (one to two cement scales, and one to three material bins)

Up to four admixes (bottled or direct)

Manual entry of moisture compensation percentage

Metered water controlled by onboard DIO

Import/export databases via USB, r Interchange software

Configurable batch transaction ticket

Storage for 1,000 transactions, 1,000 mix designs, 500 customers

controlPower:
100 to 240 VAC; 50/60 Hz

Excitation Voltage:
10 VDC (± 0.5 Volts)
16 × 350 ohm or 32 × 700 ohm load cells per A/D card

Analog Signal Input Range:
-60 mV to 60 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 to 120 Hz
1.0 μV/graduation recommended

A/D Sample Rate:
7.5 to 960 Hz, software selectable

Resolution:
Internal: 8,000,000 counts
Display: 1,000,000

System Linearity:
±0.01% full scale

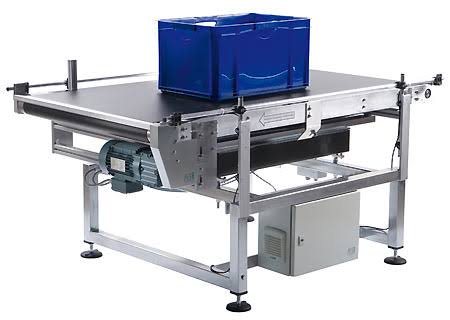

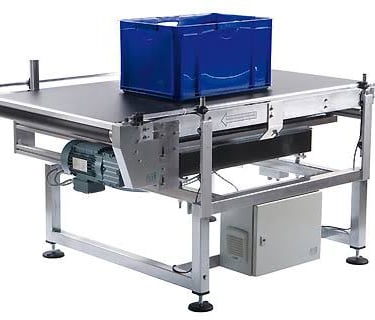

Belt Scale Weigh Frame

Belt Scale Weigh Frame

Custom built for each application

Fits standard conveyors

Multiple idler design

Inner frame has free-floating platform

Options

304 stainless steel

Two, three or four weigh idlers

Customer lifting weights available upon request

Applications

Medium to heavy capacity, mining and aggregate

Master Belt Scale Weigh Frame

Weigh three idlers on an inner frame, supported by four load cells with the belt scale weigh frame. This creates an incredibly accurate belt scale qualified for high capacities and belt speeds. is often used in mining and aggregate applications. The frame is custom-made using the specifications of the conveyor belt, making it suitable for different belt conveyor models.

Belt Scale Weigh Frame Specifications

Conveyor Width:
20 to 120 in (500 to 3,000 mm)

Capacity:
20,000 tons per hour

Belt Speed:
1,400 ft/minute (7 m/s)

Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy Guidelines:
0.25 %

Load Cell:
RL20001 alloy steel S-beam
(capacity selected from application)

Warranty:
One-year limited

Belt Scale Weigh Frame

Belt Scale Weigh Frame

Custom built for each application Fits standard conveyors Multiple idler design Inner frame has free-floating platfor Options 304 stainless steel

Two, three or four weigh idlers Customer lifting weights available upon request

Applications

Medium to heavy capacity, mining and aggregate

Master Belt Scale Weigh Frame

Weigh three idlers on an inner frame, supported by four load cells with the belt scale weigh frame. This creates an incredibly accurate belt scale qualified for high capacities and belt speeds. is often used in mining and aggregate applications. The frame is custom-made using the specifications of the conveyor belt, making it suitable for different belt conveyor models.

Belt Scale Weigh Frame Specifications

Conveyor Width:
20 to 120 in (500 to 3,000 mm)

Capacity:
20,000 tons per hour

Belt Speed:
1,400 ft/minute (7 m/s)

Inclination:
25 degrees

Material:
Powder coated mild steel

Accuracy Guidelines:
0.25 %

Load Cell:
RL20001 alloy steel S-beam
(capacity selected from application)

Warranty:
One-year limited

Belt Scale Integrator

· LCD display

· Hardware slot for two option cards

· Operator access to audit trail, preset tare, accumulator, time and date and setpoints through menu keys

· Password protected audit trail tracking for configuration and calibration changes

· Setpoints for control and alarms

· Four onboard digital I/O channels

· Four programmable ticket formats up to 1,000 characters

· Filter settings for noise

· Speed inputs

· Weighing Belt scales used in demanding industries like mining, bulk material blending, and sand or gravel quarries require instrumentation that can keep up. The tough yet compact belt scale integrator is engineered to provide straightforward, accurate data in a wide range of environments — even hazardous locations. Designed with advanced programming capabilities and an I/O option, the can be customized to manage product dosing and metering.

· A backlit display makes for easy viewing of rate, speed and time, even in lighting conditions where a screen would typically be difficult to read. The IP66 stainless steel enclosure protects the instrument from severe weather and is well-suited for exposure to harsh environments. Whether you are belt weighing for process control or a truck, barge or rail load out application, you can rely on the for durable performance in every setting.

Specification

Power
Input voltages: 100 to 240 VAC; 9 to 36 VDC
Input frequency: 50/60 Hz

Power Consumption:
AC: 15 watts; DC: 20 watts

Excitation Voltage:
10 VDC 8 × 350 ohm (16 × 700 ohm) load cells

Analog Signal Input Range:
-45 mV to 45 mV

Analog Signal Sensitivity:
0.3 μV/graduation minimum at 7.5 Hz;
1.0 μV/graduation typical at 120 Hz

Sample Rate:
7.5 to 120 Hz, software selectable

Resolution:
Internal: 8,000,000 counts 23-bit
Display: 100,000

System Linearity:
± 0.01% full scale

Digital I/O:
Four I/O onboard primary keys, pseudo functions, batching functions

Communication Ports:
RS-232 full duplex or RS-485 half duplex; USB 2.0 Micro B connector; Ethernet TCP/IP

Pulse Input:
Dual inputs for redundancy

Display:
LCD display, 0.8 in, seven-digit, seven-segment weight display, 3 × 20 pixelated prompt area

Annunciators:
Load, total, rate, speed, zero

Keys/Buttons:
Flat membrane panel, tactile feel

Temperature:
Industrial: 14 °F to 122 °F (-10 °C to 50 °C)

Dimensions:
(L x W x H)
9.93 × 4.00 × 8.94 in

Weight:
12 lb (5.4 kg)

Rating/Material:
IP66
Stainless steel

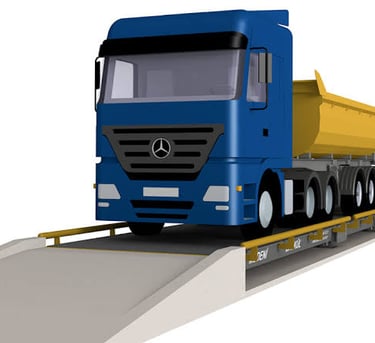

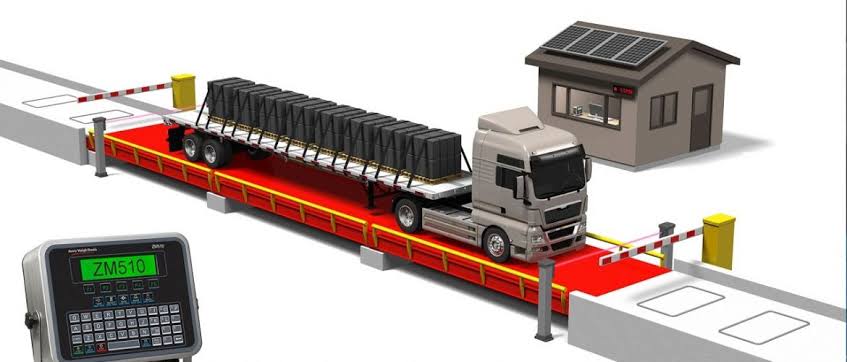

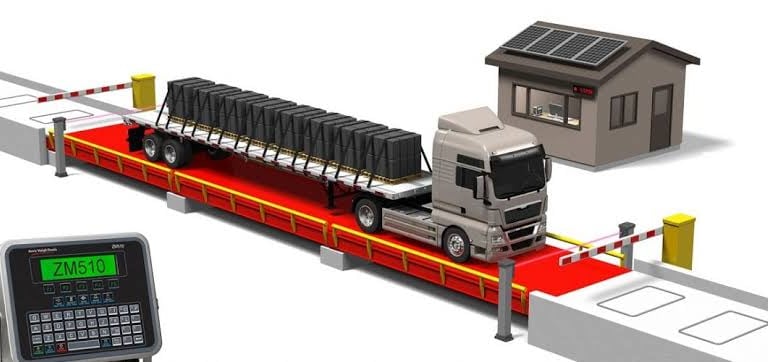

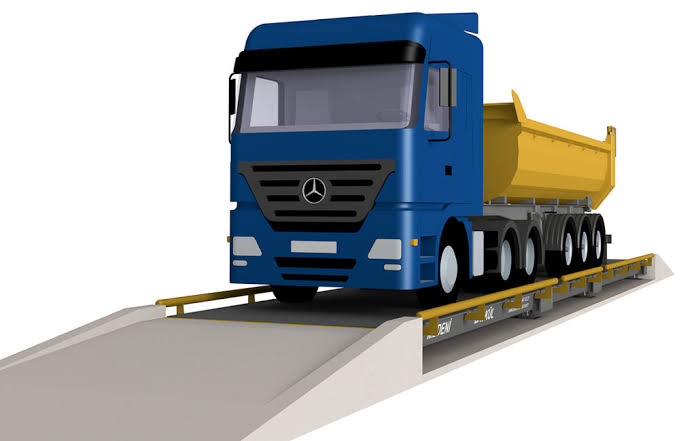

Weigh bridge For Trucks

Truck Scale

· Bolt-on backfill ramp bulkheads, removable for concrete approaches

· End cleanout

· Pre-suspended load cells and mounts

· Open bottom design

· Longitudinal I-beam construction

· Integrated load cell pockets

· Bolted down, top access to load cells and junction box

· Self-seating, P-bracket connection between modules

· G-Force mount assemblies return the scale to center without check rods or bumper bolts

· Cables completely encased in rodent-proof conduit

· Shipping mode

· Thorough finishing process includes cleaning of steel before and after welding, followed by either high solids urethane liquid paint or durable powder paint

Options

· 20 lb division

· 20 ft steel ramps

· 10 ft steel approaches

· 50 lb division/400,000 lb capacity

· 1-inch deck plate upgrade

· Schedule 40 guiderails

· Schedule 80 guiderails

· Stainless steel load cells

· Dolly down plates

· Galvanized weighbridge and suspension hardware

· Corrosion-resistant coating

· 3/8-inch runners

· Catwalks

· Landing with stairs

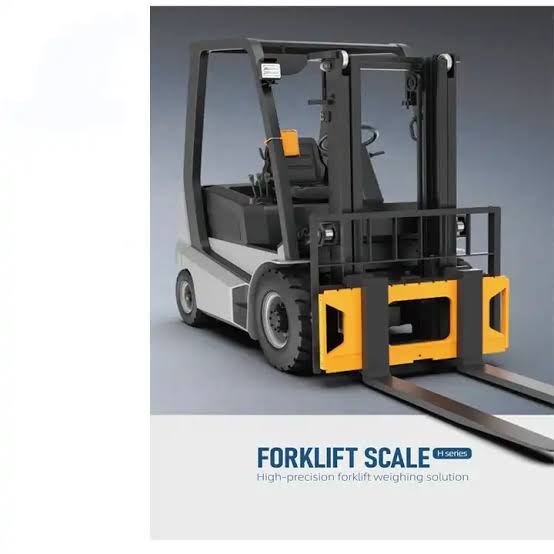

Forklift Weighing System

Forklift scale mounts directly to most Class II and Class III forklifts, saving material handling processes time and money. forklift scale system can be paired with a device for weight display through a cable or cable less connection. The weight display can either be a Weighing Systems indicator designed for the virtually through a device that supports the software application. For connection to peripheral equipment, there is also optional USB, Bluetooth and Wi-Fi connection available.

Scale Carriage

· 38 in (Class III), 8,000 × 5 lbs, non-NTEP

· 1-1/2 in thick front and back painted steel plates coupled by four flexures

· Top cleats are welded, pinned and bolted

· Welded centering pin

· Two 5,000 lb S-beam load cells

· junction box with inclinometer

· Molded coiled cable, up to 15 ft uncoiled

Forklift Scale Display

The incorporates the flexibility, intelligence and programmability of the in a smaller enclosure with a DC power supply for use on forklifts. The standard program offers weight indication, configuration, calibration and diagnostics specific to the. Customize it for your application with an optional user program· Painted mild steel enclosure

· Backlit graphical LCD display

· Battery backed time and date

· On/Off power switch

· 9 to 36 VDC power supply

· Cabled or cable less

· RS-232 ports for added options

· Optional Wi-Fi

· Optional Bluetooth®

Cable less option removes the coiled communication/power cable between the scale and the indicator. A rechargeable battery is secured to the scale and it powers the scale and the paired wireless modules provide communication.

· wireless interface

· Lithium-ion battery and charger

· On/Off power switch

· Battery life: 24 hours of constant use

· Battery recharge time: 8 hours to fully recharge

· Reinforced battery box welded to top cover

.

Hand Pallet Jack Scale

Hand Pallet Jack Scale

· Steering wheels and double loading polyurethane rollers

· Four stainless steel IP68 load cells

· Weight indicator in IP65 stainless steel water-resistant enclosure

· Configuration, calibration and diagnostics from keyboard

· Rechargeable battery mounted on the pallet jack

· Zero and tare functions

· Net/Gross and lb/kg conversion

· Accumulation

· Formulation

· ± Checkweighing

· Percentage weighing

· Counting (Max. resolution of 1,500,000 divisions)

· Peak hold

· Includes a 115VAC 50/60 Hz battery charger

Scale Display

The incorporates the flexibility, intelligence and programmability of the in a smaller enclosure with a DC power supply for use on forklifts. The standard program offers weight indication, configuration, calibration and diagnostics specific to the. Customize it for your application with an optional user program· Painted mild steel enclosure

· Backlit graphical LCD display

· Battery backed time and date

· On/Off power switch

· 9 to 36 VDC power supply

· Cabled or cable less

· RS-232 ports for added options

· Optional Wi-Fi

· Optional Bluetooth®

Cable less option removes the coiled communication/power cable between the scale and the indicator. A rechargeable battery is secured to the scale and it powers the scale and the paired wireless modules provide communication.

· wireless interface

· Lithium-ion battery and charger

· On/Off power switch

· Battery life: 24 hours of constant use

· Battery recharge time: 8 hours to fully recharge

· Reinforced battery box welded to top cover

.
