Surveillance Camera

Network Camera systems are inherently more flexible because security cameras don’t necessarily have to be physically connected directly to the recorder. Instead, IP cameras only have to be on the same network. As such, you could feasibly have cameras all over the world on the same network that connect to your Network camera can be viewed as a comprehensive system. Network systems tend to have better picture quality, as well as easier installation, increased flexibility, and native support for audio on every camera that has a microphone

IP surveillance camera records video footage where the resulting content is distributed over an IP network without any degradation of content over time. IP storage makes it possible to store data in any graphical location also improved the search capability of content. Remote viewing and control are easy on without any interruption. Industries are moving towards IP technology because data can be uploaded to cloud-based storage, to be displayed or analyzed from where.

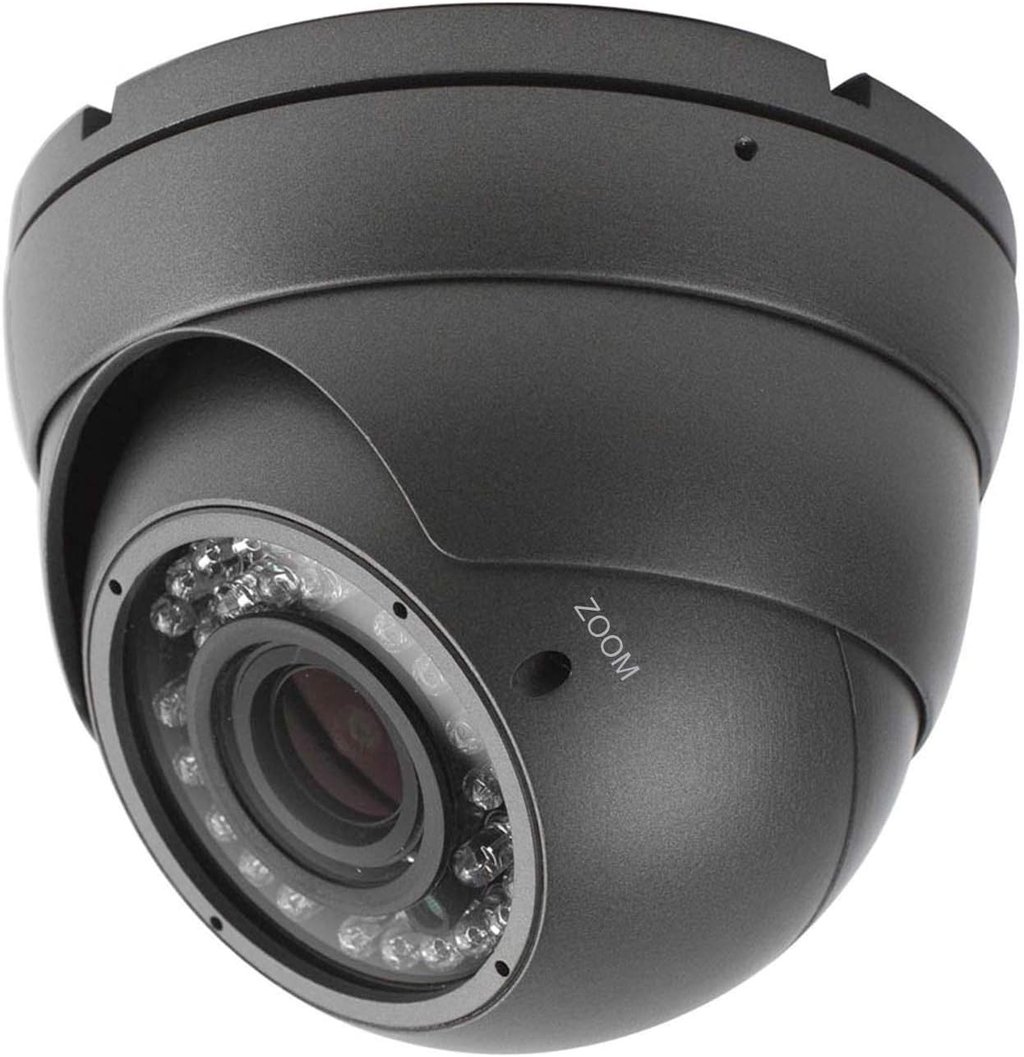

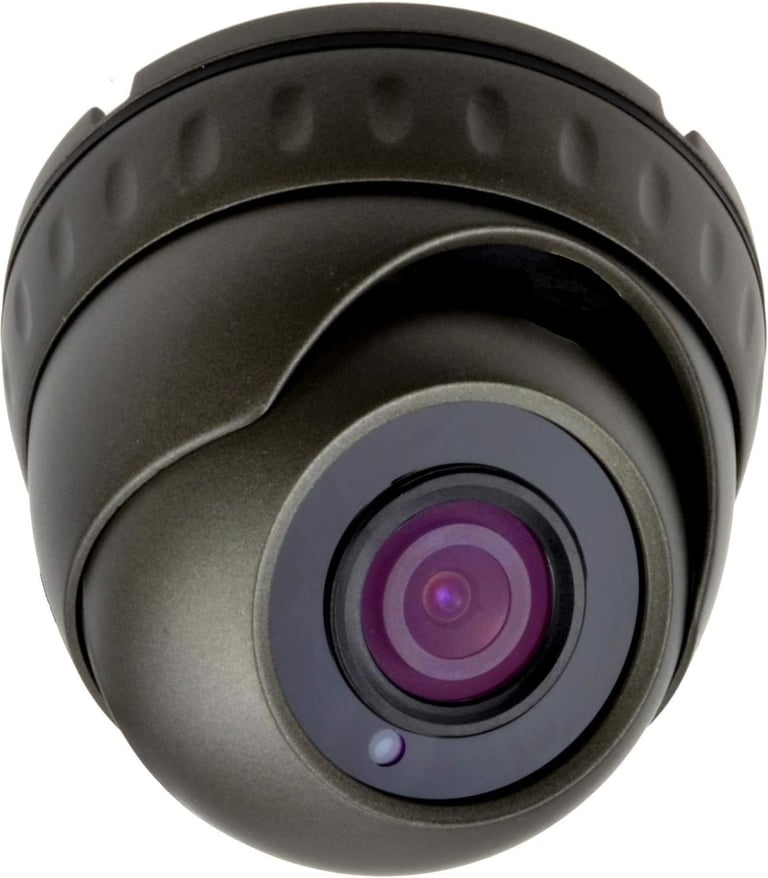

Dome CCTV

Dome CCTV Camera is a perfect camera choice and is suited to both ceiling and wall mounting. It was used in Interior circumstances with sufficient light areas so it can be clearly viewed up to 15 feet you can identify the person with a clear view in that location.

This is because dome cameras are more fashionable and blend in very well with their surroundings. Because of their dome shape, it is difficult for someone to tell which direction the lens of the camera is pointing.Dome security camera is just one of the many products we have to offer. We also have dome cameras with IR and remote viewing, plus a range of other security camera options for your home, office, and business. Our installation team can help you find the best camera for your needs.CCTV Dome Cameras are named for their dome like shape. Dome Cameras are commonly used in surveillance systems inside Offices, Retail Stores, and Restaurants.

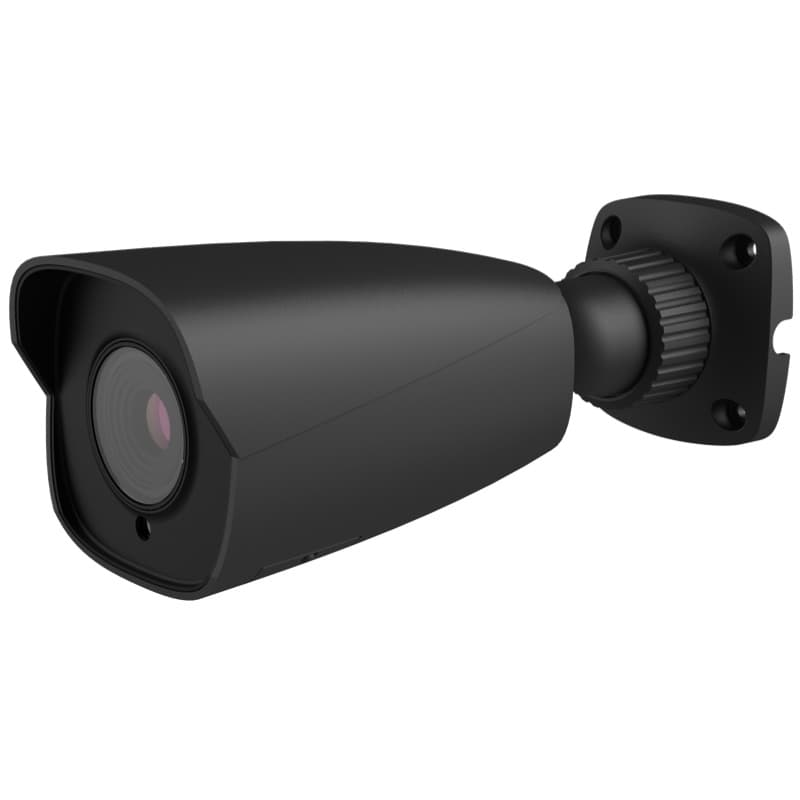

IR Bullet CCTV

IR Bullet Camera Used For Indoor / Outdoor 24 Hours Day and Night Surveillance To view or record clearly in the minimum light we are recommending this camera for outdoor circumstances and scattered light places like factories.

The camera comes with a minimum of 10mtr IR to a maximum of 60mtr IR Distance with Fixed Lens 3.6mm, 6mm, 8mm, and 12mm. The Distance mentioned is to capture the image in the night time up to a specific distance but the picture clarity will depend upon the TV Lines of the cameras.Color cameras that switch to black and white at night are coupled with IR illuminators for night time surveillance, making them suitable for both day and night viewing. But with all cameras, it needs to have a good viewing angle, with a long viewing distance to help you capture what you want without shadows from trees or buildings.

Outdoor surveillance cameras are a smart solution for monitoring your property or business, but in order to get clear images, you need to have an appropriate camera that can provide a wide-angle view and stable image quality..

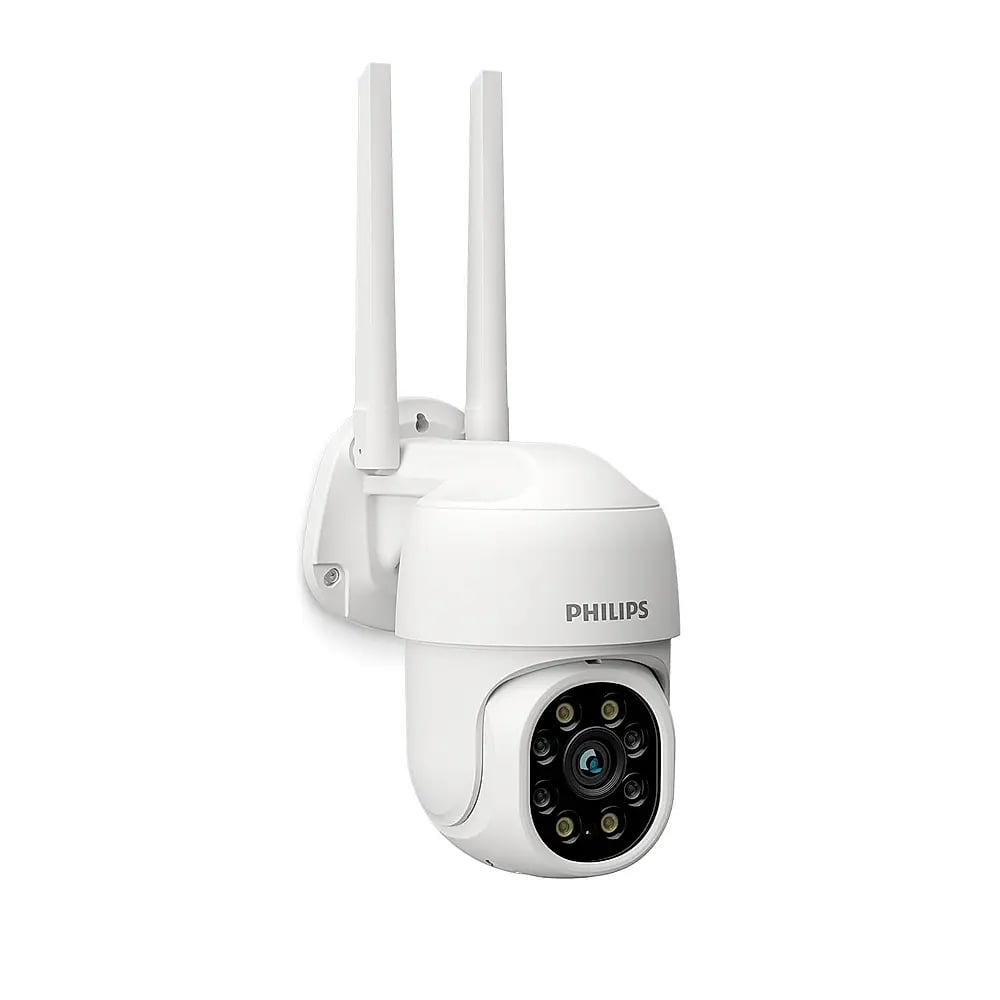

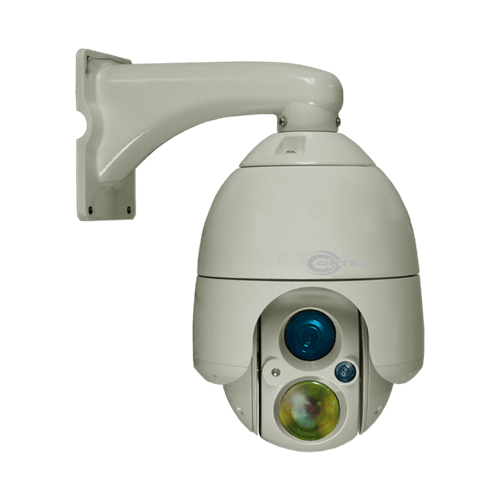

PTZ Camera

PTZ CAMERA

Pan, Tilt, and Zoom (PTZ) surveillance camera monitors the large area with minimizing installation. Here cameras can move anywhere between Zero and the full 360 degrees. Panning and tilting allow the camera to see the action happening behind or next to it. PTZ camera’s video quality can be diminished by zooming in too far and pixellating the images. In this model it lets switches perform actions such as software upgrades without forcing the camera to power cycle. PTZ cameras can be operated manually or in an automatic scan mode, thus capturing the most relevant video possible. The day/night CCTV cameras have the distinct advantage of operating in both normal and poorly-lit environments. These cameras do not have Infrared illuminators because they can capture clear video images in varying light conditions and in the dark. The camera is ideal for outdoor surveillance applications, where Infrared CCTV cameras cannot function optimally. These CCTV cameras are primarily used in outdoor applications and they can have a wide dynamic range to function in glare, direct sunlight, reflections, and strong back light 24/7.

HD Camera

High Definition (HD) CCTV security cameras fulfill the quality of video footage that accepts the standard that can be used both for preventative security surveillance and for evidence purposes. It is an open industrial standard for transmitting high-definition digital video over point-to-point coaxial cable links with applications. HD CCTV surveillance camera enables a detailed capture of the subject and actions with more precise information. Dome CCTV Cameras are most commonly used for indoor security and surveillance applications. Dome cameras get their name from the dome-shaped housing in which they sit. Speed Dome CCTV cameras give the surveillance operator the ability to move the camera. There are cameras that have automated pan/tilt/zoom functionality where the camera is moving on a timed basis. These are used to cover a wide area with only one camera or to avoid poor light conditions at certain times of the day. Bullet CCTV Cameras have a long, cylindrical, and tapered shape, similar to that of a “rifle bullet”, often used in applications that require long-distance viewing. The camera is not typically designed to have pan/tilt/zoom control but to capture images from a fixed location, pointing at a particular area

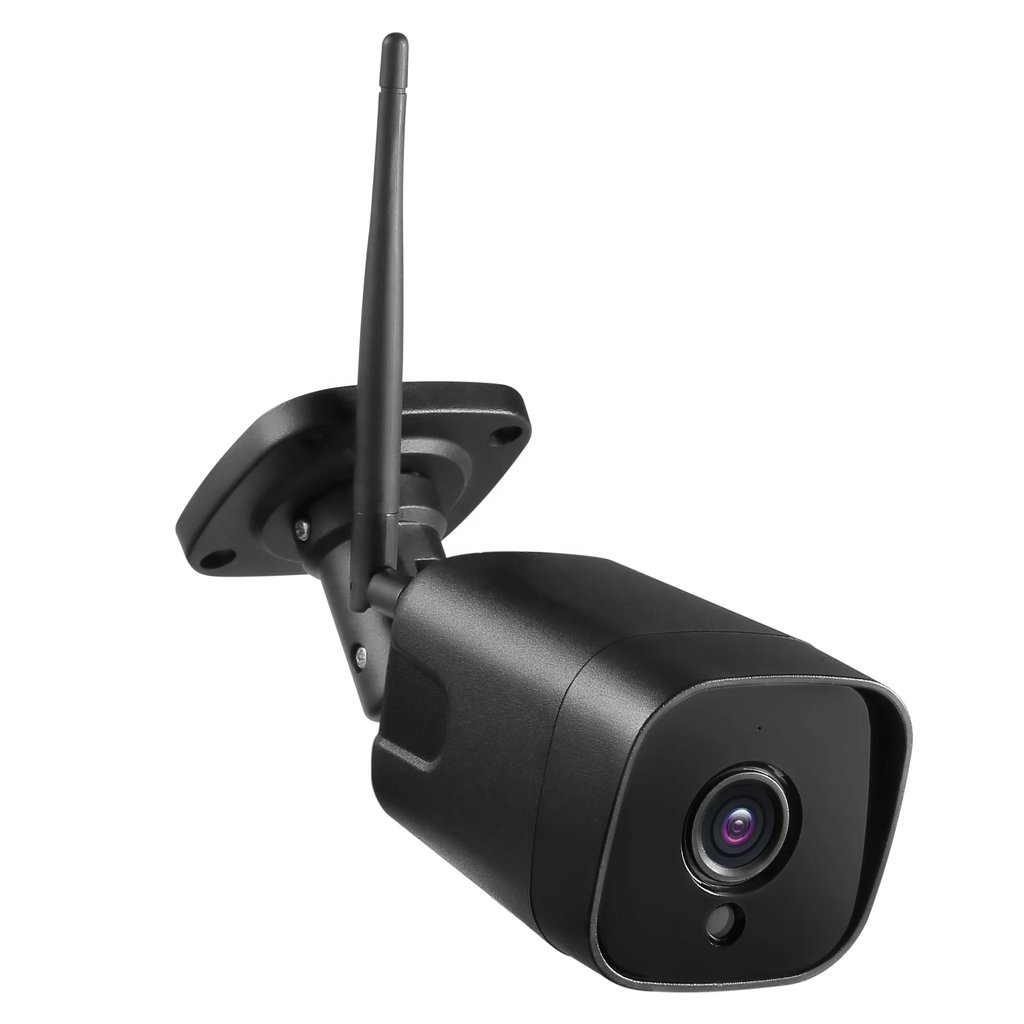

Wifi Camera

WiFi CCTV camera function best when there is a clear line of sight between the camera(s) and the receiver. If digital wireless cameras are outdoors and have a clear line of sight, they typically have a range between 250 and 450 feet. If located indoors, the range can be limited to 100 to 150 feet. Cubical walls, drywall, glass, and windows generally do not degrade wireless signal strength. Brick, concrete floors, and walls degrade signal strength. Trees that are in the line of sight of the wireless camera and receiver may also impact signal strength.

The signal range also depends on whether there are competing signals using the same frequency as the camera.Wireless Security Cameras not only eliminate the hassles of wiring but also offer the flexibility to be installed virtually anywhere within the range of a robust WiFi network and power outlet. Powered by a 12V DC adapter, they can effortlessly connect to 2.4GHz b/g/n WiFi networks.

We pride ourselves on providing the most dependable and user-friendly professional WiFi surveillance solutions. Our diverse product range includes bullet, dome, PTZ, and unique indoor two-way audio cameras, all featuring a microSD slot for standalone recording .Wifi cameras as standalone web cameras, viewable over local networks or the Internet with our complimentary smartphone app or PC software. For a complete wireless camera system, pair them with our Wireless NVR equipped with a built-in WiFi radio that supports up to 6 wireless cameras within 200ft unobstructed range. Feel free to select with one of the wireless security camera kits for a complete plug and play system.Want more flexibility? You can seamlessly integrate our cameras with your existing WiFi or even merge them with a wired NVR for a hybrid security system. And, each camera boasts a built-in webserver, making them accessible via a web browser on your PC.

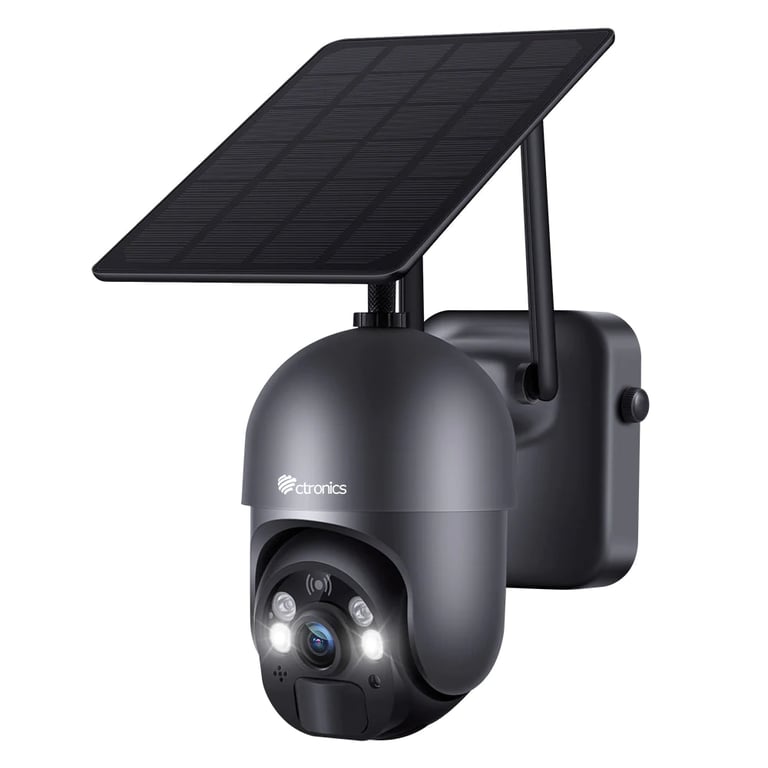

Solar Camera

Solar Power Camera with wifi and 4G version is one of the best solar-powered security cameras on the market. The wireless dual-lens camera offers an incredible 8MP dual-lens construction, backed by a built-in 20,000mAh high-capacity rechargeable battery. The camera has everything you might want, an easy setup, great resolution, 10x optical zoom, and incredible human tracking, all are carefully designed to make sure your entire property are in secure.

The main features of dual lens solar-powered camera:

1) Full HD 4MP+4MP video quality, Dual camera for Wide-angle global monitoring and one camera for PTZ detailed monitoring.
2) 100% wifi free, no wiring easy installation.
3) Built-in 5W solar charge panel.
4) Built-in MIC and Speaker, support two-way talk.
5) Pan:355° Tilt:90°.
6) Support TF cards and cloud storage.
7) Built-in 4pcs 21700 Batteries in camera, more than 20000mah.
8) Support Android/IOS remote view.
9) Equipped with flood light and siren alarm.
10) Support multiple installation modes: integrated/separated wall and ceiling mounted.

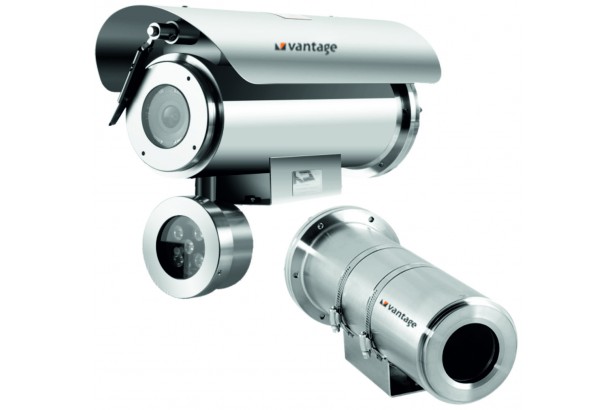

Explosion proof Camera

Explosion-proof IP Cameras

Specially designed for use in hazardous industrial environments, our range of explosion-protected network cameras come in stainless steel housing. This housing prevents interior sparks or explosions from escaping and igniting the dust or gases in the surrounding air. This rugged construction enhances the camera’s superb surveillance capabilities, with 2MP and 5MP resolution options, 30x optical zoom and True Day/Night WDR for continuous operation in both hazardous and safe applications.
Explosion Proof IP cameras contain no content or material from any companies. explosion-protected and flameproof network camera is a good fit for onshore, offshore, marine, and heavy industrial installations in hazardous and challenging environments. The camera features a stainless steel housing certified for hazardous areas The housing prevents any interior sparks or explosions from escaping and igniting the gases or dust in the surrounding air. Our camera provide extremely crisp video with up to 2 million effective pixels, 30x optical zoom, and True Day/Night WDR for continuous surveillance in both hazardous and safe area applications. This product comply with the Essential Health and Safety Requirements relating to the design and construction of products intended for use in potentially explosive atmospheres Explosion proof camera with 30x zoom with built-in video analytics and multiple connectivity choices (RJ45 or/and Optical Fiber) features expected from a high-performing surveillance camera with rugged AISI 316L housing and water-resistant IP68 rating for challenging environments.separated wall and ceiling mounted.

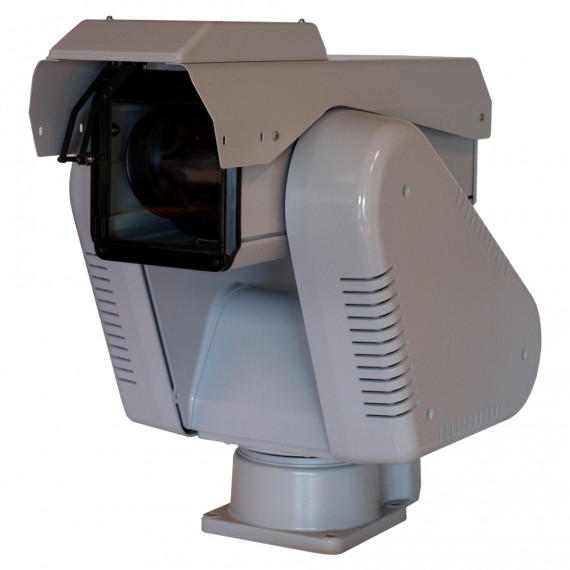

Long Range Camera

Our Custom built Long/medium range PTZ camera with Endless rotation and variable speed, it has Built-in RS485 controller and Multiple options, washer, wiper . Lens used size up to 330mm

long / medium range PTZ camera system is a custom made camera solution:

Pan tilt:
The IP66 pan tilt with built-in RS485 controller is a heavy duty step motor pan tilt unit. The pan run 360° endless rotation with built-in slip rings to transfer the power, telemetry and video. The unit is also available without endless rotation 0-355°. The pan/tilt have a wide range speed from slow speed 0,1° to high speed 120° and a very high accuracy of pan: 0.016°, tilt 0.010°.

Housing:
The IP66 housing made of aluminum and stainless fittings can house motorized lenses up to 330mm. The housing can be equipped with Wiper, Washer, Heater with fan, circulation fan and other options.

Lens:
The PTZ system can be ordered with 33X zoom 10-330mm F1.7 or 30X zoom 10-300mm F1.5.
The 33X zoom 10-330mm F1.7 can be ordered with one push auto focus function.

Camera:
The normally used camera is a very high sensitive and high dynamic 1/3″ CCD camera, 960H, Effio WDR II. For applications where extreme sensitivity is needed a EM CCD camera can be installed.

The below data present the basic setup of the long / medium range camera system:

Specifications for PTZ long / medium range PTZ camera

Material Aluminum

IP rating IP66

Color Gray/white

Size (LxHxW) 761 x 670 x 250 mm

Weight Approx 30 Kg (with lens and camera approx. 35 kg)

Pan angle 0-345° (360° continuous optional)

Tilt angle Tilt -70/+30° (Tilt -85/+85° option)

Pan speed Pan 0.1°~ 40°/sec ±0.2° (variable speed)Tilt speed Tilt 0.1°~ 10°/sec ±0.2° (variable speed)

Absolute position support Yes

Electric accuracy Pan: 0.033° and Tilt :0.0125°

Mechanical lash <0,3°

Presets 100 presets

Preset accuracy NA

Motor type DC motor

Gear type Worm gear

End-stop adjustable Mechanical end-stop internally

Interface RS-485

Baud rate 2400, 4800, 9600, 19200 bps, N,8,1

Address 1-256

Temperature range -10°C +60°C-(-25°C +60°C with optional heater)

Voltage supply 24 VDC

Power consumption NA

Motorized lens control Yes

Aux control Yes (5 aux relays and 1 motorized extender control output)

Video cable Yes (HDSDI cable optional)

Network cable Optionally

Camera and lens specifications depends of the choosen camera and lens type, ask for details.

Pan tilt:

The IP66 pan tilt with built-in RS485 Pelco D controller is a heavy duty DC motor powered pan tilt.

The pan/tilt support variable speed from 5° to 12° and the pan tilt controller supports “Absolute position” to read and set the PTZF positions.

Housing:

The stainless steel camera housing can house compact zoom cameras. The housing can be equipped with Wiper, Heater with fan, circulation fan and other options.

Camera:

Zoom cameras can be installed in the housing. we normally use compact zoom cameras with auto focus.

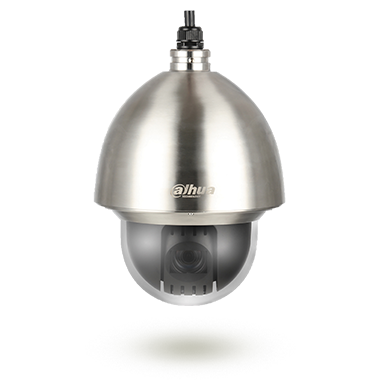

Specifications for stainless steel PTZ camera

Material Stainless steel

IP rating IP66

Color Stainless steel

Pan angle 0-350° (360° continuous optional)

Tilt angle Tilt -90/+60°

Pan speed Pan 5°~ 12°/sec ±0.2° (variable speed)

Tilt speed Tilt 7°~ 12°/sec ±0.2° (variable speed)
