Screens
The crushing process is an important part in a plant, the screening quality and precision has the highest influence on the overall efficiency of all equipment. As the heart of every crushing and screening plant, a inclined vibrating screen is used for classifying material by size in every stage of the process from feeding to the product separation. The different sizes of materials mixing with each other and an increase in returning material amount caused by low screening efficiency equals low profitability for every crushing and screening plant.
the crushing process is an important part in a plant, the screening quality and precision has the highest influence on the overall efficiency of all equipment. As the heart of every crushing and screening plant, a inclined vibrating screen is used for classifying material by size in every stage of the process from feeding to the product separation. The different sizes of materials mixing with each other and an increase in returning material amount caused by low screening efficiency equals low profitability for every crushing and screening plant.
APPLICATIONS
inclined screens feature a unique combination of characteristics that result in high capacity and high
screening efficiency, as well as long service life. They are used for secondary, final sizing or even primary applications.
• Constant circular motion creates same screening efficiency on the entire deck.

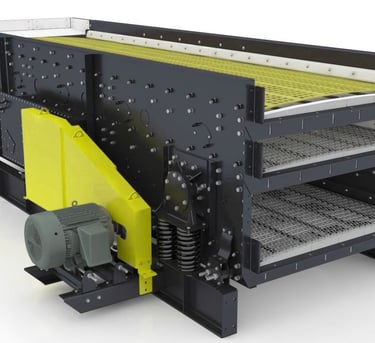

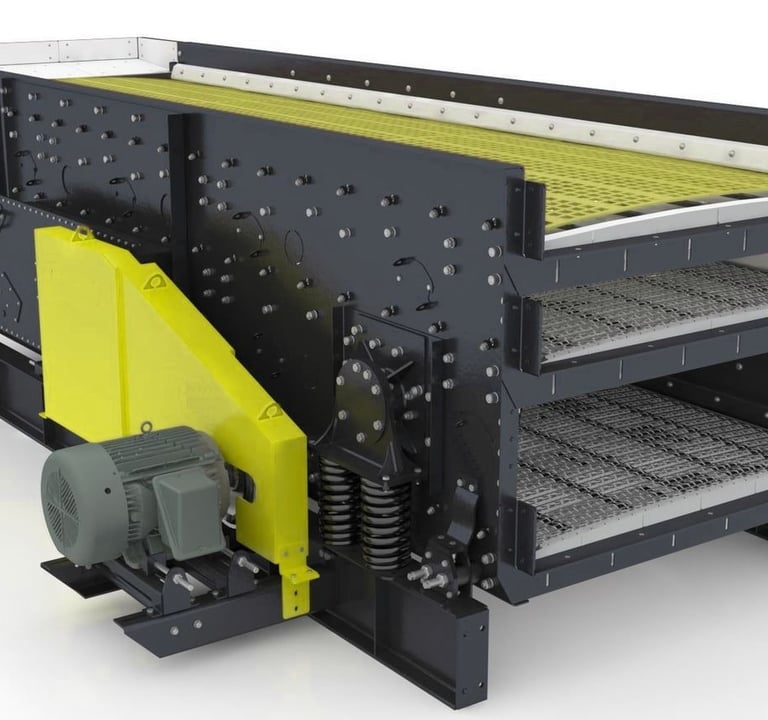

Drive mechanism consists of two modular vibrators connected through a cardan shaft. As the shaft line is positioned at the center of gravity, a circular motion results on all points on the screen.
• Can adapt to a wide range of applications
Spray pipes for wet screening applications can be easily installed without modification to the screen, ready holes for spray pipes as standard.
• Can adapt to modular screening media
Inclined Screens can be set up for crowned decks to accept side tensioned screen media like woven wire mesh, anti clogging wire cloth, rubber, polyurethane or flat decks to accept modular synthetic media.
• Weld/Stress free body is protected from cracks
"no weld" policy on screen side plates eliminates the possibility of stress concentrations in heat affected zones.
• Reliability, ease of maintenance
The huck bolt fastening system has proven to be a very safe and reliable method of fixing decks.
• Dust encapsulation
As an option a dust encapsulation structure can be installed at the top of the side plates for dust containment.
HIGHLIGHTS
• Modular Vibrators
• Full Crown Decks
• Lined Loading Zone
• Single Piece, High Strength Side Walls
• Machined Decks
SPECIFICATIONS
SS 1540 SS 1650 SS 2050 SS 2060 SS 2460 SS 2563
Dimensions (mm) 1500x4000 1600x5000 2000x5000 2000x6000 2400x6000 2500x6300
Number of Decks 2,3,4 2,3,4 2,3,4 2,3,4 2,3,4 2,3,4
Power (kW) 15 15 18.5 22 30 37
INCLINED SCREEN
