Concrete Brick Machine
For the past decade, we have been at the forefront of the concrete production industry, specializing in the manufacture of high-technology machines and custom solutions tailored to our clients’ needs. Our dedication and vast experience have established us as leaders in India and the surrounding regions. Our simple stationary concrete block machine exemplifies our commitment to quality and innovation. Designed for versatility, this entry-level, low-cost machine features a rigid steel frame and offers a wide product range. With precise product height control and strong vibrations, it is both simple to use and maintain. Customers from around the globe have praised our machines for their reliability and productivity, reinforcing our reputation as a trusted name in concrete making.
Automatic Concrete Block
We manufacture high-technology machines for concrete production industry and custom made solutions upon customer’s request.
We have been in business for 10 years. Our dedication and experience have positioned us as a leaders in India and surrounding region. Our concrete making machines, according to customers from all over the world, have proven as successful, reliable and productive.Concrete block plants Main parts of concrete block plant:
A. Wet side
1. Concrete batching plant for concrete production
2. Concrete transport from mixer to block machine (belt conveyor, skip or forklift silo)
3. Concrete block machine 4. Automatic control unit with PLC and touch panel
5. Rotating brush for products – cleans wet products before entering elevator
6. Pallet conveyor– from machine to elevator
7. Pallet elevator
B. Curing
8. Forklift or finger car
9. Shelf or racks for pallets
C. Dry side
10. Pallet lowerator
11. Pallet conveyor – from lowerator to cuber
12. Cubing station - gripper for de-paletization and packing of products
13. Rotating brush for pallet’s cleaning before turning
14. Pallet turner
15. Pallet return line
Concrete Making Machines :

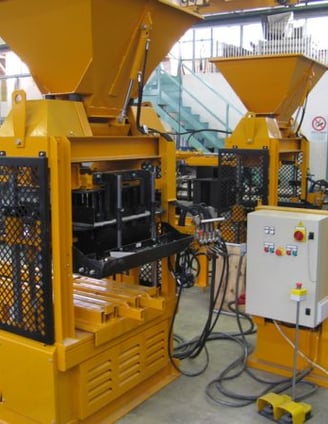

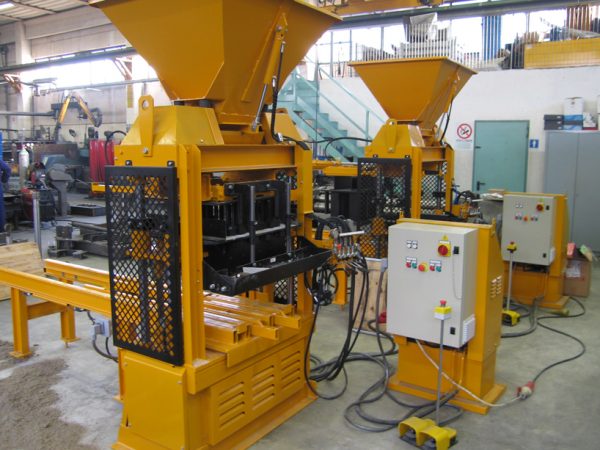

Simple stationary concrete block Machine
Main features:
• Versatile - wide product range
• Entry-level
• Low-cost
• Single pallet laying (stationary)
• Rigid steel frame
• Precise product height control
• Vibrators timer switch-of
• Simple to use and maintenance
• Strong vibrations
• Manual pallet insertion
• Manual concrete feeding (base and face concrete)
• Concrete hopper (option)
Product range:
• Paving stones (slabs, tiles, interlocking and rustical pavers)
• Curb stones (kerbs)
• Hollow blocks
• Solid blocks
• Retaining wall elements and similar concrete products
• Chimney blocks
TECHNICAL SPECIFICATIONS
Mortar Hoppers And Capacity Double Hopper /0.5 m³ Upper Vibrator Motor Power 0.75 Kw x 2 Pieces
Control System Automatic Hydraulic Motor Power 13.5 Kw
Production Capacity 100-120 Pallets / Hour Hydraulic Oil Tank Capacity 700 L
Weight 8.000 Kg Hydarulic Pressure 150 Bar
Machine Dimensions 220 cm / 1150 cm / 250 cm Vibration Cooling Capacity 22.000 Kcal
External Chassis Dimensions 150 x 150 x 6 mm Closed Profile Total Power Usage 26 Kw
Vibration Force 36.500Kg Min - Max Product Height 5-25 cm
Lower Vibrator Motor Power 5,5 Kw x 2 Pieces Wooden Pallet Dimensions 50 x 120 x4cm
Product range:
• Paving stones (slabs, tiles, interlocking and rustical pavers)
• Curb stones (kerbs)

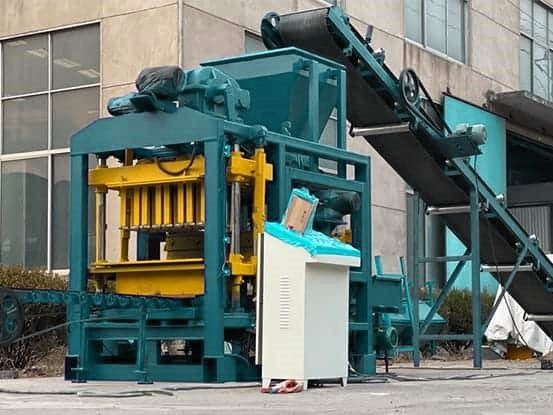

Automatic concrete brick
Long
Our Concrete brick machines is a more upgraded and dynamic version, as it includes the same concrete block machine but with a higher level of automation. Two stackers elevator and lowerator are added to help the handling of the trays for the curing of the products and one clamp for the final palletization of the products (either manually or automatic) is provided.
concrete block machine is therefore less dependent on the human factor. The production is more dynamic and as a result there is an increase in productivity.
This block making machine is equipped with a power-driven decoupling device and a specialized stacker, which can stack 3-5 layers of the blocks. For this machine, there is the specialized carriage car for block discharging, under the conditions to reduce the labor intensity of workers, can be achieved, and the output of the blocks can be increased substantially. So, it is an ideal alternative to similar machines. It is suitable for small and medium-size block factories for mass production. Mould and Hollow Blocks: Can be customed according to customer’s requirement.
Main features:
• Versatile - wide product range
• Entry-level
• Low-cost
• Single pallet laying (stationary)
• Rigid steel frame
• Precise product height control
• Vibrators timer switch-of
• Simple to use and maintenance
• Strong vibrations
• Manual pallet insertion
• Manual concrete feeding (base and face concrete)
• Concrete hopper (option)
Product range:
• Paving stones (slabs, tiles, interlocking and rustical pavers)
• Curb stones (kerbs)
• Hollow blocks
• Solid blocks
• Retaining wall elements and similar concrete products
• Chimney blocks
Technical Data:
• Height of products: 25 to 250 mm
• Minimum area: 700 m2
• Control desk with programmable controller (PLC) with variable terminal and data storage and production
Vibration:
• One vibrating table
• Grease in continuous oil bath (minimum maintenance).
• Maximum force: 47.6 kN
• Power: 17,5 kW
Hydraulic group:
• Water cooling equipment
• Power: 11 kW

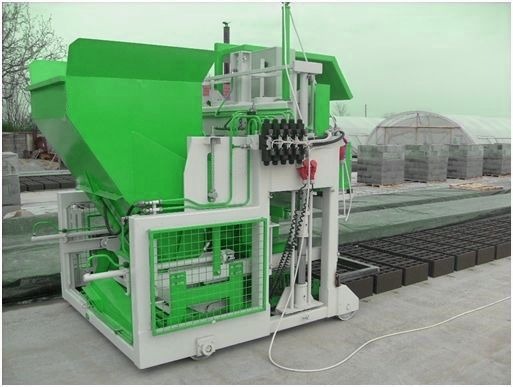

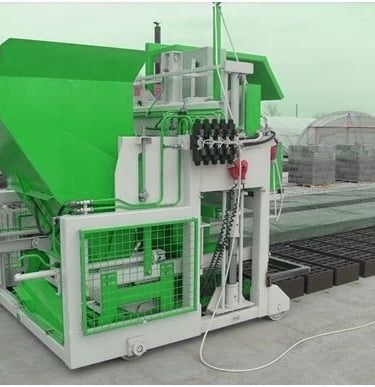

Semi -Automatic Egg-laying type concrete brick
Mobile Shelving
Semi -Automatic Egg-laying type ideal for in-site high-production rate of concrete agglomerate blocks. Forming is semi-automatic and compaction is achieved by the combined effect of vibration and counter-mould free fall. An 1000 lt. hopper used for stocking the aggregate on-board the machine, guarantees a very long operation without recharging. This unit implies a concrete track. A properly sized batching system will be necessary to run this block-forming machine and to guarantee the above stated production rate
Main feature:
• Versatile - wide product range
• High-end level production
• Reducing of man power
• Semiautomatic or automatic
• Single pallet laying (stationary)
• Pallet handling systems
• Simple to use and maintenance
Product range:
• Paving stones (slabs, tiles, interlocking and rustical pavers)
• Curb stones (kerbs)
• Hollow blocks
• Solid blocks
• Retaining wall elements and similar concrete products
• Chimney blocks
Details
OPERATION MODE
Manual
HOURLY PRODUCTION
(block 20x40x20 cms)
200/250
PRODUCT HEIGHT
200 mm
MAX PRODUCT DIMENSIONS
80 x 40 cm
HOURLY CICLES TIMES
60
BLOCKS 20*40*20 cms / MOLD
4
ELECTRIC INSTALLED POWER
3,5 kW – 400 V – 50/60 Hz
MACHINE DIMENSIONS
1800 x 1350 x 1100 h mm
MACHINE WEIGHT
700 kg
