Industrial Air conditioning

Our Experience, Resources And Know-How To Service A Wide Spectrum Of Customer Needs Ranging From Commercial And Retail Operations To Small Or Large Industrial Applications. Our Dedicated Team Designs, Engineers, Installs And Commissions Custom Systems To Meet Critical Process Requirements For Production, Processing, Packaging, Freezing, And Storage Applications Serving Customers In The Commercial Shopping Industrial Hospitals Educational Institutions Cold Storage, Distribution Centers, Food Banks, Food Processing And Biopharmaceutical Industries

.Modular Clean Room HVAC Systems Interface With Floors, Ceilings, And Mechanical Components To Provide An Ultra-Clean Environment With Effective Control Of Airflow, Pressure, Temperature, Humidity And Filtration.

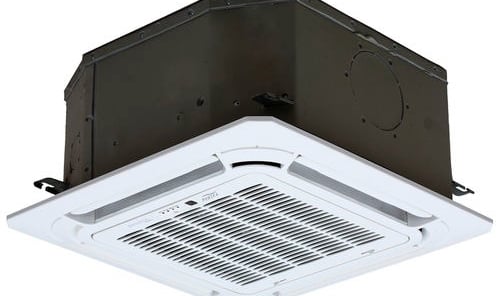

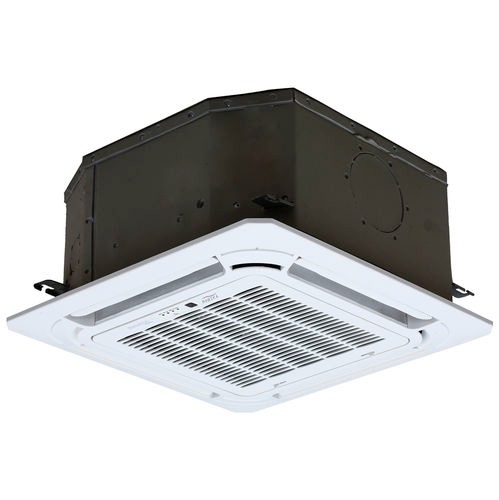

Cassette air conditioner
Cassette air conditioner

Indoor Air Conditioning

High Wall Air Conditioner is a split air conditioner where the indoor unit is mounted at a higher level on the wall. It is commonly known as Split air Conditioner.
Split air conditioner is divided into two parts indoor unit and outdoor unit.

High wall

Cooling capacity : 2.64 - 6.85 kW

Heating capacity : 3.00 - 7.30 kW

Refrigerant : R-32

Ideal for a residential/ Commercial application.

High efficiency model: A+++/A++ (9-12) & A+++/A+ (18-24)

Intelligent eye: built-in presence detector to optimize airflow according to user needs.

Multi-split compatibility (sizes 9, 12, 18, 24)

  • High efficiency model: A+++/A++ (9-12) & A+++/A+ (18-24)

  • Intelligent eye: built-in presence detector to optimize airflow according to user needs

  • Gear feature: 3 operating power options: 50%, 75%, and 100%, for energy-savings

  • High density filter and cold-catalyst filter: eliminates volatile organic compounds (VOC), as well as odors

  • Comfortable airflow with adjustable airflow from 0 to 100%

  • Low noise as low as 22 dB

  • LED display: temperature, operation features and error codes

  • Avoid me: avoids direct airflow blowing on you

  • Active Clean technology: cleans the interior heat exchanger

  • Dusting switch: DC motor rotates in reverse to get rid of dust

  • Golden Fin anti-corrosion protection of the condenser

  • Infrared remote controller as standard

  • Indoor unit compatible Mono & Multi-split system

  • Wi-Fi control as option with Smart Kit

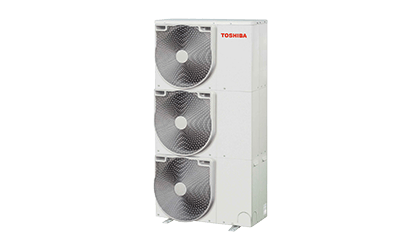

outdoor airconditioner
outdoor airconditioner
Outdoor Unit

Providing flexibility to accomodate almost any building requirement.

outdoor units are available in different versions : side discharge or top discharge (heat pump or heat recovery versions). Heat pumps models allows to provide cooling or heating, while heat recovery can simultaneously provide cooling and heating. Let's discover the solution that will fit your project.Refrigerant: R-410A

Type of outdoor unit: Side discharge

Capacity: 4 -10 Hp

Compact design for flexible application in small or narrow spaces

  • Cooling or Heating mode

  • Compressor type: Twin Rotary

  • Maximum number of IDU: 8

  • Compatible with all Carrier Indoor Units & Controls

  • Easy installation

    • 2 faces - 4 handles : easy to carry

    • '888' Test panel

    • 4-way pipe connection : easy to install

    Compact discharge design

    • Lower to 90 kg net weight

    • Compact design with only 0,35m2 footprint

    • Limited refrigerant charge with 3.3 kg

    DC fan and motor :

    • Brings higher efficiency to running partial load

    Large diameter fan

    • Superior comfort with an aerodynamics fan

    • Lowers sound level by 3dB(A)

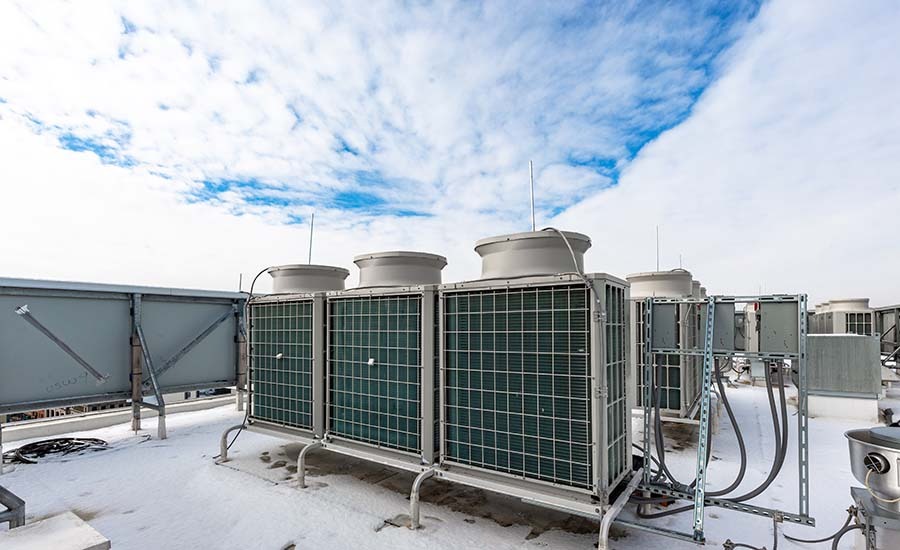

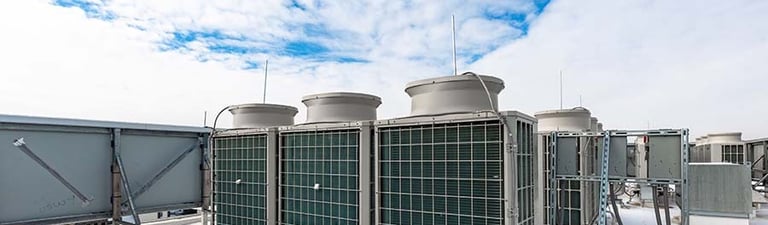

VRF systems
VRF systems
VRF system

VRF outdoor units are available in different versions : side discharge or top discharge (heat pump or heat recovery versions). Heat pumps models allows to provide cooling or heating, while heat recovery can simultaneously provide cooling and heating. Let's discover the VRF solution that will fit your project.Refrigerant: R-410A

Type of outdoor unit: Top discharge

Capacity: 8-26 HP

Handles heating or cooling mode with incredible efficiency and ensures continuous comfort indoors.

  • Compressor type: DC inverter scroll

  • Maximum number of IDU: 64

  • Compatible with all Carrier Indoor Units & Controls

  • Combine up to 104 HP.

  • Advanced black-coated fin technology

    • For enhanced corrosion resistance

    Advanced separator

    • lmproves refrigerant distribution balance

    Anti-liquid shock technology

    • Reduces liquid shock failure rate

    10-stage oil return technology

    • Smooth supply of lubricant

    • Protects the compressor and the system

    High-efficiency outdoor fan and DC inverter stepless fan motor

    Easy access

    • The design of the outdoor unit is optimized to open to 120° allowing complete access to internal components

    One button trial operation

    • Saves up to 10% trial operation time

    Flexible long piping length

    • The Piping can go up to 1000m length and offers a maximum of 110m height difference

    • Easily serves high-rise buildings
