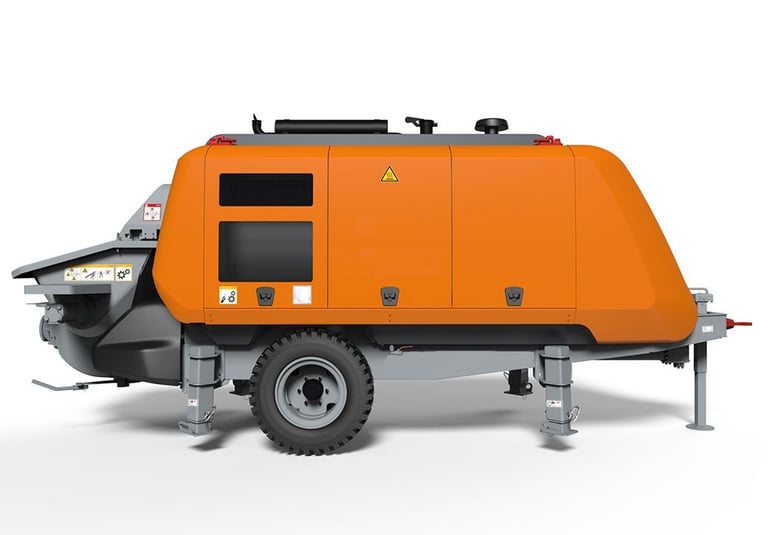

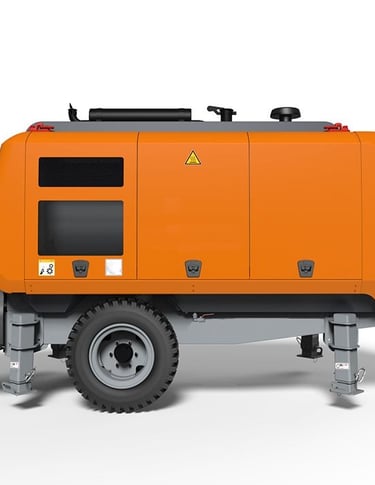

Concrete Pump

The portable concrete pump series provides a comprehensive solution for various job sites, from small projects to large civil works. These pumps are designed for stability, low running costs, and a consistent flow, making them ideal for diverse applications. Each pump comes with a high standard supply and a wide selection of accessories, offering versatility for different environments. Whether working in tunnels or above ground, these models efficiently handle concrete over long distances and at significant heights. The innovative pumping unit boasts resistance, durability, and exceptional performance with all types of concrete, ensuring reliable operation. The main pump features an axial piston, further enhancing its efficiency and effectiveness in concrete pumping and handling tasks. With this range of pumps, operators can tackle any challenge with confidence and ease.

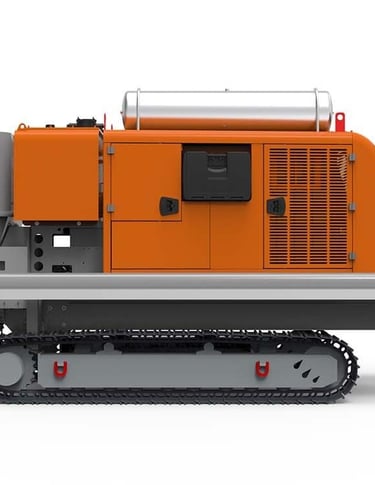

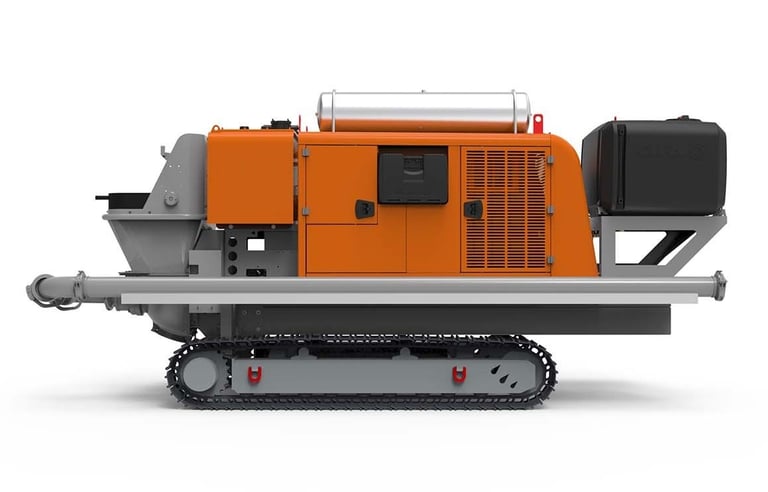

Crawler Concrete Pump ( Large )

Crawler concrete pump

The crawler concrete pump with the latest engine generation can be flexibly manoeuvred and has been specially developed for concrete pile foundations in combination with a drilling rig.

A complete range, whether on small job sites, Concrete pumping or big civil works. In every situation, these pumps offer stability, low running costs and steady flow. All pumps are provided with excellent standard supply, complete with a wide choice of accessories for versatility, making them ideal for every type of jobsite. The portable concrete pump series offers a wide range of

models which satisfy the various needs of concrete pumping and

handling both in tunnels and above ground, over long distances

and at considerable heights original pumping unit

presents characteristics of resistance, long life and exceptional

performances with any type of concrete. The main pump is an axial

piston type with variable flow and constant power; gear pump is used for auxillary

Technical data

‘S’ shaped valve for any type of concrete, with special steel and

different thicknesses

Rapid valve exchange

Ideal operation even at high pressures with continuous and

smooth pumping flow

Automatic wear compensation

Hydraulic system in open circuit

Transformation of the pumping units from high to low pressure

or vice versa

Low noise

Low running costs

Easy maintenance and quick cleaning operations

Machines can work up to -25°

Standard equipment

Maximum flow rate (rod end)

135 m³/h

Maximum concrete pressure (rod end)

55 bar

Pump cycles (rod end)

38 rpm

Total weight

7,700 kg

Engine power

160 kW

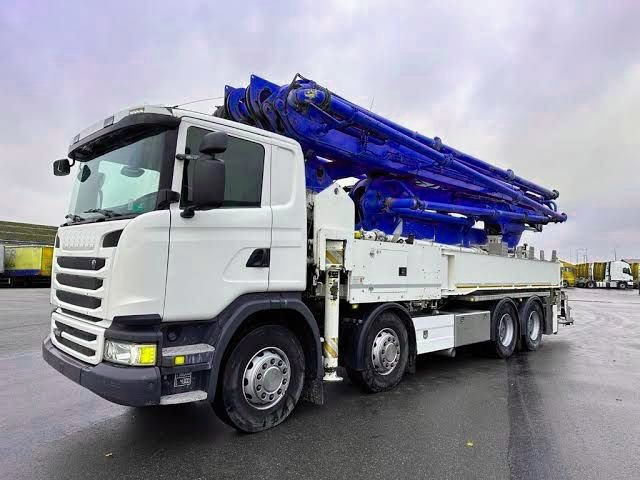

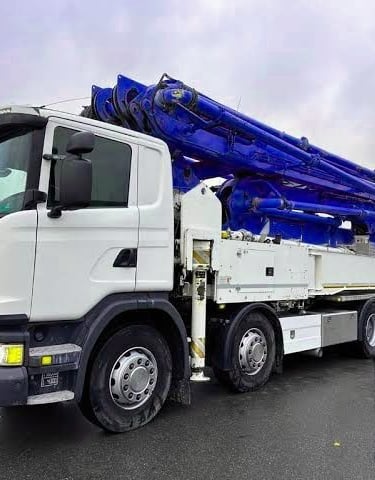

Boom Lift Concrete pump

Long Spa

The compact, low-emission stationary concrete pump

It is a reliable stationary concrete pump ideal for medium-sized construction sites. It is compact, lightweight and easy to transport on the construction site due to its high ground clearance.

Equipped with an open hydraulic system and powered by a 115 kW diesel engine, it has a vertical reach of 100 meters and a horizontal reach of 300 meters. It is designed for concreting work with a maximum capacity of up-to 71 cubic meters per hour and a maximum pressure up-to 106 bar.

Key Features

  • Operator can monitor real time operating status of the machine

  • Machine can be fully operational in case of a failure thanks to reliable fault management

  • Easy access to all machine components for convenient cleaning and maintenance

  • Fewer components and therefore lower service costs

  • S transfer tube designed to withstand difficult concrete mixers and deliver continuous flow of concrete

  • More power transmission provided by closed circuit, free flow-hydraulics

  • Minimal noise during optimized pumping process

  • Emergency switch stops the entire operations of the machine

Technical Details

General Information

  • Output (rod side)

71 m³/hr

  • Output (piston side)

47 m³/hr

  • Delivery Pressure (rod side)

71 bar

  • Delivery Pressure (piston side)

106 bar

  • Strokes (rod side)

27

  • Strokes (piston side)

18

  • Engine Power

115 kW

  • Material Cylinder Diameter-Stroke Length

200/1400 mm

  • Outlet Diameter

125 mm

  • Length x Width x Height

5750 x 2021 x 2371 mm

  • Weight

4300 kg

Electric Concrete pump

The powerful electrically driven concrete pump for tunnel construction and precast plants

all-round concrete trailer pump, powered by a 110 kW engine for medium performance ranges.

Equipped with the sophisticated free-flow hydraulics (FFH) control technology, it can be mounted on railway chassis if required, and is ideal for tunnel construction and precast factory construction.

Features

  • Quiet

  • High-performance

  • Electric driven, no CO² Emission

Technical Details

General Information

  • Output (rod side)

79 m³/hr

  • Output (piston side)

53 m³/hr

  • Delivery Pressure (rod side)

71 bar

  • Delivery Pressure (piston side)

106 bar

  • Strokes (rod side)

30

  • Strokes (piston side)

20

  • Engine Power

110 kW

  • Material Cylinder Diameter-Stroke Length

200/1400 mm

  • Outlet Diameter

125 mm

  • Length x Width x Height

5745 x 2021 x 2146 mm

  • Weight

4600 kg

  • Trailer Type

F8
