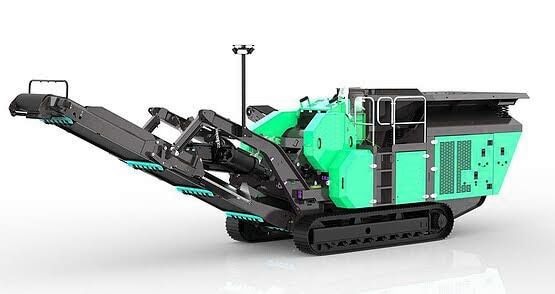

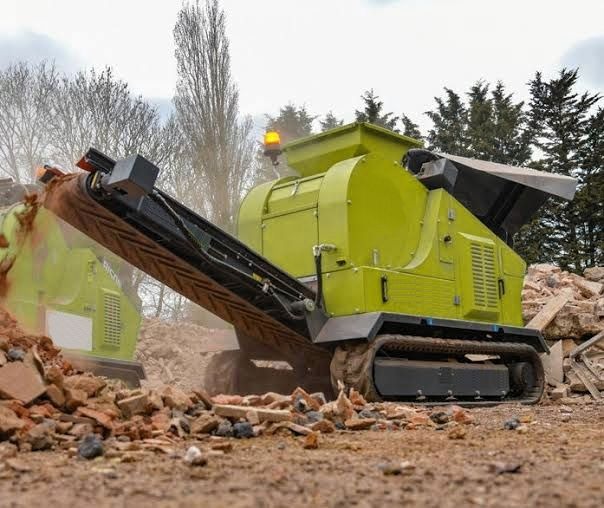

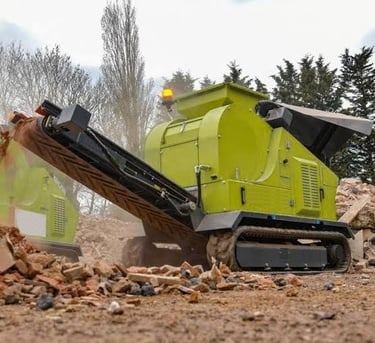

Mobile Crusher

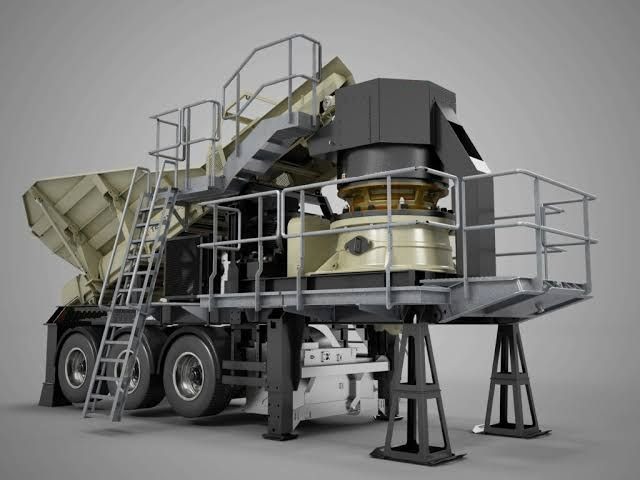

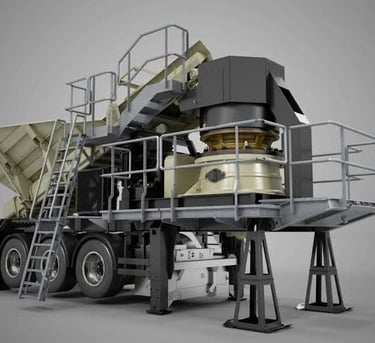

Portable Cone Crushers are complete integrated wheeled processing units, featuring high production Cone Crushers and high capacity 3 or 4 deck screens. The material can be fed by separate conveyor belts from the primary crusher or through a separate feed hopper either to the crusher or screen. Combined with the large vibrating screen for efficient and accurate screening, these units have proven to be the ideal solution for aggregates production and recycling at a low cost per tonne

•

APPLICATIONS

Ideal for applications involving hard, abrasive materials such as gravel, granite, quartzite etc, for the production of high quality aggregates,

sand, heap leaching, industrial minerals and recycling applications and are the optimal choice if you want to move the crushing plant from one site to another periodically.

• High capacity and excellent end product cubicity

• Hydraulic Closed Side Setting System and overload protection for maximum uptime

• Choice of several chambers, throws and settings for a wide range of applications

• Highly efficient and accurate on board screen for product classification

HIGHLIGHTS

• Premium quality components for durability and wear lined impact zones

• Chutes lined with abrasion resistant steel plates

• Frame ensures optimal strength and less maintenance

• Fitted with flap gates to optimize the quality and capacity in different applications

SPECIFICATIONS

SMP 900C-S SMP 1150C-S

SCREEN

Model MS 1540/3 MS 1650/3

Width 1 500 mm 1 600 mm

Length 4 000 mm 5 000 mm

Decks 3 3

Motor Power 15 kW 15 kW

CONE CRUSHER

Model MCH 900 MCH 1150

Maximum Feed Size 130 mm 215 mm

Capacity up to 130 mtph up to 320 mtph

Motor Power 90 kW (50 Hz) 200 kW (50 Hz)

TRANSPORT DIMENSIONS

Length 11 700 mm 13 000 mm

Width 2 800 mm 3 000 mm

Height 4 200 mm 4 300 mm

Weight 32 500 kg 38 000 kg

OPERATING DIMENSIONS

Length 11 200 mm 13 700 mm

Width 3 800 mm 3 900 mm

Height 6 400 mm 6 800 mm

SMP 70 SMP 90 SMP 110C

FEEDER

Model MGF 6530 MGF 0942 MGF 1160

Width 650 mm 900 mm 1 100 mm

Length 3 000 mm 4 200 mm 6 000 mm

Grizzly Length 1 000 mm 1 500 mm 1 400 mm

Grizzly Gap Adjustment 30 - 40 mm 55 - 75 mm 65 mm

Motor Power 2 x 3.2 kW 2 x 6.1 kW 22 kW

Hopper Volume 1.3 m³ 8 m³ 20 m³

JAW CRUSHER

Model MJ 70 MJ 90 MJ 110C

Feeding Opening 700 x 400 mm 900 x 650 mm 1 070 x 770 mm

Maximum Feed Size 320 mm 580 mm 730 mm

Capacity up to 110 mtph up to 200 mtph up to 340 mtph

CSS Range 30 - 100 mm 60 - 150 mm 75 - 210 mm

Motor Power 37 kW (50 Hz) 75 kW (50 Hz) 110 kW (50 Hz)

OVERBELT MAGNETIC SEPARATOR

Magnet Dimensions 500 x 650 mm 750 x 880 mm 900 x 1150 mm

Belt Width 500 mm 650 mm 800 mm

Motor Power 2.2 kW 2.2 kW 2.2 kW

DISCHARGE CONVEYOR

Belt Width 650 mm 800 mm 1 200 mm

Length 6 700 mm 7 000 mm 8 000 mm

Motor Power 5.5 kW 7.5 kW 11 kW

TRANSPORT DIMENSIONS

Length 8 192 mm 12 000 mm 16 210 mm

Width 2 300 mm (with no generator)

2 400 mm (with generator) 2 300 mm 2 970 mm

Height 2 844 mm 3 700 mm 4 150 mm

Weight 13 260 kg (with no generator)

14 940 kg (with generator) 33 000 kg 52 000 kg

OPERATING DIMENSIONS

Length 9 212 mm 12 000 mm 16 210 mm

Width 2 620 mm (with no generator)

2 720 mm (with generator) 3 700 mm 4 190 mm

Height 3 455 mm 4 500 mm 4 720 mm

PORTABLE CONE CRUSHERS

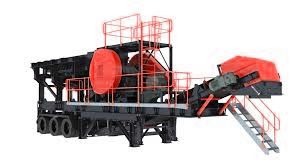

Portable Jaw Crushers are primary crushing units fully assembled on a single trailer frame and mounted on a double or triple axle bogie. Featuring the highly reliable and productive jaw crushers they come complete with feeder, motors, starters, frequency drive and electrical control panel.

APPLICATIONS

Suitable for crushing hard and soft rock, such as granite, basalt, limestone, and as well recycled materials,

portable jaw crushers are the optimal choice if you want to move the crushing plant from one site to another periodically.

They are easily transportable between production sites and often utilized in aggregates production and recycling applications

• Wide Range : To fulfil your primary crushing needs in the aggregates and mining sectors

• Durability : Robust heavy duty chassis frame which is fully assembled on a single trailer and mounted on double or triple axle bogies.

• Effective design : The simple, yet effective design includes many benefits for quick

set-up and ease of maintenance, resulting in more uptime and higher productivity.

• Eco friendly : Low emissions due to electrical operation, minimizing environmental impact

HIGHLIGHTS

• Feed hopper with abrasion resistant liners

• Wire cloth screening element beneath the grizzly feeder to enable the removal of natural fines (Optional)

• Frequency inverter for feeder speed control

• Self contained electrical switchgear cabinet

• 2” / 3 ½” King-pin, double or triple-axle bogie with air-brakes, travel lights, mudflap

SPECIFICATIONS

SMP 70 SMP 90 SMP 110C

FEEDER

Model MGF 6530 MGF 0942 MGF 1160

Width 650 mm 900 mm 1 100 mm

Length 3 000 mm 4 200 mm 6 000 mm

Grizzly Length 1 000 mm 1 500 mm 1 400 mm

Grizzly Gap Adjustment 30 - 40 mm 55 - 75 mm 65 mm

Motor Power 2 x 3.2 kW 2 x 6.1 kW 22 kW

Hopper Volume 1.3 m³ 8 m³ 20 m³

JAW CRUSHER

Model MJ 70 MJ 90 MJ 110C

Feeding Opening 700 x 400 mm 900 x 650 mm 1 070 x 770 mm

Maximum Feed Size 320 mm 580 mm 730 mm

Capacity up to 110 mtph up to 200 mtph up to 340 mtph

CSS Range 30 - 100 mm 60 - 150 mm 75 - 210 mm

Motor Power 37 kW (50 Hz) 75 kW (50 Hz) 110 kW (50 Hz)

OVERBELT MAGNETIC SEPARATOR

Magnet Dimensions 500 x 650 mm 750 x 880 mm 900 x 1150 mm

Belt Width 500 mm 650 mm 800 mm

Motor Power 2.2 kW 2.2 kW 2.2 kW

DISCHARGE CONVEYOR

Belt Width 650 mm 800 mm 1 200 mm

Length 6 700 mm 7 000 mm 8 000 mm

Motor Power 5.5 kW 7.5 kW 11 kW

TRANSPORT DIMENSIONS

Length 8 192 mm 12 000 mm 16 210 mm

Width 2 300 mm (with no generator)

2 400 mm (with generator) 2 300 mm 2 970 mm

Height 2 844 mm 3 700 mm 4 150 mm

Weight 13 260 kg (with no generator)

14 940 kg (with generator) 33 000 kg 52 000 kg

OPERATING DIMENSIONS

Length 9 212 mm 12 000 mm 16 210 mm

Width 2 620 mm (with no generator)

2 720 mm (with generator) 3 700 mm 4 190 mm

Height 3 455 mm 4 500 mm 4 720 mm

PORTABLE JAW CRUSHERS

PORTABLE PRIMARY IMPACT CRUSHERS

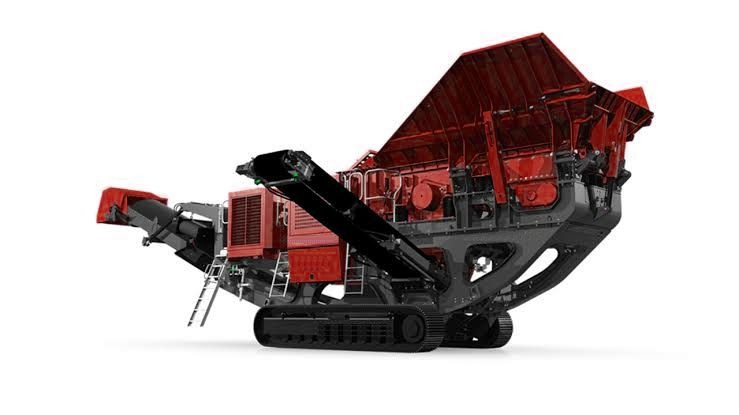

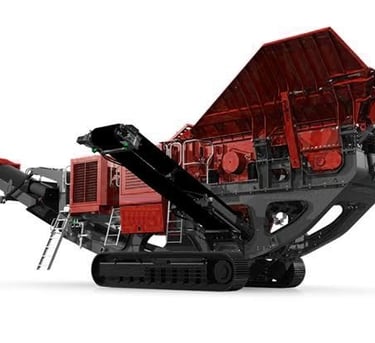

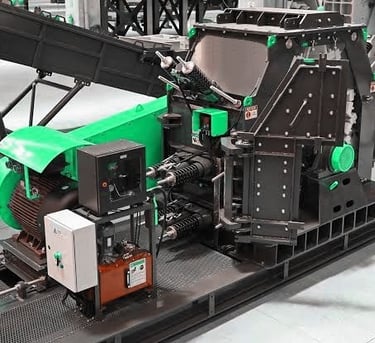

Portable Primary Impact Crushers are wheel-mounted rock crushing machines, engineered for primary crushing applications. MEKA Portable Primary Impact crushers combine the rugged reliability of our impact crushers with the high stroke grizzly feeders for a high production portable primary crushing machine.

APPLICATIONS

Portable Primary Impact Crushing plants are extremely versatile and economical units and have proven their effectiveness in a host of missions

like crushing soft and medium-hard materials such as limestone, low abrasive rocks, for quarrying, cement industry,

concrete and asphalt recycling and are the optimal choice if you want to move the crushing plant from one site to another periodically.

• Stringent output and productivity demands : Heavy duty double breaker plates ensures great reduction ratios, reduced power consumption

• Loading maximized : With large unobstructed feed opening, can be fed with material blocks the size of their feed opening.

• Cubical products : The final shape delivered aims to meet the exacting specifications

for flakiness and elongation required to produce asphalt and concrete products.

• Ease of operation and maintenance : Hydraulically opened frame for impact crusher and hydraulic assist breaker plate adjustment

HIGHLIGHTS

• Modularized abrasion resistant steel liners can be turned for maximum usage

• Wire cloth screening element beneath the grizzly feeder to enable the removal of natural fines (Optional)

• Third breaker plate for higher reduction ratios(Optional)

• Removable electrical control panel can be located on the ground during operation

• 2” / 3 ½” King-pin, double or triple-axle bogie with air-brakes, travel lights, mudflap

SPECIFICATIONS

SMP 1111 SMP 1114

FEEDER

Model MGF 1152 MGF 1460

Width 1 100 mm 1 400 mm

Length 5 200 mm 4 600 mm

Grizzly Length 2 x 1000 mm 2 x 1400 mm

Grizzly Gap Adjustment 40 - 50 - 65 mm 55 - 65 - 95 mm

Motor Power 2 x 10 kW 2 x 14 kW

Hopper Volume 10 m³ 12 m³

PRIMARY IMPACT CRUSHER

Model MPI 1111 MPI 1114

Rotor Dimensions Ø 1 100 x 1 070 mm Ø 1 100 x 1 400 mm

Maximum Feed Size 600 mm 600 mm

Capacity up to 200 mtph up to 350 mtph

Motor Power 160 kW (50 Hz) 200 kW (50 Hz)

DISCHARGE CONVEYOR

Belt Width 800 mm 1 200 mm

Length 9 000 mm 9 000 mm

Motor Power 11 kW 15 kW

TRANSPORT DIMENSIONS

Length 15 800 mm 15 800 mm

Width 2 600 mm 2 900 mm

Height 4 300 mm 4 300 mm

Weight 33 000 kg 38 000 kg

OPERATING DIMENSIONS

Length 15 800 mm 15 800 mm

Width 3 700 mm 4 000 mm

Height 5 600 mm 5 600 mm

PORTABLE PRIMARY IMPACT CRUSHERS

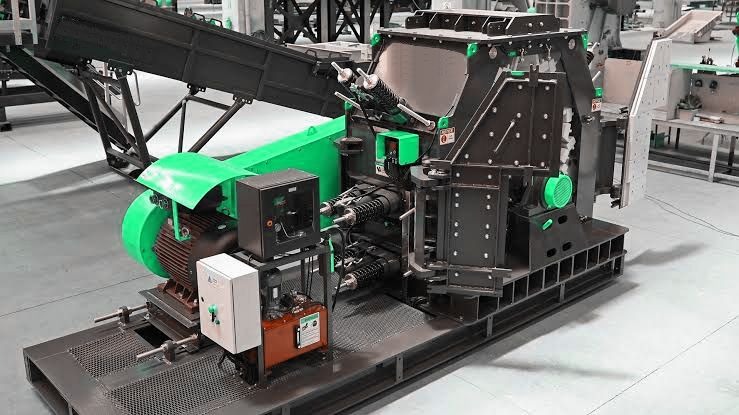

Portable Tertiary Impact Crushers are wheel-mounted rock crushing machines, engineered for tertiary crushing applications. Equipped with a horizontal shaft impact crusher and a feed hopper with belt feeder, it is designed especially for processing soft and medium-hard materials, such as limestone and recycled materials, and ideal for the production of high grade concrete and asphalt aggregate. They can be used in multistage crushing process or as a stand-alone unit crushing pre-crushed material.

•

QUARRIES

• Production of aggregates for concrete and asphalt plants,

• Production of manufactured sand

• Shaping of flaky aggregates to obtain cubical aggregates

INDUSTRIAL MINERALS

• With minimum capital and operational costs

• Excellent particle shape down to micron sizes

• Production of manufactured sand with low filler content

• Large unobstructed feed opening, triple heavy-duty breaker plates

• Simple and easy hydraulic assisted gap adjustment

• Symmetrical design of the crusher, the rotor’s direction of rotation can be reversed.

HIGHLIGHTS

• Application of different grades of wear resistant steel for the blow bars

• Modularized abrasion resistant steel liners can be turned for maximum usage

• Provide simple and efficient operation with soft starter for trouble free operation

• Frequency inverter for feeder speed control in order to provide step less regulation of the feed rate

SPECIFICATIONS

• SMP 1110TI SMP 1115TI

BELT FEEDER

Model SMBF 1060 SMBF 1460

Width 1 000 mm 1 400 mm

Length 6 000 mm 6 000 mm

Motor Power 2 x 5.5 kW 2 x 7,5 kW

Hopper Volume 5 m³ 7 m³

TERTIARY IMPACT CRUSHER

Model MTI 1110 MTI 1115

Rotor Dimensions Ø 1 100 x 1 000 mm Ø 1 100 x 1 500 mm

Maximum Feed Size 150 mm 150 mm

Capacity up to 250 mtph up to 320 mtph

Motor Power 250 kW (50 Hz) 315 kW (50 Hz)

DISCHARGE CONVEYOR

Belt Width 1 000 mm 1 200 mm

Length 7 000 mm 7 000 mm

Motor Power 11 kW 15 kW

TRANSPORT DIMENSIONS

Length 15 500 mm 15 500 mm

Width 2 400 mm 3 000 mm

Height 4 300 mm 4 300 mm

Weight 32 000 kg 38 000 kg

OPERATING DIMENSIONS

Length 13 600 mm 13 600 mm

Width 3 900 mm 4 500 mm

Height 5 100 mm 5 100 mm

PORTABLE TERTIARY IMPACT CRUSHERS

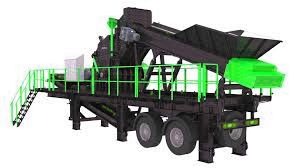

Portable units are built with the secondary impact crushers as the core. Accommodating four-blow bar configuration, these plants offer the adaptability and capacity required to meet high production demands. A large feed opening and a high-performance rotor make these impact crushers well-suited for recycle and aggregate processing applications. With maximum uptime and high production, these plants deliver exceptional performance.

APPLICATIONS

Equipped with a horizontal shaft impact crusher and a feed hopper with belt feeder,

it is designed especially for processing soft and medium-hard materials, such as limestone and recycled materials.

They can be used in multistage crushing process or as a stand-alone unit crushing pre-crushed material.

impact crusher chamber for unrivalled flexibility, performance and ensures high reduction ratios

• Adjustable breaker plates and tip speed enable a wide range of end product gradations to be achieved.

• Frequency inverter for feeder speed control in order to provide step less regulation of the feed rate

• Simple and efficient operation with soft starting crusher for trouble free operation

HIGHLIGHTS

• Designed to reliably produce cubical product shapes.

• Hydraulically adjustable breaker plates

• Modularized abrasion resistant steel liners

• Equipped with two large hydraulic cylinders, to open and close the body halves for ease of maintenance.

• Self contained electrical switchgear cabinet with controls for feeder, crusher and discharge conveyor

SPECIFICATIONS

SMP 1210SI SMP 1312SI SMP 1315SI

BELT FEEDER

Model MBF 1050 MBF 1050 MBF 1450

Width 1 000 mm 1 000 mm 1 400 mm

Length 5 000 mm 5 000 mm 5 000 mm

Motor Power 2 x 5.5 kW 2 x 5.5 kW 2 x 7,5 kW

Hopper Volume 5 m³ 5 m³ 7 m³

SECONDARY IMPACT CRUSHER

Model MSI 1210 MSI 1312 MSI 1315

Rotor Dimensions Ø 1 200 x 1 000 mm Ø 1 300 x 1 200 mm Ø 1 300 x 1 500 mm

Maximum Feed Size 250 mm 350 mm 350 mm

Capacity up to 150 mtph up to 250 mtph up to 350 mtph

Motor Power 160 kW (50 Hz) 200 kW (50 Hz) 315 kW (50 Hz)

DISCHARGE CONVEYOR

Belt Width 800 mm 1 200 mm 1 200 mm

Length 7 000 mm 9 000 mm 9 000 mm

Motor Power 7.5 kW 11 kW 15 kW

TRANSPORT DIMENSIONS

Length 13 500 mm 15 500 mm 15 500 mm

Width 2 400 mm 2 700 mm 3 100 mm

Height 4 300 mm 4 300 mm 4 300 mm

Weight 30 000 kg 37 000 kg 40 000 kg

OPERATING DIMENSIONS

Length 13 600 mm 15 600 mm 15 600 mm

Width 3 700 mm 3 900 mm 4 200 mm

Height 5 200 mm 5 200 mm 5 200 mm

PORTABLE SECONDARY IMPACT CRUSHERS

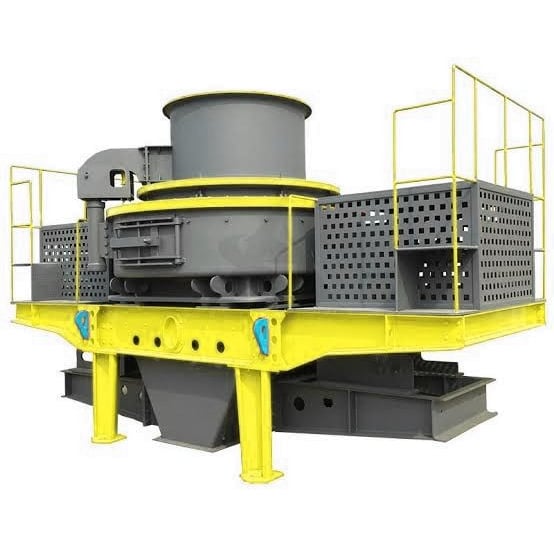

PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH FEEDER

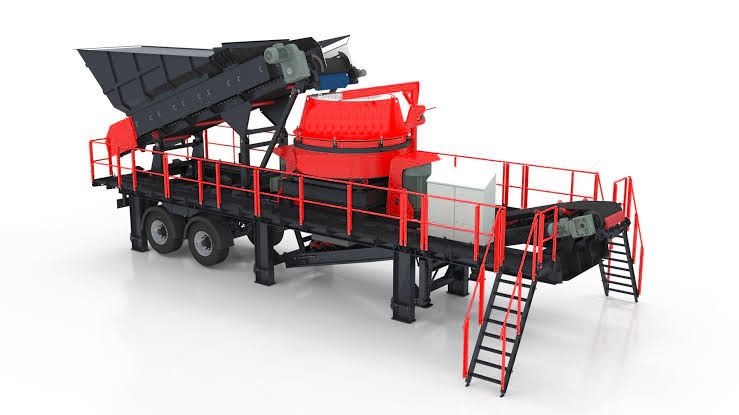

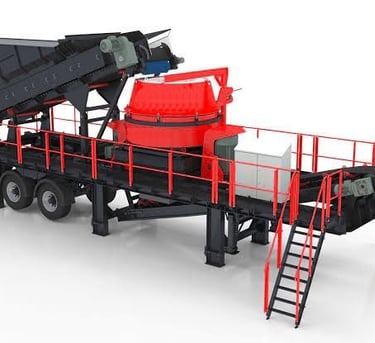

Portable Vertical Shaft Impact Crushers are wheel-mounted rock crushing machines, engineered for tertiary or quaternary crushing applications. Equipped with a vertical shaft impact crusher and a feed hopper with belt feeder, it is used in the last stage of a multistage crushing process or as a stand-alone unit processing pre-crushed material.

APPLICATIONS

VSI crushers are usually applied in the last phase of the crushing circuit.

The quarrying and construction industry has always been main application area with many units operating around the world,

followed by many demanding manufactured sand, heap leaching, pre-grinding, industrial minerals and recycling applications

• Proven producer of premium quality VSI crushers

• Highest quality end products, the more cubical your product, the better its performance in concrete, asphalt and base mixtures.

• Feed hopper and belt feeder with frequency inverter providing the desired, continuous feed rate to crusher

• Fast and convenient way to move from site to site on wheels

HIGHLIGHTS

• Heavy duty chassis beams, strength analysis on structural parts and quality components for durability

• A number of sensors at different key locations to ensure a trouble free operation and prevent costly breakdowns

• Fully replaceable bolt on liners

• Central lubrication system optimises bearing greasing and reduces the number of servicing interventions.

SPECIFICATIONS

SMP 70G-F SMP 90G-F

BELT FEEDER

Model MBF 6550 MBF 1060

Width 650 mm 1 000 mm

Length 5 000 mm 6 000 mm

Motor Power 2 x 4 kW 2 x 5.5 kW

Hopper Volume 6 m³ 10 m³

VERTICAL SHAFT IMPACT CRUSHER

Model MVI 70 MVI 90

Rotor Dimensions Ø 700 mm Ø 900 mm

Maximum Feed Size 45 mm 45 mm

Capacity up to 150 mtph up to 300 mtph

Motor Power 2 x 110 kW (50 Hz) 2 x 200 kW (50 Hz)

DISCHARGE CONVEYOR

Belt Width 650 mm 1 000 mm

Length 7 000 mm 7 000 mm

Motor Power 5.5 kW 11 kW

TRANSPORT DIMENSIONS

Length 13 300 mm 14 300 mm

Width 2 500 mm 3 000 mm

Height 4 100 mm 4 300 mm

Weight 26 000 kg 34 000 kg

OPERATING DIMENSIONS

Length 13 100 mm 14 100 mm

Width 3 400 mm 3 900 mm

Height 5 500 mm 5 900 mm

PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH FEEDER

The efficient and versatile design of portable vertical shaft impactor plants deliver highly-consistent end products for jobs that demand precision. Combining VSI crusher with a big screen into the same advanced chassis makes it possible to design a perfectly balanced solution that is easy to move. The advanced design rotor comes standard with the plant to keep your production consistent and lengthen the lifetime of the wear parts.

APPLICATIONS

These plants provide exceptional minerals beneficiation capabilities and have proven

their effectiveness in a host of missions such as production of high quality manufactured sand, heap leaching, pre-grinding,

industrial minerals and recycling applications and are the optimal choice if you want to move the crushing plant from one site to another periodically

• Produces cubical-shaped end products at a consistent quality using rock-to-rock crushing action

• Rotor design enable consistent material flow and high throughput

• Highly efficient on board screen for product classification

• Minimized wear part costs

HIGHLIGHTS

• Cascade feed system to introduce a second stream of material, in a controlled quantity, into the crushing chamber turbulence

• Removable electrical control panel can be located on the ground during operation

• Feed box with externally adjustable feed tube

• Lid lifter assembly lifts the crusher lid for 360-degrees of internal crusher viewing and maintenance.

SPECIFICATIONS

SMP 70G-S SMP 90G-S

BELT FEEDER

Model MBF 6550 MBF 1060

Width 650 mm 1 000 mm

Length 5 000 mm 6 000 mm

Motor Power 2 x 4 kW 2 x 5.5 kW

Hopper Volume 6 m³ 10 m³

VERTICAL SHAFT IMPACT CRUSHER

Model MVI 70 MVI 90

Rotor Dimensions Ø 700 mm Ø 900 mm

Maximum Feed Size 45 mm 45 mm

Capacity up to 150 mtph up to 300 mtph

Motor Power 2 x 110 kW (50 Hz) 2 x 200 kW (50 Hz)

DISCHARGE CONVEYOR

Belt Width 650 mm 1 000 mm

Length 7 000 mm 7 000 mm

Motor Power 5.5 kW 11 kW

TRANSPORT DIMENSIONS

Length 13 300 mm 14 300 mm

Width 2 500 mm 3 000 mm

Height 4 100 mm 4 300 mm

Weight 26 000 kg 34 000 kg

OPERATING DIMENSIONS

Length 13 100 mm 14 100 mm

Width 3 400 mm 3 900 mm

Height 5 500 mm 5 900 mm

PORTABLE VERTICAL IMPACT (VSI) CRUSHERS WITH SCREEN

Portable Impact Crushing plants are wheel-mounted rock crushing machines, engineered to operate as a complete stand-alone closed-circuit unit with two or three products capability. Featuring the grizzly feeder, highly reliable and productive Impactor for primary crushing, closed circuit belt conveyors for excellent feed to the screen, it offers a highly versatile, high end capacity plant capable of processing cubical products at a low cost-per-tonne operation

APPLICATIONS

This plant is an extremely versatile and economical unit and has proven it’s effectiveness in a host of missions like crushing

soft and medium-hard materials such as limestone, low abrasive rocks, for quarrying, concrete and asphalt recycling and are the optimal

choice if you want to move the crushing plant from one site to another periodically. They are easily transportable between production

sites and often utilized in aggregates production and recycling applications.

• Efficient fines removal : By-pass chute to divert grizzly fines to discharge or optional reject cross conveyor for removing of fines, thereby maximizing throughput and reducing wear

• Maximized loading : With large unobstructed feed opening, crusher can be fed with material blocks the size of their feed opening.

• Versatality : Highly efficient and accurate on board 2 or 3 deck screen for product classification, fitted with flap gates to optimize the quality and capacity in different applications

• Ease of operation and maintenance : Quick and easy replacement of wear parts, which keeps your equipment productive with minimal downtime

HIGHLIGHTS

• Wire cloth screening element beneath the grizzly feeder to enable the removal of natural fines (Optional)

• Third breaker plate for higher reduction ratios(Optional)

• Self contained electrical switchgear cabinet with controls for feeder with variable frequency drive, crusher soft-starter, all on-plant conveyors, screen

• Quick road transportation thanks to king pin arrangement

SPECIFICATIONS

SMP 1111-S SMP 1114-S

FEEDER

Model MGF 1152 MGF 1460

Width 1 100 mm 1 400 mm

Length 5 200 mm 6 000 mm

Grizzly Length 2 x 1000 mm 2 x 1400 mm

Grizzly Gap Adjustment 40 - 50 - 65 mm 55 - 65 - 95 mm

Motor Power 2 x 10 kW 2 x 14 kW

Hopper Volume 10 m³ 12 m³

PRIMARY IMPACT CRUSHER

Model MPI 1111 MPI 1114

Rotor Dimensions Ø 1 100 x 1 070 mm Ø 1 100 x 1 400 mm

Maximum Feed Size 600 mm 600 mm

Capacity up to 200 mtph up to 350 mtph

Motor Power 160 kW (50 Hz) 200 kW (50 Hz)

SCREEN

Model MS 1650/2 MS 2050/2

Width 1 600 mm 2 000 mm

Length 5 000 mm 5 000 mm

Decks 2 2

Motor Power 15 kW 15 kW

UNDER CRUSHER CONVEYOR

Belt Width 800 mm 1200 mm

Length 14 000 mm 14 000 mm

Motor Power 15 kW 18,5 kW

SCREEN BOTTOM CHUTE CONVEYOR

Belt Width 1 400 mm 1 600 mm

Length 5 000 mm 5 000 mm

Motor Power 2 x 4 kW 2 x 5.5 kW

CROSS CONVEYORS

Belt Width 650 mm 800 mm

Length 2 500 mm 3 000 mm

Motor Power 4 kW 5.5 kW

RETURN CONVEYOR

Belt Width 650 mm 650 mm

Length 13 000 mm 13 000 mm

Motor Power 11 kW 11 kW

TRANSPORT DIMENSIONS

Length 20 200 mm 20 200 mm

Width 3 400 mm 3 600 mm

Height 4 300 mm 4 300 mm

Weight 56 000 kg 65 000 kg

OPERATING DIMENSIONS

Length 20 000 mm 20 000 mm

Width 5 200 mm 5 600 mm

Height 5 800 mm 5 800 mm

PORTABLE IMPACT CRUSHING PLANTS
