Solar Module Systems
Development Of Modern Technology And The Reduction Of Costs, Solar Energy Becomes Increasingly Affordable, And It Has Become One Of The Most Important Alternatives To Fossil Energy. The Residential Photovoltaic Intelligent Charging & Storage System Generates Power In The Same Way As A Common Grid-Tie Solar System But Uses Special Hybrid Inverters And Batteries To Store Energy For Later Use, Such As Ac Chargers Or Other Household Loads.Complete End-To-End Solutions Including Complete Engineering, Procurement And Construction (Epc) Services For Our Customers Seeking To Build Solar Power Plants In India And Beyond. Extremely Quick Project Completion Times And Industry High Generation Levels Are Reflective Of The High Quality Benchmarks Set By Triumphs Electrics In India’s Solar Photovoltaic Space. Our World-Class Project Management Teams Ensure We Complete The Project In The Fastest Possible Time-Period Without Compromising On Quality.
Mono Perc
Monocrystalline solar panels built with next generation PERC cell technology that promises better performance as compared to the standard PV modules. The PERC architecture improve light capture near the rear surface. The rear side of mono PERC solar panel cell has a dielectric layer that reflects the sunlight back to the cell , which might have otherwise passed through the cell without releasing an electron. This way the photon gets an opportunity to generate more electrons thus increasing electric current and efficiency.
50W Mono PERC Solar PV Module
No. Of Cells : 36 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 17.50% Dimension (LxWxH) : 430x665x30 Weight : 4.5 kg Maximum series fuse ratings : 15A
75W Mono PERC Solar Pv Module
No. Of Cells : 32 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 17.80% Dimension (LxWxH) : 830x770x60 mm Weight : 7 kg
100W Mono PERC Solar Pv Module
No. Of Cells : 36 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 18.40% Dimension (LxWxH) : 775x665x30 mm Weight : 6.8 kg
125W Mono PERC Solar Pv Module
No. Of Cells : 36 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 18.60% Dimension (LxWxH) : 1010x665x30 mm Weight : 8.5 kg Maximum series fuse ratings : 15A
200W Mono PERC Solar Pv Module No. Of Cells : 36 Cells - 5BB Voltage : 12 V Maximum System Voltage : 1000 V DC Module Efficiency : 18.70% Dimension (LxWxH) : 1490x665x30 mm Weight : 11.6 kg Maximum series fuse ratings : 15A
335W Mono PERC Solar Pv Modules
No. Of Cells : 60 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 20.50% Dimension (LxWxH) : 1640x990x35/40 mm Weight : 18.5 kg Maximum series fuse ratings : 30 A
400W Mono PERC Solar Pv Module
No. Of Cells : 72 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 20.50% Dimension (LxWxH) : 1985x1000x35/40 mm Weight : 20.5 kg Maximum series fuse ratings : 30 A

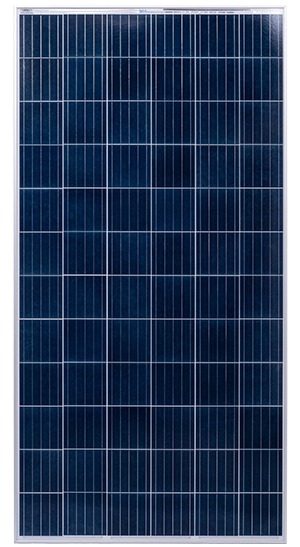

Polycrystalline
Polycrystalline Solar Panels built with precision and high quality raw materials to offer you high quality solar photovoltaic panels for your homes, and large scale solar projects. With our cutting- edge manufacturing and advanced technology, we produce reliable solar PV modules to cater to multiple customer segments in both domestic and international markets. Polycrystalline Solar Panels are more eco-friendly as the manufacturing of polycrystalline solar cells is less wasteful. Hence they are more economical for the customer. suitable for roof mounted arrays. They are used in large solar farms to harness the power of the sun at economical price and supply electricity to nearby areas.
40W Polycrystalline Solar Pv Modules
No. Of Cells : 36 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 14.00% Dimension (LxWxH) : 430x665x30 mm Weight : 4.5 Kg Maximum series fuse ratings : 10A
50W Polycrystalline Solar Pv Modules
No. Of Cells : 32 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 14.10% Dimension (LxWxH) : 505x665x30 mm Weight : 5.5 kg Maximum series fuse ratings : 10A
75W Polycrystalline Solar Pv Modules
No. Of Cells : 32 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 14.40% Dimension (LxWxH) : 775x665x30 mm Weight : 6.8 kg Maximum series fuse ratings : 10A
100W Polycrystalline Solar Pv Modules
No. Of Cells : 32 Cut Cells - 5BB Voltage : 12 V Maximum System Voltage : 600/1000 V DC Module Efficiency : 15.25% Dimension (LxWxH) : 1010x665x30 mm Weight : 8.5 kg Maximum series fuse ratings : 10A
150W Polycrystalline Solar Pv Modules
No. Of Cells : 32 Cells - 5BB Voltage : 12 V Maximum System Voltage : 1000 V DC Module Efficiency : 15.00% Dimension (LxWxH) : 1490x665x30 mm Weight : 11.6 kg
165W Polycrystalline Solar Pv Modules
No. Of Cells : 36 Cells - 5BB Voltage : 12 V Maximum System Voltage : 1000 V DC Module Efficiency : 15.20% Dimension (LxWxH) : 1490x665x30 mm Weight : 11.6 kg
250W Polycrystalline Solar Pv Modules
No. Of Cells : 54 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 16.30% Dimension (LxWxH) : 1640x990x35/40 mm Weight : 18.5 kg
275W Polycrystalline Solar Pv Modules
No. Of Cells : 60 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 17.00% Dimension (LxWxH) : 1640x990x35/40 mm Weight : 18.5 kg Maximum series fuse ratings : 30A
300W Polycrystalline Solar Pv Modules
No. Of Cells : 66 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 16.70% Dimension (LxWxH) : 1960x990x35/40 mm Weight : 20.5 kg
335W Polycrystalline Solar Pv Modules
No. Of Cells : 72 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 17.20% Dimension (LxWxH) : 1960x990x35/40 mm Weight : 20.5 kg Maximum series fuse ratings : 30
340W Polycrystalline Solar Pv Modules
No. Of Cells : 72 Cells - 5BB Voltage : 24 V Maximum System Voltage : 1000/1500 V DC Module Efficiency : 17.40% Dimension (LxWxH) : 1960x990x35/40 mm Weight : 20.5 kg

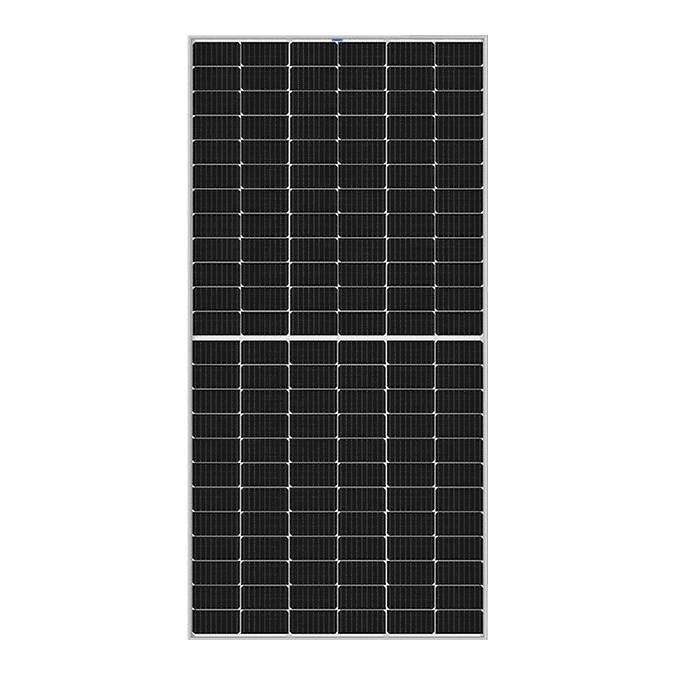

Half Cut Mono
High-efficiency and more powerful Solar panels Solar decided to introduce Half-cut technology-based solar panels to its product portfolio. In half-cut technology, the solar panel is split into two halves to let the top and bottom portions operate as two separate panels, thus generating sufficient energy even if one half gets shaded. The traditional Monocrystalline or Mono PERCsolar panels have 60 to 72 solar cells, but in the case of half-cut solar panels, the cells are cut in two halves to increase the number of cells to 120 to 144 cells. Cutting the cells into half reduces resistive losses, thus increasing module efficiency and giving more wattage.
535W Half-Cut Mono Solar P v Modules
No. Of Cells : 144 Cells - M10 Voltage : 24 V Maximum System Voltage : 1500/1000 V DC Module Efficiency : 20.73% Dimension (LxWxH) : 2278x1133x40/35 mm Weight : 28 kg Maximum series fuse ratings : 25A
540W Half-Cut Mono Solar P v Module
No. Of Cells : 144 Cells - M10 Voltage : 24 V Maximum System Voltage : 1500/1000 V DC Module Efficiency : 20.92% Dimension (LxWxH) : 2278x1133x35/40 mm Weight : 28 kg Maximum series fuse ratings : 25A
545W Half-Cut Mono Solar P v Module
No. Of Cells : 144 Cells - M10 Voltage : 24 V Maximum System Voltage : 1500/1000 V DC Module Efficiency : 21.12% Dimension (LxWxH) : 2278x1133x35/40 mm Weight : 28 kg Maximum series fuse ratings : 25A
550W Half-Cut Mono Solar P v Module
No. Of Cells : 144 Cells - M10 Voltage : 24 V Maximum System Voltage : 1500/1000 V DC Module Efficiency : 21.31% Dimension (LxWxH) : 2278x1133x35/40 mm Weight : 28 kg Maximum series fuse ratings : 25A
Electricity demand rising over the past decade, many people are now realizing the benefits of going solar: clean, renewable energy, at a fraction of the price that utility companies charge to use power from the grid. For areas with unstable electricity and high electricity prices, it provides more opportunities for the development of residential energy storage systems. It can not only improve energy efficiency, but also reduce the impact on the grid and increase residents' income.With electricity demand rising over the past decade, many people are now realizing the benefits of going solar: clean, renewable energy, at a fraction of the price that utility companies charge to use power from the grid. For areas with unstable electricity and high electricity prices, it provides more opportunities for the development of residential energy storage systems. It can not only improve energy efficiency, but also reduce the impact on the grid and increase residents' income..
Homes And Small Business
Input 80-500 V 1 KVA 1200 Wp 2 KVA 2300 Wp 3 KVA 3500 Wp 4 KVA 4600 Wp 5 KVA 5800 Wp
Retail Office And Farm House
Input 160- 1000v 2 KVA -2000Wp 3 KVA -3000Wp 5 KVA - 5400Wp
Commercial and Industries
Input - 160- 1000v 6 KVA - 7200Wp 8 KVA - 9600Wp 10 KVA - 12000Wp 12 KVA - 14000Wp 15 KVA - 18000Wp 20 KVA - 24 000Wp

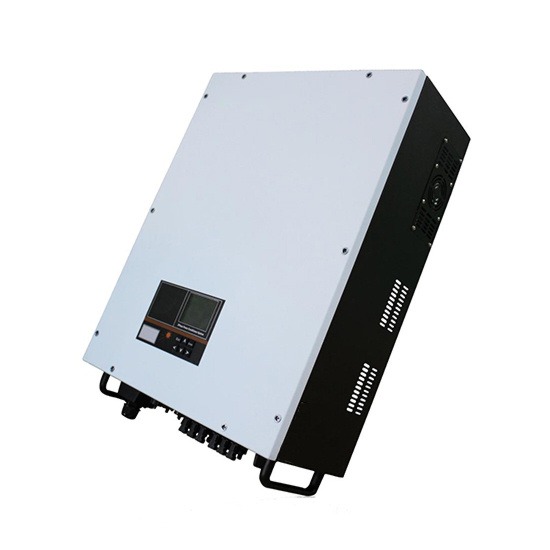

On Grid Invertor
Off Grid Invertor
OFF-Grid inverter is particularly designed for off-grid power system with high efficiency up to 85%. The excellent overload capacity and complete protection are suitable for all sorts of electrical appliances. The inverter can be used in harsh environments e.g. wide temperature range, high altitude, etc. This series can be applied for solar lighting, remote communication base, high way monitoring system, custom system of pastoral areas and less developed areas, etc.off-grid inverter adopts integrated design of solar controller, inverter and isolated transformer. The controller adopts MPPT technology and intelligent battery management design which is very efficient and smart; integrated pure sine wave inverter and low frequency isolated transformer make it with excellent overload performance, suitable for a variety of electrical appliances
Homes And Small Business
Input 90 -290V 500VA -500Wp 850VA -850Wp 1100VA-1100Wp 1500VA-1500Wp 2000VA -2000Wp
Retail Office And Farm House Input 72-120V 2 KVA -2000Wp 3 KVA -3000Wp 5 KVA - 5400Wp
Commercial and Industries
Input - 200-800v 25 KVA -28000Wp 30KVA -34000Wp 50 KVA - 55000Wp
Hybrid Grid Invertor
Hybrid inverter range from Luminous is a combination of an on-grid and off-grid solar system which makes this inverter more versatile than other solar inverters helping in lowering your electricity bills and protecting from power outages. It can easily work without grid, store electricity in batteries as well as export excess electricity generated to the grid. MPPT Charge Controller MPPTs to extract up to 30% more power from the panels, minimizing impact of shading and increasing efficiency. Priority Setting Allows users flexibility to set priority settings based on their requirement of maximum energy saving, power backup only during power cut and power backup through battery in areas where grid supply is not available.
Rated AC power - 230V (single phase) Max Supported Panel Power - 3000 Wp, Input Voltage Range (Vmp) – 65V-130V Charge Controller - MPPT, Input Voltage Range (Voc)- 65V-165V Nominal Battery Bank Voltage - 48V BIS certified solar inverter Real time remote monitoring Anti-islanding protection to ensure safety of line workers Inbuilt MPPT charge controller to maximize solar generation from solar panels Inbuilt isolation transformer to protect from grid surges and noise User selectable source priority: Choose source priority among SBG, SGB, Solar Only and Grid Feed mode MCB protection against short circuit protection User friendly Informative LCD Display along with LED indications In-built zero export function Pure sine wave output for better performance & safety of connected loads Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery overload, etc.
Retail Office And Farm House Input 36-60 v
2 KVA -2000Wp 3 KVA -3000Wp 5 KVA - 5400Wp
Commercial and Industries
Input - 48-120v
6 KVA - 7200Wp 8 KVA - 9600Wp 10 KVA - 12000Wp 12 KVA - 14000Wp 15 KVA - 18000Wp 20 KVA - 24 000Wp
