Automated Guided Vehicle
Automated Guided Vehicles (AGV) Are Playing An Increasingly Important Role In Modern Intra Logistics. The Term Stands For An Overall System, Which Comprises Automated Guided Vehicles (AGV ), A Master Control, Units For Data Communication And Loading Stations. Automated Guided Vehicles Have A Wide Range Of Uses. The Focus Is On Their Role Of Transporting Goods From A To B Without Human Intervention, Thus Taking Over From The Non-Value-Adding Transport .As Part Of An Automated Guided Vehicle, Driverless Trucks Need To Move Quickly And Safely Through The Warehouse Environment .Any Type Of Industrial Truck Known In Manual Operation Can Be Used In An AGV. This Includes Autonomous Tractors, Pallet Stackers, Counterbalanced Forklift Trucks, Reach Trucks, And Very Narrow Aisle Trucks. Automated Platform Trucks Are Also Incredibly Efficient, Especially In Very Tight Spaces. They Can Lift And Set Down Load Carriers Directly From A Transfer Station Or Together With Trolleys That Can Be Driven Under.

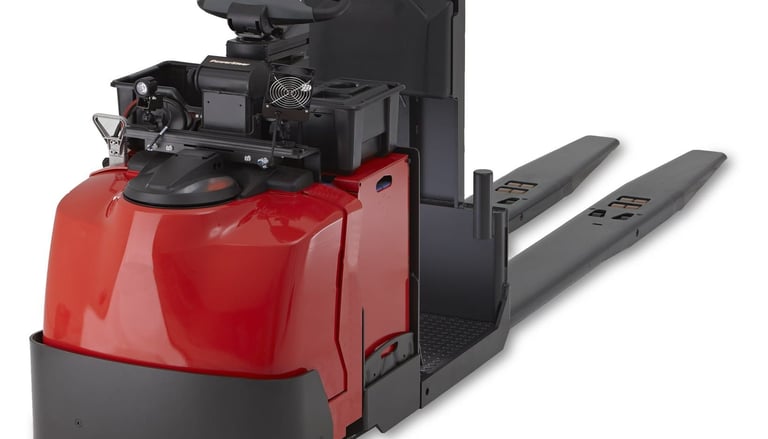

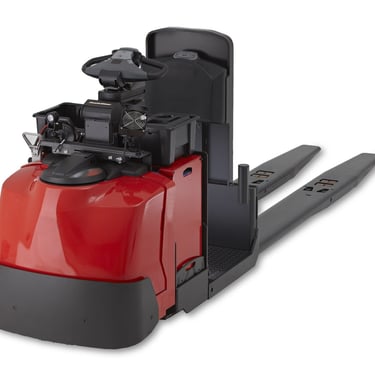

AGV Pallet Stacker Light Load
Pallet stacker is suitable for storage or removals at low level. It tackles loads of up to 1,200 kg and lift heights up to 1.9 meters. Thanks to infrastructure free natural feature navigation, can be used flexibly as an individual truck or as part of an automated fleet. When operating in this manner, the robotic forklift is able to integrate safely and efficiently with people, non-automated trucks or the customer’s infrastructure, such as belt conveyors or packing stations. Furthermore, manual operation is possible at any time, used to, for example, move the equipment away from a dangerous zone quickly in the event of an emergency, or to use the truck to carry out another short-term task.
Features
Thanks to the comprehensive laser and camera-supported safety equipment, the monitors its working surroundings and reacts reliably should people, other trucks, or any other hazards obstruct the movement or work processes, the system adapts the zones being monitored to the travel speed and steering angle. Several emergency stop buttons, as well as various acoustic and visual warning signals complement the safety characteristics of the.
All round observation of the working environment
Combined safety technology with lasers and cameras
Acoustic and visual warning systems
Technical Data
Model : EAG 12
Load capacity/ 1.2 / (2.0) (t)
Load Lift:
Battery voltage/rated capacity (5h)
Travel speed, with/without load
1924 (mm)
24 / 375 (V)/(Ah) o. kWh
6/6 (max. 7.2/2.9) km/h

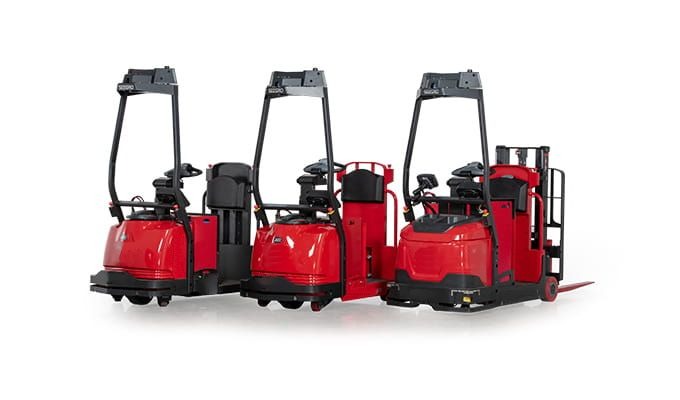

AGV Pallet Stacker Medium Load
Automated Pallet Stacker Is Ideally Suited For The Storage And Retrieval Of Euro And Industrial Pallets In Wide-Aisle Warehouses And As An In Feed Truck For Narrow-Aisle Applications. The Truck Is Available To Lift Loads Of Up To 1,600 Kilograms And Reach Lift Heights Of Up To 3.5 Meters. The Combination Of Powerful Hardware And Intelligent Software Results In Significant Performance Benefits. A Wide Array Of Sensors For Load And Environment Detection Ensure High Process Reliability. Various Localization Procedures Ensure That The Trucks Can Be Optimally Adapted To The Processes On Site. The Comprehensive Safety
Concept Protects The Load, Trucks And The Environment. Both Trucks Are Available With Either Lead-Acid Batteries Or Lithium-Ion Batteries. They Are Designed For 24/7 Operation And Automatically Seek Out The Charging Station When Their Charge Level Is Low.
Technical Data
Model Load Capacity/Load Lift Battery Voltage/Rated Capacity (5h) Turning Radius Travel Speed, With/Without Load
16 HD 1.6 (T) 2844 (Mm) 24 / 375 (V)/(Ah) O. Kwh 1744 (Mm) 7.2 / 7.2 Km/H
16 HD 1.6 (T) 2344 (Mm) 24 / 375 (V)/(Ah) O. Kwh 1712 (Mm) 6.1 / 6.1 (6 / 6) Km/H

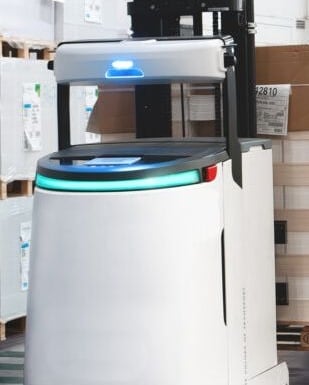

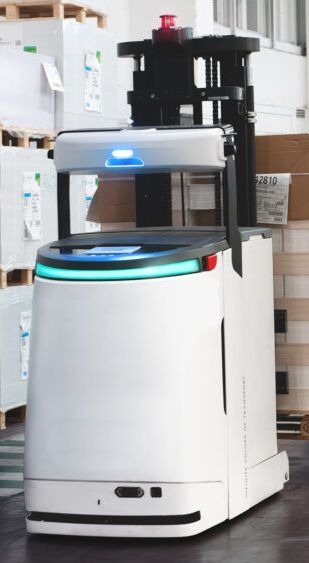

AGV Pallet Stacker High Load
Automated Stacker High mast
Autonomously driven turret truck is suitable for loads of up to 1,450 kg and lift heights of up to 14 meters (16 meters on request). The intelligent natural feature navigation system guides the safely without additional infrastructure, such as laser reflectors, and is compatible with all common narrow aisle applications. Whether as an individual forklift carrying out defined process steps, or as part of a centrally controlled fleet of automated trucks, the superior functionality of the provides high handling performance, even for complex operating requirements. When doing so, the truck interacts seamlessly with the customer's infrastructure, such as conveyors or transfer stations. As an automated logistics truck, it causes less damage to loads and pallets compared to manual use and is particularly well-suited to the handling of high-value goods. Quick and easy to maintain, the automated truck can be relied upon to be ready for use round-the-clock and can also be operated manually by a driver.
Technical Data
Model Load capacity/Load Lift Battery voltage/rated capacity (5h) Travel speed, with/without load
low lift 1.45 (t) 7200 (6800) (mm) 80 / 700 (V)/(Ah) o. kWh 7.2 / 7.2 km/h
medium lift 1.45 (t) 11550 (11150) (mm) 80 / 840 (V)/(Ah) o. kWh 7.2 / 7.2 km/h
high lift 1.45 (t) 14350 (13950) (mm) 80 / 840 (V)/(Ah) o. kWh 7.2 / 7.2 km/h
