Mini Excavator
Our smallest machines are engineered for remarkable agility and strength, allowing them to deftly navigate tight spaces, urban environments, and indoor job sites. Despite their compact size, these electric mini excavators provide impressive power that rivals larger models, making them ideal for a variety of tasks such as landscaping, utility work, and confined construction projects. With zero emissions, they offer not only powerful performance but also an eco-friendly solution for today’s construction needs. Designed for operators’ comfort, our 0-1t mini excavators come equipped with a ROPS canopy, a cushioned seat, and adjustable armrests, ensuring all-day comfort without compromising on capability. Embrace the future of excavation and achieve more while contributing to a cleaner environment!
Electric Mini Excavator
Our smallest machines are incredibly nimble and powerful, easily maneuvering through tight spaces, urban areas, and indoor sites. Despite their small size, they deliver impressive power, rivaling that of larger competitors, making them perfect for everything from landscaping and utility work to confined construction sites.Enjoy zero emissions and powerful performance with electric mini excavator! Ideal for tight spaces and quiet operation, these machines combine strength with eco-friendly efficiency. Achieve more and empower your work with the future of excavation! Enjoy all-day comfort with our 0-1t mini excavators, featuring a ROPS canopy, a cushioned seat, and adjustable armrests. With these ergonomic enhancements, you can work comfortably and efficiently until the job is done.
• Electrical system
Battery type Lithium-ion
Charging time 1.25 hours
Battery voltage 400 V
Battery capacity (full package) 39.4 kWh / 112.6 Ah
Indicative runtime (depending on application) 2 hours
Auxiliary battery voltage 12 V
Auxiliary battery capacity 24 Ah
• Bucket and arm digging force
Bucket digging force ISO 36.9 kN
Arm crowd force ISO 21.0 kN
• Specifications
Operating weight (kg) 5330 kg
Max. digging depth (mm) 3 830 m
Bucket digging force (kN) ISO 36.9 kN
• Operating weight and ground pressure
Shoe type Rubber shoe
Shoe width 400 mm
Arm length 1.69 m
Bucket weight 115 kg
• Working ranges
Arm length 1.69 m
Max. digging reach 6 260 m
Max. digging depth 3 830 m
Max. dumping height 4 310 m
Dimensions
Undercarriage length 2 500 mm
Overall width of upperstructure 1 850 mm
Overall height of cab 2 530 mm
Mini Excavator
Long Spa

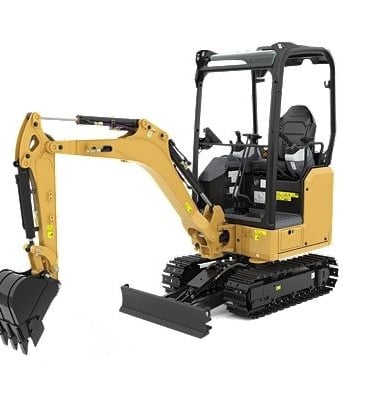

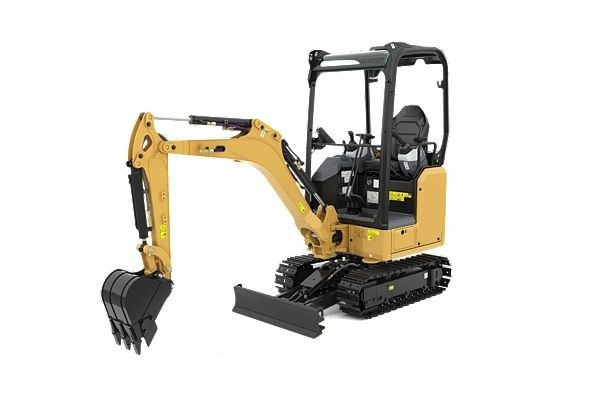

The one-ton is smallest mini excavator in our range and is the perfect fit for a wide range of applications including housing foundations, indoor renovation, utilities and landscaping. It’s user-friendly, easy to maintain, and delivers a powerful performance in confined spaces.
Easy to transport
It is exceptionally versatile, thanks to its compact size and short-tail swing radius, and adjustable undercarriage and blade, which also makes it easy to transport from one job site to another. Equipped with a three-cylinder engine, it can perform tough excavation jobs and is easy to operate due to the hydraulic pilot control levers. Operators can easily access and store the manual securely in a lockable compartment. Maintenance is quick and easy using the hinged seat, and wide-opening cover and handles to access the engine.
BENEFITS
Discover the benefits
• Excellent efficiency with two travel speeds that enable to move smoothly around the site.
• Safety is enhanced with the sliding seat, relocated seatbelt, and seat reclining stopper.
• Powerful performance due to a three-cylinder engine for challenging excavation tasks.
• Convenient access to the engine makes maintenance quick and easy.
Specifications for the Mini- Excavator
• Specifications
Engine Rated Power (kW) 9.9 kW (ISO14396)
Operating weight (kg) 1 210 kg
Backhoe Bucket ISO Heaped 0.018 - 0.024 m3
Max. digging depth (mm) 1 780
Bucket digging force (kN) ISO 11.7
