WASHING PLANT

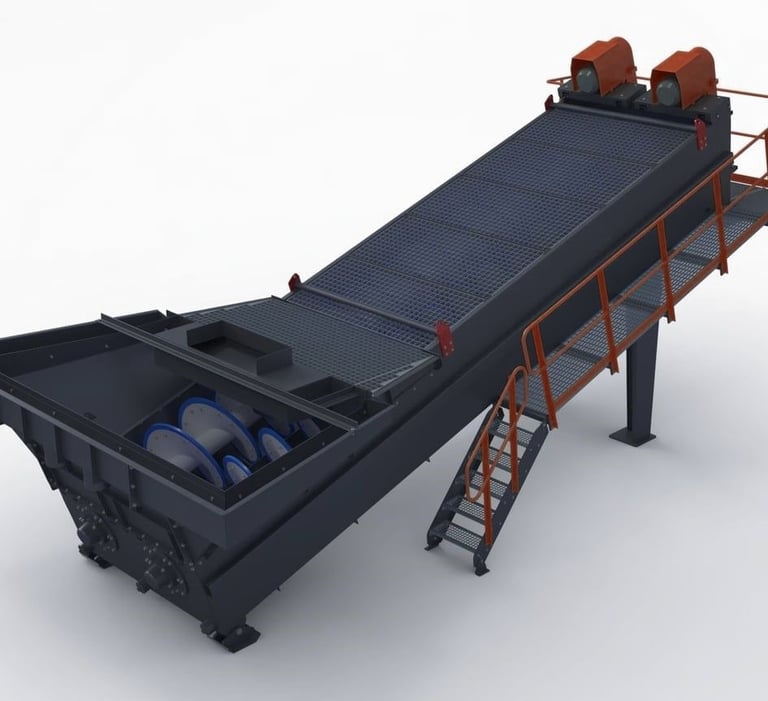

Fine And coarse material washers play a crucial role in the processing of fine aggregates through hydraulic separation, utilizing water to effectively clean and classify materials by weight. In this process, larger particles, such as sand, sink to the bottom of the trough due to their weight, where they are collected and subsequently discharged by a steel spiral shaft lined with either replaceable polyurethane or cast steel. Conversely, smaller and lighter unwanted particles are floated to the surface and discharged over weirs at the machine's lower end. These washers are particularly valuable in cleaning and dewatering fine aggregates, typically ranging from minus 12 mm to 5 mm (1/2" or 4 mesh), ensuring that end products meet specific standards by efficiently separating water-soluble clay, silt, and micro-sized particles. They are available in both single and twin screw configurations to suit varying operational needs.
Fine Material Washers are accomplished by hydraulic separation; using water to clean and classify by weight. Larger particles (Sand) weigh more so they sink and are collected in the bottom of the trough. They are discharged by steel spiral shaft with replaceable polyurethane or cast steel linings. The smaller lighter unwanted particles are floated to the surface and discharged over the weirs at the lower end of the machine.
APPLICATIONS
Utilized to clean and dewater fine aggregates typically minus 12 mm or 5 mm (1/2’’ or 4mesh) to fine tune end
products to meet specifications and to separate water soluble clay, silt, and micro sized fine particles. Available in both single and twin screw configurations, fine material washers are most often used after a wet screening operation to process products such asconcrete, mason, mortar.
• Maximum productivity
Capable to produce up to 725 mtph (800 stph) delivering extreme productivity where you need it most.
• Can classify material up to 50 mesh (300 microns)
Large pool area provides maximum fines retention resulting in a more marketable product.
• Very low energy consumption
Engineered with high efficiency drives,the resulting low power requirement reduces operating costs while increasing throughput.
• Very low operation costs
Heavy duty steel plate construction provides years of operation
HIGHLIGHTS
• Large pool area for more fines retention
• Rising current for better cleanliness
• Adjustable O/F Weir for fine Tuning
• Choice of PU or NiHard Liners
• Adjustable speed for drier product
SPECIFICATIONS
SFW 3625S SFW 3625D SFW 4432S SFW 4432D SFW 5434S SFW 5434D SFW 6635S SFW 6635D
(Single Screw) (Double Screw) (Single Screw) (Double Screw) (Single Screw) (Double Screw) (Single Screw) (Double Screw)
Dimensions (mm) 917x7769 917x7769 1120x9802 1120x9802 1370x10060 1370x10060 1675x10760 1675x10760
Capacity (mtph) 20-90 45-180 35-160 70-315 60-250 125-500 90-360 180-725
Material Size (mm) 0-10 0-10 0-10 0-10 0-10 0-10 0-10 0-10
Power (kW) 15 2x15 18.5 2x18.5 30 2x30 45 2x45
Screw (rpm) 10-21 10-21 8-17 8-17 7-14 7-14 5-11 5-11
Weight (kg) 6500 11700 10500 18850 13950 25000 22000 40250
Water-100 Mesh (m3/h) 164 284 391 637 475 842 589 995
Water-150 Mesh (m3/h) 73 146 173 328 212 398 262 478
Water-200 Mesh (m3/h) 41 82 105 184 131 213 148 249
NDUSTR

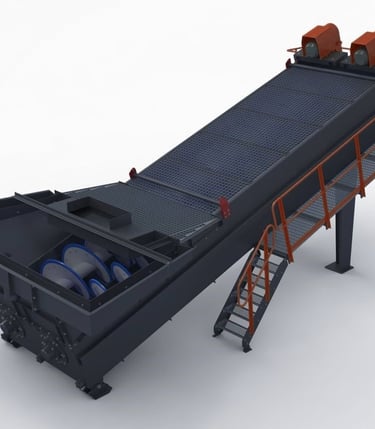

FINE MATERIAL WASHERS

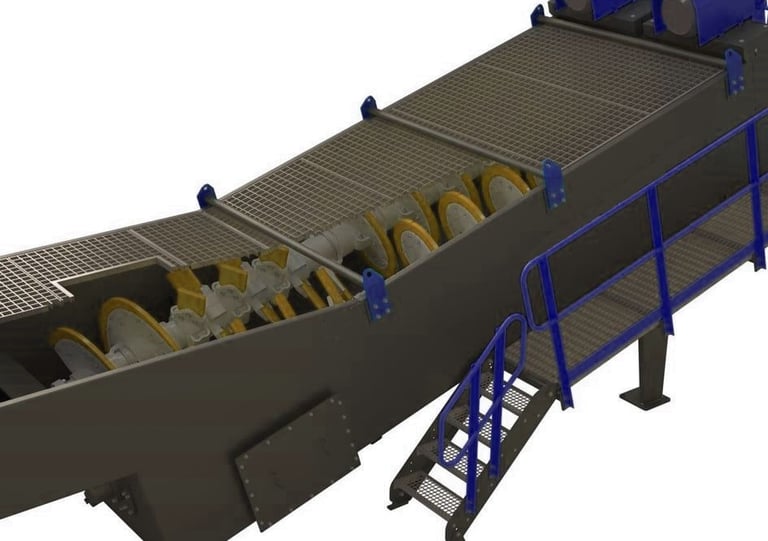

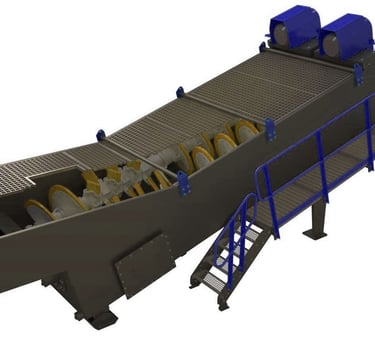

When you need more than high pressure spray bars Coarse Washers will break down muddy clumps for you. With configurable speed, screw and paddle configuration the unit can easily be adjusted for various applications.
APPLICATIONS
Coarse material washers are used to remove a limited amount of dirty material from a coarse aggregate.
This material includes very water soluble slimes, silts, soft clay, and organic particles. They are often used as a final wash following a wet screen and are designed to scrub and clean gravel and crushed stone up to 75mm (3’’) in size .Both single and double spiral units are available depending on the capacity required.
• Durability
Cast ni-hard bolt-on paddle assemblies deliver the ultimate in durability as does the leak-proof heavy-duty tank.
• Reliable Drive Assembly
The high efficiency drive assembly reduces power and maintenance requirements resulting in increased life and reduced operating costs.
• Maximum productivity
Capable to produce up to 450 m tph delivering extreme productivity where you need it most.
• Configurable Paddle and Screw Layout
Can be easily configured with numerous bolt-on paddle and flight arrangements to satisfy even the most precise specifications.
HIGHLIGHTS
• Number of paddles and screw sections are interchangeable
• Ni-Hard Paddles offer great service life
• Heavy duty gearbox allow to reduce the speed and increase retention time
• Rising current provides better seperation
SPECIFICATIONS
SCW 3618S SCW 3618D SCW 4420S SCW 4420D
(Single Screw) (Double Screw) (Single Screw) (Double Screw)
Diameter x Length (mm) 928x5600 928x5600 1118x6350 1118x6350
Capacity (mtph) 130-160 270-320 180-230 360-450
Material (mm) 0-65 0-65 0-75 0-75
Power (kW) 30 2x30 37 2x37
Screw (rpm) 16-32 16-32 13-26 13-26
Weight (kg) 6500 10800 9000 15500
Water (m3/h) 90-135 160-220 110-170 220-250
COARSE MATERIAL WASHER
