Industrial Gates

Motorized sliding gates (conventional) are gates which use a ground mounted track for the gate wheels to move on. Tracked sliding gates can have larger opening widths. A pedestrian gate can be combined with these type of gates or a separate pedestrian gate can be built. Company can produce motorized sliding gates as per client’s requirements.

• Planned and fabricated with superior square or rectangular hollow sections, along with MS sheets and flats collected by high quality welding

• Gates are beautifully designed and the pre-tensioning of the gate leaf construction diminishes the risk of bending

• Varied choice of models for gates weighing from 300 kg to 25000 kg

• Manual operation in case of power failure

• Highly condensed dimensions & very silent operation. Built-in anti jerk device stops damage to the automatic system

• Startup at extreme power permits the motor to overcome any initial friction caused by ice, dust, etc. Motor protected by an internal thermal switch

• Problem detection causes the gate movement to stop if an hindrance is detected

• The advance electronic control unit licenses operation time adjustment, partial opening, reflex closing, step by step control, stop safety, reverse safety etc.

  Gate Type Conventional Sliding Gates

  Applications Industrial, Residential, Commercial, Warehouse, Airport, Shipyards, K4-Crash Rated or Any Entrance

  Maximum Clear Width 40000mm Single Leaf / 80000mm Double leaf (Bi-Parting)

  Maximum Height 3000 mm (*Larger dimensions available on request)

  Opening Direction Horizontal Straight

  90 Degree curved (on request)

  Opening Speed Up to 0.16 m/s (*Up to 0.3 m/s on request)

  Closing Speed Up to 0.16 m/s (*Up to 0.3 m/s on request)

  Security Features CE marked according to the European Machinery Directive 2006/42/CE & Type tested according to EN 13241-1

  Pattern Standard Steel hollow tubular section,torsion free fully welded unit

  Gate Frame / Infills Square or rectangular steel hollow tubular section

  Cladding Mild Steel / Galvanised Steel - Standard

  Stainless Steel SS304 & SS316 / Aluminium sheets/ Polycarbonate / Acrylic / PVC Sheet / Wood / Fundermax panels on request

  Bottom Rail C channel with round polished bar

  Bottom Rollers Italian make Galvanised Wheels min 120mm dia. with ball bearings and axle with lubrication point

  Full Height Column Galvanised adjustable upper guide brackets with Heavy Duty steel Box section

  Guide Rollers Nylon Roller mounted on both side of column providing lateral support & smooth movement to the gate leaf

Motorized Sliding Gates

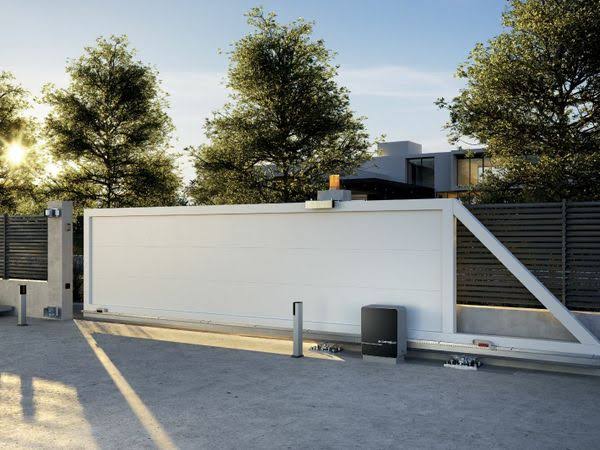

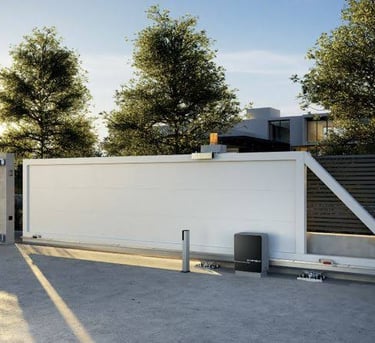

Cantilever Gate system is a arrangement for sliding gates which is suitable for safeguarding industrial, commercial and public conveniences, where the road surfaces are rough or sloping. The gate is made-up of robust steel and works on a modest principle of 2 heavy duty carriages grouted and a massive galvanized track that rolls on the carriages, thus avoiding the need for a bottom track.

• Cantilevered Sliding Gates accessible for a span of up to 36 m appropriate for securing commercial, industrial & public utilities

• The benefit of using cantilevered gates is that they have no ground track or foundation in the roadway hence vehicle does not experience any collisions

• Ideal for road surfaces which are uneven or sloping.

• Gate is not susceptible to to getting blocked by leaves or dirt hence reduced maintenance.

• Flat, quiet action due to no supports at the bottom of the gate.

Standard Specifications

· Connecting Voltage230V-1ph, N / 415V-3ph, N

· Drive UnitRack driven rugged and powerful drive unit with integral electronic control unit

· OperationOpen / Emergency Stop / Close

· Capacity300Kg to 25000Kg

· Duty ClassIntensive use

· Protection CategoryOperator : IP 44 (* Higher IP rating on request)

· Emergency Manual OperationKey operated

· External Route MonitoringPair of Photocells with anodised aluminium vertical mountings

· Safety EquipmentsFlashing light

Additional Optional Accessories

· Opening Zone MonitoringPair of Reverse Safety photocells

· Door Operated ControlsKey Selector, Remote Transmitter

· Safe For Personnel And EquipmentVertical Safety Edge

· Interlocking System Between Gate & Boom Barriers or equipped with a client control unit

CANTILEVER GATE SYSTEM

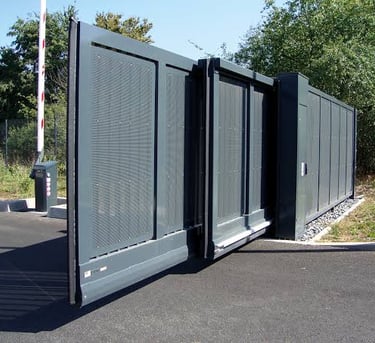

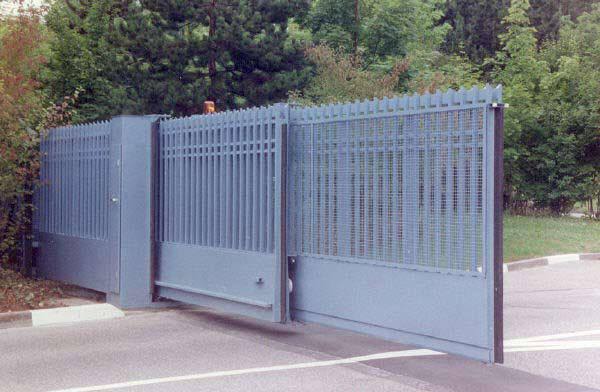

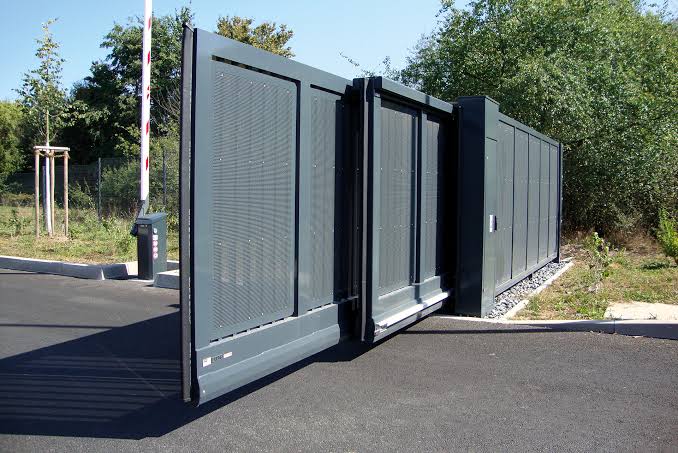

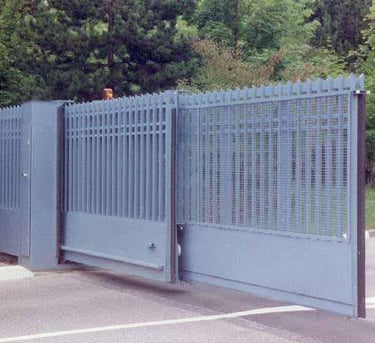

Telescopic Sliding Gates are ideal for sites where maximum opening is required and back run is restricted due to structural conditions. These gates combine the convenience and state of the art appearance of Conventional Sliding Gates while offering several key advantages. They can considerably reduce the back run required as compared to a single leaf gate. The gates are fabricated to make it possible to achieve a maximum clear opening and are finished with long term corrosion protection. Telescopic Sliding Gates allow extremely large openings as compared to a Conventional Sliding Gate.

• Telescopic Sliding Gates are perfect for sites where extreme opening is compulsory and back run is limited due to structural situations

• Speed of the gate gets boosted

• Gate automation have the are designed and manufactured in compliance with Machine Directive.

Gate Type Telescopic Sliding Gates

Applications Industrial, Warehouse, Airport, Shipyards, K4-Crash Rated or Any Entrance

Maximum Clear Width Up to 40000mm Single Leaf / 80000mm Double leaf (Bi-Parting)

Maximum Height Up to 3000 mm (*Larger dimensions available on request)

Opening Direction Horizontal Straight

Number of Telescopic System 2, 3, 4 & 5 (Greater the number of telescopic system lesser the back room space required)

Drive Opening Speed Up to 0.16 m/s (*Up to 0.3 m/s on request)

Drive Closing Speed Up to 0.16 m/s (*Up to 0.3 m/s on request)

Security Features CE marked according to the European Machinery Directive 2006/42/CE & Type tested according to EN 13241-1

Pattern Standard Steel hollow tubular section, torsion free fully welded unit

Gate Frame / In fills Square or rectangular steel hollow tubular section

Cladding Mild Steel / Galvanised Steel - Standard Stainless Steel SS304 & SS316 / Aluminium sheets/ Polycarbonate / Acrylic / PVC Sheet / Wood / Fundermax panels on request

Bottom Rail C channel with round polished bar

Bottom Rollers Italian make Galvanised Wheels min 120mm dia. with ball bearings and axle with lubrication point

Full Height Column Galvanised adjustable upper guide brackets with Heavy Duty steel Box section

Guide Rollers Nylon Roller mounted on both side of column providing lateral support & smooth movement to the gate leaf

TELESCOPIC SLIDING GATES

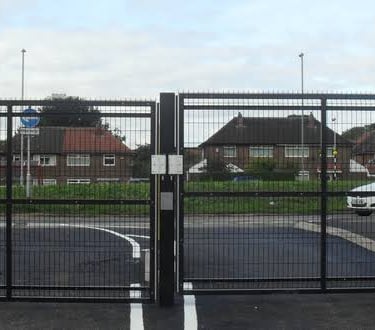

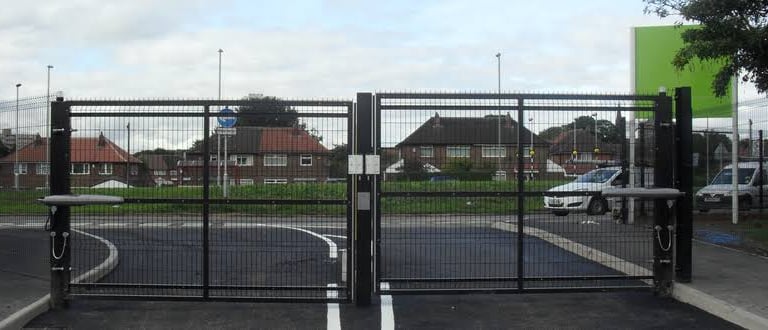

Motorised swing gates are fabricated to provide safety, suitability and defense against unauthorized invasion. Artistically fabricated these gates are made with square pipes encased in a pipe frame tailored to suit the client’s necessities and are finished with spray painting.

• Wide choice of models for gate span from 3 m to 10 m

• Models available with recurrent, heavy and severe duty rating

• Electromechanical actuators safeguards highly maintenance free and noiseless operation

• Facility for manual operation in case of power failure

• Model with articulated arms for gates not flawlessly vertical and/or with wide pillars, underground operators are also available for ornamental gates

• Built-in anti-crushing security

Advance electronic control unit licenses operation time adjustment, partial opening, automatic closing, step by step control, stop safety, reverse safety & many more such

Gate Type Swing Gate

Applications Industrial, Residential, Commercial, Warehouse, Airport, Shipyards or Any Entrance

Maximum Clear Width Up to 5000mm Single Leaf / 10000mm Double leaf (Bi-Parting)

Maximum Height Up to 3000 mm (*Larger dimensions available on request)

Security Features CE marked according to the European Machinery Directive 2006/42/CE & Type tested according to EN 13241-1

Pattern Standard Steel hollow tubular section,torsion free fully welded unit

Gate Frame / Infills Square or rectangular steel hollow tubular section

Cladding Mild Steel / Galvanised Steel - Standard Stainless Steel SS304 & SS316 / Aluminium sheets/ Polycarbonate / Acrylic / PVC Sheet / Wood / Fundermax panels on request

MOTORISED SWING GATES

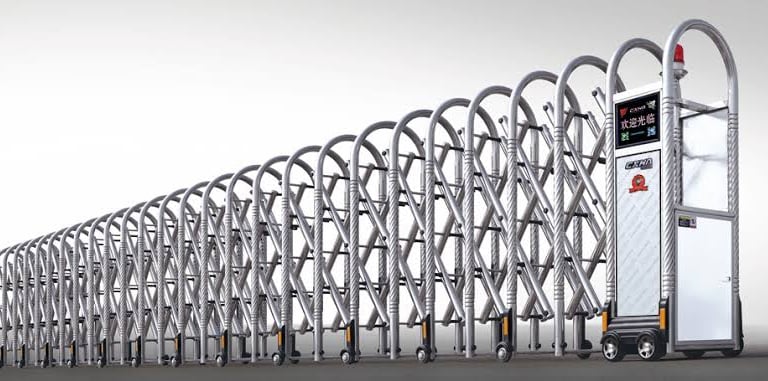

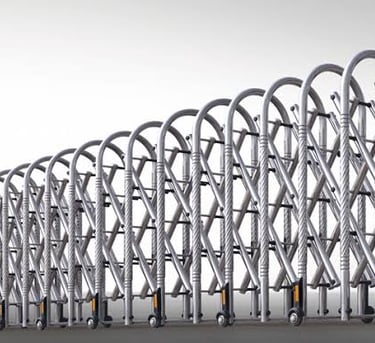

Retractable Gates blend perfectly with any premises and are designed not only for practicality, but for beauty and cultural significance. An imposing and elegant front gate signifies the strong, progressive enterprise, and a distinct corporate identity. In this respect, be it the majestic and bold RD Series, or the imposing and stately WA / WB Series or the noble and elegant EV Series, can enhance the prestige of an enterprise.

Using a right gate at the right position helps create an atmosphere of prosperity and auspiciousness. They not only complement the building installed with the gates, but are a piece of eye-catching architectural work with high functionality and aesthetic value.

Salient Features:

• CE Certified and ISO 14001 & 9001.

• Horizontal four-direction even shrinkage straight line technology.

• PA wear-resistant bush.

• Composite self-locking wear-resistant connection.

• Wind-resistant device.

• Offset key type clutch.

• Specially designed running wheel.

• Hidden Wiring.

• Anti-bump device with intelligent infrared double-probe.

• Electronic soft starter and mechanical buffer device.

• Overheating protection turbo motor.

  Gate Type Retractable Gates

  Applications Industrial, Residential, Commercial, Warehouse or Any Entrance

  Maximum Clear Width Up to 30000mm Single Leaf / 60000mm Double leaf (Bi-Parting)

  Maximum Height Upto 2000 mm

  Opening Direction Horizontal Straight

  Security Features CE Certified and ISO 14001 & 9001.

  Gate Frame Aluminum Alloy / stainless steel

RETRACTABLE GATES

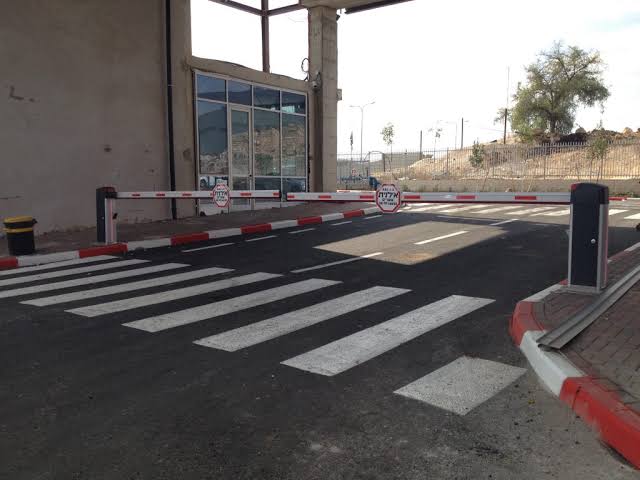

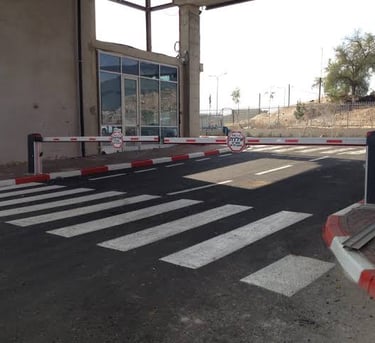

Our boom barriers, also known as boom gates, are horizontal bars that control vehicle entry and exit., we make high-quality and highly durable automatic boom barriers to improve security and manage traffic with advanced safety sensors and visibility lights. Our boom barriers are perfect for factories, warehouses, offices, and residential areas. Trust Gandhi Automations for durable and reliable boom barriers that fit your access control needs.

Key Features

• Wide range of models to suit various applications like car parking sites, condominiums, toll collection & Industrial entrance

• Available for boom length up to 8 m. Opening up to 16 m can be covered with two barriers operating as master/slave

• Highly compact in size has an extremely silent operation

• Sturdy steel structure with scratch-proof coating resistant to harsh weather conditions

• Integration possible with wide range of accessories and all kinds of access control systems

• Extremely reliable and maintenance free. Tested and distributed all over the world

• Manual release in case of power failure. Battery backup facility in select models

  Max clear passage 6000mm Single Boom / 12000mm Boom opposite to each other

  Usage Industrial, Residential, Commercial, Warehouse, or Any Entrance

  Security Features CE marked according to the EEC Directives : 2014 / 30 / EU, 2014 / 35 / EU, 2014 / 53 / EU, 2011 / 65 / EU

  Operation Open / Stop / Close

  Working temperature -20° Celsius to +55° Celsius

  Maximum torque 750Nm

  Duty cycle 70%

  Passageway opening time (75°) 3 sec

  Opening time 90° 7 sec

  Mains power supply 230 Vac

  Motor power supply 24 Vdc

  Maximum power yield 300W

  Protection rating IP 54

  Emergency Manual Operation Manual release system with key operation

  External Route Monitoring Pair of Photocells with anodised aluminium vertical mountings

BOOM BARRIERS
