Concrete Mixing
At Stikine, we offer a comprehensive solution for all mixing tasks, ensuring optimal results tailored to your specific needs. Our intensive ring pan mixers are designed to produce high-quality concrete, even for the most challenging mixes. With an innovative whirling device, they achieve perfect homogeneity while maximizing energy efficiency, ultimately saving on cement and costs. For the premixed concrete sector, our robust twin-shaft mixers have earned a strong reputation over decades, boasting high output rates, quick emptying, and the ability to handle large stone diameters. Additionally, our laboratory mixers provide the means to perform scalable tests, ensuring precision and reliability in your concrete formulations. Whatever your mixing requirements, Stikine has the right solution for you.

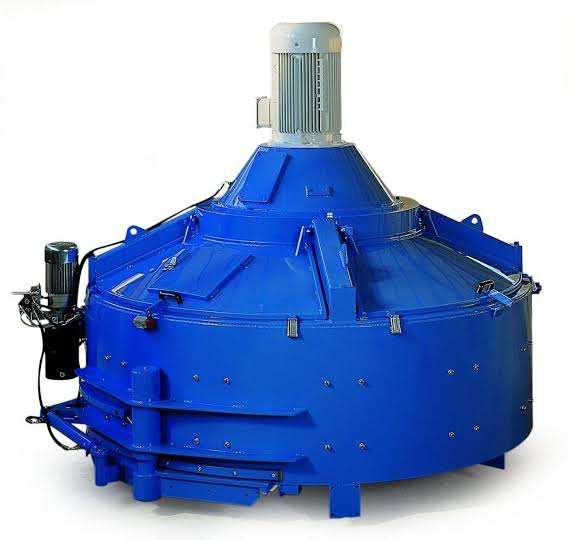

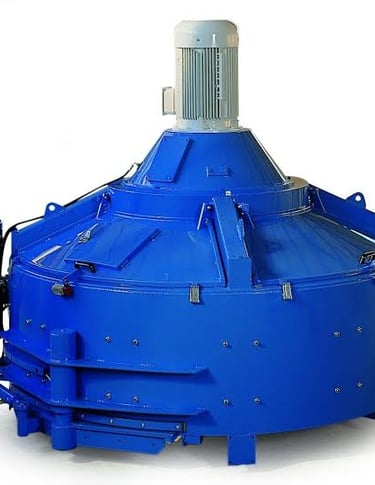

Pan Mixer
Pan mixers
We can provide a solution suitable for every mixing task.
Intensive ring pan mixers mix all types of quality concrete. Thanks to the whirling device, even particularly demanding concrete types can be homogenised perfectly. Energy is introduced efficiently, which saves cement and costs.The ring-pan mixer is suitable for standard concretes and the smallest batch sizes. Due to the special design, this mixer is very compact and achieves good mixing results.
Nominal capacity in accordance with DIN 459, part 1
0.50 m³
Filling amount
750 l
Technical data
Type
0.5
Nominal capacity in accordance with DIN 459, part 1
0.50 m³
Filling amount
750 l
Power of mixer main motor
22 kW
Max. gates per mixer
3
Range of rotation mixer
26 rpm
Weight
2,900 kg

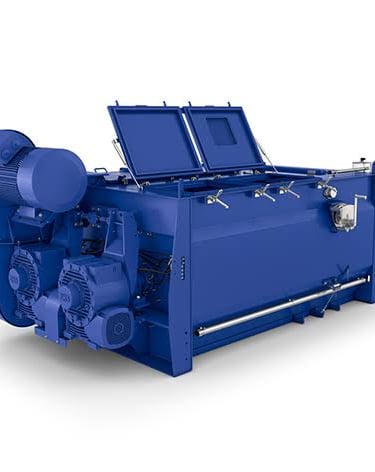

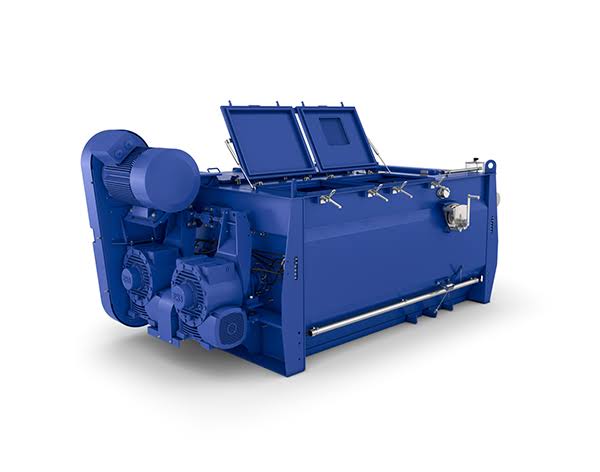

Twin-shaft mixers
Long Spa
Twin-shaft mixers
We can provide a solution suitable for every mixing task. Our robust twin-shaft mixers are well established in the premixed concrete sector and have been for many decades. The benefits of the twin-shaft mixers include high output, fast emptying and processing large stone diameters. The twin-shaft mixer has an efficient drive train for optimum energy input in the mixing material, due to the use of planet gears.
Nominal capacity in accordance with DIN 459, part 1
3.00 m³
Filling amount
4,500 l
Technical data
Type
3.0
Nominal capacity in accordance with DIN 459, part 1
3.00 m³
Filling amount
4,500 l
Number of drive motors
2
Output of (each) drive motor
55 kW
Max. gates per mixer
1
Speed of mixer gear
30 rpm
Exterior peripheral speed
2.00 m/s
Weight standard version
8,500 kg
Pan Mixer (Small)
Mobile Shelving
Pan Mixer (Small)
Determine scalable results in a practical way with laboratory mixers. Thanks to geometric similarity and identical process sequences in the mixers, test results can be quickly and reliably put into practice.Optimum mixing of the material for demanding dispersion tasks. Variable agitator speeds and directions of rotation independent of the agitator speed. Various optional options for data acquisition and visualisation (temperature, speed, active power, torque, humidity measurement). Scale reference and thus scale-up basis to the practice mixer.
Application areas: Fine grain mixtures, suspensions.
Filling amount 100 l
Power of mixer main motor 5.5 kW
Power of agitator motor4 kW
Technical data
Filling amount
100 l
Power of mixer main motor
5.5 kW
Power of agitator motor
4 kW
Range of rotation mixer
10 - 50 rpm
Range of rotation agitator
24 - 214 rpm
