Vertical Turning Machine
In today's heavy engineering industries, the demand for high-end solutions is paramount, particularly in sectors like earth moving, automobile manufacturing, agriculture, and construction. To meet these needs, innovative machinery has been developed featuring integrated guide-ways that provide enhanced accuracy and superior vibration damping characteristics. This precision is further complemented by the design of the spindle, turret, and tailstock axes, which are aligned parallel to one another, allowing for higher cutting depths. Such advancements not only improve operational efficiency but also ensure the reliability and effectiveness of the machinery used in these critical applications, ultimately pushing the boundaries of what's possible in heavy engineering. Our turning machine solutions are designed to address the varied needs of contemporary industrial applications. These machines feature advanced capabilities that enhance turning processes, allowing for precise contouring, threading, and surface finishing. The horizontal turning machines boast a single-piece inclined bed combined with a saddle, ensuring stability and accuracy through heavy-duty LM guideways and high-precision ball screws. Standard with a servo turret, our latest technology for turning mill centers provides increased rigidity and efficiency. With the spindle, turret, and tailstock axes aligned in parallel, these machines allow for greater depth of cut, making them ideal for both high-volume production and intricate machining tasks.

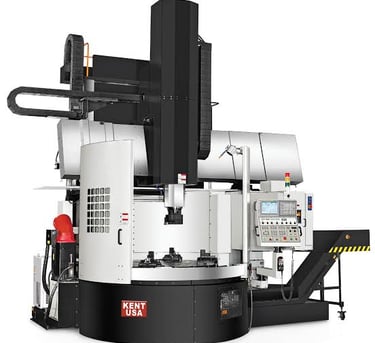

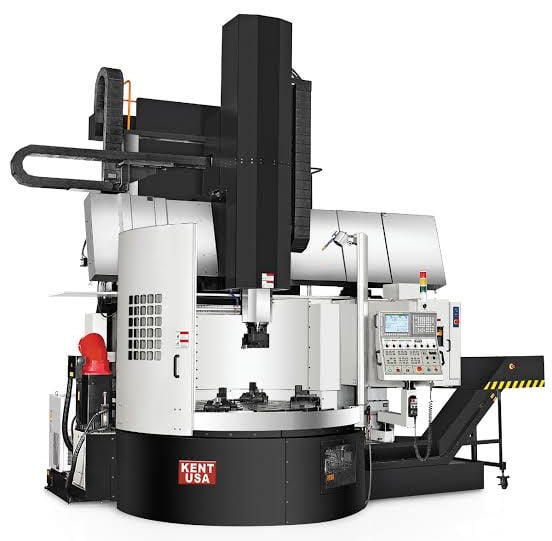

Vertical Turret Turning
To meet the requirement of heavy engineering industries such as Oil & Gas, Earth Moving, and Automobile, Our machines delivers its best graded cast iron bed and column assures thermal stability and better machine life accuracy along with great rigidity, stability, and performance. Box type construction, heavy-duty spindle, high speed bi-directional servo turret, and wider box guide ways assures vibration-free cutting. Vertical Turning finds its wide application for machining of bigger diameter heavy components like valve body, motor body, break drum, disc brake, etc.
12 station Hydraulic Turret
Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
Safety door interlock
AC unit for electrical cabinet
Hydraulic power pack with float level switch
Heavy-duty LM guides for X & Z-axis
Dia 1250 faceplate
22/ 30 kW spindle motor
High Rigid Structure, Base, and sub-assembly parts
Extensive series range
Rapid traverse rates of 16 m/min reduce cycle times. Linear motion guide-ways on the X & Z axes ensure better positioning and repeatability.
Heavy duty spindle, high speed bi-directional hydraulic turret assures vibration-free cutting
Wide access to the chuck zone facilitates ease of loading and unloading of parts.
Gear-driven table supported by larger size thrust ball bearing and taper roller bearing with re-circulation type oil lubrication system
Specifications Unit
Max Swing diameter mm 1350
Max Turning diameter mm 1250 (150)
Std turning diameter mm 800
Max turning length mm 800
Spindle motor power kW 22/30
X axis stroke mm 675
Z axis stroke mm 850
Machine dimensions(wxDxH) mm 5100 x 4100 x 3800
Machine weight kg 15000
Vertical Turret Turning
Vertical Turn Milling
Our CNC vertical lathe machine solutions feature intuitive user interfaces and advanced control systems, enabling operators to optimize their machining potential while reducing setup times and learning curves. This helps businesses to streamline production processes, and achieve exceptional precision and performance levels Multi-tasking machine, Done-in-One” to reduce lead time & achieve component accuracy.
A 2 11 spindle
Oriented spindle stop
Machine lamp, 3-tier lamp, safety door interlock, manual pulse generator
Centralized oil lubrication system for LM guides and ball screws
Coolant system with coolant tank, chip tray & pumps
Mounting pads with levelling screws
Milling head with BT 50 live tool spindle
C axis for accurate indexing to carry out drilling and tapping function with high resolution hollow shaft encoder and hydraulic table clamping during cutting
Heavy-duty umbrella-type tool magazine with 12 tools
Drilling & tapping with basic operations of Turning, Boring & facing
Right Angle head operations for radial drilling, Key-way milling, etc
capacity unit
Max Swing diameter mm 1000
Max turning diameter mm 850 for 200 mm
Std turning diameter mm 600 for 800 mm
Max turning length mm 800
Std chuck size mm 630 (530)
Live tool Spindle power kW Nov-15
• X AXIS
X Axis unit
Type of guide-way Linear motion
Horizontal travel stroke mm 605 (565 + 40)
Max rapid traverse m/min 20
• Y AXIS
•
Y Axis unit
Type of guide-way Linear motion
Vertical travel stroke mm 830
Max rapid traverse 20
• AUTOMATIC TOOL CHANGER
Automatic Tool Changer unit
Tools No.s 12
Avg tool weight kg 30
Max tool weight on ATC disc kg 360
Vertical Turn Milling

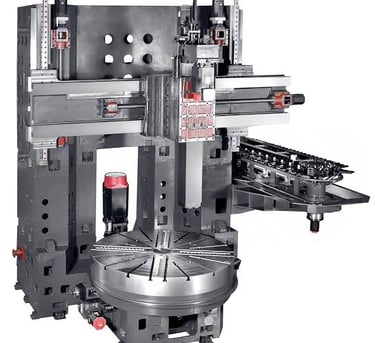

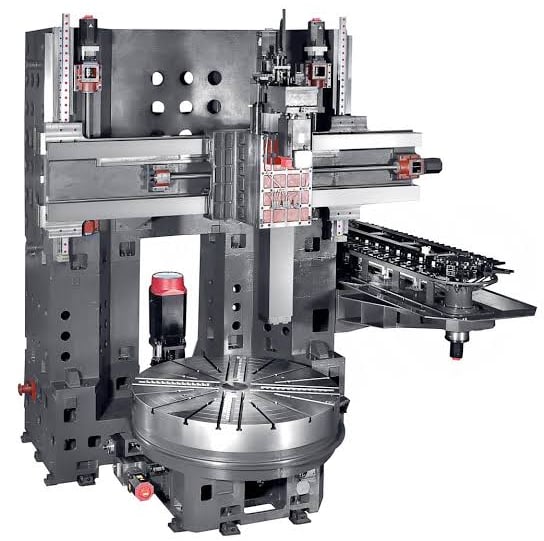

Vertical Ram Turning
Vertical Ram Turning series are designed to handle large, heavy workpieces, and provide manufacturers with a reliable high-performance solution for heavy-duty applications. Basic Turning, Boring, Deep Boring, etc. Turn-mill applications viz. Drilling, Tapping, Milling, Helical Interpolation, Thread Milling and Profile Machining Etc.
Geared table spindle, supported by taper roller bearing & thrust ball bearing with re-circulating oil lubrication system
Machine lamp, 3-tier lamp & manual pulse generator on machine control panel
Hydraulic counterbalance for RAM
Mounting pads with levelling screws
ATC with 12 tool – Umbrella type
High Rigid Column Structure
Continuous feed for Table (Cf Axis) by Dual Motor technology with Electronic Pre-load to ensure high accuracy interpolation
Larger Size Cross Roller Bearing for Table Drive for High Axial, Radial and Tilting Load
Heavy Duty Right Angle Head for Radial drilling, Keyway milling operations Etc.
Hinged Steel Belt Conveyor for Steel Chips
Specifications
Max swing diameter 1050
Max turning diameter 900
Max turning length 800
Table diameter 825 face plate
Work spinlde motor power (15/ 18.5) x 2
Work spindle speed range 10-450
Tool spindle taper BT 50
Live tool spindle power 11/15
Live spindle speed range 50-2400
X axis stroke 885
Z axis stroke 825
RAM cross section 220 x 220
