Tray ThermoForming

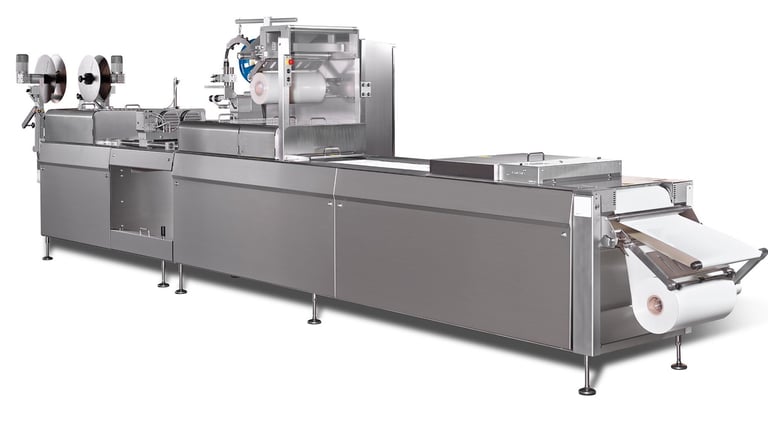

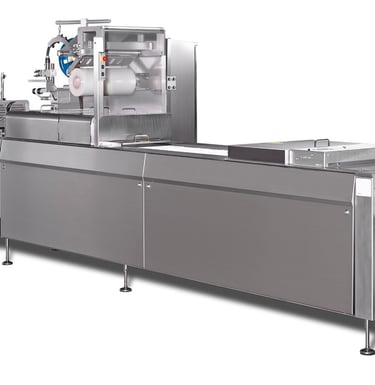

Tray vacuum thermoforming machine is suitable for PVC, PE, PET, HIPS, PP and other plastic sheet ,which can be used to produce different shaped containers. Combined with pneumatic, mechanical and electric, this machine can achieve automatic continuous working from feeding sheet, forming, de-moulding , cutting to stacking.
Using PLC control system makes the machine working more reliable.Dual-chain feeding device with photocell control is used to achieve stable and reliable feeding.
The width and length of feeding can be stepless adjusted accurately, which suitable for the arrangement of different moulds to raise the utilization rate of sheet.Tray vacuum thermoforming machine can use negative mould or positive mould, is convenient and easy to replace the mould .Machine equipped by heating system with upper and down heaters which apply hollow far-infrared heating pieces. Divisional temperature control system makes heating process economical, even and easy adjusting.
With Air cooling and water fog system, so as to work continuously without water cooling inside mould, especially suitable for production by non-metal mould. Equipped with dual-shaft material loosing device, section-cutting and stacking unit, to improve production efficiency.
Model STF-550/550 SVF -550/550
Max. Forming Area 550*550mm 550*550mm
Max. Forming Depth 110mm 110mm
Sheet Thickness Range 0.15-1.2mm 0.15-1.2mm
Max. Sheet Width 600mm 600mm
Air Pressure 0.5-0.8Mpa 0.5-0.8Mpa
Speed 150- 750 cycles/h 150- 750 cycles/h
Heater Power 20kw (Upper Heater) 20kw (Upper Heater)
15kw (Lower Heater) 15kw (Lower Heater)
Punch Pressure 80tons 80tons
Upper Mold Table Stroke 130mm 130mm
Lower Mold Table Stroke 130mm 130mm
Max. Mold Depth 110mm 110mm
Power 3 Phases 415V 3 Phases 415 V
Max. Hydraulic Pump Pressure 16Mpa 16Mpa
Max. Cutting Length 750 mm 750 mm
Machine Total Power 50 kw 50 kw

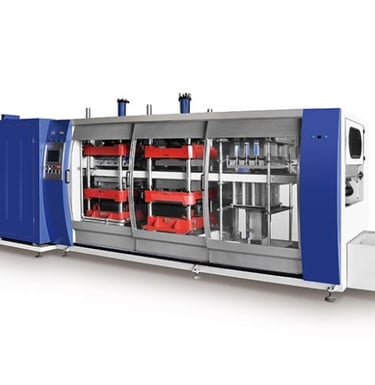

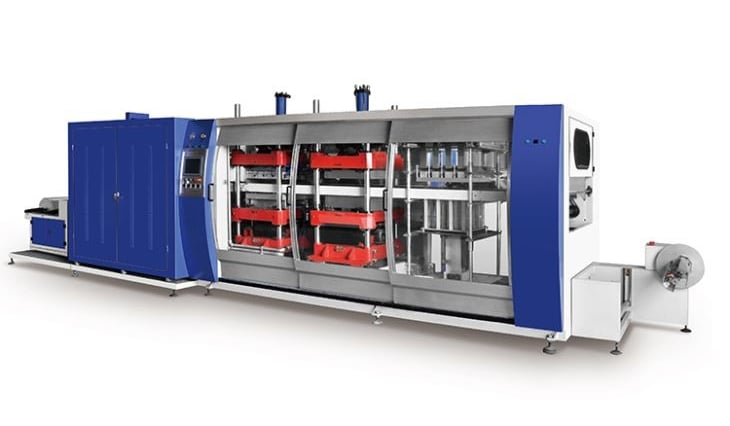

We Have Designed Our own Innovative Thermoforming Machines With Highly Efficient And Smart Control Systems For Operation ofOur Thermoforming Machines. It Can Load Sheets With Intelligent Control System For The Sheet To Be Formed And Unloaded Automatically. The Fast Mould Change, Full Diagnostics And On-Line Connection Make The Machine Highly Versatile And User-Friendly With The Lean Solution The Style And Performance Of Which It Retains, He New Thermoforming Machine That Effectively Meets The Most Demanding Requirements Of Modern Thermoforming Applications. Its Main Features Are Ease Of Use And Effectiveness. In Fact, Its Innovative Software Ensures That It Retains The Highest Product Usability Together With Extreme Ease Of Use.
ThermoForming
Our machines using thermoforming techniques are stretching processes. The stretching of a flat sheet of plastic material into a larger shape results in a larger surface area and a corresponding reduction in the sheet's original thickness. The thinning down of the sheet's original thickness is not necessarily uniform. Processing techniques play a big part in material distribution.
Automotive and Vehicular Industry Building and Construction Boat Building industry
Chocolate Industry Design Industry Electronic Sports & Toy Industry
Furniture Manufacturing Industry Hospitals and Medical Appliances Machinery Manufacturers
Model Car and Aircraft Packaging Plastic Sheet Extrusion Sanitary Industry
Vacuum ThermoForming

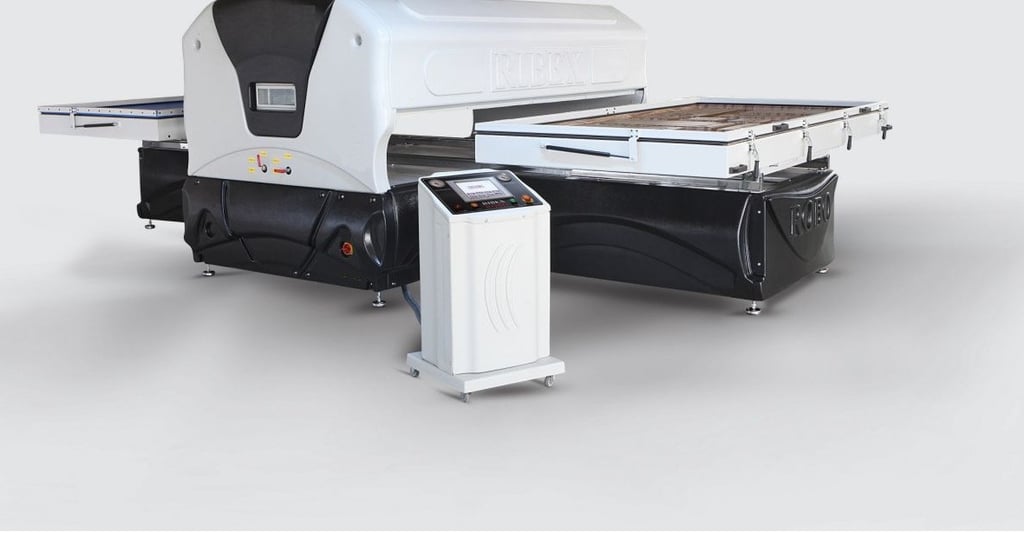

New generation Vacuum Thermoforming Machines are used for flat or 3D lamination of pvc foils to MDF board, Chipwood, Plywood e.t.c and suitable for doors and cabinets, panels in kitchens, various furniture applications, in bathrooms and bedrooms. Process starts by heating cycle with high temperature quartz heating elements then gradually vacuum former cycle to finish foiling with negative suction pressure. Optional silicone membrane allows to also laminate veneers as well as the other laminating products onto the workpiece. Moreover this, HMI has a unique full automatic touchscreen PLC system, cooling fans system boosting your production speed at your maximum limits.
STANDARD SPECIFICATIONS
-Ergonomic body design
-Full Automatic PLC System
-Work table security sensors
-Automatic temperature control
-Options to Single or Dual table control
-Short operation time
- Independent vacuum and temperature system
-Can see the directly process of vacuum withworking window
-Manual setting and usage
-Low-cost maintenance/repair
-Low cost heaters
-Removable control table
-Different language selection
-Minimum wastage and saving from time
-Thermofoil PVC stand
OPTIONS
Magnetic System for support the workpiece on worktable
Divisible Table to use material economize.
Second table preparation for single table machines
Extra Thermofoil PVC stand
Silicone membrane unit
PLC controlling system
PLC SYSTEM FUNCTIONS
HMI Touchscreen and Full Automatic PLC System
Windows CE Real Time Os
Touch ScreenVACUUM THERMOFORMER
Table Frame Dimension : 2870 * 1440 mm
Table Usage Area : 2710 * 1230 mm
Maximum Working Thickness : 90 mm
Pump Motor Power : 2,2 Kw
Pump Motor Speed : 1450 rpm
Pump Extraction Capacity : 100m³ / h
Noise Limit : 68 Dba
Max Temprature : 140° C
Total Power : 26,5 Kw
Total Operation Time : 4 - 5 Min.
Average Weight Single Table : 1350 Kg
Average Weight Double Table : 1750 Kg
Dimensions Single Table (WxLxH) : 3400*3600*1850 mm
Dimensions Double Table (WxLxH) : 3400*5300*1850 mm
