Switchgear

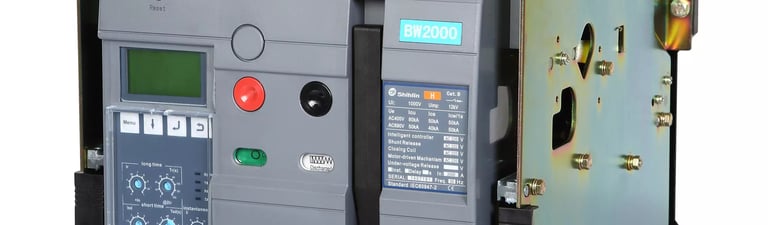

Air Circuit Breakers

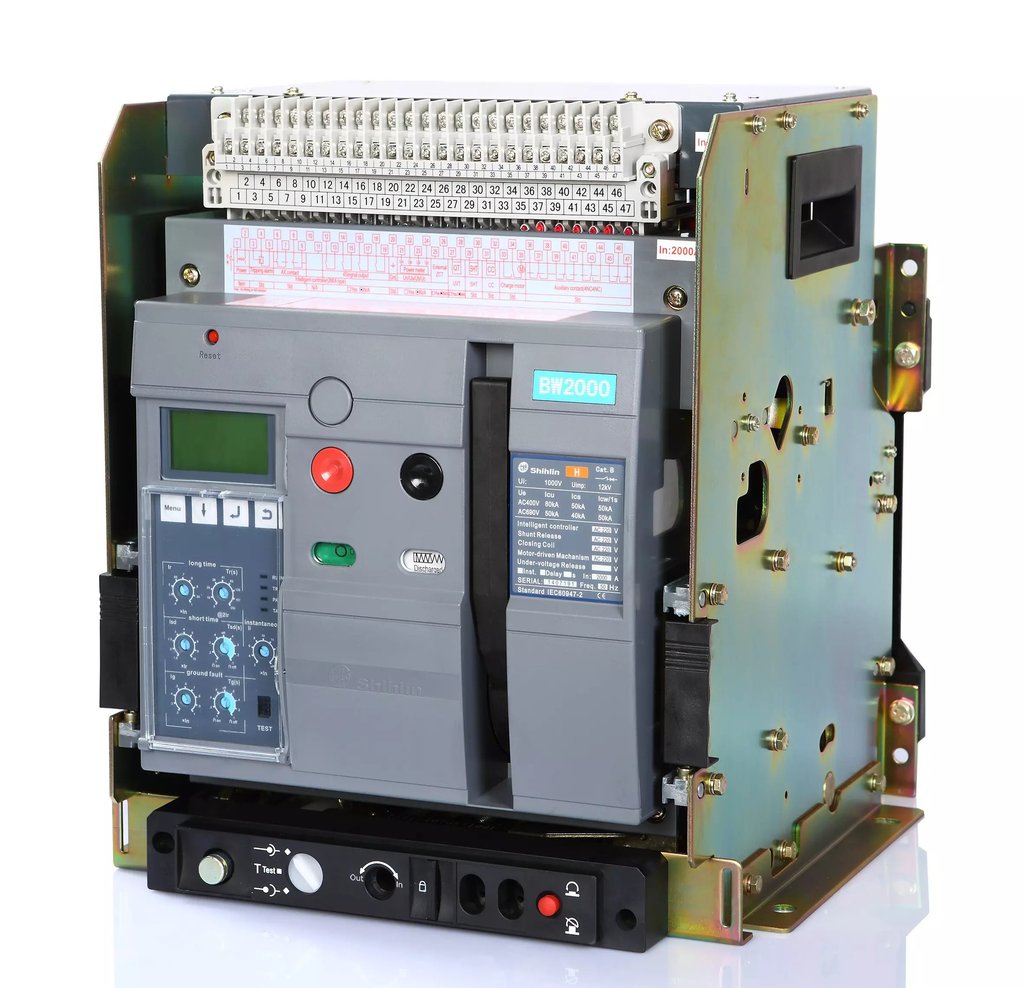

. Air circuit breaker is made up of contacts that will separate when a problem occurs. Stopping the flow of electricity keeps conditions safe and prevents damage to equipment. In an ACB, when the contacts separate – due to overcurrent, short circuit or for operating purposes – the ACB works to eliminate the arc, making the equipment safer. The ACB uses a combination of air pressure and conductive elements to guide the arc away from the circuit safely and then stretches it until it is eliminated.

.Features :

Range from 400A to 6300A

Breaking capacity from 50kA to 100kA

Available in 4Pole, Manually & Electrically operated, Fixed & Draw-out versions

Common height & depth across the range

High short-time withstand capacity, Icu=Ics=Icw for 1 sec for total selectivity

High mechanical and electrical operating life

Advanced micro-processor based protection releases

50% and 200% neutral protection solution

RoHS Compliant

· Breaker can be remotely configured, Operated and Monitored in integration with PLC and scada comm Integration Solutions

· Unique breaker front facia architecture displays the electrical accessories mounted on the ACB (with rated control voltage and type of operating voltage)

· Modular and snap-fit accessories like under-voltage, shunt and closing coil redefine modularity on a time scale of 5 mins

· Ease of on-site convertibility from Fix to Draw-out and Manual to Electrical versions

· Tool-less Arc-chutes removal facilitates quick inspection of electrical contacts

· User-friendly interface for Release configuration

We provide our customers with reliable and efficient power distribution products and system solutions. Among them, circuit breakers are capable to make, break and carries rated current in the circuit. And able to protect circuit and equipment in the case of overload, short circuit and under voltage our circuit breaker featured with compact size, modular design, high breaking capability, zero flying arc and environmental friendly

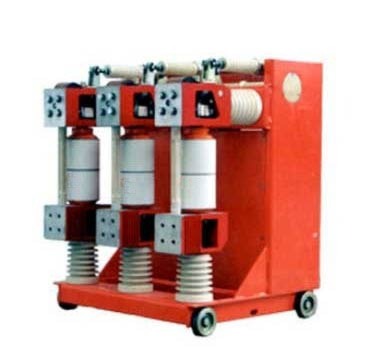

Vacuum Circuit Breaker

Our Medium Voltage products comprise Vacuum Contactor Units (VCU) and Vacuum Circuit Breakers (VCB). Sub cubicles, half panels and full panels assembled with these products are together referred to as MV Assemblies. We offer a wide range of VCBs and VCUs for various voltage levels for the ease of customization of any particular assembly. These VCBs and VCUs are manufactured and tested at state-of-the-art facility. All processes deployed at ASW are on par with international guidelines. The arc in a vacuum circuit breaker forms when metal oils ionize in the contact. These contacts are separated when unexpected conditions occur or the arc becomes jammed in them.

The arc interruption that occurs inside Vacuum Breaker is different from the arc interruption that occurs inside other types of circuit breakers. The contacts release a vapor when they divide. These vapors comprise positive ions that are withdrawn from the contact’s surface.

The vapor will not stay if the current is reduced. This implies that the vapor density is determined by the current present in the arc. When the current reaches zero, the vapor density decreases, and the medium recovers its dielectric strength.

The arc will also have several parallel routes if the interfering current is minimal. The whole current will be split up into several parallel arcs. Furthermore, they will reject each other, causing them to expand across the contact surface. Vapors can release quickly if a high current value is established on the contact surface.

An essential property of a vacuum is that once an arc is produced inside it, it may be quickly extinguished due to the vacuum’s dielectric strength rapidly improving.

Complete drawn out design of VCUs and VCBs facilitate quick and friendly user operations. Additionally, these products undergo endurance tests for innumerable number of cycles to ensure ruggedness and durability of the assemblies. Moreover, the design - 600mm wide for 630 to 1250 Amperes - of current rating makes the application space economical.

We offer half panels and sub-cubicles for 11kV. The VCB is ‘draw out’ type and can be racked out directly on the floor. VCBs are type tested according to International Standards IEC-62271 at renowned laboratories. They are compact, safe and reliable. The sub-cubicle is VCB with its compartment having all safety interlocks. The half panel is an assembly of the medium voltage compartments except for low voltage compartment.

Features:

Sub-cubicle for system voltage 11kV and a short time current rating of 26.3kA

Half panel for system voltage 11kV and short time current rating of 26.3kA and 40kA

Half panel comes with an option of Copper/Aluminum bus-bar

VCB current rating up to 3150A

Provision of manual and electrical spring charging in VCB

Spring charging motor voltage 230V AC and 110V DC/220V DC

Closing/Tripping coil voltage 24V DC/110V DC/220V DC

VCB comes with inbuilt anti-pumping feature

Moulded case Circuit Breaker

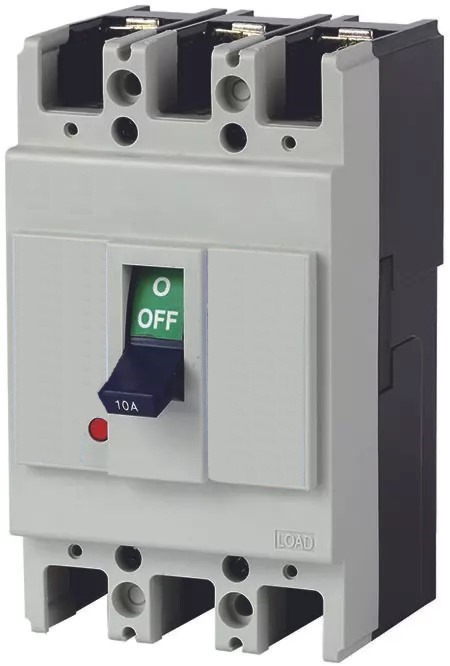

Moulded Case Circuit Breakers

Moulded Case Circuit Breaker is the top choice of Industries, System integrators and OEMs that reliably protect electrical systems against faults and failures.

Available in wide current ranges (16A to 1250A), MCCB is designed to cater to the needs of industries as diverse as paper, sugar, oil & gas, which have different sets of needs.

Its state-of-the-art design, user-friendly features and a wide spectrum of releases not just meet your protection needs but ensures operational safety and reliability.

Compact in size, the MCCB optimizes the panel requirements and its wide range of characteristics and versions eases installation and operation.

Communication-capable MATRIX releases offer energy measurement capability, enable monitoring of critical parameters and seamless integration with the third-party application (DCS, SCADA, HMI) over an open communication protocol.

A variety of settings in MATRIX releases helps in choosing the correct selection for fault clearing, while trip and event recording helps in analysing faults in detail.

Features

Range : 16A to 1250A,3P/4P,6 frame sizes

Breaking Capacity : 25kA/36kA/50kA/70kA/100kA

Confirms to IEC60947-2,EN60947-2,IS/IEC60947-2

Current Limiting Type MCCB

Suitable for Isolation

No Line Load Bias

Microprocessor & Thermal-Magnetic based protection releases

MCCBs for Special Applications :

Motor backup protection

DC Applications

Capacitor Application

Isolator Application

690V Application

MCCBs for different Solutions :

Total Discrimination

Auto Source Transfer System

Communication

Thermal Magnetic Release

Adjustable overload settings

Adjustable short circuit settings

True RMS sensing

Microprocessor Release

Overload Protection with inverse time delay

I2t, I4t, SI, LI, VI based overload curves

Short Circuit Protection with selectable time delay

Instantaneous protection with fine settings

Advanced current and voltage based protection function

Inbuilt Earth fault and Neutral overload protection

Comprehensive current, power and energy metering

Provision of Thermal memory defeat

Panel mounted OLED display

Communication through MODBUS RTU protocol

True RMS sensing

Self powered

Internal Accessories :

Motor Protection Circuit Breaker

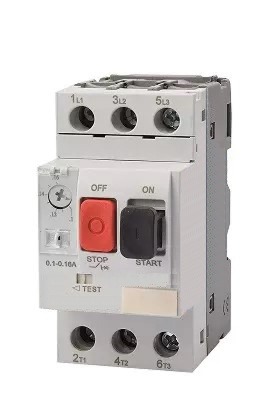

Motor protection circuit breaker

Motor protection circuit breaker integrates functions of MCCB and thermal overload relay into a highly compact single unit. Equipped with a wide range current adjustment dial (with maximum/minimum ratio of 1.4 to 1.6), the MPCB easily adjusts to match the rated current of the motor for optimum protection. MPCB provides protection against short circuit & overload. The compact size of the MPCB, including overload relay functions, also enables a smaller installation area with less wiring space for a reduction in panel size.

Features

Compactness
High Breaking Capacity
Short circuit protective coordination
Reduction in wiring work
Ecological design standards
Standard accessories for all frames of MPCB
Wide range of accessories which suits your requirements
IP20 terminal cover prevents accidental contact to electrically charged part

Accessories

Auxiliary contact blocks
Alarm contact blocks
Auxiliary and alarm contact blocks
Short-circuit alarm contact block
Shunt trip devices
Undervoltage trip devices
External operating handles:

Pre Fabricated Substation

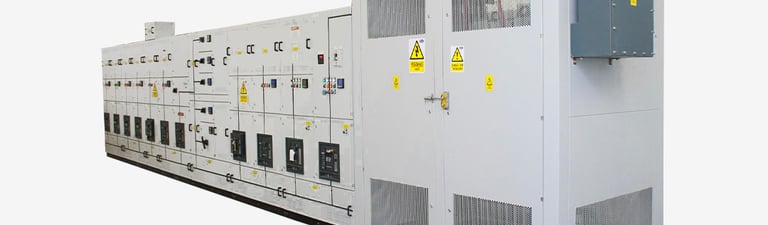

Pre fabricated Substation

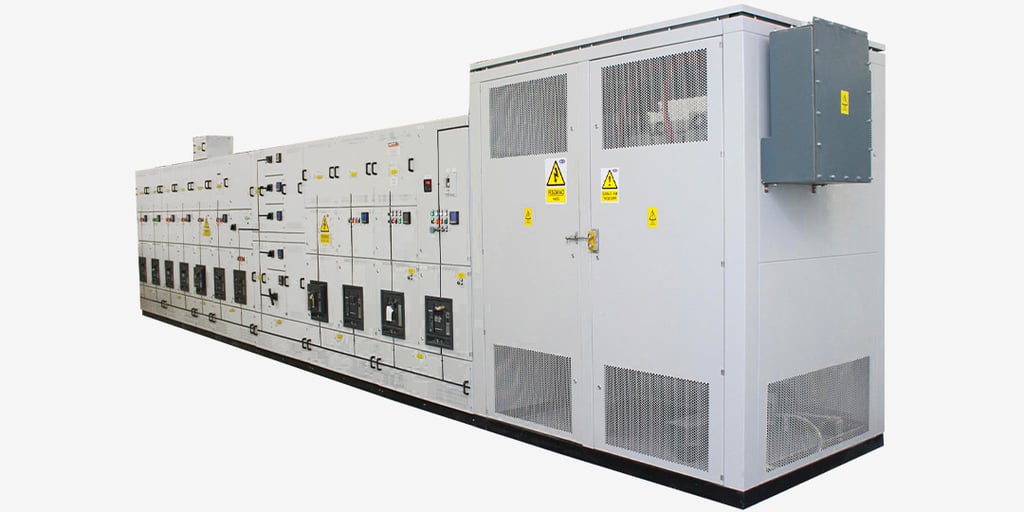

Factory-built MV/LV substation assemblies meet users' needs with respect to reliability, safety, overall quality, time-savings and appropriateness for the local surroundings (climatic conditions, operating mode, architectural requirements...)

2mm thick painted GI enclosure mounted on a hot dip galvanized 4mm thick GI base.

Partitions between compartments with 2mm thick GI sheet.

Gasket/ Stiffners provided as required. Internal lighting facility provided

Application: For high-rise buildings, urban and rural buildings, residential areas and temporary construction electricity and other places, this is
used for receiving and distributing network energy.
Standards: IEC 62271-202
Parameters: High voltage range: 3.6-24kV, low voltage: 0.4kV.
Features: Small size, light weight, easy to transport.
High mechanical strength and short circuit resistance, good thermal stability, high reliability, long service life.
High efficiency, low noise.
Excellent heat dissipation and moisture resistance.

Miniature Circuit Breaker

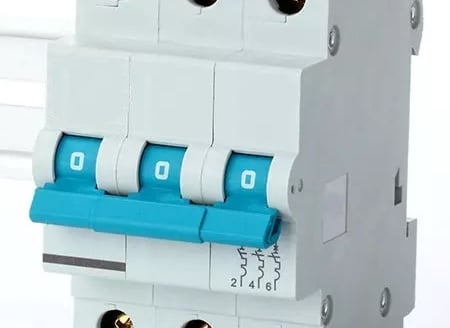

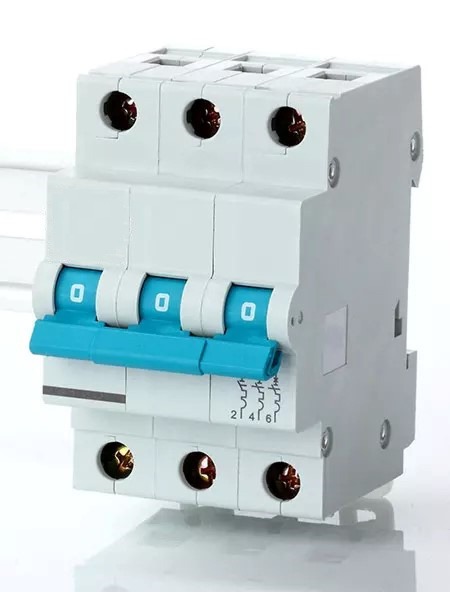

Intelligent, automatic and reliable are the three words that define the circuit breaker range from us A fundamental in every circuitry, circuit breakers play an essential role in safeguarding you and your home from any mishaps due to over current, overload or short circuit. Choose from a range of miniature circuit breakers, high rating MCBs, mini MCB isolators, isolator switching devices and indicator lights and armor yourself. Switchgear covers a range of devices that involve protection of your appliances. They are used to control, master and regulate the electrical power systems. The fuses, switches, circuit breakers etc. work on the same principle. These devices are equipped for de-energizing the circuits allowing them to work easily and prevent faults. This in turn helps in preventing the entire circuitry from going haywire. Voltage fluctuation is a common phenomenon in India and the Our products ensure that your appliances are not damaged during this period. Isolator switches, indicators, MCBs and other switching devices can be easily used in any kind of circuits and serve the purpose well. With these devices in place, there is no reason to worry. Choose from a range of the best electrical products from online and safeguard yourself & your appliances well in advance before any mishap.

Features:

MCBs conform to IS/IEC 60898 with short-circuit breaking capacity of 10kA throughout the range

MCBs conforms to IEC 60947-2 with short-circuit breaking capacity

15kA (up to 40A)

10kA (50A & 63A)

DC MCBs conforms to IEC 60947-2

Rated Voltage: 130V DC (for SP), 250V DC (for DP) with breaking capacity of 6kA

True contact indication in MCBs and Isolators enhancing safety by reflecting actual contact status

Label holder in MCBs for easy circuit identification

Complete range of RCCBs from 25A to 100A with 30mA, 100mA and 300mA sensitivity with ISI mark

Isolators available in DP,TP and FP from 40A to 100A with utilization category of AC-22A

Range of Controlling and monitoring devices

MCB accessories: Auxiliary Contact, Trip Alarm Contact, Shunt Release

Power Contactor

Contactors

Our wide range of power contactors is available in single pole, two pole, three pole and four pole configurations. Current rating in each configuration ensures that customer requirement is satisfied. Solutions are available for every application like motor starter, agriculture pumps, genset applications, street lighting and switching to alternate source of supply, DC application. Our contactors are as per IS/IEC 60947-4-1.

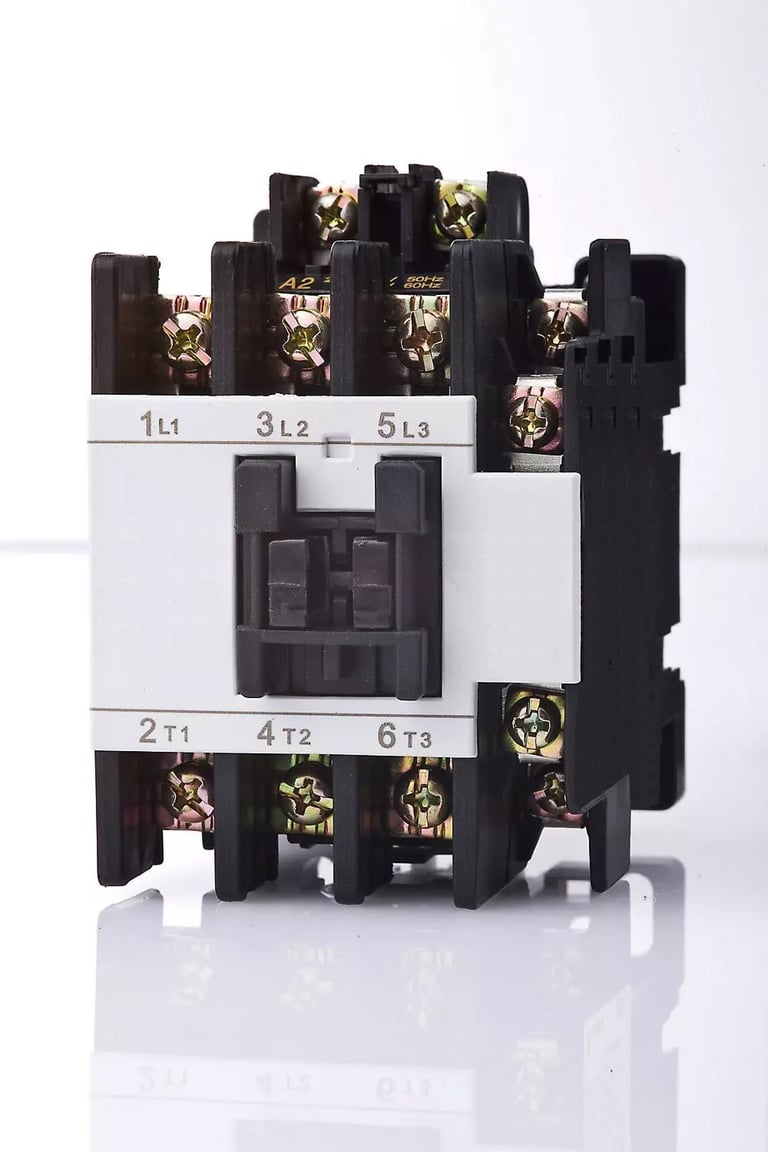

Power contactors

AC DIN three pole contactors

Rating: 9A to 110A AC-3 duty
Compact Dimensions: Space saving
DIN Rail mounting up to 110A
Box clamp termination and terminal shrouds for power terminals
Lug less termination
Low VA consumption
RoHS compliant

Panel mount three pole contactors

Rating: 9A to 650A AC-3 duty
Entire range is UL Listed
Easy inspection and replacement of coils and contacts
Alpha-numeric terminal markings
Front ON/OFF indication
Aesthetic appearance
CE Marked and CSA approved
Operating band from 65 % to 120% up to 32 A

Mini Power Contactors

Rating: 6A to 12A AC-3 duty
Enclosed construction for compactness and convenience
AC & DC coil available
Base as well as DIN rail mounting facility
Built in surge suppressor for DC coil contactors
Low VA consumption

DC coil three pole contactors

Permanent magnet coil technology
Compact size
Low VA consumption
Wide operating band
Complete range suitable for DIN rail mounting
IP20 connection security
Snap On Installation
Four terminal coil
Built-in Surge Suppressor for contactors rated from 9A – 38A

AC four pole contactors

Ratings: 16 A to 800 A AC-1 duty
Suitable for supply changeover and genset applications
Available in five frame sizes and nineteen current ratings
Alpha-numeric terminal marking
Wide operating band up to 100 A AC-1

HVAC two pole contactors

True 2 Pole contactor with Neutral Isolation
Suitable for single phase pump and motor applications
Suitable for low voltage condition
High temperature withstand capability
Protection of coil from humid environment
Available with wide band coil
Control contactor
Our range control contactors have proven track record of successful and reliable implementation of complex control logics. Our control contactors come with high flexibility of number and combination of auxiliary contacts. These aesthetically suit the panel’s visuals. They are suitable for industrial as well as commercial installations where complex control is required.
AC Control contactor
- In-built 5 auxiliary contacts
- 9 NO/NC combination with maximum 6 NC contacts
- Flexibility in selection of NO/NC combination
- These contactors have terminal shroud for safety
- The coil VA is less which reduces the burden on control transformer
- Four terminal Coil
- The entire range is RoHS compliant.
DC Control contactor
- Conforms to IS/IEC 60947-4-1, IEC 60947-4-1
- Available with DC control
- Positive ‘ON’ / ‘OFF’ indication from the front
- Available in all NO/NC combinations (4 Pole)
- Maximum of 8NO to 8NC contact combinations with add-on aux contact blocks
- All accessories are top mounting
Accessories
Add-on auxiliary contact block
- Surge Suppressor
- Mechanical Interlock Kit

Industrial Switch Disconnector

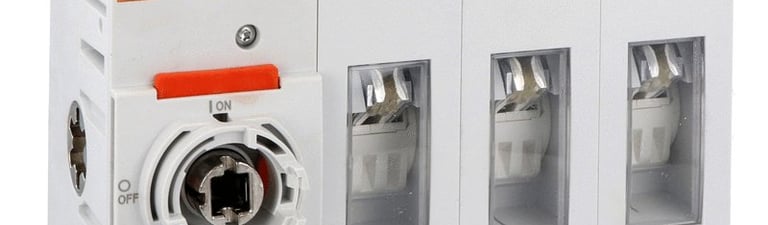

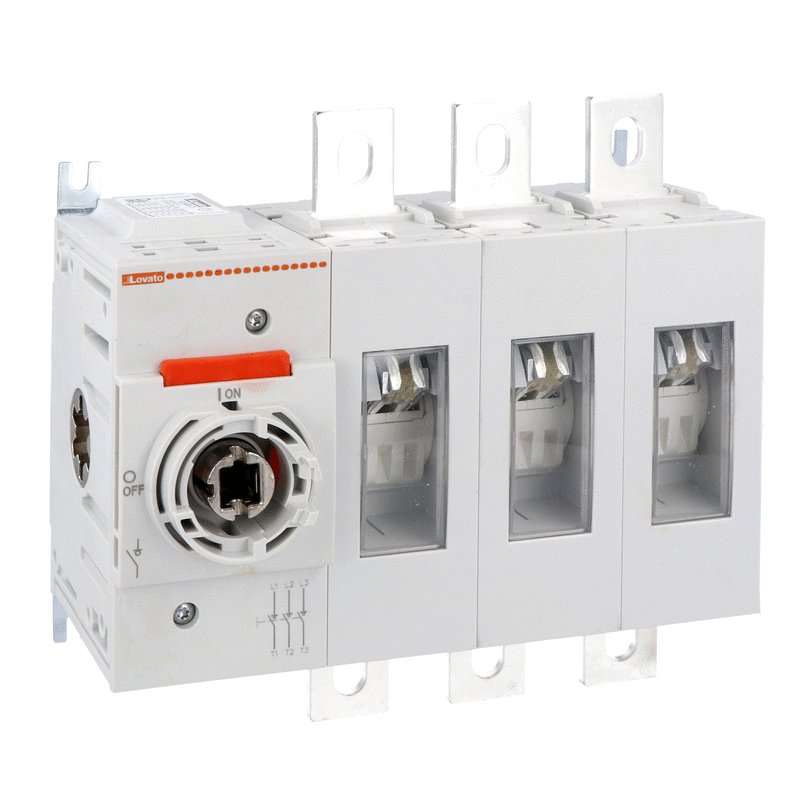

Switch-Dis connector

Switch-Dis connector Range are with the following safety features as a standard offering:

Terminal Shrouds on both line and load side
Phase barriers
High clearances and creepage distances
High ground clearance

Offering:

Range: 32A to 2000A
Configurations: 2P(32A to 1000A), TPN(32A to 1000A), 4P(1000A to 2000A)

Salient Features:

AC-23A utilization category for entire range
Quick-make /Quick-break mechanism
Quad break contact system : Better arc quenching and higher electrical life of contacts
Telescopic Shaft: Step-less depth adjustment
Suitable for Aluminum termination
Door interlocking in ON position with defeat feature

Spares & Accessories:

Handle assembly (Type A/B/CE)
Auxiliary contact kit(1st NO + NC, 2nd NO + NC)
Earthing link (for termination of earth busbar)
Castell Interlock
Terminal Shroud kit
Interphase barrier kit

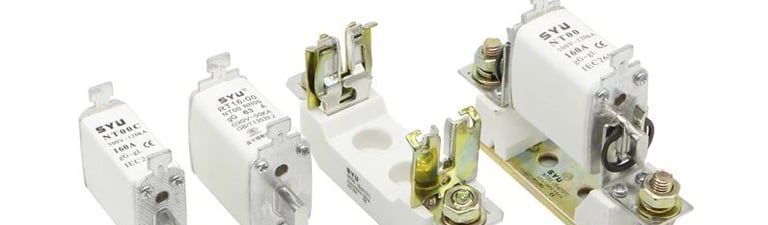

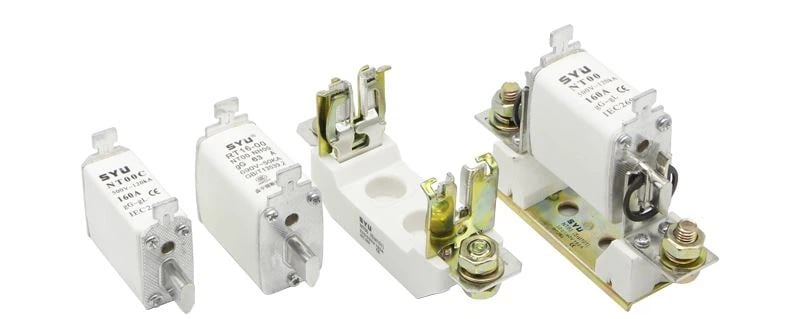

Industrial Switch Disconnector Fuse

Switch Disconnector Fuse come with the following safety features as a standard offering:

Terminal Shrouds on both line and load side
Phase barriers
High clearances and creepage distances
High ground clearance

Offering:

Range: 32A to 800A
Available in open execution and SS enclosure variants
Versions: Suitable for DIN type and Bolted type fuses
HE SDF version for harsh sulphurous environment
Configurations: 2P, TPN, 4P(100% rated, Switched neutral)

Salient Features:

AC-23A utilization category for entire range
Quick-make /Quick-break mechanism
Quad break contact system : Better arc quenching and higher electrical life of contacts
Telescopic Shaft: Step-less depth adjustment
Suitable for Aluminum termination
Ample space for termination in spacious SS enclosure version; No separate cable gland boxes required Clear ON/OFF indications
Door interlocking in ON position with defeat feature

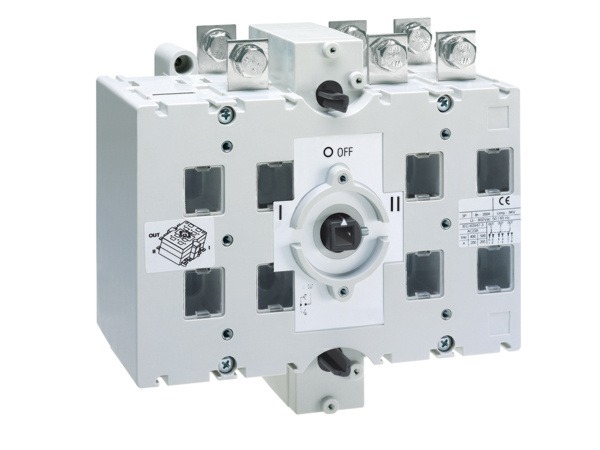

Change Over Switch

Changeover Switches

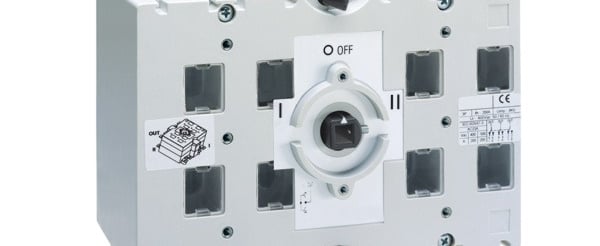

Changeover Switches combining compactness with high performance and convenience, thus making a state-of-the-art product in changeover technology. The range covers ratings from 63A to 2000A in 6 frame sizes. Changeover Switches are available in open execution, sheet steel enclosure, fused version (suitable for DIN type fuse – link ) and motorised version.

Complete touch proof design, with help of terminal shroud, source separator and inter-phase barriers

Staggered terminals provide clear access to all terminals from the front, ensuring ease of termination

dual dead center mechanism enables the user to toggle between central or side positions for operating handle. This can be easily converted on site as required.

Multi featured operating handle:

Unique flip-able handle for rating 400 A and above which enables the user to operate the switch with two hands
Provision for padlocking in OFF position with three padlocks
Defeat feature in both ON states and auto restoration of panel door
IP54 with extended type operating handle
Motorised Changeover Switches

Motorised Changeover Switches are remotely-controlled switches which switch from one supply to another on receipt of signal from an external controller.

Product Features:

Range : 125A to 2000A
Auxiliary supply requirement: 240 Vac
No change in of Motorised Changeover Switch and Manual Changeover Switch
2 Changeover contact are pre-wired and pre-fitted in the Motorised Changeover Switch
Auto/Manual mode selection available
Manual operation is possible by inserting handle
Inbuilt glass fuse protects the motorised kit during abnormalities
Provision of padlocking in OFF position (three padlocks)ture

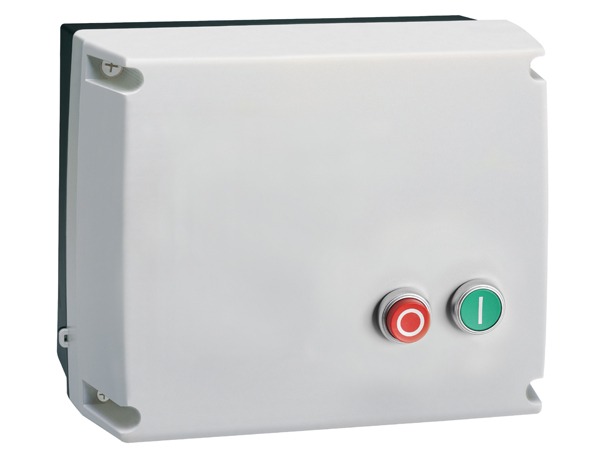

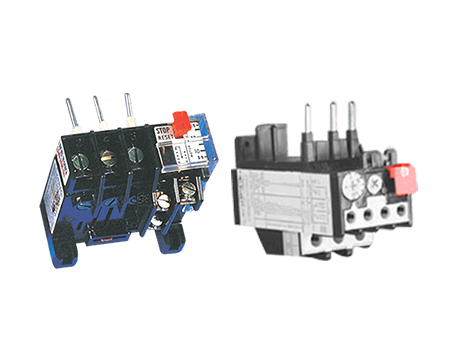

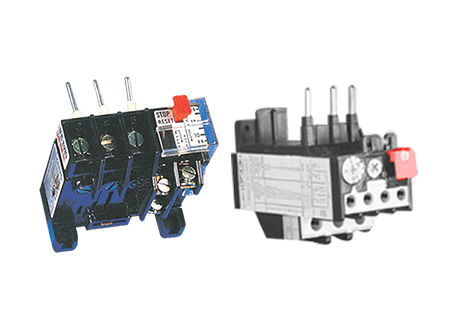

Industrial Motor Starters

DOL starters

DOL starters are basic electrical starters with contactors and relay for ON/OFF operation and overload protection of the pump set.Over and above the ON/OFF operation and overload protection features equipped in Controllers, it also provides additional features like Auto ON, indications of Supply ON/OFF and Pump ON/OFF, reading of real time voltage & current of pump with unique Dual analog meter. Single phasing protection relay (SPPR) inside Controller unit provides the advanced protection features viz. single-phasing prevention, phase-reversal protection, phase-unbalance protection, variable time-delay adjustment for delayed operation of pump set.

DOL STARTERS

For Motor Starting

Ratings

The Rating is available from 0.75 HP to 50 HP

AC Voltages

Available in 415 V & 260 V - 440 V

Operating Band

Wide band coil to withstand high fluctuation

Design

Provided with Protection Degree IP54

Fully Automatic version of Star-Delta

FASD starters are basic electrical starters with contactor and relay combination for ON-OFF operation and overload protection of the pump-sets. Over and above the ON/OFF operation and overload protection features equipped in Controllers, it also provides additional features like Auto ON, indications of Supply ON/OFF and Pump ON/OFF, reading of real time voltage & current of pump with unique Dual analog meter. Single phasing protection relay (SPPR) inside Controller unit provides the advanced protection features viz. single-phasing prevention, phase-reversal protection, phase-unbalance protection, variable time-delay adjustment for delayed operation of pump set.

Ratings

The Rating is available from 10 HP to 150 HP

AC Voltages

Available in 415 V & 260 V - 440 V

Operating Band

Wide band coil to withstand high fluctuation

Design

Provided with Protection Degree IP54

Mono/SUBMERSIBLE STARTERS

Electrical starting solutions, submersible pumps, mono block pumps and domestic pumps.

The offerings also include starters, controllers for 1-phase and 3-phase submersible pumps. Module for Starters & Controllers is a high technology product for operating pumps through mobile phones from a remote location.

SINGLE PHASE SUBMERSIBLE STARTERS

For Motor Starting

Ratings

The Rating is available from 0.5 HP to 3 HP

AC Voltages

Available in 140 V - 270 V, 240 V

Operating Band

Wide band coil to withstand high fluctuation

Design

Provided with Protection Degree IP54

THREE PHASE SUBMERSIBLE STARTERS

For Motor Starting

Ratings

The Rating is available from 20 HP to 50 HP

AC Voltages

Available in 415 V & 260 V - 440 V

Operating Band

Wide band coil to withstand high fluctuation

Design

Provided with Protection Degree IP54
