Packaging Lines

Our High-Quality Solutions In The Packaging Lines to Set The Benchmark And Satisfy Users Around The World. Our Diverse Product Range Comprises A Wide Range Of Packaging Technologies, Handling And Automation Solutions, Labelling, Inspection And Quality Control Systems. Our Product Range Is Ideally Complemented By Needs-Based Solutions Developed To Meet The Broadest Range Of Processing And Packaging Requirements. Our Comprehensive Packaging Line And Automation Expertise Guarantees Maximum Performance, Process Reliability And Efficiency.

We Are Solution Provider And Technology Partner. We Support Our Customers Worldwide With Our Wide Range Of Products And Services. From Artisan Producers To Large Corporations. In Virtually All Sectors. From Food To Medical And Pharmaceutical Products And All The Way Through To All Types Of Consumer And Industrial Goods.

We have taken the next steps in the evolution of the pouch making process the Stand-Up Pouch System. Incorporated into this new design include advancements that enable: improved productivity, reduced downtime (tool less changeovers) and extremely high pouch quality, all while reducing maintenance costs.

This new system is ideal for applications in the short-run digital print market, as well as, medium to long run applications typically found in pouch converting lines.

The world’s most advanced pouch making system

Low scrap rates

Fast change-over times

Exceptional pouch quality

Able to run the toughest films, including recyclable

Extremely high productivity and uptime rates

Precision, accuracy and repeatability never seen before on a pouch making line

The standard features , include:

Independent servo draw systems

Servo knife with independent servo sealers/coolers

Built-in flange zipper system

Four zone web-tension control

Nip-driven unwind system

Built-in indexing conveyor

Two independent punch carriages (one with tear notch and one with hanger hole)

Auto-tune temperature controls

Heater and thermocouple break alarms

Eye averaging function (smoothing function)

General Specifications

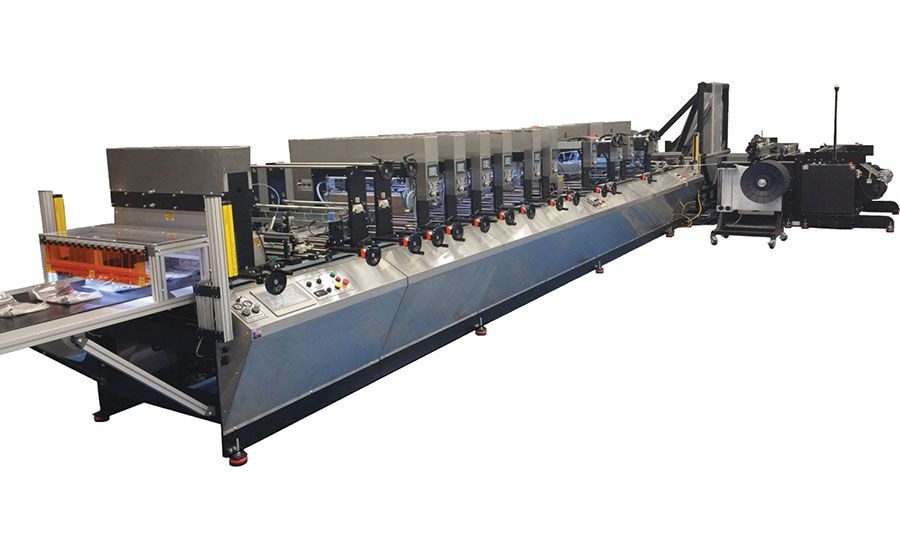

Stand-Up Pouch Making Machine

24” (610 mm)

Max Lay-Flat Web Width Stand-Up Pouch Making Machine 24” (610 mm)

Max Lay-Flat Web Width 52” (1321 mm)

Max Roll Diameter 24” (610 mm)

Standard Core Size 3” (76 mm)

Min/Max Gusset Size 0.5”/4” (1.0”/8” open) (13/102 mm)

Min/Max Pouch Width 3”/12” without skip feed (300” with skip feed) ( 76/305 mm)

Max Pouch Height 24” (610 mm)

Mechanical Speeds 250 cycles/minute

Electrical Requirements 208 / 220 VAC, 125 AMP

Servo Actuated Machine Air Requirements 15 /CFM @ 90 psi

Equipment Options

Optional Punch Shapes and Sizes Tear notch, hanger hole, sombrero, corner round, handle hole.

Digital Readouts for Carriage Positioning Provides a more precise location positioning with absolute or

incremental settings. Inch and metric conversion provided.

Closed Loop Chiller System For maintained chilled water supply.

Coreless Trim Rewinder Easy change spools, traverse wound trim with small foot print.

Two Tier Conveyor with Stacking Gate Allowing for cleaner stacking and product handling.

Vacuum Punch Slug Removal

This option provides a clean vacuum removal system for punch

slugs.

Web Tracking Guide

Guides film at the front of the machine, allowing better accuracy

for punches, web slitting and other pouch features.

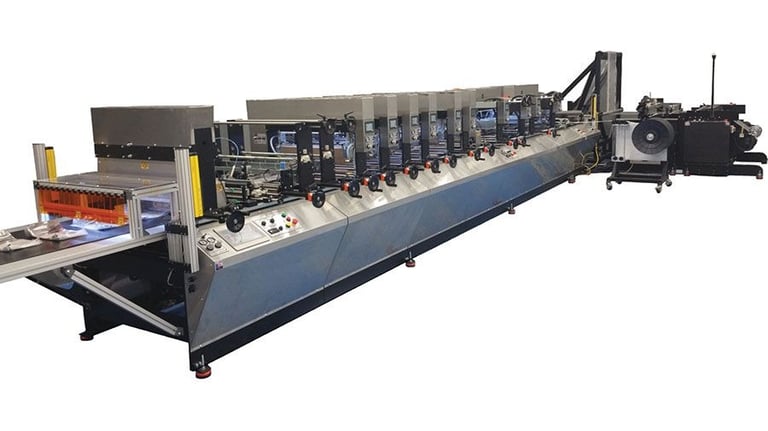

Automatic Stand Up Pouch Machine

Automatic Zipper Pouch Machine

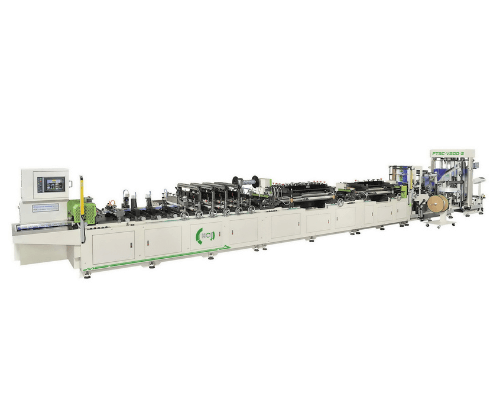

Automatic Zipper Pouch Machine

Automatic Zipper Pouch Making Machine is ideal for the production of 3-side sealing bag, gusseted stand-up pouch, zipper pouch, four side seal bag.

Features:

Main drive servo motor:

The operator can change the feeding and sealing time for each material independently. Sealing temperature adjustment unnecessary while machine speed up. This mechanism can help to reduce the lost of material greatly.

Feeding servo motor 2

The pouch length is accurately controlled by servo motor includes middle pulling stand and rear pulling stand for upgrading production speed.

Outer transmission mechanism:

Compared with inner transmission mechanism, the structure of brand-new outer transmission mechanism is much simple and ease to maintenance The new pouch making machine can give about 30% more productivity than conventional bag making machines.

Diverse range of bag production capabilities One machine can produce various pouches such as three side sealing bag, stand up pouch, bottom gusseted stand up pouch, zipper pouch, combined stand up and zipper pouch. 3-side sealing bag: 3 lanes production and the skip seal function can reach 9 times of feeding length. (max.1,200mm).

Stand up pouch and zipper pouch

2 lanes production.

Bottom gusseted stand up pouch & Four side seal bag:

Dual function unwind stand and a second add-on gusseting device are optional items that facilitate production of standup pouch with bottom gusset and four side seal bag. The adjustable gusseting depth, together with the gusset-nipping roller and photocell features, accurate gusset depth and precise sealing position can be achieved without film slip problem.

Web Handing And Tension Control

The film takes many processes to convert to a pouch of demand size and shape. Most of the process are forming (folding and/or gusset forming), sealing in longitudinal and transverse directions, inserting other substrates such as zipper and gusset. Appropriate tension control is important to the composing process. The new Pouch Making Machine can set different tension values for each special tension zone to ensure the precise performance during pouch making machine running Zipper / gusset inserting and zipper pouch sealing zoneThe film enters into intermittent path from this zone. The zipper inserting tension is controlled by motor incorporated buffer roller unit in order to cope with the rush pulling that cause by intermittent path.

Specifications

Material Width (mm)                   400 - 1,200

Material Diameter (mm)(max.) 600

Bag Length (mm)                  30 - 50

(Max. 1,200mm skip-seal production)

Bag Width (mm)                  200 - 600

(Min. 75mm Multi-Lane Production) Mechanical Speed (bags/min.)  150

Feeding Speed (m/min.) (max.)   30

Automatic Zipper Pouch Machine

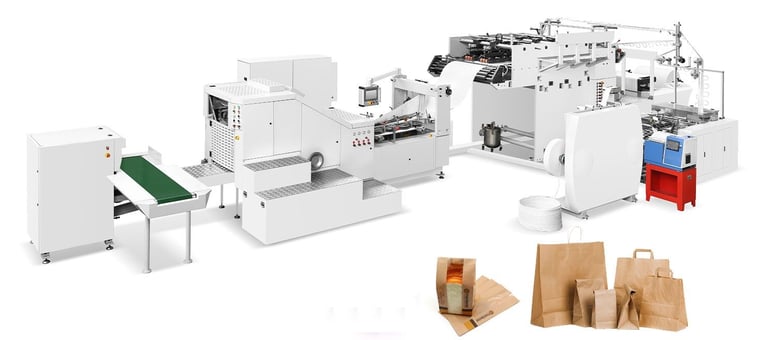

Automatic Square Bottom Paper Carry Bag Machine Is Designed For The Production Of Paper Bags With Twisted And Flat Handles. It Is Suitable For Mass Production Of Shopping Bags In Industries Such As Food And Clothing. The One-Line Process Consists Of Twisted Handles Making From Paper Rolls And Twisted Rope, Delivery Of Handles To Paste Unit, Pre-Cutting Of Paper On Position Of Rope, Patch Position Gluing, Handle Pasting, And Paper Bag Making. The Paper Bag Making Process Consists Of Side Gluing, Tube Forming, Cutting, Creasing, Bottom Gluing, Bottom Forming And Bag Delivery. This Machine Adopts Imported High-Speed Motion Controller Which Controls The Operation Of Servo Through High-Speed Bus To Ensure Stable Movement And Smooth Motion Curve. It Is The Automatic Square Bottom Paper Bag Equipment With Handles Inline Preferred By The Majority Of Printing And Packaging Manufacturers.

Specifications

Model SSP-300 SSP-450

Cutting Length 270-530 mm 270-530 mm

Cutting Length (Ful) 270-430 mm 270-430 mm

Bag Width 150-330 mm 220-450 mm

Bag Width (Ful) 220-330 mm 290-450 mm

Bag Length 225-470 mm 225-470 mm

Bag Length(Ful) 225-370 mm 225-370 mm

Bottom Width 60-180 mm 80-220 mm

Paper Thickness 60-160 g/m2 80-160 g/m2

Paper Thickness (Ful) 60-160 g/m2 80-160 g/m2

Paper Roll Width 440-1050 mm 630-1370 mm

Paper Roll Width (Ful) 585-1050 mm 770-1370 mm

Roll Paper Diameter 0 1200 mm 0 1200 mm

Paper Core 0 76 mm 0 76 mm

Handle Height 100 mm 100 mm

Patch Length 152.4 mm 203.2 mm

Patch Width 40-50 mm 40-50 mm

Handle Distance 75 mm 95 mm

Rope Diameter 0 3-5 mm 0 3-5 mm

Patch Paper Roll Width 80-100 mm 80-100 mm

Patch Paper Roll Diameter 0 1200 mm 0 1200 mm

Patch Paper Thickness 100-135g/m2 100-135g/m2

Machine Speed 30-200 bags/min 30-200 bags/min

Production Speed ( Without Handles) 30-160 bags/min 30-160 bags/min

Production Speed ( With Handles 30-120 bags/min 30-120 bags/min

Cutting Knife Sawtooth Cutting Sawtooth Cutting

Power Supply 415 V 3 Phase 35 KW 415 V 3 Phase 35 KW

Machine Weight 12000 Kg 13500 Kg

Machine Size 14000x5800x2400 mm 14000x6000x2400 mm

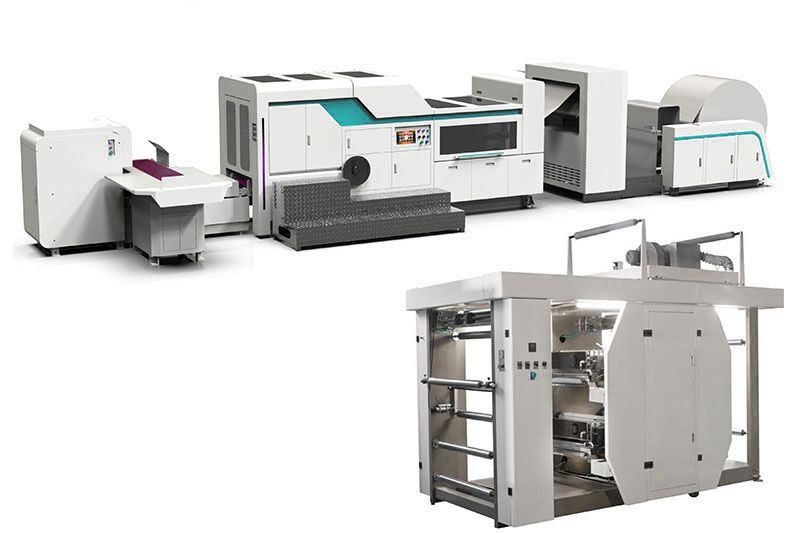

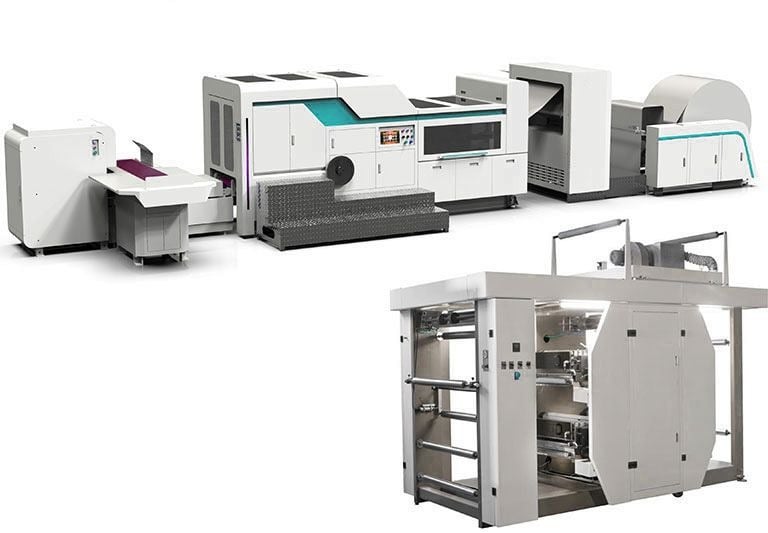

Automatic Paper Shopping Bag Machine

We are the leading square-bottom paper bag manufacturers for offering excellent paper bag machines. In this range, we present another versatile product, a square-bottom paper bag machine. These machines use rolling paper as raw material and are capable to produce 100 percent biodegradable paper bags used for shopping. With our in-house manufacturing capabilities, we bring to you a quality product that is meant to ease off your everyday operations related to bag making. Our years of experience have brought us the expertise which is required to manufacture such machines with perfection.

Features

Quick changeover of the Tube Formation Plates

Easy Touch Operation

Compact and Easy to Handle

Automatic Counting System

Rollers and Cylinders are dynamically balanced

On the run Adjustment of the size of the bag

Our manufactured square-bottom paper bag making machine comes with a quick changeover of the Tube Formation Plates to ease off the operation. It comes in a compact size and is easy to handle, which is why it has an exhaustive demand in the industry. The rollers and cylinders are dynamically balanced in our machine which is also featured with on-the-run adjustment. Using our machines, you can get superb bag quality and finish according to international standards. The best part about this machine is its flexibility in encompassing several techniques during its operations like side gluing, roll folding, bottom folding, bottom forming, and roll paper cutting.

Specifications

Model

SSP 200 SSP 360 SSP 450

Bottom Size (H) 50-105mm 60-205mm 60-205mm

Bag Width (W) 80-200mm 135-360mm 230-450mm

Bag Tube Length (C)190-370mm 270-530mm 270-530mm

Max Speed 220 Pcs/Min 170 Pcs/Min 160 Pcs/Min

Paper Thickness 45-140 GSM 50-160 GSM 80-170 GSM

Max Roll Diameter 1200 mm 1200 mm 1200 mm

Reel Inner Diameter 76mm 76mm 76mm

Paper Roll Width 280-630mm 500-1150mm 650-1350mm

Total Power 5KW 8.5KW 11KW

Machine Weight 6500KG 8500KG 9500KG

Machine Dimension LXWXH(mm) 6500x1600x1800 10000x2000x1900 10500x2100x1900

Square Bottom Paper Bag Machine

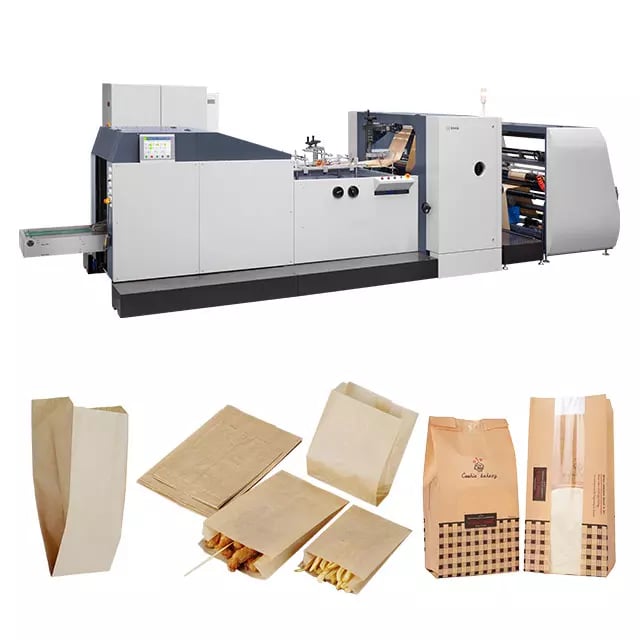

V  Bottom Paper Bag Machine
V  Bottom Paper Bag Machine
V Bottom Paper Bag Machineuct V-bottom paper bag Machine. It caters to the need of producing quality paper bags efficiently. Our machines come with various features like Pneumatic reel lifting and Pneumatic Break for Auto tension control for smooth operation. It is provided with a Dancing Roller Mechanism to facilitate controlling the tension. The V-bottom bag machine offered by us can be availed with the following options: Inline Printing and Servo Drive Unit with a print mark sensor.

Features

Quick changeover of the Tube Formation Plates

Easy Touch Operation

Compact and Easy to Handle

Automatic Counting System

Rollers and Cylinders are dynamically balanced

On the run Adjustment of the size of the bag

Specifications

Model SSP 1000 SSP 1400 SSP 1800

Bag Length 140-455mm 140-455mm 180-605mm

Bag Width 80-270mm 80-350mm 100-450mm

Gusset 0-100 MM 0-125mm 0-175mm

Standard Flap 12-20mm 12-20mm 12-20mm

Max Speed 500 Bags/MIN. 500 Bags/MIN. 400 Bags/MIN.

Paper Thickness 30-90 GSM 30-90 GSM 30-120 GSM

Paper Roll Width 200-760mm 200-1000mm 250-1290mm

Max Roll Diameter 1000 MM 1000 MM 1000 MM

Total Power 3.7 KW 3.7 KW 5.7 KW

Glue Motor 90 W 90 W 90 W

Overall Dimension 5000x1600x1700mm 5500x1900x1700mm 6500x2400x1800mm

Weight Of Machine 2500 KG 3000 KG 4500 KG

V Bottom Paper Bag Machine
