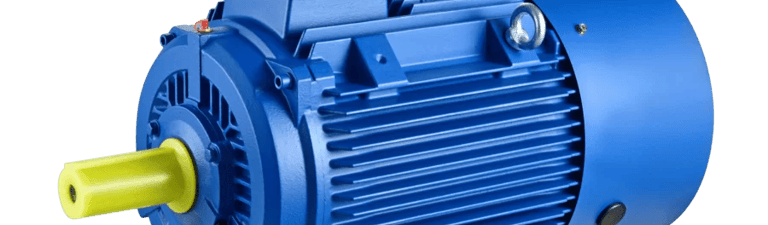

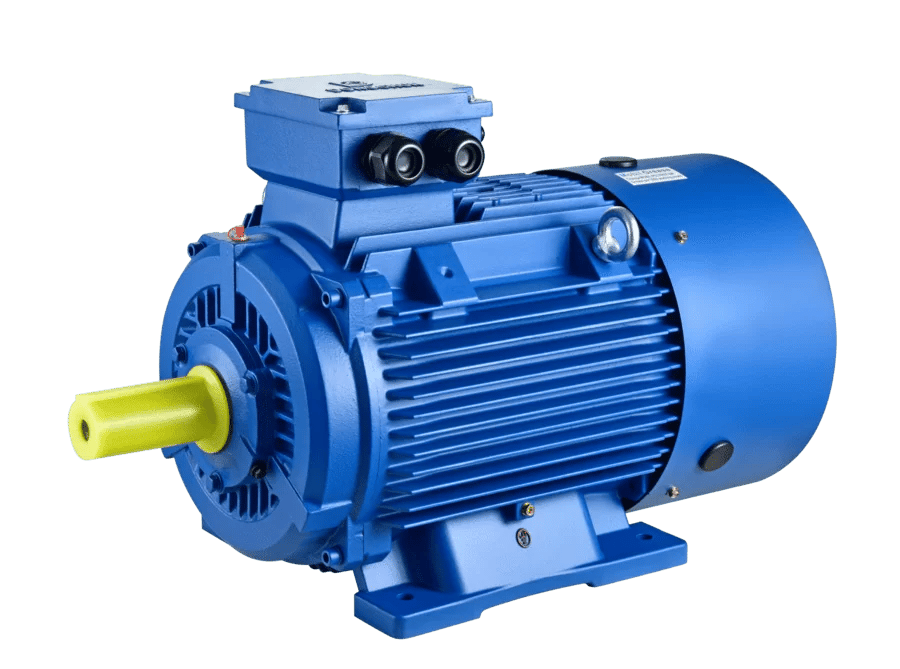

Induction Motors

We are one of the most preferred and reliable manufacturers in the country. We have the widest range of motors to suit applications across various sectors. A brief description of our electric motors range is given below.

Low Voltage Motors

Motors for Safe Area application in the range 0.12 to 355 kW in both IE2 and IE3
efficiency series; higher kW can be offered on request.

Motors for Safe Area application from 2.2 kW to 45kW 1500
RPM LS

PMSM Motors in IE4 efficiency series.

Crane Duty Motors up to 400 kW and Brake Motors up to 22kW.

Special Application Motors like cane unloader motors, textile motors and railway
auxiliary motors.

Industrial MOTORS

Motor Type Frame Power (kW) Polarity Image

IE2 Motors 71 to 355 0.12 to 355 2, 4, 6, 8

IE3 Motors 80 to 355 0.12 to 355 2, 4, 6, 8

Large LT Motors(DCCA) 355 to 450 250 to 1250 2, 4, 6, 8

IE4 Motors 112 to 225 1.5 to 45 4

SPECIAL APPLICATION MOTORS

Motor Type Frame Power (kW) Polarity Image

Cane Unloader Motors 160 to 225 11 to 30 6

Textile Motors 100 to 160 1.1 to 15 4, 6, 8

Railway Auxilliary Motors

As per requirement ---- ----

CRANE & BRAKE MOTORS

Motor Type Frame Power (kW) Polarity Image

Crane & Hoist Duty Motors 71 to 355 0.37 to 400 4, 6, 8

Brake Motors (With Integral DC Brake) 71 to 132 0.37 to 9.3 2, 4, 6, 8

Brake Motors (With External Mounted Brake) 71 to 200 0.37 to 22 2, 4, 6

Slip Ring Motors : Crane Duty 100 to 160 1.1 to 10 4, 6

Geared Motor

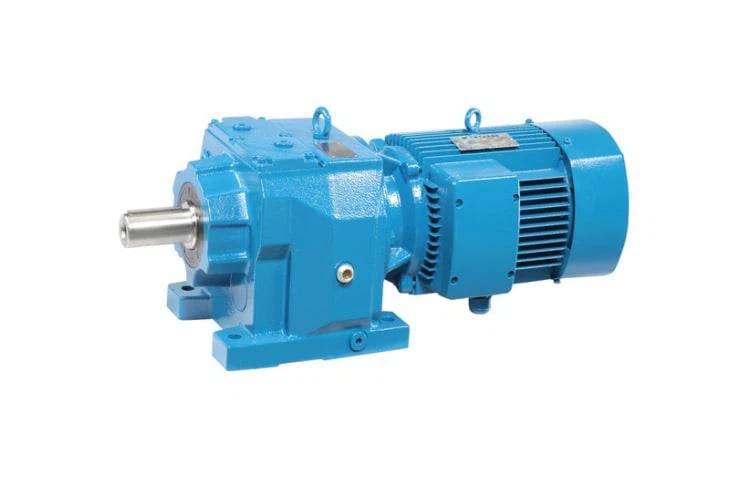

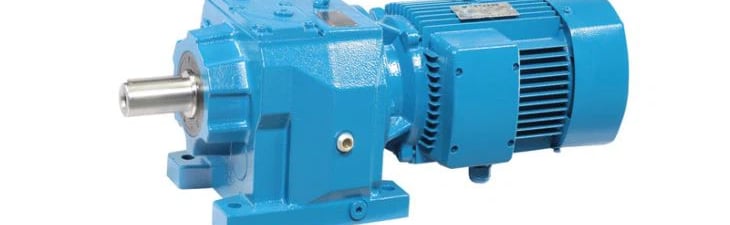

Geared Motor

Our Efficient and reliable power transmission solutions Look no further than exceptional range of Geared Motors, including Helical inline geared motors, Helical Bevel geared motors, Worm geared motors and planetary geared motors. Geared motors are the heart of many industrial applications, offering precision, power, and durability. Let's delve into why our geared motors are the ideal choice for your machinery.

Why Choose our Geared Motors, including Helical Geared Motors, Heli Bevel Geared Motors, Worm Geared Motors and Planetary Geared Motors?

High Performance: our range of geared motors, including helical, Heli Bevel, worm and planetary Geared Motors are engineered for high-performance, ensuring seamless power transmission even in the most demanding applications. Whether you need precise speed control or heavy-duty torque, our geared motors deliver.

Versatility: Our geared motors come in a variety of configurations, including helical, Heli Bevel, worm and planetary Geared Motors, making them suitable for a wide range of industries and applications. From conveyor systems to manufacturing equipment, has a geared motor solution for you.

Reliability: We understand the importance of reliability in industrial settings. Our geared motors, whether worm, helical, or planetary, are built to last, minimizing downtime and maintenance costs. You can trust our products to keep your operations running smoothly.

Efficiency: Geared motors, including helical, Heli Bevel, worm and planetary are designed to be energy-efficient, helping you reduce operational costs and environmental impact. This makes them a sustainable choice for your business.

commitment to quality and innovation ensures that our geared motors, including helical, Heli Bevel, worm and planetary are among the best in the industry. Trust Power Build for top-tier power transmission solutions.

Geared Motors
Pump motor

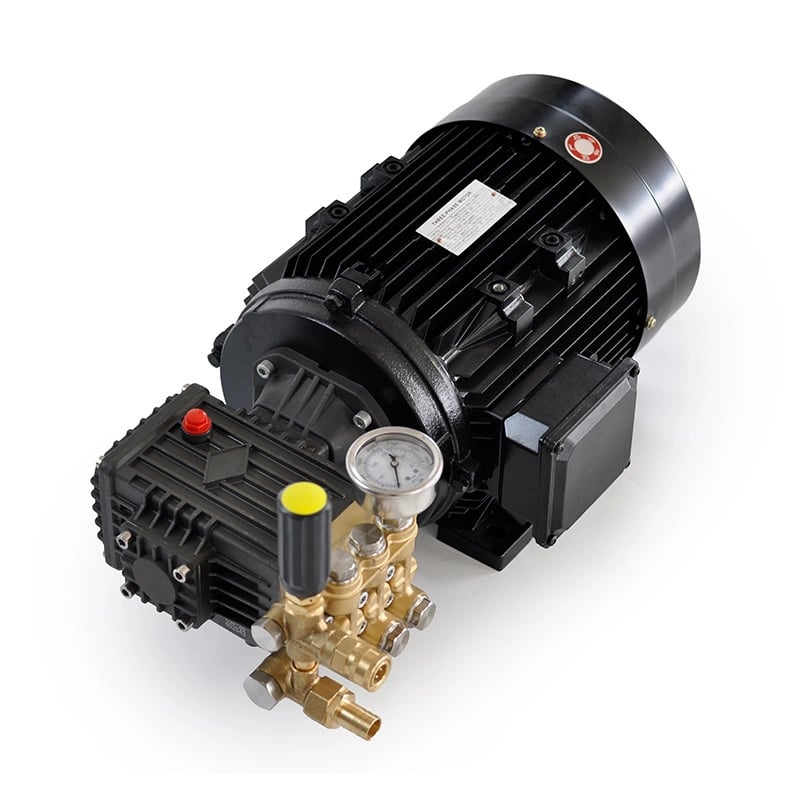

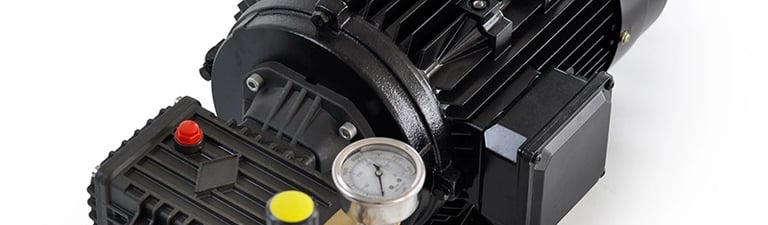

Pump motor

Pressure Booster Pumps

Pressure Booster Pumps are reliable, efficient and boost the pressure in your Commercial shower, bathrooms, and kitchens. The pumps come with high quality pressure tank, pressure switch and other accessories. The Pressure switch monitors the pressure in the system and it will switch the pumpset ON and OFF automatically based on demand

DETAILS

Power Input Range 0.37 kW to 1.5 kW

Power supply Single phase 230 V, 50 Hz AC supply

Motor Capacitor run motor, TEFC type

Speed 2900 RPM

Degree of Protection IP 54

Class of Insulation ‘F’ Class

Flow rate upto 7.5 m3/hr

Head upto 72 m

Liquid temperature Maximum 55º C

Suction lift Maximum 7 m

Operating pressure Maximum 7 Bar

Monoblock End Suction Pumps.

A Monoblock end suction pump is a type of centrifugal pump that is designed with a compact, single-piece construction. It combines the motor and pump assembly into a single unit, hence the name "Monoblock." The term "end suction" refers to the pump's inlet, which is located at one end of the pump casing, allowing fluid to enter from a single direction.

These pumps are commonly used in various industrial and commercial applications where a reliable water or liquid transfer is required. The Monoblock design simplifies installation and maintenance since there are no separate coupling or alignment procedures needed between the motor and pump. The compact design also saves space, making it suitable for applications where space is limited. Technical Data:

Head, H: Max. 149 m

Discharge: Max. 480 LPM

Flow, Q: 4.8 m3/hr

Rating: 0.5 HP to 3 HP

Solar pumps

Supreme features coupled with excellent performance have resulted in Our Solar Pumps making a distinctive mark in the pump market, the world over. Available in the range of 1 HP-100 HP, Solar Pumps offer 40% more discharge as compared to other ordinary pumps. Naturally, this makes our pumps the undisputed leader in the pump market.

India's largest manufacturer and exporter of Solar Pumps.

Proven motor, pump and motor control and solar pv maximum power point technology for a reliable and fail safe operation

Pump Motors
BLDC Motors

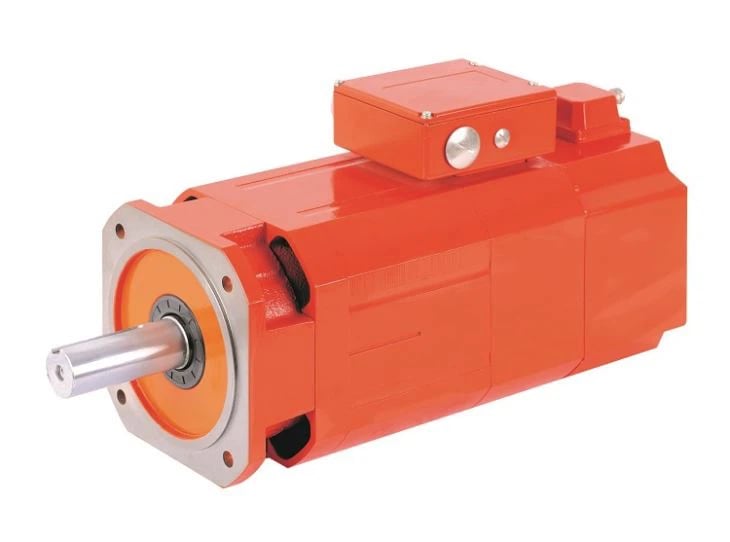

BLDC Motors

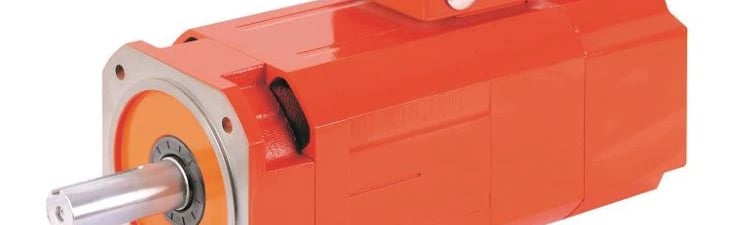

BLDC Motors

BLDC motors are often preferred in motion-control applications as their benefits outweigh potentially higher costs. When it comes to energy-, maintenance- and downtime-related costs, brushless DC motors may cost less than brush types in some applications.Made possible by the development of solid-state electronics in the 1960s, the brushless DC motor, or BLDC motor, is a type of synchronous electric motor that a DC power source powers. Conventional BLDC motors are available in a variety of configurations. Among the most popular are those that look like brush-type motors. The difference is that brushless motors use a wound stator that surrounds a permanent-magnet rotor—an arrangement that’s inverse from that found in brush motors. In BLDC motors, stator windings are commutated electronically instead of using a conventional commutator and brushes.BLDC Motor Benefits

Thanks to the strengths brushless DC motors possess, more and more industries are integrating them into their applications—from aerospace components to home entertainment systems The brushless DC motor’s small size and efficiency are of paramount importance to industries across the board. Here are a few that have hired custom BLDC motor manufacturers to further their fields.

Automotive

Windshield wipers, CD players and power windows in vehicles all use BLDC motors. More recently, the desire for alternative-fueled vehicles has breathed new life into the design and availability of hybrid and electric vehicles, as well as the high-tech motors that power them. Brushless DC motors are commonly used in electric vehicles of all types because of:

Their high efficiency

Low maintenance

Operating speeds

Lack of sparking

Compact size

Quick response

HVAC and Refrigeration

In the HVAC and refrigeration industries, BLDC motors are becoming the norm over the typical AC motor. The top reason for the switch is the reduction in the power required to operate the motor. HVAC and refrigeration engineers also like how brushless motors add to a system’s overall efficiency and install them in many fans.

Manufacturing & Industrial Engineering

Manufacturers use BLDC motors for positioning, actuation systems and more. The motor is considered ideal for several manufacturing application and is commonly used industrial automation design.

A few of the motor’s aspects that manufacturing companies and engineers praise include its:

Power density

Good speed-torque characteristics

Speed ranges

BLDC Motors
appliances Motors
appliances Motors

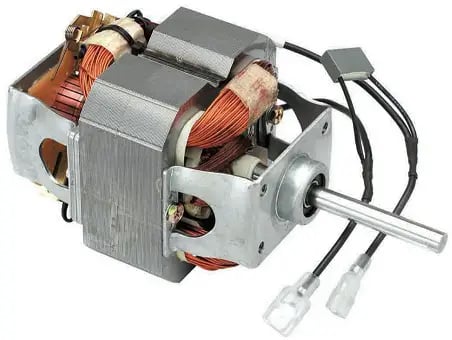

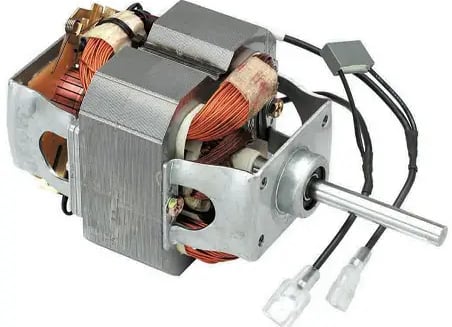

Appliances motors

We are one of the reliable electric motor company in India, is also the best-in-class manufacturer of specialized, indigenously developed, hermetic compressor motors, single-phase motors, custom-built three-phase motors, and components like wound stators, rotor assemblies, and laminations for various applications. The legacy here is strong., in its initial years, pioneered the manufacture of hermetic motor compressors in India. To date, we continue to leverage our engineering expertise to provide customers with energy-efficient solutions to everyday commercial, industrial, and domestic electronic needs.

Known among the most renowned motor manufacturers in India, we service a wide range of industries, including home appliances, air conditioning, material handling, agro-industry, machine tools, industrial automation, poultry, food processing, construction, and general-purpose applications. We also offer calibration services to various sectors of the engineering industry. This helps businesses assure and optimize the control parameters on their equipment which directly impacts the quality of production..

As an experienced motor manufacturing company, specializes in customized solutions and is revered for its innovative design support and manufacturing excellence.

. Our mission to ensure a brighter, greener future has led us to become one of the most trusted electric motor manufacturers in India. In this regard, our BLDC motors, IE3 motors, and single-phase specialized motors deserve a special mention as they gained immense recognition soon after their launch in the market.

HVAC Motors

Package IDU & ODU units. Capacity - 3 Tons to 22 TR

Output

200 W to 2200 W in 4 pole, 6 pole and high slip mode RPM of 1200 -1050 specially in 4 pole motors. 50 Hz supply.

Features

IDU Fan Motor: Option up to 5 speeds. Operates from -20°C to 40°C continuous operation.

ODU Fan Motors: Option up to 3 speeds. Operates from -20°C to 60°C continuous operation.

Insulation system tested and proved for sustaining extreme humidity and high ambient temperature.

Customised solutions for critical applications which are most cost-effective. We work with almost all Indian HVAC equipment makers concurrently, during their design stage.

We qualify the motor and conduct validation tests including reliability tests.

Powder coated exterior to withstand tough outdoor conditions of rain, dust and humidity.

Specialised in making top discharge Fan Motors which are capable of IP55 protection.

All types of possible mounting options are made available - Resilient mounting, Lug mounting, Pad mounting, Stud mounting, single and both side shafts is possible in our motors.

All motors are thermally protected against accidental lock rotor condition and permanently lubricated for service life of more than 40,000 hours of operation. Motors tested and qualified as per specifications of leading globalHVAC equipment makers.


Characteristics of the HVAC motors

Motors are thermally protected with UL recognized overload protectors.

Optimized designs give low temperature rise, quiet operation and energy efficiency, hence saving power.

Expert backup provided for motor selection and qualification for specific application.

Motors can be specially designed to meet electrical and mechanical performance criteria.

Totally enclosed or open design as per customer requirement.

Die Cast precision-machined aluminium end shield for accurate alignment of shafts and bearings.

Powder-coated shells for good corrosion resistance.

Manufactured in state-of-the-art machines to have consistency.

Permanent lubrication for service life of 50000hrs of continuous operation.

Use of Slingers to avoid loss of lubrication oil. Motors are suitable for extreme operating conditions of low temperature, high humidity, dusty atmosphere & high ambient temperatures.

Our vast experienced teams of engineers make the best of the in-house development centre, tool room facility and develop the best of the designs for several HVAC companies.

High-quality HVAC motors from can help you maximize the life and power of your HVAC systems and help you choose the right motor for the applications, to help maximize the life of the products and appliances.
