Injection Blow Moulding
The two main methods of injection stretch blow molding (ISBM) are the single-stage and two-stage processes. The single-stage process can be further divided into 3-station and 4-station machines. In the two-stage ISBM process, plastic is initially molded into a “preform” using injection molding. These preforms are designed with the bottles' necks and threads on one end. After being produced, the preforms are packaged and allowed to cool before being fed into a reheat stretch blow molding machine. In the ISBM process, the preforms are heated, typically with infrared heaters, above their glass transition temperature. Subsequently, they are inflated into bottles using high-pressure air, resulting in the final product. This efficient methodology highlights the versatility and effectiveness of ISBM in producing high-quality plastic bottles.

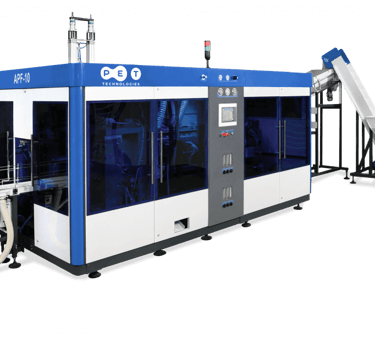

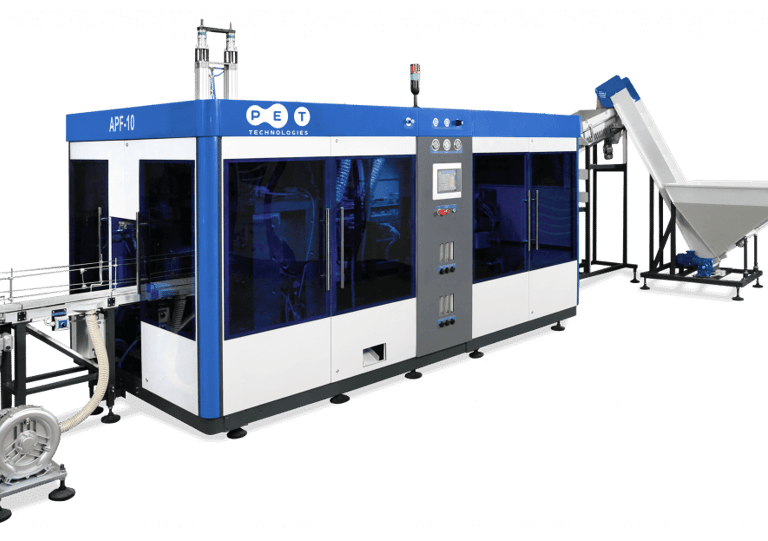

All-Electric Injection Stretch Blow Moulding Machine
A major step forward compared to our oldest hydraulic Biaxial series. A load of customer-focused technology, which brings many benefits, ranging from energy savings to equipment savings; in addition to the linear movements of preforms and bottles we have also the blowing station in two different phases. Equipment savings will mean one more major plus; it’s very well known that the cost of the moulds has a significant impact on the cost of the machine and it’s payback in production. Our machine will rely on the new system, patented, complete with movable mould carrier to allow the cavities of the blowing mould to be reduced by 50%.
Let’s be clearer: to blow 6 preforms, traditional technology would require 6 blowing cavities, with a clamping force of approximately 30-35 ton. With our machine we have only 3 blowing cavities and the required clamping force is reduced by 40%. Specially designed for customers who need production in limited volumes, our machine will allow them to blow simultaneously two differently shaped bottles, with an apparently similar preform and different neck.
The machine can be equipped with in line or 90° injection station. This ground breaking project will allow the machines to be upgraded and many new details to be introduced.
Magic further proves to lead the way in flexibility and awareness.
• All-Electric market machine trends
• The market over the years and currently, is recognizing the great advantages of the Magic All-Electric machine. This technology is the result of years of experience and research and development.
• The advantages brought by the All-Electric technology have no end, such as 50%+ less energy consumption than the older technologies. 70% less maintenance costs and less time spent on required machine maintenance.
• Through Tele service it can possible connect the machine to the internet for remote software updates.
• Applications
• Personal Care & Medical
• Bottles for clean rooms, environment friendly and for the consumer.
• Cosmetic & Pharmaceutical
• High quality and safety for the final user. Simple to recycle.
• Household & Cleaning
• For high durability bottles, free from contamination and resistant to the surrounding environment.
All-Electric Injection Stretch Blow Molding Machine

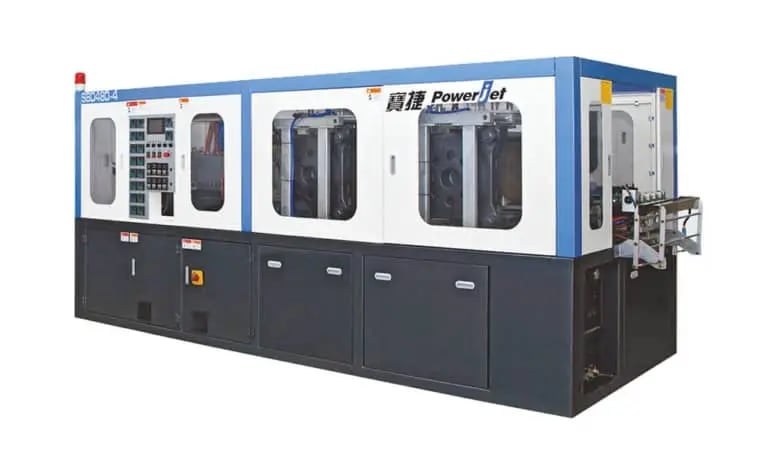

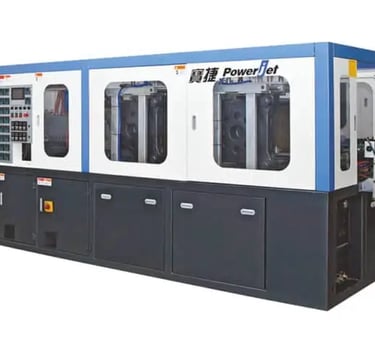

Automatic PET Bottle Injection Stretch Blow Molding Machine
Three station one step injection stretch blow molding machine is used for Plastic PET / PP / PC / TRITAN / PCTG cosmetic bottle, sport water bottle, chemical bottles, medicine bottles with 10ml to 5L capacity.
PET Injection stretch blow molding machine combines stretch and blow molding techniques, and produces top-tier, transparent, and lightweight bottles ideal for beverages and liquid products. From preform loading to the final container, the bottle injection molding machine ensures efficient and versatile production, meeting the demands of modern industries.
Model unit PET injection blow molding machine PET injection blow molding machine Injection blow molding machine
Screw diameter mm 45 60 60
L/D
- 24 24 24
Theoretical injection capacity cm³ 342 481 481
Injection clamping force KN 280 480 680
Blow clamping force KN 110 220 280
chilled water L/min 80 80 80
cooling tower water L/min 200 200 200
Driving power-rated KW 22KW -380V 37KW -380V 37KW -380V
Heater power-rated KW 8.9KW -220V 12.5KW - 220V 12.5KW -220V
Oil tank capacity L 450 600 630
Machine dimensions L*W*H(mm) 4400*1300*2900 5000*2000*3000 5000*2000*3000
Machine mass T 5 10.5 11.5
Max. Blow air pressure MPa 3.5 3.5 3.5
Operation air pressure MPa 1.0 1.0 1.0
Injection stretch blow moulding machine applications
One step injection stretch blow moulding machine is used for Plastic PET bottle, sport water bottle, chemical bottles, medicine bottles with 10ml to 5L capacity.
Produces the following bottle types:
Water bottles
Carbonated beverage bottles
Juice bottles
Tea bottles
Alcohol bottles
Drink bottles
Oil bottles
Sauce bottles
Ketchup bottles
Cosmetic bottles
Injection stretch blow moulding machine characteristics
Automatic production, no need to remove burrs, no need to transport preform, greatly save raw material and labour costs.
No need secondary heating preform, along with energy saving energy saving system, can save about 30% power.
Preform forming& bottle blowing are completed in one machine, to avoid preform in the process of transportation and pollution.
Bottle screw size of neck and bottle parting line are perfect, bottle is stronger.
Injection stretch blow moulding machine is compact, from the raw material to the finished product, it can reduce equipment investment cost greatly and save workshop space (machine and bottle preform storage space).
Stable mechanical operation and low noise.
PET molding machine with a built-in error detection and alarm system, and display in the manipulation of the screen.
Machine production capacity from 5ml to 5000ml, from PET, PETG, TRITAN/PCTG, PP, PC. Only one injection blow molding machine can meet the needs of all kinds of material.
Injection stretch blow molding machine advantages
1) Electrical servo motor drive,avoid hydraulic dirty product.
2) Full automatic control ,easy operation.
3) material barrel and hot runner temperature control accurately by PIT
4) PET injection blow molding machine saves more cost than traditional machine.
5) compact structure. Less space needed
6) Injection:
Hot runner and temperature control device and standard configuration only change mold to make a new product.
Blow: Hydraulic mold clamping, core insert, blow and bottom molding are standard configuration.
Product release: Ejector is a standard device
7) Provide the whole service for molding design and manufacture.
