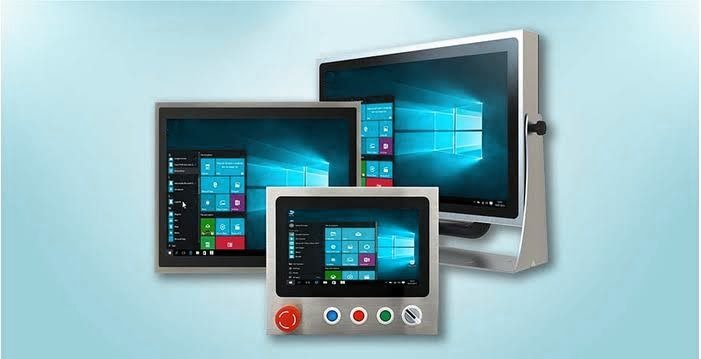

Industrial monitor
We offer a range of Industrial monitors The industrial-grade stainless steel monitor is designed to withstand the toughest environments, making it ideal for various sectors including food and beverage, pharmaceuticals, chemicals, and oil and gas. Featuring a projected capacitive touch interface, it accommodates both HDMI and VGA connections—equipped with a robust M12 VGA connector and an IP67 waterproof HDMI connector. This design ensures the monitor remains functional even when splashed with water, a critical requirement in many industrial settings. Furthermore, the USB M12 connector for touch control enhances its versatility. With an IP66/69K rating and a 316 stainless steel flat panel, this monitor is built to endure harsh conditions, ensuring reliable performance in manufacturing and other demanding applications.

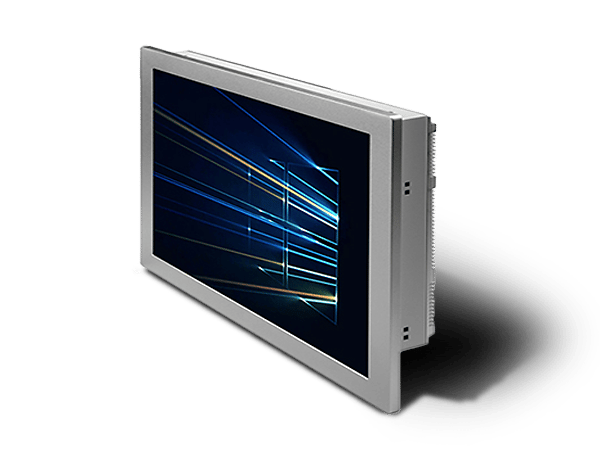

Stainless steel Monitor
Stainless Steel Monitor
Stainless Steel Monitor, which is industrial grade and having Projected Capacitive Touch Monitor with a HDMI or VGA Connector. Its ideal for applications in Food & Beverage, Pharmaceutical industries, Chemical, in Gas & Oil Critical Environments as well as Manufacturing sector. It has 1 VGA (M12 Connector), 1 HDMI (IP67 Waterproof Connector) allowing water to be splashed on it without any harm to the Industrial Touch Monitor. The touch control is also a USB M12 Connector. With its IP66/69K Protected Stainless Steel, 316 Flat Panel Design this is an ideal monitor for Industrial usage.
Product Features
• IP66/69K Protected Stainless Steel 316 Flat Panel Design
• LCD, P-CAP/5-Wire Resistive, Resolution 1280 x 1024 (SXGA)
• 12 ~ 24 V DC power input (M12 Connector)
• VGA and USB (M12 Connetor), HDMI port (IP67 Connector)
• VESA and Yoke mounting
Specifications
Specification
Display Panel Size 19”
Aspect Ratio 04:03
Resolution 1280 x 1024 (SXGA)
Viewing Angle 85 x 85 (H) x 80 x 80 (V)
Brightness 350 (cd/m2)
Contrast Ratio 1000:01:00
Life Time 50,000 hrs
Touchscreen Type Projected Capacitive Touch 5-Wire Resistive
Surface Hardness 7 Mohs 3 Mohs
Transparency 90% (±3%) 80% (±3%)
On/Off Button YES N/A
I/O Interface Video Interface 1 VGA (M12 Connector), 1 HDMI (IP67 Waterproof Connector)
Touch Interface 1 USB (M12 Connector)
Audio N/A
Speaker N/A
Others N/A
OSD Control Function Key 6 Keys: Menu, Up, Down, Auto Adjust, Monitor Power on/off, Funtion Key
Power Power Input 12-24 V DC power input, single power source
Power Connector M12 connector
Power Consumption 9 W
Mounting VESA Mount 75mmx 75mm; 100mm x 100mm, 200mm x 100mm
Panel Mount N/A
Others Yoke mount
Environment Operating Temperature -20~60° C (-4~140° F)
Storage Temperature -20~60° C (-4~140° F)
Humidity 5~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock Full System IP66 Protection , Stainless Steel 316 (IP69K Protection by Option)
General Certification CE/FCC
