Hydraulic Press

Cframe hydraulic press
Cframe hydraulic press

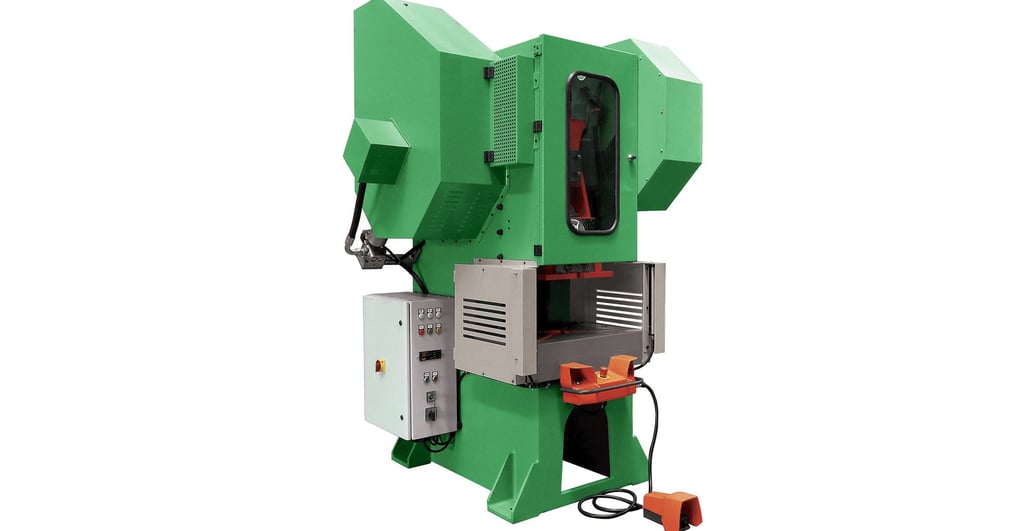

C Frame Hydraulic Press

Modern hydraulic presses offer good performance and reliability. Widespread application of other types of hydraulic power equipment in manufacturing requires maintenance technicians who know how to service hydraulic components. New fast acting valves, electrical components, and more efficient hydraulic circuits have enhanced the performance capability of hydraulic presses.Our C-frame press programPress is equipped with a lower table and an electric controller for setting the piston stroke ( 50 to 400 tons) .Our C-frame Presses are made out of high quality steel and the cylinder stroke is easy to adjust for precise pressing tasks. Designed with a lot of features for a smooth operation and a great durability!

The high quality C-frame presses comply with the latest International regulations for a safe work environment. We can build them according to special requirements or with several options such as a Hydraulic cushion / ejector

1. Depending on the application, a hydraulic press may cost less than an equivalent mechanical press.

2. In small lot production where hand feeding and single stroking occurs, production rates equal to mechanical presses are achieved.

3. Single stroking does not result in additional press wear.

4. Die shut heights variations do not change the force applied.

5. There is no tonnage curve derating factor.

6. Forming and drawing speeds can be accurately controlled throughout the stroke.

7. Hydraulic presses with double actions and or hydraulic die cushions are capable of forming and drawing operations that would not be possible in a mechanical press.C-frame Presses: designed for a wide range of press purposes / to incorporate in automated production lines Hydraulic C-frame presses are all made with International standards . Produced with quality components

Our 150 ton C-frame press is suitable for performing work involving deep-drawing, forming and stamping.

Equipped with a lower table with T-grooves, an adjustable piston stroke (with end-stroke switches), two speeds and a pressure switch. This 150 ton C-frame press has a manual and semi-automatic mode. Furthermore, you can operate the press by means of the two-hand push buttons.

  1. Technical specifications of this 150 ton C-frame press

  2. Force [tn]: 150

  3. Motor power [kw]: 7.5

  4. Throat depth [mm]: 375

  5. Working speed [mm/sec]: 3.9

  6. Approaching speed [mm/sec]: 20

  7. Return speed [mm/sec]: 30

  8. Maximum pressure [bar]: 320

  9. Piston stroke [mm]: 250

  10. Lower table size [mm]: 650 x 650

  11. Max. vertical light [mm]: 400

  12. Working height [mm]: 950

  13. Total length [mm]: 1660

  14. Total width (frontal) [mm]: 900

Height [mm]: 2295

As your global partner for metalworking solutions, we are committed to delivering affordable quality press technologies tailored for the sheet metal industry. Our approach empowers your workshop with a unique price-performance ratio, ensuring consistent quality control and world-class service on a global scale. The versatility of our hydraulic press is evident in its diverse designs and functions, making it a valuable asset for various applications. With the right tools at your disposal, a mechanical servo hydraulic press can excel in processes such as bushings, embossing, deep-drawing, cutting, punching, and forming. We are dedicated to enhancing your productivity and efficiency through innovative solutions.

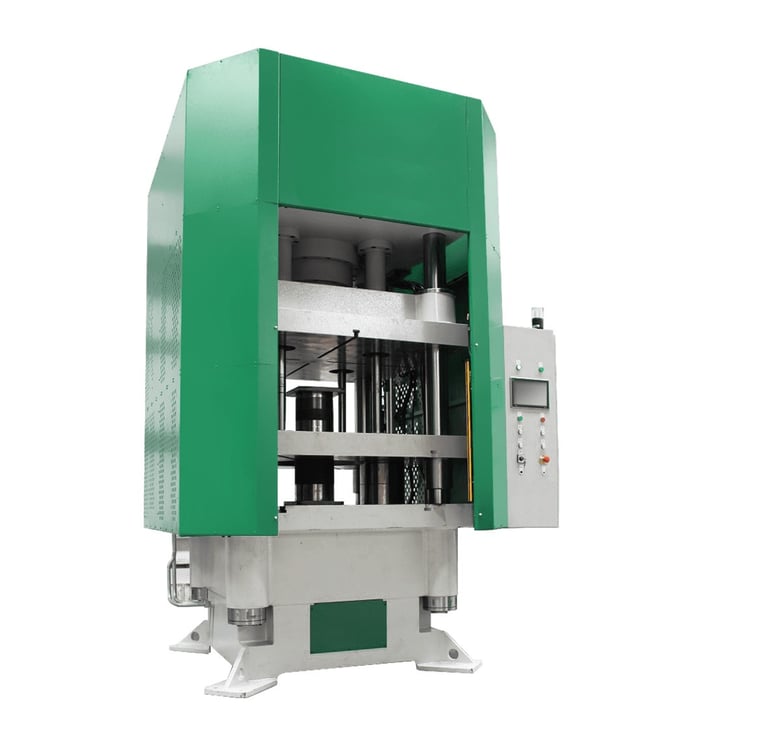

H Frame Hydraulic Press

H frame hydraulic
H frame hydraulic

Modern hydraulic presses offer good performance and reliability. Widespread application of other types of hydraulic power equipment in manufacturing requires maintenance technicians who know how to service hydraulic components. New fast acting valves, electrical components, and more efficient hydraulic circuits have enhanced the performance capability of hydraulic presses.Our C-frame press programPress is equipped with a lower table and an electric controller for setting the piston stroke ( 50 to 400 tons) .Our C-frame Presses are made out of high quality steel and the cylinder stroke is easy to adjust for precise pressing tasks. Designed with a lot of features for a smooth operation and a great durability! These hydraulic H-Frame Presses are very robust with a perfect price – quality ratio.

These hydraulic presses have a robust H-Frame equipped with an upper- and lower table (with T-grooves) to easily install tools. They are produced with simple control sensors / buttons for controlling the pressure and piston stroke. Operation is carried out with two-hands control buttons. However, we can produce them with a foot pedal as well.

This type of Press has large dimensions with big pressing tables and can be delivered with many options, such as an ejector or digital NC-control. We provide this H-frame press in 5 different tonnages 100 to 300 (standard). Below you can see all our Profi Press H-frame Presses. Check them out!

1. Depending on the application, a hydraulic press may cost less than an equivalent mechanical press.

2. In small lot production where hand feeding and single stroking occurs, production rates equal to mechanical presses are achieved.

3. Single stroking does not result in additional press wear.

4. Die shut heights variations do not change the force applied.

5. There is no tonnage curve derating factor.

6. Forming and drawing speeds can be accurately controlled throughout the stroke.

7. Hydraulic presses with double actions and or hydraulic die cushions are capable of forming and drawing operations that would not be possible in a mechanical press.

C-frame Presses: designed for a wide range of press purposes / to incorporate in automated production lines Hydraulic H-frame presses are all made with International standards . Produced with quality components

Our 100 to 300 ton H-frame press is suitable for performing work involving deep-drawing, forming and stamping.

Equipped with a lower table with T-grooves, an adjustable piston stroke (with end-stroke switches), two speeds and a pressure switch. This100 to 300 ton H-frame press has a manual and semi-automatic mode. Furthermore, you can operate the press by means of the two-hand push buttons.

Technical specifications of this 100 to 300 ton H-frame press

Technical specifications

  1. Force [tn]: 300

  2. Motor power [kw]: 22

  3. Working speed [mm/sec]: 10

  4. Approaching speed [mm/sec]: 100

  5. Return speed [mm/sec]: 140

  6. Piston stroke [mm]: 1000

  7. Table size [mm]: 1000 x 1200

  8. Max. day light [mm]: 1000

  9. Hydraulic cushion [tn]: 130

  10. Hydraulic cushion stroke [mm]: 300

  11. Total length [mm]: 2400

  12. Total width (frontal) [mm]: 2300

  13. Overall height [mm]: 4500

  14. Height [mm]: 2295

Four coloumn Hydraulic Press

Four column hydraulics
Four column hydraulics

Modern hydraulic presses offer good performance and reliability. Widespread application of other types of hydraulic power equipment in manufacturing requires maintenance technicians who know how to service hydraulic components. New fast acting valves, electrical components, and more efficient hydraulic circuits have enhanced the performance capability of hydraulic presses.Our C-frame press programPress is equipped with a lower table and an electric controller for setting the piston stroke ( 50 to 400 tons) .Our C-frame Presses are made out of high quality steel and the cylinder stroke is easy to adjust for precise pressing tasks. Designed with a lot of features for a smooth operation and a great durability! These hydraulic H-Frame Presses are very robust with a perfect price – quality ratio.

These hydraulic presses have a robust H-Frame equipped with an upper- and lower table (with T-grooves) to easily install tools. They are produced with simple control sensors / buttons for controlling the pressure and piston stroke. Operation is carried out with two-hands control buttons. However, we can produce them with a foot pedal as well.

This type of Press has large dimensions with big pressing tables and can be delivered with many options, such as an ejector or digital NC-control. We provide this H-frame press in 5 different tonnages 100 to 300 (standard).

1. Depending on the application, a hydraulic press may cost less than an equivalent mechanical press.

2. In small lot production where hand feeding and single stroking occurs, production rates equal to mechanical presses are achieved.

3. Single stroking does not result in additional press wear.

4. Die shut heights variations do not change the force applied.

5. There is no tonnage curve derating factor.

6. Forming and drawing speeds can be accurately controlled throughout the stroke.

7. Hydraulic presses with double actions and or hydraulic die cushions are capable of forming and drawing operations that would not be possible in a mechanical press.C-frame Presses: designed for a wide range of press purposes / to incorporate in automated production lines Hydraulic H-frame presses are all made with International standards . Produced with quality components.

Our 100 to 300 ton H-frame press is suitable for performing work involving deep-drawing, forming and stamping.

Equipped with a lower table with T-grooves, an adjustable piston stroke (with end-stroke switches), two speeds and a pressure switch. This100 to 300 ton H-frame press has a manual and semi-automatic mode. Furthermore, you can operate the press by means of the two-hand push buttons.

Technical specifications of this 100 to 300 ton H-frame press

Technical specifications

  • Force [tn]: 300

  • Motor power [kw]: 22

  • Working speed [mm/sec]: 10

  • Approaching speed [mm/sec]: 100

  • Return speed [mm/sec]: 140

  • Piston stroke [mm]: 1000

  • Table size [mm]: 1000 x 1200

  • Max. day light [mm]: 1000

  • Hydraulic cushion [tn]: 130

  • Hydraulic cushion stroke [mm]: 300

  • Total length [mm]: 2400

  • Total width (frontal) [mm]: 2300

  • Overall height [mm]: 4500

Features of this 100 ton deep draw press

  • Chrome plated cylinder and a steel welded frame

  • T-slotted tables

  • Main cylinder and hydraulic cushion

  • Safety light guards at the frontal working area

  • HMI Touch Screen control panel to program pressure, cylinder stroke & pressure time

  • Lubrication system

  • Oil pressure gauge

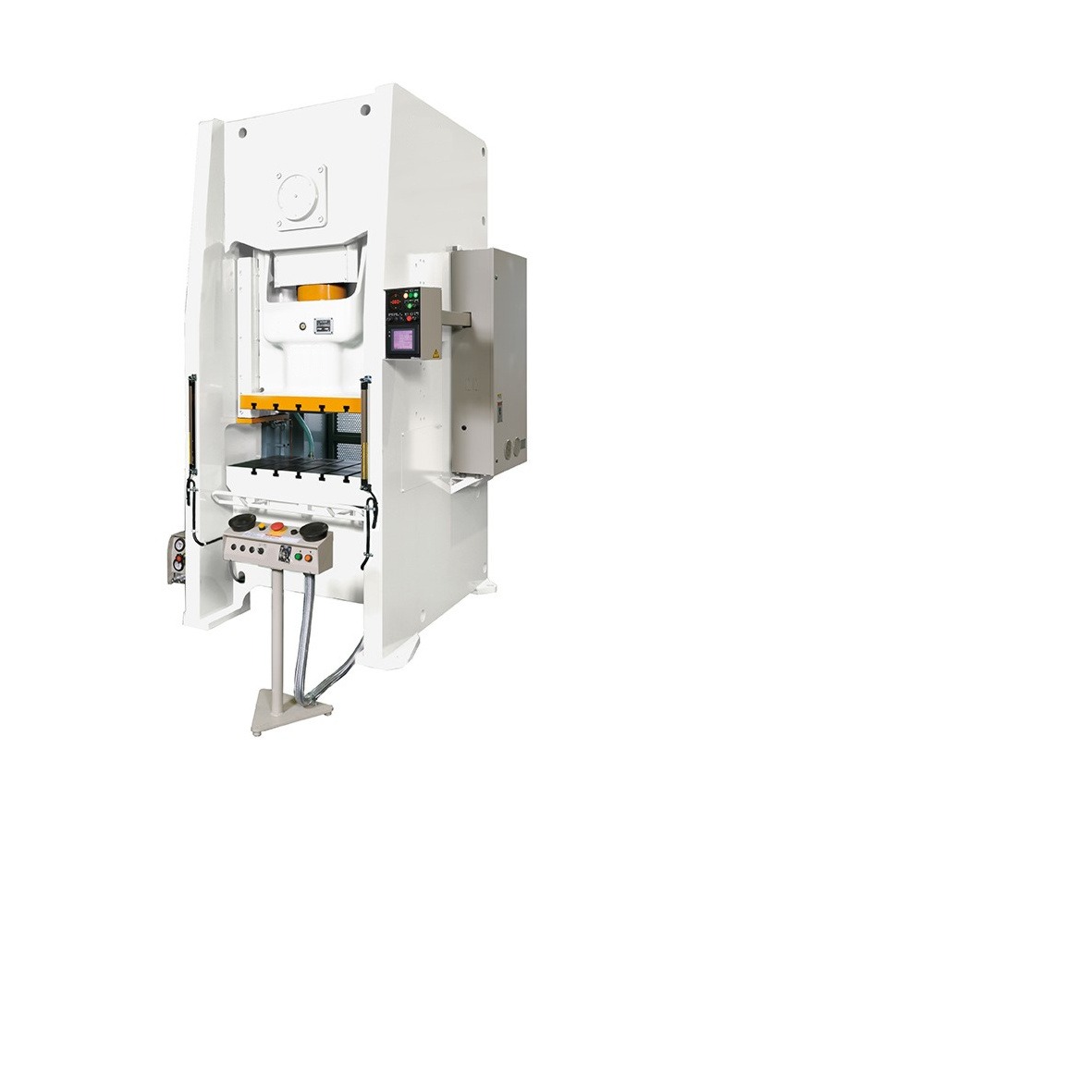

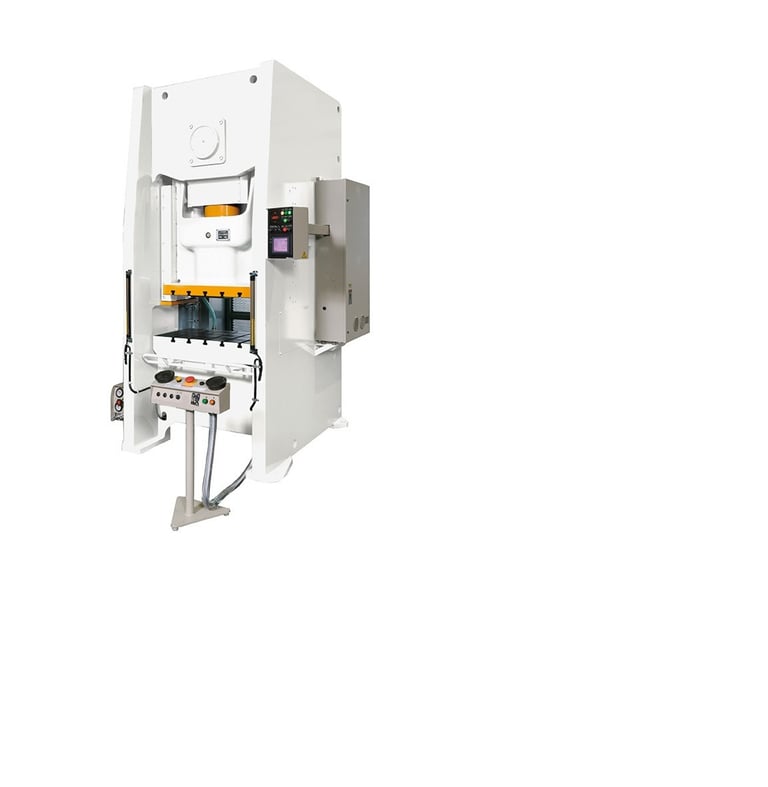

Deep Drawing Press

deep drawing
deep drawing

Modern hydraulic presses offer good performance and reliability. Widespread application of other types of hydraulic power equipment in manufacturing requires maintenance technicians who know how to service hydraulic components. New fast acting valves, electrical components, and more efficient hydraulic circuits have enhanced the performance capability of hydraulic presses.Our C-frame press programPress is equipped with a lower table and an electric controller for setting the piston stroke ( 50 to 400 tons) .Our C-frame Presses are made out of high quality steel and the cylinder stroke is easy to adjust for precise pressing tasks. Designed with a lot of features for a smooth operation and a great durability! These hydraulic H-Frame Presses are very robust with a perfect price – quality ratio.

These hydraulic presses have a robust H-Frame equipped with an upper- and lower table (with T-grooves) to easily install tools. They are produced with simple control sensors / buttons for controlling the pressure and piston stroke. Operation is carried out with two-hands control buttons. However, we can produce them with a foot pedal as well.

This type of Press has large dimensions with big pressing tables and can be delivered with many options, such as an ejector or digital NC-control. We provide this H-frame press in 5 different tonnages 100 to 300 (standard).

1. Depending on the application, a hydraulic press may cost less than an equivalent mechanical press.

2. In small lot production where hand feeding and single stroking occurs, production rates equal to mechanical presses are achieved.

3. Single stroking does not result in additional press wear.

4. Die shut heights variations do not change the force applied.

5. There is no tonnage curve derating factor.

6. Forming and drawing speeds can be accurately controlled throughout the stroke.

7. Hydraulic presses with double actions and or hydraulic die cushions are capable of forming and drawing operations that would not be possible in a mechanical press.C-frame Presses: designed for a wide range of press purposes / to incorporate in automated production lines Hydraulic H-frame presses are all made with International standards . Produced with quality components.

Our 100 to 300 ton H-frame press is suitable for performing work involving deep-drawing, forming and stamping.

Equipped with a lower table with T-grooves, an adjustable piston stroke (with end-stroke switches), two speeds and a pressure switch. This100 to 300 ton H-frame press has a manual and semi-automatic mode. Furthermore, you can operate the press by means of the two-hand push buttons.

Technical specifications of this 100 to 300 ton H-frame press

Technical specifications

Force [tn]: 300

Motor power [kw]: 22

Working speed [mm/sec]: 10

Approaching speed [mm/sec]: 100

Return speed [mm/sec]: 140

Piston stroke [mm]: 1000

Table size [mm]: 1000 x 1200

Max. day light [mm]: 1000

Hydraulic cushion [tn]: 130

Hydraulic cushion stroke [mm]: 300

Total length [mm]: 2400

Total width (frontal) [mm]: 2300

Overall height [mm]: 4500

Features of this 100 ton deep draw press

Chrome plated cylinder and a steel welded frame

T-slotted tables

Main cylinder and hydraulic cushion

Safety light guards at the frontal working area

HMI Touch Screen control panel to program pressure, cylinder stroke & pressure time

Lubrication system

Oil pressure gauge
