Grains Processing

Grass Seed Pre-Cleaner

At the forefront of grass seed cleaning technology, our integrates optimal screen utilization with a sophisticated aspiration system, setting a new benchmark for grass seed purity. With grass cleaners, an innovative approach enhances the cleaning process with a pre-suction and after-suction system, increasing the cleaning efficiecy across the full-screen area. This ensures that each seed meets the highest quality standards, delivering superior grass seed.

Pre-Cleaners

The Pre-cleaner series is designed for ideal screen area usage in conjunction with a sophisticated aspiration system. The screen cleaning effect of the total screen area is increased by highly effective pre-suction and after-suction system.

Super Fine Cleaner

The Super Fine Cleaner series has the most advanced air system on the market. This series is suitable for cleaning all kinds of grain and seed. Ideal for difficult separations.

The Super Fine cleaners include shaker feeder, pre-suction and after-suction system, HMI control system, flexible screen flow and air lifting fan

Fine Cleaner

The Fine Cleaner series is suitable for cleaning of grain and seed.

The Fine cleaners include shaker feeder, pre-suction and after-suction system, HMI control system and flexible screen flow.

Screen Grader

screen grader series is designed for precise grading of grain and seed.

The screen graders include shaker feeder and flexible screen flow.

Combi Cleaner

The Combi cleaner series is developed for high-capacity pre-cleaning of grain, peas and rapeseed, as well as industrial cleaning of grain for milling and malting barley.

Combi cleaners are constructed with large screen areas and highly efficient recirculating pre-suction and after-suction systems as well as HMI control system.

MEGA Cleaners

Mega Cleaners are developed for high-capacity pre-cleaning of grain, peas, and rape seed, and industrial cleaning of grain and malting barley.

The machine’s large screen area with its accurately matched stroke and frequency is completed by Cimbria’s highly efficient recirculating pre- and after-suction system and HMI control system.

Grains Cleaners

Gravity Separator

The gravity separator is used for separating any kinds of kernels and granular products with nearly the same size according to the specific weight. The separation process is carried out by means of the fluid bed principle.

Gravity Separator is vital for Wheat maize processing.

It efficiently separates maize from stones and other crops based on weight. The

Gravity Separator uses fluidisation principles to ensure precise separation onto the conveyors.

Features of Gravity Separator

Good effect of removing impurity, large output.

equipment sealing good, prevent the dust in public.

high elastic rubber ball ensures the mesh is not blocked.

adopt the import of high qualified steel plate, effectively prolong the life span of the vibrating screen.

Grain Separator

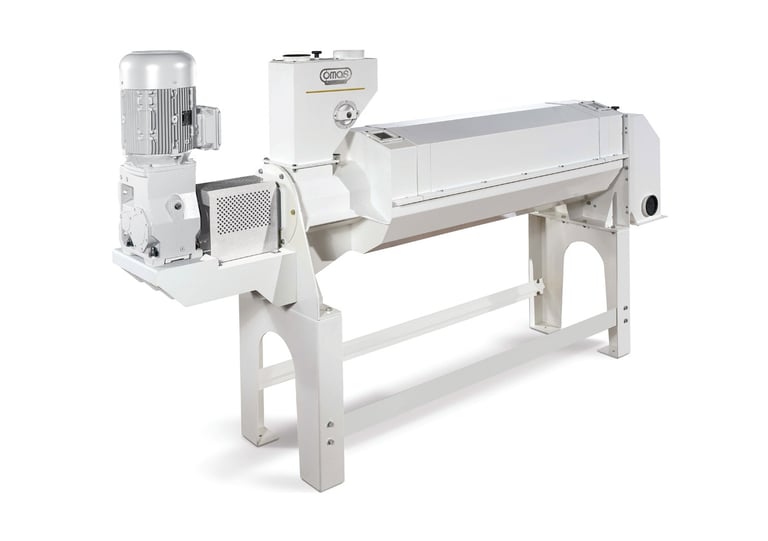

Indented Cylinder Separator

Length Grading of all Granular Materials

We believe in unlocking the full potential of your granular products. Our Indented Cylinder Separator is designed to efficiently clean and sort a variety of granular materials, including wheat, oats, maize, rice, fine seeds, lentils, sunflower sticks, sugar beet, and even plastic particles. By removing unwanted short or long admixtures, our separator ensures your products meet the highest standards. The indented cylinder separator is used for grading by length of all granular materials such as wheat, oats, fine seeds, lentils, for separating stalks from sunflower and beet seeds and for separating unwanted long or short product impurities. The size of grains can vary between 1.0 mm and 24 mm.Depending on the required grading, the incoming product is sorted according to roundness or length See the principles of how our Indented Cylinder efficiently cleans wheat, oats, maize, rice, fine seeds, lentils, and more, removing unwanted short or long admixtures by length. It is crucial for length grading to ensure only the desired grains are collected. With unique in-house manufacturing of cylinder segments, we guarantee top-notch quality and customization from the earliest stages of production.

Rotating Cylinder: The process begins with a horizontal cylinder that rotates the granular material.

Indent Catching: Indents within the cylinder catch the desired grains, which then fall into a trough and are discharged.

Admixture Separation: Longer grains or unwanted admixtures remain and are discharged separately.

HIGHLIGHTS

Used for length grading of all granular materials, such as wheat, oat, maize, rice, fine seeds, lentils, sticks from sunflower or sugar beet, plastic particles, etc., as well as for the extraction of unwanted short or long admixtures.

Through the inlet housing, the granular material to be graded flows into the interior of the rotating cylinder, whose cover is equipped with special deep-drawn teardrop or spherical-shaped pockets for the most precise length separation.

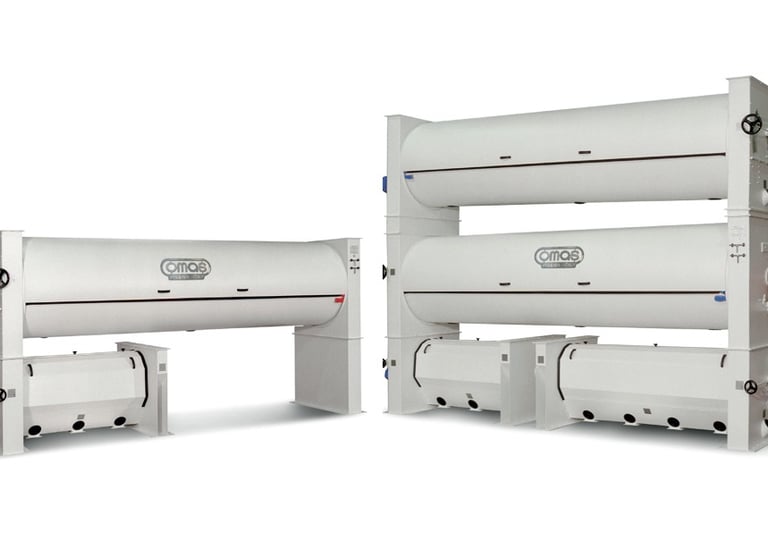

Indented Cylinder Separator

Precise Grading Of Seeds And Cereals

Highlights

Cylindrical Screening Machines For Sorting And Grading Of Seeds, Cereals And Various Granular Products.

The Multiple Contact Of Each Kernel To The Rotating Screen Guarantees The Highest Accuracy In Exacting Sorting Tasks, Primarily In Maize And Sunflower Grading.

The Single Cylinders Are Built As Self-Supporting Steel Constructions That Can Be Joined In Various Configurations By Means Of A Simple Modular System, Thus Enabling A Huge Spectrum Of Sorting Targets To Be Covered.

The Cylinders Are Built As Self-Supporting Steel Constructions That Can Be Joined In Various Configurations By Means Of A Simple Modular System, Thus Enabling A Huge Spectrum Of Sorting Targets To Be Covered. By Means Of The Modular Systems, It Is Possible To Realise 12 Different Sorting Diagrams, Always Using Only One Drive Motor For A Complete Battery.

The Product Line Is Available In 3 Models (Diameters) With Capacities Up To 22 T/H, Depending On The Product.

Separator Used For Large Granular Materials, Small, Light Impurities Cleaning And Grading.

Features Of Cylidrical Separator

Good Effect Of Removing Impurity, Large Output.

The Sealing Is Good, Reduce The Dust.

It Adopts High Elastic Rubber Ball, Decrease The Blocking Rate.

Screen Frame Of The Rotary Separator Is Made Of High Quality Steel Plate And Wood, Which Effectively Prolong The Service Life Of Equipment.

Sieve Of The CylindricalSeparator Is Easy To Disassembly, Replacement Or Repair, Reduce Maintenance Costs

Cylindrical Grader

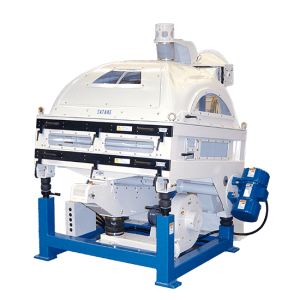

Extraction of Stones, Metal and Glass Splinters

HIGHLIGHTS

Destoners find their application in the food processing sector and in the milling industry, but they are also used in the seed sector, in particular on products harvested close to the ground.

Used for separating dry granular material according to specific weight into two fractions. The goal is the elimination of heavy impurities, such as stones, metallic particles and other objects from, for example, coffee, grain or pulses.

Vacuum Machine Type

The granular material to be separated is taken to the table deck through an adjustable spring-actuated flap. The deck surface is covered by a wire mesh, through which a steady and adjustable air flow is aspirated.

The combined effect of the vibrating movement and of the air passing through the deck causes the flow of material to be arranged in layers. The heavy admixtures sink towards the bottom and are moved to the highest point of the table deck surface (stone outlet) by means of contact with the rough deck covering.

Pressurized Machine Type

Grains or particles of almost identical size are fed continuously onto the separating deck to ensure a uniform bed of material over the whole width of the deck surface. For better feeding results, two decks with a separate pre-bin are used.

The deck is fluidized by a completely uniform pressurized air system that lifts the light material, while the heavy material sinks towards the bottom and comes into contact with the deck surface

Destoner

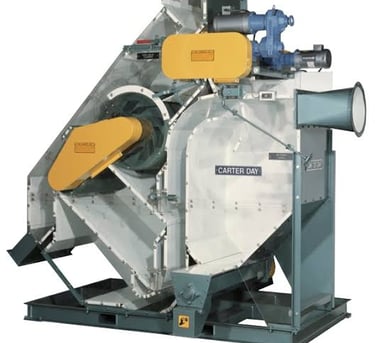

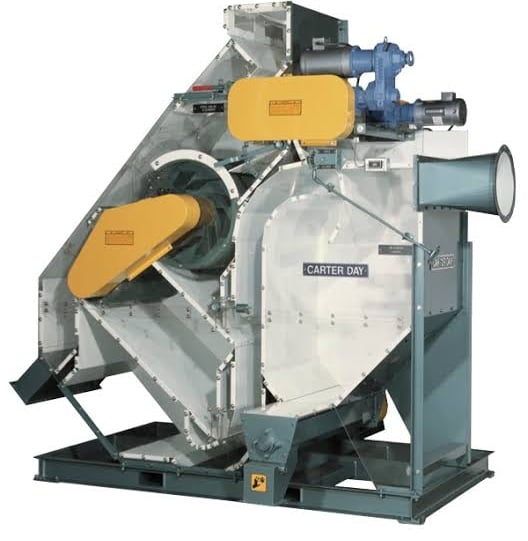

Scalperators are available in three sizes with capacities from 75 to 150 tonnes of grain per hour

It Scalping lighter impurities from grain and separates them by weight. You can use it for many grains and pulses, including common wheat, durum, corn, rye, soybeans, oats and cocoa beans.

Use Industry Application Scalping of cereal grains, pulses, oilseeds etc.

Specification

Electrical Ratings

Motor, Wheels 1.5 Kw Motor,

Fan 3 Kw

Air Supply And Extraction

Aspiration Volume 800 M³/H

Wheel Size Ø240×496 mm (9 Pcs)

Overall Dimensions 2 246 mm X 2 237 mm X2 264 mm

Weight, Empty 1 100 Kg

Weight, Operating (Wheat) 1 310 Kg Weight,

Choked (Wheat) 3 380 Kg

Operating Speed Motor, Wheels 20–100 Rpm

Scalperator

Maize Sheller

Separation for High Germination Rates

HIGHLIGHTS

Designed for gentle separation of maize kernels from the cobs and removal of rachis.

Application in the seed processing sector, where maize cobs are harvested as a whole unit.

In the processing plant, the machine is positioned after husking and cob drying.

Removes the kernels in the gentlest possible way by rubbing the cobs against each other without any risk of harming the germination capacity of the sensitive maize seed.

Maize Sheller

Gentle shelling is accomplished by the pressure provided by the rotor causing the ear corn to rub together and the smooth round ribs.

A spring-controlled retaining flap with variable pressure serves to adjust the counter pressure to the outflow. This allows the rotor to maintain an acceptable level of ear corn to assure completely uniform and gentle shelling.

Seed Corn Sheller

Corn Sheller is specially designed for gentle shelling, scalping and pre-cleaning of husked ear seed corn. Gentle shelling is accomplished by the action of rotor pegs against corn during compression and low rotor r.p.m. After shelling, the kernels are screened.

The machine is complete with 3 rows of screens with 1.250 mm working width.

Total of 9 m2 screen area.

The 2 top layers of screens will work as scalping decks with discharge trays at the front of the machine.

1 layer of sand screens in the bottom.

Complete with 2.2 kW fix speed motor placed on the right side for the eccentric system.

Maize Sheller
