Laser Cutting

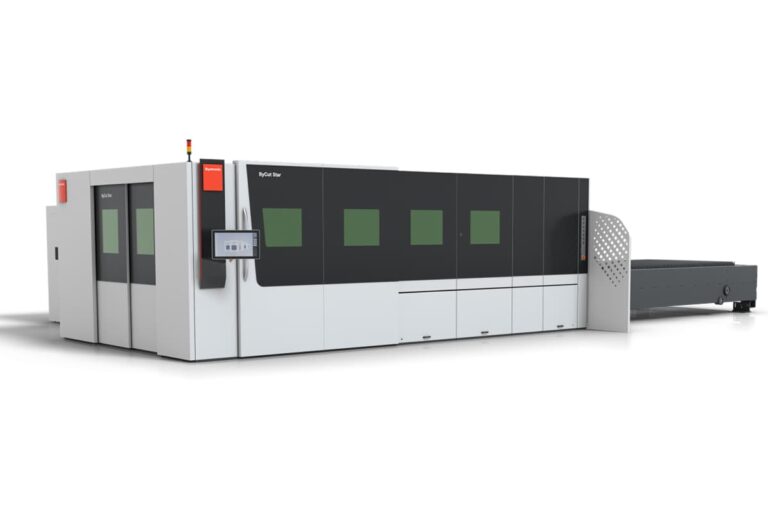

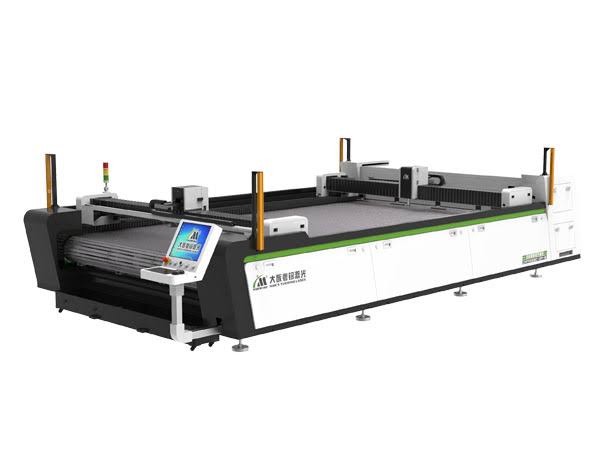

Economy Metal Laser Cutting Machine

Economy laser cutting System designed to provide the best value for price in the market. It is popular for intervening in the industry with pioneering innovations and this laser system provides excellent cutting quality as well as superior productivity. With its relentless attributes, it is turning out to be the favourite of fabricators.

Fiber Laser cutting series which stands tall in reliability, efficiency and productivity. It is designed for fabricators ready to start with Laser cutting technology and expecting productivity at

an affordable price

Common & Fly Cut

One of the key features to process high-speed cutting applications in Fiber laser cutting machines, FLYCUT performs the continuous cutting of the desired shape without lifting up the laser head giving a boost to the processing speed by reducing the head travel movements.

Highly Intelligent Nesting

Smart nesting software with a high level of intuitiveness that focuses on reducing processing time not only for the smaller designs but also for the larger parts. The software provides flexibility for users to add, change or delete programs on the go. It helps in achieving maximum precision and high speed with laser outputs of its peak power.

Auto Sheet Orientation

Speed up the cutting process by eliminating the manual alignment of the sheet for each cutting operation. Auto-sheet orientation feature enables automatic orienting of the program to that angle in which the sheet has been kept which ultimately eliminates the non-productive time of arranging the sheet.

Laser Friendly Software

Smart nesting software with a high level of intuitiveness that focuses on reducing processing time not only for the smaller designs but also for the larger parts. The software provides flexibility for users to add, change or delete programs on the go. It helps in achieving maximum precision and high speed with laser outputs of its peak power.

Cost Efficient, Time Saver, Compact

This trio of benefits encapsulates the advantages of a product or solution that is not only cost-effective but also saves time and space. Being cost-efficient means it offers value for money, reducing expenses. It’s a time-saver, as it streamlines processes, boosting productivity. Its compact design ensures it doesn’t take up unnecessary space, making it practical and efficient for various applications

Effortless Loading/Unloading Mechanism

With the ball support sheet loading/unloading helps in faster loading/unloading times and reduced downtime result in increased machine throughput, enhancing overall productivity and output.

Zero Fillet Mode

With Zero Fillet Mode of a fiber laser cutting machine provides temperature control, extends the lifespan of critical components, enhances precision, improves energy efficiency, reduces downtime, boosts productivity, and contributes to overall safety during operation.

Specification

Unit Working Range 2D Working Range 2D

3015 4515

Maximum Working Range X Axis mm 1550 1550

Y Axis mm 3100 4600

Z Axis mm 100 100

Maximum Workpiece Weight kgs 750 1100

Positioning Precision mm/meter ±0.05 ±0.05

Repeatability mm/meter ±0.02 ±0.02

Thickness & Power Consumption

Laser Power 1 kW 1.5 kW 2 kW 3 kW

Mild Steel (MS) 10 (3/8″) 12 (1/2″) 16 (5/8″) 20 (3/4″)

Stainless Steel (SS) (O2) 6 (1/4″) 8 (5/16″) 10 (3/18″) 10 (3/8″)

Stainless Steel (SS) (N2) 3 (1/8″) 4 (5/32″) 6 (1/4″) 8 (5/16″)

Aluminum (AL) 2** 3 (1/8″) 5 (3/16″) 8 (5/16″)

Brass (Br) 3** 3 (1/8″) 5 (3/16″) 6 (7/32″)

Copper (Cu) 2** 2 (1/16″) 3 (1/8″) 5 (3/16″)

Galvanized Iron (GI)# 3 (1/8″)* 3 (1/8″)* 3 (1/8″)* 3 (1/8″)*

Power Consumption** 10 kW 12 kW 17 kW 20 kW

*The quality of the cut depends upon the attributes of the metal, its surface properties and the conditions in which cutting operations are done.

Metals with high thickness tend to have striation at lower edges.

** The power consumption indicated in the table is measured by the machine’s peak performance. It includes the connected load of the laser source, controller, fume extractor and chiller.

***Maximum thickness of full-size sheet is limited by weight carrying capacity of respective variant.

# Galvanized Iron (GI) only comes up to 3mm thickness in market.

Accessories:

Fume Suction

Class 1 Enclosure

Pallet Changer

Tube Cutting Mechanism

Filtered Fume Extractor

Auto Focus Cutting Head

Light Curtain

Economy Laser Cutting System

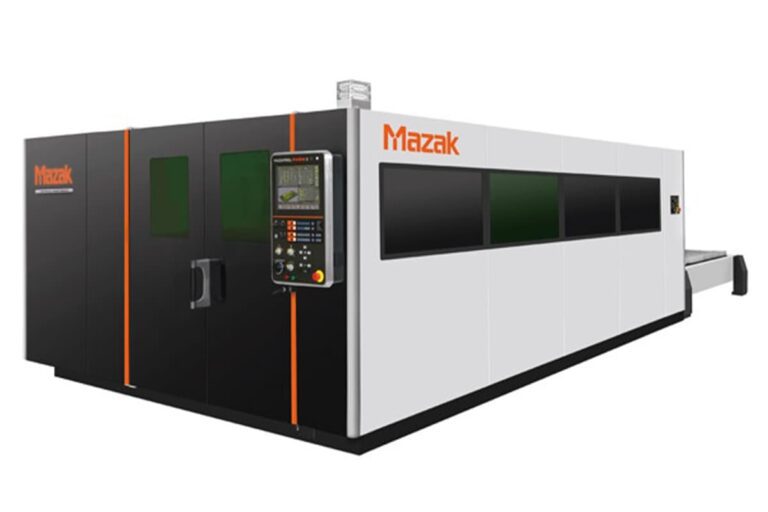

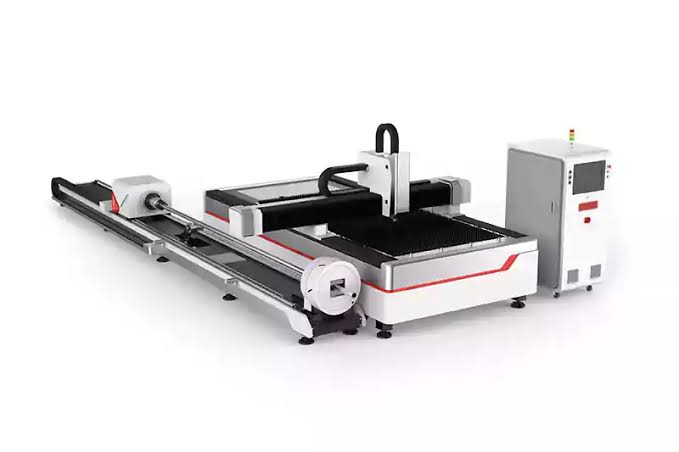

Sheet Metal CNC Laser Cutting Machine

Fiber laser cutting machine manufacturer has designed the ‘ 2D Fiber laser cutting machine. It is known for its extensiveness considering the specific needs of the metal cutting industry. Its vigorous flexibility extends thunderbolt reflexes for swift material change. A hermetically sealed cabinet keeps safety at its best. This automatic sheet metal cutting machine takes a very low time for booting. A High-end 64-bit CNC controller is equipped with a user-friendly operating interface. The magnificent controller responds within 20 nanoseconds which makes the Infinity super responsive.

Product Description

Metal cuttings are more flexible, swift material change and magnificent response within 20nanoseconds which is highly intuitive software for all types of industries.

The Key to Light Performance

World’s best high-speed Fiber laser forming machines with precise and accurate processing for all your business requirements such as metal sheet cutting, welding, cleaning, marking etc.

Auto Sheet Orientation

Speed up the cutting process by eliminating the manual alignment of the sheet for each cutting operation. Auto-sheet orientation feature enables automatic orienting of the program to that angle in which the sheet has been kept which ultimately eliminates the non-productive time of rearranging the sheet.

Anti-Collision Mechanism

Equipped with a powerful mechanical structure the Infinity F1 is designed with an anti-collision system. This smart feature allows you to use methods like snipping, sewing, and parabolic leaping to restrict the movement of the sheet when cutting, for uninterrupted material processing. The anti-collision mechanism minimizes non-productive times which can happen due to parts tipping over when cutting thin sheet metal and makes your machine permanently productive.

Fly Cut

One of the key features to process high-speed cutting applications in Fiber laser cutting machines, FLYCUT performs the continuous cutting of the desired shape without lifting up the laser head giving a boost to the processing speed by reducing the head travel movements.

Dynamic Fume Extractor Mechanism

Fiber Laser Cutting Machines from include a dynamic fume extraction technology that opens the fume collecting vault of the machine base precisely where the application is being conducted. These fume ducts collect the fumes and send them to the dust collection unit in order to prevent the toxic fumes produced during the metal processing from being released into the environment

Specification

Unit Working Range 2D

1515 3015 4020 6520 6525 8025

Maximum Working Range X Axis mm 1525 (60.03″) 1525 (60.03″) 2100 (82.6*) 2100 (82.6″) 2550 (100.3″) 2550 (100.3″)

Y Axis mm 1525 (60.03″) 3100 (122*) 4100 (161.4″) 6600 (259.8*) 6600 (259.8″) 8050 (316.9″)

Z Axis mm 150 (5.9″) 299 (11.8″) 300 (11.8″) 301 (11.8″) 302 (11.8″) 450 (17.7″)

Z Axis (UHP) mm 150 (5.9″) 300 (11.8″) 300 (11.8″) 301 (11.8″) 450 (17.7″) 451 (17.7″)

Maximum Workpiece Weight*** kgs 220 900 1650 2650 3100 7800

(UHP) kgs 220 1100 3150 5100 6350 7800

Positioning Precision mm/m ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05

Repeatability mm/m ±0.02 ±0.02 ±0.02 ±0.02 ±0.02 ±0.02

Maximum Rapid Simultaneous m/min 120 170 125 125 125 125

Maximum Acceleration m/s2 20 20 15 15 15 15

Thickness & Power Consumption

Laser Power 3 kW 4 kW 6 kW 8 kW 10 kW 12 kW 15 kW 20 kW 30 kW

Cutting Thickness on Metals mm (inch)

Mild Steel (MS) (02) 20 (3/4″) 22 (7/8″) 25 (1″)* 28 (9/8″)* 30 (19/16″)* 40 (25/16″)* 45 (7/4″)* 50 (31/16″)* 60 (19/8″)*

Mild Steel (MS) (N2 / Air) 6 (1/4″) 6 (1/4″) 8 (5/16″) 10 (3/8″) 12 (1/2″) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″)*

Stainless Steel (SS) (02) 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″)* 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″)

Stainless Steel (SS) (N2 / Air) 8 (5/16″) 10 (3/8″) 16 (5/8″)* 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)* 40 (25/16″)*

Aluminum (AL) (N2) 8 (5/16″) 10 (3/8″) 16 (5/8″)* 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)* 40 (25/16″)*

Brass (Br) (N2) 6 (1/4″) 8 (5/16″) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)*

Copper (Cu) (02) 5 (3/16″) 6 (1/4″) 8 (5/16″) 10 (3/8″) 12 (1/2″) 16 (5/8″) 18 (11/16″) 20 (13/16″) 22 (7/8″)

Galvanized Iron (GI) (N2 / Air)# 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″)

Power Consumption** 20 kW 24 kW 32 kW 40 kW 48 kW 56kW 68kW 85kW 120kW

Type Working Area (2D)

1515 3015 4020 6520 6525 8025

Machine Width 2820 2280 3400 3300 3900 3900

Machine Height 2300 2190 2200 2200 2200 2350

CNC Gantry 4700 6000 6700 9300 9300 10900

Dual Pallet NA 3300 4400 6900 6900 8500

Total Machine Length 6700 9300 11100 16200 16200 19400

Space Required for Accessories 2000 2000 2000 2000 2000 2000

Total Machine Width with Accessories 3300 4280 5900 5900 6500 6500

Width of Operating Panel 600 600 600 600 600 600

Length of Operating Panel 430 430 430 430 430 430

* The quality of the cut depends upon the attributes of metal, its surface properties and the conditions in which cutting operations are done. Metals with high thickness tend to have striation at lower edges.

** The power consumption indicated in the table is measured on the machine’s peak performance. It includes the connected load of the laser source, controller, fume extractor and chiller.

***Maximum thickness of full-size sheet is limited by weight capacity of respective variant.

#Galvanized Iron (GI) only comes up to 3mm thickness in market.

Accessories:

• Light Curtain

• Nozzle Cleaning

• Filter Dust Collector

• Countersink

• Calibration | Vision Check

• Pneumatic Laser Safety Doon

• Smart Camera

• Auto Nozzle Changer, Centering

• QR Code / Barcode Scanner

Sheet Metal CNC Laser Cutting Machine

Metal Fiber Laser Cutting Machine

New generation High Power 2D Metal Fiber Laser Cutting Machine for high precision sheet metal cutting, as the name suggests, it’s high on its factor X with its matchless instinctive reflexes. It is equipped with Dynamic Edge Control and a Servo motor drive with a rigid gantry structure enabling 3G acceleration. The cost-effective 2D laser cutter with up to 30 kW Fiber laser and higher brilliantly cuts metals like mild steel, stainless steel, aluminium, brass, copper, titanium, and coated and textured metal sheets. Backed with dynamic edge control future X model is ultra-efficient, marvellously effective and its high performance makes it a must for your manufacturing unit.

Building a Reliable Technical Experience

Ever since incorporation, we have been making our own way through futuristic technology and ground-breaking innovations.

Product Description

Newest Fiber laser cutting with high precision and a high factor X, coupled with a linear motor drive and rigid gantry structure that allows for 3G accelerations.

The Key to Light Performance

World’s best high-speed Fiber laser forming machines with precise and accurate processing for all your business requirements such as metal sheet cutting, welding, cleaning, marking etc.

Dynamic Motorized Lens

The tool is installed in the laser head for self-driven operation. It automatically changes the focus of the lens as per the object & the application. With an alert auto-focusing function, FutureX can automatically adjust the focus to the most suitable position when processing different materials and thicknesses. This will significantly improve the efficiency of the laser cutting machine, and reduce the piercing time of thick sheets significantly.

Focus on Safety

Though the laser machine utilizes a powerful laser, it is designed with supreme safety standards that enable secure execution across the facilities. This system has enhanced safety with a class-1 enclosure, light curtains, a hermetically sealed cabinet (lp55), and door interlocks. Laser safety windows keep laser radiation intact inside the machine while the cutting process.

Dynamic Edge Control

A laser, when properly focused and set for a material, cuts a part with a sharp edge. Dynamic Edge Control (DEC) decreases inflammation on the edges of the processing materials, synchronized laser with axial motion through the system. The cutting system operates laser power with the axis speed via the dynamic edge control (DEC) mechanism which reduces burning effects at the edges.

Auto Sheet Orientation

Speed up the cutting process by eliminating the manual alignment of the sheet for each cutting operation. Auto-sheet orientation feature enables automatic orienting of the program to that angle in which the sheet has been kept which ultimately eliminates the non-productive time of rearranging the sheet.

Process Difficult Sections Precisely

The system with up to 15KW Fiber laser brilliantly cuts on Thin To Thick metal components like mild steel, stainless steel, aluminium, brass, copper, titanium, HRC, CRC, and other coated & textured metal sheets with high Precision and can achieve faster cutting speeds. Precise laser cutting can be achieved with Future X which provides complete control over the cutting of different materials. This allows the machine to cut even the complicated profiles or contours precisely.

Anti-Collision Mechanism

Equipped with a powerful mechanical structure the FutureX is designed with an anti-collision system. This smart feature allows you to use methods like snipping, sewing, and parabolic leaping to restrict the movement of the sheet when cutting, for uninterrupted material processing. The anti-collision mechanism minimizes non-productive times which can happen due to parts tipping over when cutting thin sheet metal and makes your machine permanently productive.

Fly Cut

One of the key features to process high-speed cutting applications in Fiber laser cutting machines, FLYCUT performs the continuous cutting of the desired shape without lifting up the laser head giving a boost to the processing speed by reducing the head travel movements.

Cooling Point

To minimise melting of sharp edges while cutting thicker materials, a cooling point has been specified for a set time period. Here, the assist gas will be turned on continuously, and the laser will be turned off for the stated time period.

Thickness & Power Consumption

Laser Power (kW) 6 8 10 12 15 20 30

Mild Steel (MS) (O2) 25 (1″)* 28 (9/8″)* 30 (19/16″)* 40 (25/16″)* 45 (7/4″)* 50 (31/16″)* 60 (19/8″)*

Mild Steel (MS) (N2 / Air) 8 (5/16″) 10 (3/8″) 12 (1/2″) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″)*

Stainless Steel (SS) (O2) 10 (3/8″) 10 (3/8″) 10 (3/8″)* 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″)

Stainless Steel (SS) (N2 / Air) 16 (5/8″) 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)* 40 (25/16″)*

Aluminium (Al) (N2) 16 (5/8″) 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)* 40 (25/16″)*

Brass (Br) (N2) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″)* 30 (19/16″)* 32 (5/4″)* 35 (11/8″)*

Copper (Cu) (O2) 8 (5/16″) 10 (3/8″) 12 (1/2″) 16 (5/8″) 18 (11/16″) 20 (13/16″) 22 (7/8″)

Galvanized Iron (GI) (N2 / Air) # 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″) 3 (1/8″)

Power Consumption** 32 kW 40 kW 48 kW 56 kW 68 kW 85 kW 120 kW

Working Area (X Y Z) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″) 1550 X 3030 X 150mm (60″ X 120″ X 6″)

Maximum Speed (X Y) 220 m/min (4724 ipm)* 220 m/min (4724 ipm)* 220 m/min (4724 ipm)* 220 m/min (4724 ipm)* 220 m/min (4724 ipm)* 220 m/min (4724 ipm)* 220 m/min (4724 ipm)*

Position Accuracy (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″) (±)0.0050 mm (0.0002″)

Repeatability (±)0.020 mm (0.001″) (±)0.020 mm (0.001″) (±)0.020 mm (0.001″) (±)0.020 mm (0.001″) (±)0.020 mm (0.001″) (±)0.020 mm (0.001″) (±)0.020 mm (0.001″)

Work Piece Weight 900 kg 900 kg 900 kg 900 kg 900 kg 900 kg 900 kg

*Quality of the cut depends upon the attributes of metal, its surface properties and the condition in which the cutting operation is done. Metals with high thickness tend to have striation at the lower edges

**Quality of the cut depends upon the attributes of metal, its surface properties and the condition in which the cutting operation is done.

***Metals with high thickness tend to have striation at the lower edges.

Accessories:

• Chiller

• Fume Suction

• Touch screen HMI

• Auto nozzle changeover

• Auto nozzle cleaning

• Dynamic motorized lens

• Safety interlocks

• Maintenance remainder

• Scrap removal conveyor

• Semi / auto loading & unloading

00 16200 19400

Space Required for Accessories 2000 2000 2000 2000 2000 2000

Total Machine Width with Accessories 3300 4280 5900 5900 6500 6500

Width of Operating Panel 600 600 600 600 600 600

Length of Operating Panel 430 430 430 430 430 430

* The quality of the cut depends upon the attributes of metal, its surface properties and the conditions in which cutting operations are done. Metals with high thickness tend to have striation at lower edges.

** The power consumption indicated in the table is measured on the machine’s peak performance. It includes the connected load of the laser source, controller, fume extractor and chiller.

***Maximum thickness of full-size sheet is limited by weight capacity of respective variant.

Galvanized Iron (GI) only comes up to 3mm thickness in market.

Accessories:

• Light Curtain

• Nozzle Cleaning

• Filter Dust Collector

• Countersink

• Calibration | Vision Check

• Pneumatic Laser Safety Doon

• Smart Camera

• Auto Nozzle Changer, Centering

• QR Code / Barcode Scanner

Heavy Duty Fiber Laser Cutting

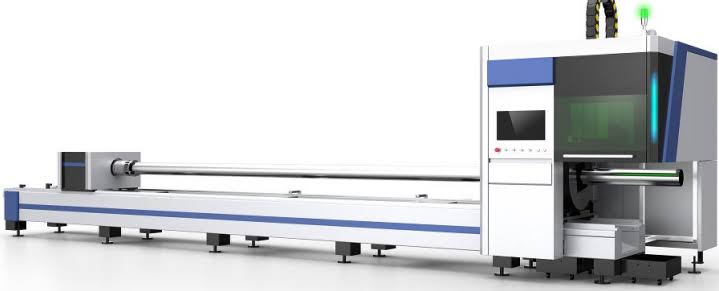

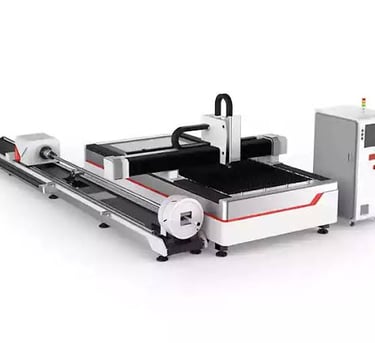

Laser Tube Cutting Machine

Introducing a new way to process Laser Cutting on tubes with Tube Cutting industry with ground-breaking innovations, and this Laser Tube Cutting series is turning out to be the Laser System that provides exceptional cutting quality and better productivity. This smart solution is a one-of-a-kind combination of the Laser Technology and a robust mechanical structure built by the company’s in-house R&D team. These dedicated Laser Tube Cutting Systems are built to provide extreme precision, productivity, and quality.

Building a Reliable Technical Experience!

Ever since incorporation, we have been making our own way through futuristic

Product Description

Introducing a new way to process Laser Cutting on tubes This tube cutting series is developed by re-imagining the whole traditional tube cutting process and creating a series of machines, which provides a comprehensive answer to complicated industrial demands.

Designed For Precision

The drive system in Laser Tube Cutting Machines prevents backlash and offers great stability to the processing. The system is capable of delivering excellent edge quality, efficient cutting and cost-effective processing. enables a refined laser tube cutting method that focuses on precision and the finest finish in every cut, at the same time; ensuring the same output in every cut.

Advanced Software

software provides flexibility for users to add, change or delete programs on the go. With Superfast pipe cutters integrated with smart software; users have the most comprehensive solution available on the market for automating production changeover between different materials and thicknesses.

Robust Chuck with Integrated Rotary Axis

The system is equipped with an automatic chuck to provide instant response and fit in different tube geometries perfectly. The chuck system is perfectly calibrated to attain high machining accuracy by avoiding any torsional stress in the tube.

Special Shapes & Profile Processing

Unique integration of the hardware and the software allows Laser Tube Cutting machines to operate on varied tube shapes like triangles, squares, rectangles, circles, L angel, C channels, I or H beam, pentagon, round oval, ellipse, perfect square, octagon, a rectangle with chamfer, semi-oval and even some angle profiles. With the system’s functional power supply capabilities, it could work smoothly on materials such as SS, MS, Al, Cu, Br, Gi, and more.

Robust Chuck Clamping Mechanism

The system caters to both flexible and adjustable chuck clamping to suit various shapes and contours of tubes with accuracy. The tube cutting series is equipped with a pneumatic chuck to provide instant response and fit in different tube geometries perfectly. The chuck apparatus is perfectly calibrated to attain high machining accuracy by avoiding any torsional stress in the tube. Both the chucks of these laser tube cutting machines are synced with each other which allows calibrated movement and hence provides accurate cutting.

Smart Tube Holding System

Laser tube cutting technology is equipped with an intelligent smart tube holding system to solve the problem of distortion. The laser pipe cutters come with a specifically designed tube holding system with guiding marks to support tubes of all diameters. A pneumatic mechanism-based chuck helps in clamping the tube. The feature is especially effective for cutting long tubes as it allows precise cutting and eliminates the jerks generated during the cutting process remarkably.

Endless Possibilities with Automation

The robust laser tube cutting machines can be equipped with automation like an autoloader/unloader ensuring safe and automatic loading even of special profiles to attain uninterrupted and highest productivity. The power-packed machines can also be integrated with automation for the flexibility of Bevel Cutting application.

Specification

Specification Unit

Maximum Pipe Cutting Length mm 6100 6100 6100 8050

Cutting Diameter Round Ø25 – Ø180 Ø20 – Ø200 Ø20 – Ø300 Ø20 – Ø360

Rectangle / Square mm 120 x 120 150 x 150 200 x 200 150 x 300 / 250 x 250

X- Axis Travel mm 450 450 450 650

Y- Axis Travel mm 6050 6500 6500 9500

Z- Axis Travel mm 180 200 200 350

Maximum Job Weight kgs 140 160 225 670

Master Chuck Dia. Size (B1-Axis) mm 180 200 300 350

Master Chuck (B1-Axis) Operation Manual / Auto Operation Manual / Auto Operation Manual / Auto Operation Manual / Auto

Slave Chuck (B2-Axis) Operation Manual / Auto Operation Manual / Auto Operation Manual / Auto Operation Manual / Auto

X, Y Axis Positioning Accuracy mm/meter ±0.05 ±0.05 ±0.05 ±0.05

X, Y Axis Repeatability Accuracy mm/meter ±0.03 ±0.03 ±0.03 ±0.03

Acceleration m/s² 10 10 10 10

X Axis Maximum Running Speed m/min 45 45 70 70

Y Axis Maximum Running Speed m/min 70 70 70 70

Maximum Turning Speed (W-Axis) rpm 60 80 50 50

Laser Power kW 1, 2, 3, 4 1, 2, 3, 4 1, 2, 3, 4 1, 2, 3, 4

Controller Tube Pro / etron Tube Pro / etron Tube Pro / etron Tube Pro / etron

* Technical specifications are subject to change without prior notice

Accessories:

• Chiller

• Safety Enclosure

• Fume Extractor

• Bevel Cutting Head

• Auto Loading Mechanism

• Touch Screen Operating System

• Centralized Automatic Lubrication System
