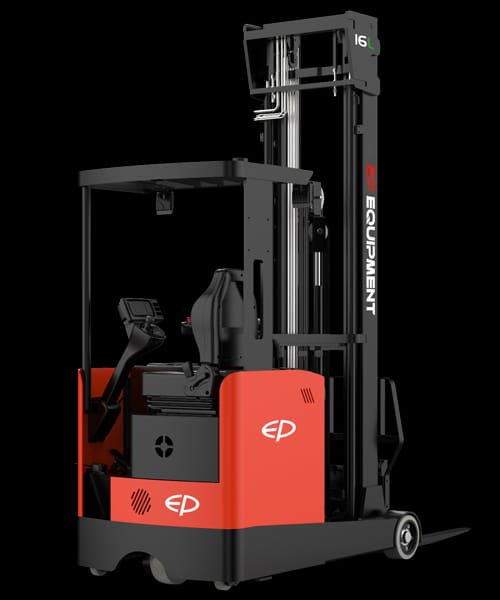

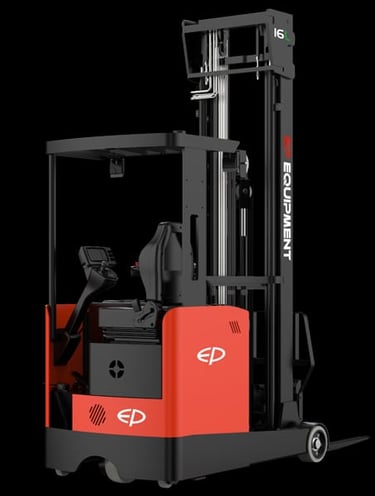

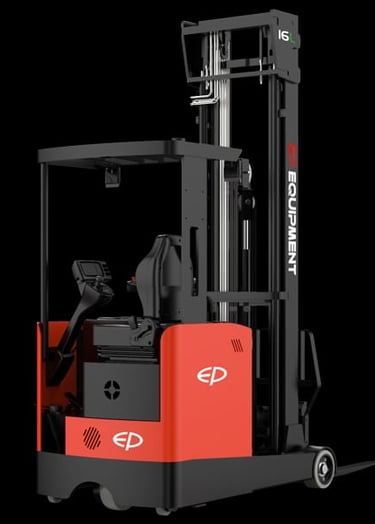

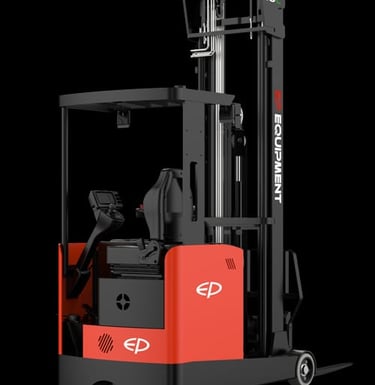

Electric Reach Truck

Electric Reach Truck (Medium)

High Rack Warehouses

Er10 – Er16 B Reach Trucks Are Ideal For Storage And Removal At Height And In Narrow Rack Aisles. With Negligible Costs Per Pallet Movement, They Provide The Necessary Output For Light To Medium-Weight Tasks In The Entry-Level Class. In Addition To The Extensive Model Range, The Trucks Can Be Extensively Tailored With E.G. Mast Heights Ranging From 4.4 To 7.7 Meters. The Trucks Have A High Residual Load Capacity And Boast A High Level Of Comfort For Fatigue-Free Operation. In Particular, A Vibration-Free Operator Compartment And Individually Adjustable Control Elements Help Achieve This.

Features

As Is The Case For All Trucks, Er10 – Er16 Trucks Have A Solid And Durable Chassis Design. The Lower Frame Is Designed As A Solid Steel Structure And Provides A Low Load Centre, High Stability And High Residual Load Capacities Curve Assist Adjusts The Truck Speed Around Bends For Improved Driving Safety. The All-Wheel Brake And Four Independent Braking Systems Provide Additional Safety. The Parking Brake, Which Automatically Engages When The Driver Exits The Truck, Increases Safety When Stopping On Ramps And Gradients.

· Curve Assist

· All-Wheel Brake

· Four Independent Braking Systems

· Optional Armoured Glass Panoramic Roof

Model Load capacity/Load Lift Travel speed, with/without load Aisle width with pallet 800 x 1200 along forks

ER10B 1.0 (t) 3832 (mm) 11 / 11 km/h 2703 (mm)

ER12B 1.2 (t) 4832 (mm) 11 / 11 km/h 2703 (mm)

ER14B 1.4 (t) 5710 (mm) 11 / 11 km/h 2770 (mm)

ER16B 1.6 (t) 5710 (mm) 11 / 11 km/h 2780 (mm)

Electric Reach Truck (High)

High Mast Electric Reach Truck

Efficient Handling Of All Logistics Tasks Thanks To A Wide Product Range

Our Er14 – Er25-Product Line Boasts A Wide Range Of Trucks For Intensive Applications In Areas Such As Contract Logistics, The Food Industry And Food Trade. The Large Number Of Model Versions As Well As The Extensive Standard And Special Equipment Make It Possible To Perform A Wide Range Of Different Logistics Tasks. This Includes Mast Heights Up To 15 Meters, Narrow Chassis For One-Way Shelving Or The Cold Store Protection Able To Operate At Temperatures As Low As - 30°C. In Particular, The Torsion-Resistant Lift Masts As Well As The Optional Electric Linear Drive With Dynamic Mast Control, Which Dynamically Compensates For Mast Oscillation, Makes These Reach Trucks Ideal For Safe And Efficient Operation At Height. The Trucks Are Also Ideal For The Double-Depth Storage Of Two Pallets One Behind The Other. Ergonomic And Individually Adjustable Control Elements As Well As A Vibration-Free Driver's Seat Enable Fatigue-Free Operation.

Features

The Torsion-Resistant, Visibility-Optimized Lift Masts On ER14 - ER25 Reach Trucks Help Increase Safety And Efficiency When Handling Loads At Height. A Parking Brake That Engages Automatically When The Driver Exits The Truck Enables Secure Stopping On Ramps And Gradients. Ensures Safe Speeds Around Bends. Four Braking Systems Reliably Stop The Truck, Even In Unforeseen Situations. A Wide Range Of Additional Equipment Provides Additional Safety: For Example, An Armoured Glass Panoramic Roof Provides The Best Possible View Of The Load. Assistance System Compensates For Mast Oscillation With Quick And Precise Counter-Movements And Also Counteracts Mast Bend During Storage And Removal. This Reduces The Risk Of Accidents And Accelerates Work Processes.

· Torsion-Resistant Mast Designed For Optimal Visibility

· Automatic Parking Brake

· Four Braking Systems

· Optional Dynamic Mast Control

Technical Data

Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)

ER14 1.4 (t) 5760 (mm) 14 / 14 km/h 1640 (mm) 48 / 420/465 [48/201] (V)/(Ah) o. kWh

ER14H 1.4 (t) 7555 (mm) 14 / 14 km/h 1640 (mm) 48 / 560/620 [48/804] (V)/(Ah) o. kWh

ER14HD 1.4 (t) 7955 (mm) 14 / 14 km/h 1641 (mm) 48 / 560/620 [48/804] (V)/(Ah) o. kWh

ER14N 1.4 (t) 5760 (mm) 14 / 14 km/h 1690 (mm) 48 / 420/465 (V)/(Ah) o. kWh

ER14N 1.4 (t) 6995 (mm) 14 / 14 km/h 1691 (mm) 48 / 420/465 (V)/(Ah) o. kWh

ER14 1.4 (t) 6995 (mm) 14 / 14 km/h 1642 (mm) 48 / 420/465 [48/201] (V)/(Ah) o. kWh

ER16 1.6 (t) 5760 (mm) 14 / 14 km/h 1710 (mm) 48 / 420/465 [48/201] (V)/(Ah) o. kWh

ER16H 1.6 (t) 8255 (mm) 14 / 14 km/h 1710 (mm) 48 / 560/620 [48/804] (V)/(Ah) o. kWh

ER16HN 1.6 (t) 8255 (mm) 14 / 14 km/h 1710 (mm) 48 / 560/620 [48/804] (V)/(Ah) o. kWh

ER16N 1.6 (t) 5760 (mm) 14 / 14 km/h 1690 (mm) 48 / 420/465 (V)/(Ah) o. kWh

ER16N 1.6 (t) 5795 (mm) 14 / 14 km/h 1691 (mm) 48 / 420/465 (V)/(Ah) o. kWh

ER16 1.6 (t) 9470 (mm) 14 / 14 km/h 1710 (mm) 48 / 420/465 [48/201] (V)/(Ah) o. kWh

ER20 2.0 (t) 8955 (mm) 14 / 14 km/h 1778 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER20HD 2.0 (t) 11455 (mm) 14 / 14 km/h 1915 (mm) 48 / 840/930 [48/804] (V)/(Ah) o. kWh

ER20HD 2.0 (t) 11455 (mm) 14 / 14 km/h 1916 (mm) 48 / 840/930 [48/804] (V)/(Ah) o. kWh

ER20N 2.0 (t) 8955 (mm) 14 / 14 km/h 1760 (mm) 48 / 700/775 (V)/(Ah) o. kWh

ER20N 2.0 (t) 9170 (mm) 14 / 14 km/h 1760 (mm) 48 / 700/775 (V)/(Ah) o. kWh

ER20W-1470 2.0 (t) 8955 (mm) 14 / 14 km/h 1810 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER20W-1470 2.0 (t) 8955 (mm) 14 / 14 km/h 1811 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER20W-1670 2.0 (t) 8955 (mm) 14 / 14 km/h 1850 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER20W-1670 2.0 (t) 8955 (mm) 14 / 14 km/h 1849 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER20 2.0 (t) 8955 (mm) 14 / 14 km/h 1778 (mm) 48 / 700/775 [48/804] (V)/(Ah) o. kWh

ER25 2.5 (t) 8555 (mm) 14 / 14 km/h 1915 (mm) 48 / 840/930 [48/804] (V)/(Ah) o. kWh

R25 2.5 (t) 10455 (mm) 14 / 14 km/h 1916 (mm) 48 / 840/930 [48/804] (V)/(Ah) o. kWh
