Pallet Trucks
Electric Pallet Trucks Are Tailor-Made For These Conditions And Ensure Extremely Efficient Operation In High Rack Warehouses. Load Handling In Warehouses Requires Numerous Movements Often In Confined Spaces And At Height.Besides Their Outstanding Special Display And Assistance Systems Support The Driver To Allow Safe And Quick Handling. For Example, They Automatically Adjust The Lift And Travel Speed, Or Precisely Compensate For Mast Oscillation In Certain Models.The Design Of The Driver's Cab And The Masts Provides Optimum All-Round Visibility. In Addition, The Driver's Cab And Control Elements Are Developed Based On The Driver's Individual Ergonomic Requirements. For Example, The Load Control Integrated Into The Armrest And A Vibration-Free Driver's Cab Make Fatigue-Free Working Possible. Additional Equipment, Such As A Panorama Armoured Glass Roof, Increases Driver Safety In Narrow Rack Aisles And When Handling Loads At Height.
Manual Semi- Electric Pallet Trucks
Manual And Semi – Electric Pallet Truck
Flexible Transport, Lifting, And Order Picking
The Pallet Lift Trucks Can Lift Their Forks Via Scissor Lift To A Height Of 800 Mm And Have A Very Compact Design. This Is Why These Trucks Are Used Flexibly In Transport Tasks, As Mobile Working Platforms, Or For Occasional Order Picking In The Tightest Of Spaces. We Offers Two Versions Model M10 Has An Electric Lift Drive. The Operator Doesn't Have To Use Any Strength To Lift Or Lower The Load. In The Model M10 X, Lifting Is Initiated Manually By The Operator Using The Tiller. The Direction Of Movement Can Be Changed Using A Single Lever Located On The Handle. Both Models Have A Rugged, Warp Resistant Chassis And A Reinforced Tiller. The Pallet Lift Truck With Scissor Lift Can Carry And Lift A Maximum Load Of 1000 Kg.
Features
From A Working Height Of 400 Mm, Small Bolts Found On The Right And The Left Under The Drive Wheels, Slide Out Onto The Floor And Stabilize The Truck When Parked. This Means The Truck Does Not Sway When The Operator Puts Heavy Objects On The Pallet Or If The Load Shifts. A Broad Tiller Handle Protects The Hands From Injury. A Slip-Proof Plastic Coating On The Handle Ensures That The Operator Has A Tight Grip On The Tiller.
· Stabilizers During High Lifting
· Broad Tiller Handle Protects Hands
· Slip-Proof Handles
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
M10 1.0 (t) 715 (mm) 1372 (mm) - (V)/(Ah) o. kWh
M10X 1.0 (t) 715 (mm) 1541 (mm) 12 / 60 (V)/(Ah) o. kWh
Medium Electric Pallet Trucks
Medium Electric Pallet Trucks
Electric Pallet Trucks, It Is Optimized For Transporting Goods Over Short Distances And For Loading And Unloading Lorries. Thanks To Its Lifting Function, However, It Is Also Ideally Suited For Order Picking In Logistics And Restocking Shelves In Retail. With Its Powerful Motor, The Es16 Pallet Truck Reaches Speeds Of Up To 6 Km/H, Both Loaded And Unloaded, And Easily Handles Gradients. The Rounded Chassis, The Low Skirt And The Long, Low-Mounted Tiller Provide Maximum Protection. With A Lift Height Of Up To 675 Mm, The Es16 Enables Back- And Knee-Friendly Work. The Optional Auto Lift Function Automatically Adjusts The Lift Height In Proportion To The Increasing Height Of The Load. The Intuitively Designed Tiller Head Includes All Control Functions And Ensures Easy Handling. The Robust Chassis Protects The Truck From Damage In Tough Continuous Operation.
Features
The Long Tiller With Deep Mounting Point Provides A Large Safety Distance Between The Driver And The Truck. A Deep Skirt Covers The Wheels, Effectively Protecting The Driver’s Feet From Injury. The Emergency Stop Button Is Easily Accessible And Increases Safety In Case Of Emergency. The Tiller Head Of The Es16 Is Designed To Enclose The Driver’s Hands And Protect Them. When Cornering, The Truck Adjusts Its Speed Directly To The Steering Angle, Protecting The Driver From Risky Areas.
• Long, Low Mounted Tiller
• Deep Skirt As Foot Guard
• Easily Accessible Emergency Stop Button
• Tiller With Hand Protection
• Speed Adjustment In Curves
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
ES16 1.6 (t) 550 (mm) 6 / 6 km/h 1512 / 1575 (mm) 24 / 62 (125) (V)/(Ah) o. kWh
Heavy Electric Pallet Trucks
The robust and powerful ES20 – ES25 pallet trucks are ideal for loading and unloading delivery vehicles or containers, but also for occasional order picking in the warehouse as well as for transporting goods. They have a fixed standing platform whose sturdy steel apron also surrounds the driver at the rear of the vehicle, protecting him in the event of collisions from all sides. On the platform, the driver stands at a 45° angle to the direction of the forks, which allows him to keep an eye on his surroundings in any direction of travel without turning his back and neck too much. The vehicles can be equipped with the unique e-driver control concept, which was specially developed for driving in a 45° position. On the ES20 – ES25, the stand-on platform and controls form a single unit. This is decoupled from the chassis and fully suspended to protect the operator from shocks and vibrations. Depending on the model, the pallet trucks have a load capacity of 2,000 to 2,500 kilograms.
Features
The driver's platform of the ES20 – ES25 is surrounded by a solid, waist-high steel apron up to the middle of the rear of the vehicle. This unique design offers the driver protection in the event of a collision and prevents the driver from falling out of the vehicle when moving off quickly. Additional protection is provided by an optional feet detection: as soon as the driver's feet leave the standing platform, the vehicle comes to a halt automatically. For better early warning in narrow, unclear areas, the pallet trucks can be equipped with the warning spotlight. When cornering, the vehicle automatically adjusts its speed to the steering angle, protecting the driver from risky manoeuvres. As soon as the driver releases the butterfly control (dead man´s switch), the vehicle stops automatically.
· Solid steel apron as a protective shield
· Adjustment of the travel speed during cornering
· Feet detection for driver protection
· Warning spotlight
· Dead man´s switch
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
ES20SP 2.0 (t) 115 (mm) 11 / 14 km/h 2026 / 2096 (mm) 24 / 375 (V)/(Ah) o. kWh
ES25SP 2.5 (t) 115 (mm) 11 / 14 km/h 2888 / 2958 (mm) 24 / 375 (V)/(Ah) o. kWh
ES 25 2.5 (t) 125 (mm) 6 / 6 km/h 1765 / 1835 (mm) 24 / 345/375 (V)/(Ah) o. kWh
ES 30 3.0 (t) 125 (mm) 6 / 6 km/h 1765 / 1835 (mm) 24 / 345/375 (V)/(Ah) o. kWh
Pedestrian Pallet Stackers
Pedestrian Pallet Stackers
Pedestrian Pallet Stackers, Where The Operator Controls The Truck With The Tiller While Walking Behind Or Alongside, Are An Economical Solution For Transporting Loads Over Short Distances. Thanks To The Electric Motor, Goods Can Be Lifted Safely And Precisely To The Required Height. In Operations Where Excellent Manoeuvrability And A Small Turning Radius Are Required, Pedestrian Trucks Really Come Into Their Own. Whether In Workshops, Refrigerated Warehouses, Greenhouses, Garden Centres, Or Supermarkets, Transporting Goods Is One Of The Specialties Of The Pedestrian Pallet Stacker.
Pedestrian Pallet Stacker Is A Versatile All-Rounder For Handling Goods In Warehouses And Production Facilities. It Is Perfect For Lightweight To Medium-Weight Tasks. With Its Compact Design, The Es10 – Es16 B Is Perfectly Designed For Goods Handling In The Tightest Of Spaces, Be It In Supply Zones, As Support In Production Or For Stacking Shelves In The Supermarket. As A Version With An Integrated Li-Ion Battery, It Is The Most Compact Truck In Its Performance Class. With A Load Capacity Of Up To 1.6 Tonnes, A Maximum Lifting Height Of 5.4 Meters, And Outstanding Residual Load Capacities, It Can Handle A Wide Variety Of Tasks. During The Transport Of Goods, An Initial Lift Provides More Ground Clearance. As A Result, Unevenness Or Ramps Are Not A Problem Even With Double-Decker Transport. Five Different Mast Designs And A Range Of Options Allow For Precise Adaptation To The Specific Requirements On Site.
Features
The Es10 – ES 16 B Has A Number Of Safety Features That Protect The Driver, Pedestrians And Loads. In This Way, The Asymmetrical Tiller Provides An Optimal View Of The Fork And The Truck’s Surroundings. At The Same Time, The Long Tiller Arm Ensures A Large Safety Distance From The Truck. Safety Speed Option Can Also Be Used To Control The Driving Speed In Relation To The Inclination Of The Tiller. The Efficient Braking System Prevents Rolling Back When Stopping On Gradients And Automatically Brakes As Soon As The Driver Releases The Tiller Handle Or Abruptly Changes The Direction Of Travel. In Addition, The Low-Lying Chassis And An Optional Active Foot Bumper Prevent Foot Injuries. Other Optional Features Are The Load Management Assistance System, Which Monitors The Residual Load Capacity And Warns Of The Risk Of Tipping Over, And The Creep Speed Function For Safe Manoeuvring In Tight Spaces. The Soft Landing Function Gently Lowers The Forks And Prevents Transport Goods From Being Damaged When Setting Them Down.
· Optimum View Of The Fork
· Creep Speed For Easy Manoeuvring
· Low-Lying Chassis For Foot Protection
· Automatic Braking System
· Gentle Lowering Of The Fork
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Turning radius Battery voltage/rated capacity (5h)
ES10 B 1.0 (t) 2924 (mm) 6 / 6 km/h 1420 (1496) (mm) 24 / -- (V)/(Ah) o. kWh
ES12 B 1.2 (t) 2924 (mm) 6 / 6 km/h 1420 (1496) (mm) 24 / -- (V)/(Ah) o. kWh
ES14 B 1.4 (t) 2844 (mm) 6 / 6 km/h 1527 (1560) (mm) 24 / 200 (V)/(Ah) o. kWh
ES16 B 1.6 (t) 2844 (mm) 6 / 6 km/h 1527 (1560) (mm) 24 / 200 (V)/(Ah) o. kWh

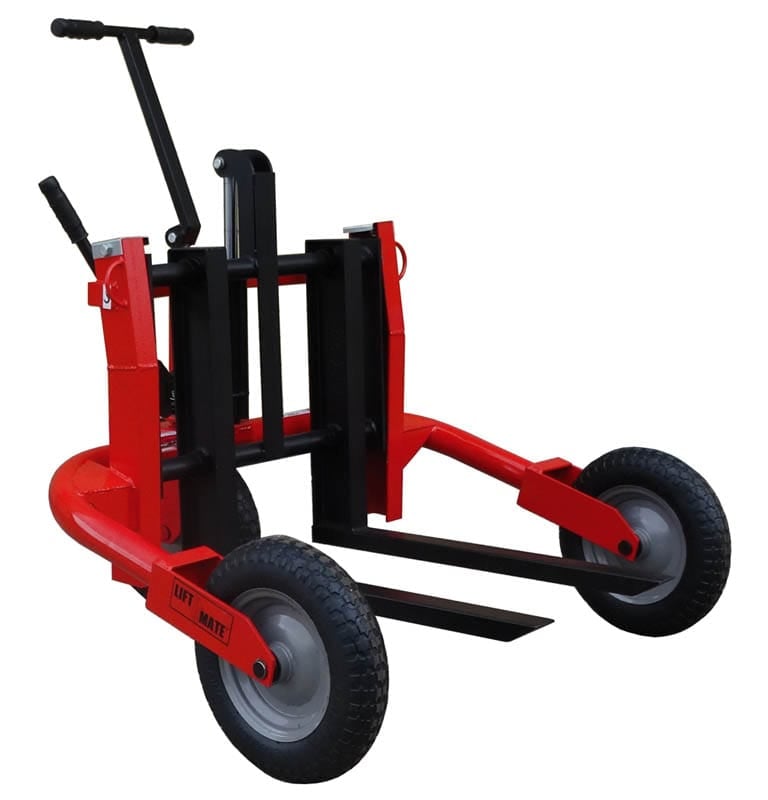

Rough Terrain Pallet Truck
Rough Terrain Pallet Truck Are Designed To Fit All Types Of Surfaces, From Smooth Floors In Shipping And Junction Stations To Rough Ground Such As Construction Sites, Garden Centre, Farms, And Equestrian Applications.
You Can Always Rely On This Pallet Truck To Handle Material Loading, Lifting, Moving Easily.
Up To 1000~2000kg / 2 Ton Capacity
CE Approval Heavy Duty All Terrain Pallet Jack Help You Transport One Or More Oversized Palletized Loads Easily. Flexible & Easy Operating Design Allows Smooth Loading/Unloading To Adapt To Various Rough And Uneven Surfaces
Quality Frame & Components
Overall Fork Dimensions: 32″L X 4″W Forks That Adjust From 9-1/2″ To 26″ Wide
15″ Pneumatic Load Wheels, 10″ Pneumatic Steer Wheels
Both Manual & Electric Operating Models For Your Options
Electric Powered Rough Terrain Pallet Truck Is Mainly Designed To Meet The Transportation Needs Of Industries Such As Civil Engineering And Infrastructure. It Has Good Stability And Strong Obstacle Crossing Ability, Making It Suitable For Complex And Harsh Outdoor Conditions, Breaking Through The Limitations Of Traditional Pallet Trucks That Are Only Suitable For Indoor Warehouses And Workshops.
Comfort
Multifunctional Instrument, Integrated Display Of Battery Power, Working Hours. Pedestrian Mode, Adopting A Low And Long Handle Design, With Low Steering Force And Easy Operation. The Use Of Mold Springs As Rebound Components Ensures Stable And Reliable Performance With Low Operating Force.
Advanced And Safe
The Traction And Main Controller With DC Brushless Control System, Combined With A High-Performance Planetary Gearbox, With Strong Power, High Climbing Slope, Superior Acceleration Performance, And Efficient Environmental Protection.
Off Road Performance
It Has High Possibility And Excellent Obstacle Crossing Ability, Which Can Meet The Needs Of Outdoor Off-Road Conditions.
Maintenance
The Full Opened Hood Makes Battery Replacement And Maintenance More Convenient. Built-In Charger As Standard, Making Charging More Convenient And Efficient.
Specification
● Capacity(kg):2000
● Height Min/Max (mm):50/200
● Fork overall width(mm): 700
● Fork overall length (mm):950
● Weight(kg): 280
● Voltage/ Capacity: 48V/32AH
● Type: Electric Pallet Jack
