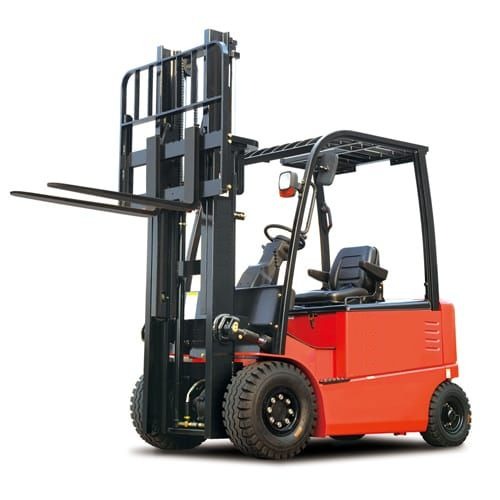

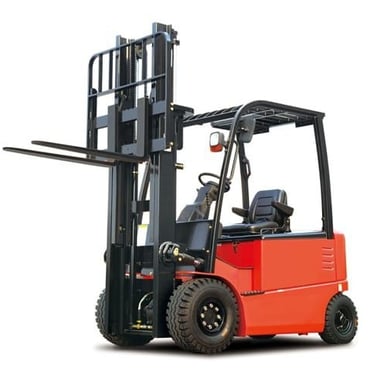

Electrical Forklift
We Offers A Wide Range Of Electric Forklift Trucks For Loads Weighing In At Between 1000 And 8000 Kilograms And For Virtually Any Application From The Worlds Of Industry And Commerce. These Trucks Really Shine Thanks To Their Precision And Agility, Which Together Combine To Ensure High Handling Performance. Versatile, Comfortable, And Cost-Effective , Electric Forklift Trucks Boast An Intelligent Energy Management System That Ensures That The Trucks Are Able To Draw Optimal Driving Performance And Long-Lasting Durability From Their Drive Batteries. This System Includes A Precise Residual Charge Display, Battery Temperature Monitoring, And A Quick Charging Procedure.
Every Electric Forklift Truck Is Built In Such A Way That The Electronic Modules For Controlling Load Handling And The Drive Are Easily Accessible, Meaning They Can Be Serviced Conveniently.
Electric Forklift
In Order To Be Able To Transport Loads Quickly, Has Developed Powerful Drive Technology With Sensitive Traction And Incredibly Precise Steering. The Entire Range Of Electric Forklift Trucks Feature A Maintenance-Free Compact Axle With Two Independent Wheel Motors, Allowing The Truck To Be Manoeuvered Down To The Last Millimeter Via The Dual Pedal Control.Electric Forklift Trucks Offer Both Comfort For The Driver And Cost-Effectiveness, And All With Trademark Safety Concept. This Includes, Among Other Things, A Robust Protective Zone For The Driver And The Optionally Available Safety Pilot Driver Assistance System That Provides Extra Safety When Handling Loads EF20 – EF35 Counterbalance Forklift Trucks From Are The First Electric Forklifts Whose High Performance And Robustness Means They Can Be Used As A Genuine Alternative To Internal Combustion (Ic) Trucks. Customers Therefore Enjoy Absolute Freedom Of Choice And Are Able To Choose A Quiet, Emission-Free Alternative For Even The Most Challenging Applications, Without Having To Allow For Any Loss Of Performance. The Basis For All Of This Is The Common Platform Developed By For Counterbalance Forklift Trucks, Whether Powered By Internal Combustion Engines Or Electricity. This Means That The Ef 20 – Ef 35 Forklifts Combine The Best Of Two Worlds: The Characteristic Output And Power Development Of Ic Trucks And The Dynamics, Flexibility, And Freedom From Emissions Offered By Electric Trucks.
Features
The Comprehensive Safety Concept Of The EF 20 – EF35 Electric Forklift Trucks Protects Not Only The Driver But Also Pedestrians And The Goods Being Transported. The Slim Line Mast Design, Narrow A-Pillar, And Lowered Front Plate Afford The Driver An Unimpeded View Of The Load And Surrounding Area. Even When Loading And Unloading At Higher Levels, The Roof Design Continues To Give The Driver A Perfect View Of The Load. The Truck’s Low Centre Of Gravity And High Steering Axle Ensure A High Degree Of Protection From The Risk Of Overturning. Fitted A With Standard Truck Speed On Bends And Prevents It From Tipping Over. If The Load Is Tilted Too Far Forward When Lifting, Is Integrated As Standard, Automatically Intervenes To Reduce The Forward Tilt And Lifting Speed According To The Lifting Height. This Function Minimizes The Risk Of Accidents Caused By Falling Loads.
· All-Round View From The Driver’s Cabin
· Prevents Tipping While Turning
· Protects From Tipping Accidents
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Battery voltage/rated capacity (5h) Aisle width with pallet 800 x 1200 along forks
EF 20/600 2.0 (t) 3095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4208 (mm)
EF 20/600 Beverage 2.0 (t) 4095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4 208 (mm)
EF 25 2.5 (t) 3095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) kWh 4208 (mm)
EF 25 Beverage 2.5 (t) 4095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4208 (mm)
EF 30 3.0 (t) 3095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4243 (mm)
EF30 Beverage 3.0 (t) 4095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4243 (mm)
EF 35 3.5 (t) 3095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) kWh 4248 (mm)
EF35 Beverage 3.5 (t) 4095 (mm) 22 / 22 km/h 90 / 600 (V)/(Ah) . kWh 4248 (mm)
Heavy Duty Electric Forklift
Electric Fork Lift For Heavy Loads
The Powerful E60 – E80 Electric Forklift Models From Linde Are Designed For Efficient And Safe Handling Of Heavy Loads Of Up To 8,000 Kilograms. The Forklifts Are Driven By Two Powerful Three-Phase AC Motors Integrated Into The Compact Axle With Maintenance-Free Brakes. The Electronic Vehicle Control As Well As The Precisely Operable Control Elements Such As The Load Control And The Double Pedal Control Ensure The Perfect Interaction Between Man And Machine. Energy Management System Also Contributes To The High Cost-Effectiveness Of The Large Electric Forklifts.
Features
Safety Is Paramount When Dealing With Loads Weighing Up To 8000 Kilograms. The Protective Roof Of The EF60 – EF80 Electric Forklift Trucks Combine With The Cab's Frame To Form A Large Protective Zone For The Driver. The Use Of Encapsulated Lift Mast Profiles Allows For Good Visibility While Handling Loads, And The Automatic Parking Brake Guarantees The Ultimate In Safety Even While Working On Ramps. Plus, The Safety Features Of This Series Are Complemented By Redundant Controls, Electronic Traction Control, And High Residual Load Capacities, While Low Noise Levels Contribute To Operational Reliability. We Offers Numerous Optional Safety Systems Ex Works And As Retrofit Solutions.
· Safety Systems As Standard
· Protection Of Drivers, Loads And Environment
· Robust Overhead Guard And Enclosed Safety Zone
· Components Offering Optimal Visibility And Low Noise Levels
· Numerous Optional Safety Systems Ex Works And As Retrofit Solutions
Technical Data
Model Load capacity/Load Lift Travel speed, with/without load Battery voltage/rated capacity (5h) Aisle width with pallet 800 x 1200 along forks
EF60 6.0 (t) 3850 (mm) 20/20 km/h 80/1240 [90/1440] (V)/(Ah) o. kWh 5110 (mm)
EF70 7.0 (t) 3450 (mm) 20/20 km/h 80/1240 [90/1440] (V)/(Ah) o. kWh 5120 (mm)
EF80 8.0 (t) 3450 (mm) 20/20 km/h 80/1240 [90/1440] (V)/(Ah) o. kWh 5120 (mm)
EF80/900 8.0 (t) 3050 (mm) 20/20 km/h 80/1240 [90/1440] (V)/(Ah) o. kWh 5355 (mm)
