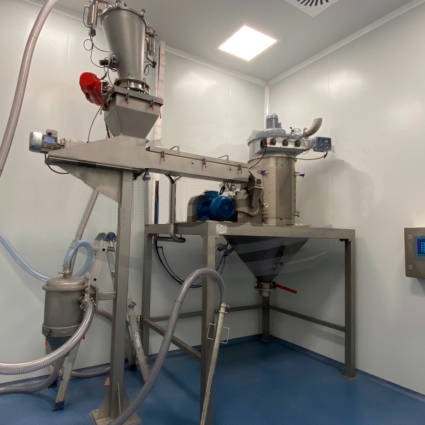

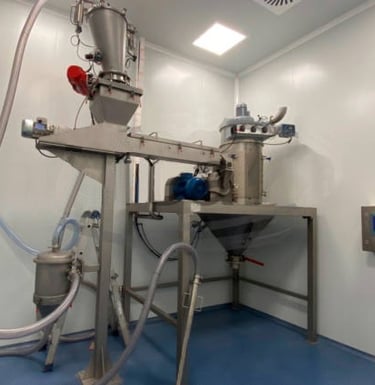

Cryogenic Grinding
Cryogenic Mill With Closed Liquid Nitrogen (LN2) System Is Developed Which Pulverize And Mix Some Soft, Temperature-Sensitive Or High Fat Content Of Samples Such As Candy, Chocolate, Dates ,Soybeans, Turmeric ,Grains Peanuts . The Feeding Jar Is Continually Cooled With Liquid Nitrogen From The Integrated LN2 Cooling System Before And During The Grinding Process. Thus The Sample Is Embrittled And Volatile Components Are Preserved. The Liquid Nitrogen Circulates Through The System And Is Continually Replenished From An Auto-Fill System In The Exact Amount Which Is Required To Keep The Low Temperature Of User That Evenly Reach -200 °C Depending On The Continuously Filling Time And Amount Of LN2. Powerful Impact Vibratory Disc Mill Results In A Perfect Grinding Efficiency. The Auto-Fill System Avoids Direct Contact With LN2 And Makes Cryogenic Grinding Very Safe. Its Versatility (Cryogenic, Wet And Dry Grinding At Room Temperature) Makes The SCM-01 The Ideal Mill For Quantities Up To 50 - 60KG /Hr (Depend On Feed Material). Its Typical Area Of Application Includes Food Analysis, Plastic Product Analysis, Mineral Analysis, Medical Aid Analysis, Drug Performance Testing, And Identification Of Textile Components And So On.
Powerful Cryogenic Grinding By Impact And Friction From Mill, Up To 700-1400rpm, Continuously Adjustable, Short Grinding Time;
Closed LN2 System For Enhanced Safety, Avoids Any Contact Of The User With LN2;
Clearly Structured User Interface, One-Touch Operation, Easy Controlling,;
Touch-Screen Programmable Controls For Cooling And Grinding Cycles;
High-Capacity Grinding Up To 50Kg /hr Of Hard, Medium-Hard, Soft, Brittle, Elastic Or Fibrous Samples.
Noise-Insulated Grinding Chamber And Especially Safe Hood Locking
Model SCM – 01 ( Economy Model)
Feed Material Hard, Medium-Hard, Soft, Brittle, Elastic, Fibrous
Size Reduction Principle Impact, Friction, Freeze,
Material Feed Size ≤20 mm
Final Fineness 10-100µm(Depend On Feed Material And Instrument Configuration/Settings)
Feed Quantity 5000 ml(Depend On Feed Material)
No. Of Grinding Stations 1
Speed 0-1500rpm, Continuously Adjustable
Typical Mean Grinding Time 15 Min/5min (Freezing/Grinding)
Grinding Mode Cryogenic, Dry Or Wet At Ambient Temperature
Grinding capacity 1 - 20 Kg/hr
Material Of Grinding Tools Stainless Steel
Power AC 415 V 3-Phase 50Hz 7.5 Kw

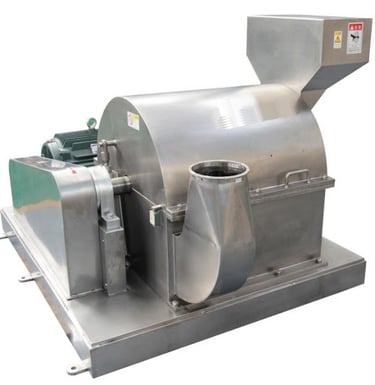

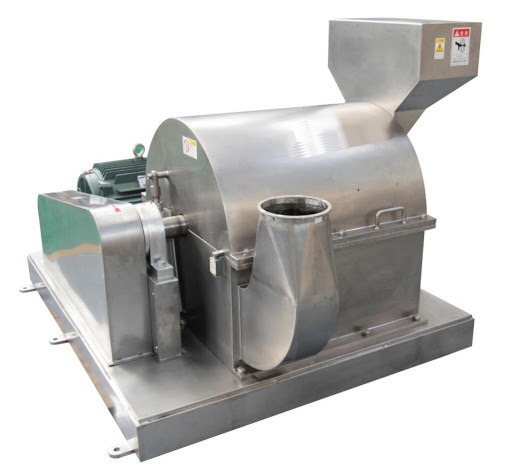

Cryogenic Pharma Grinding
Pharmaceutical Grinding
We specialize in grinding Pharma ingredients using cryogenic technology. Our method ensures fast and uniform grinding, preserving the flavor, aroma, texture, and nutritional value of the pharma ingredients. we can provide efficient and high-quality grinding solutions. Our cryogenic grinding technology is also suitable for the pharmaceutical industry. We can Grind various pharmaceutical products, including herbs, powders, . Our gentle and controlled Grinding process helps maintain the integrity and effectiveness of the pharmaceutical ingredients.

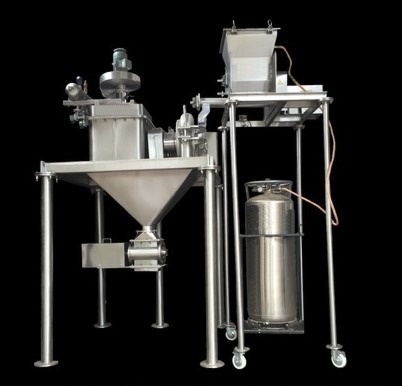

Cryogenic Spices Grinding
Spices Grinding
We specialize in Grinding food products using Cryogenic technology. Our method ensures fast and uniform drying, preserving the flavor, texture, and nutritional value of the food. Whether you need to dry fruits, vegetables, grains, or meat products, we can provide efficient and high-quality drying solutions. Our Cryogenic Grinding technology is also suitable for the Foodl industry. We can dry various Food products, including meat, Fish, coffee,Spices, and Pulses. Our gentle and controlled Grinding process helps maintain the integrity and effectiveness of the Spices and ingredients.
