Batteries
Solar Batteries are C10 rated deep cycle batteries specially designed for longer back up. They require very low maintenance and can handle extreme weather conditions. 40 Ah Rated Capacity @ C10, 12V.
· Tubular plate Technology - Next generation tall tubular battery with better charge acceptance and long Back up.
· Long cycles (1500 @80% DOD, 5000 @ 20% DOD), ensuring design life.
· Longer life without discharge with self-discharge rate of 3% per month STC.
· Efficient battery with Higher AH efficiency > 90%, and WH efficiency > 80% Low maintenance with a topping frequency of 8-10 months.
· Low maintenance with level indicators.
· Manufactured with high corrosion resistant and robust spine technology using the advanced and state-of-the-art HADI high pressure (at 100 bar) spine casting machines, which ensure a super fine grain structure, for strength, long life and highest reliability.
· Designed with thicker positive plates and 20% more electrolyte to withstand power outage.
· It has high purity, corrosion-resistant proprietary spine alloy composition for long battery life.
· Extra-strong, flexible oxidation-resistant gauntlet for better performance and long life.
· Puncture-resistant polyethylene separator which minimize the possibility of internal short circuits.

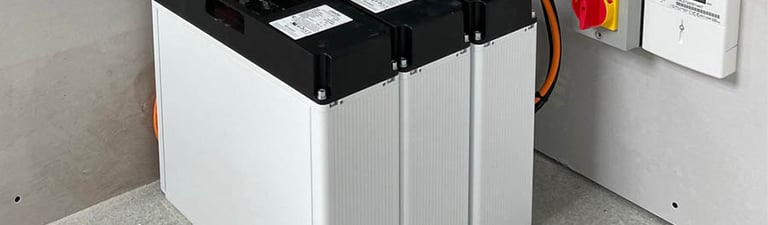

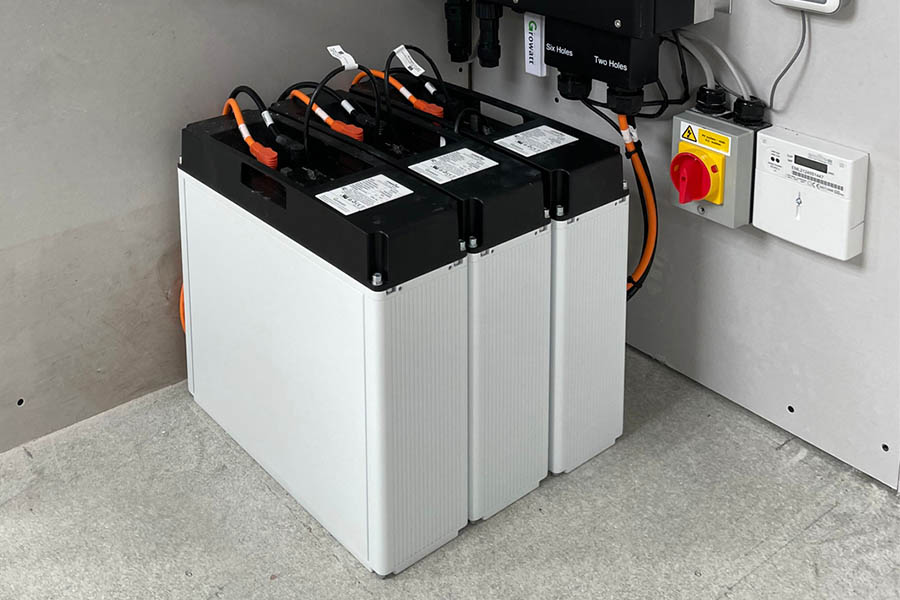

Solar Batteries

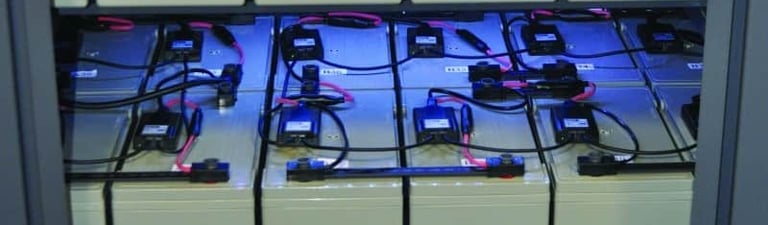

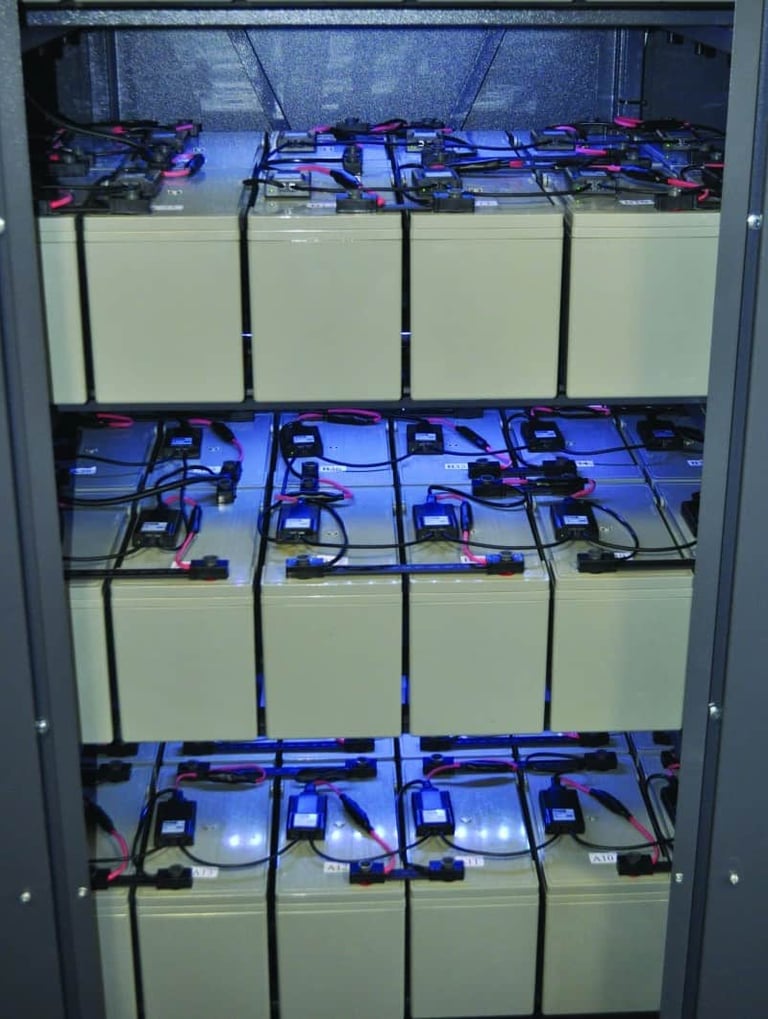

UPS Batteries
A Next generation tall tubular battery with better charge acceptance and longer Back-up. It contains approximately 20% more acid volume per ampere hour than ordinary tubular batteries and comes with an extra-strong, flexible oxidation-resistant gauntlet for better performance and longer life. The Puncture-resistant polyethylene separator minimizes the possibility of internal short circuits and provides enhanced safety.This battery comes in a jumbo container with enhanced warranty and back-up time. These Tubular Technology batteries comes with fast charging technology and are suitable for areas with frequent power cuts. The extra strong performer during power outages - Longest power back-up with least maintenance Provide long power back-up during power outages
● Superior plate design with optimum PAM/NAM ratio, most suitable for frequent power cut application
● Provided with flexible, acid-resistant rope handles for ease of battery handling
● Provided with Microporous ceramic disc fitted float indicators - Ultimate safety for the environment
● Performs best in extreme conditions - Tested in different possible scenarios, High oxidation resistance
● Polyethylene separator - best performance at high temperature application
● Custom designed for PSoC application - Worry free service life even in most strenuous power cut scenario
● Made in JUMBO type VPP Moulded container - Strong, Durable, Acid resistant
● Heat Sealed Container & Cover, for No more acid leakage
● Provided with 6 nos. free indicators cum vent plug for simultaneous level indication and gas ventilation
Orthogonal 3D grid design for unmatched electrical performance
Substation Batteries
Performance and flexibility
Substation batteries feature tubular plate technology that offers excellent cycling performance together with a proven long life under float voltage conditions. The pasted negative flat plate design provides the perfect balance for maximum performance across a wide capacity range.
Capacity range: 216 to 3360 Ah (C10/1.80Vpc/20°C)
20-year service life at 68°F (20°C)
3-year watering interval
DIN 40736-1-compliant CAPACITY (MAX) - EUROPE STANDARD 3360
CAPACITY EUROPE STANDARD Ah / C10 / 1.8Vpc / 20°C
CAPACITY (MIN) - US STANDARD 217
CAPACITY (MAX) - US STANDARD 3543
CAPACITY US STANDARD Ah / 8hr / 1.75Vpc / 77°F
VOLTAGE (MIN) 2
VOLTAGE (MAX) 2
DESIGN Top terminal
Traction Batteries
Traction batteries have become the driving force in principal economic sectors globally. In many critical sectors batteries are essential to start electrically operated equipment and keep them running in absence of main power. Forklift Trucks in Material Handling applications, Mining Locomotives, Golf Cart, Electric Vehicles, Naval applications - all depend on Exide to fulfil their needs for start-up and motive power.
OPPORTUNITY RAPID CHARGE BATTERY (ORC)
An opportunity rapid charge battery enables the user to charge the battery in between breaks at a high current in order to receive more energy throughput before the battery is put on full charge. The major difference between opportunity rapid charging and opportunity charging is that in case of ORC (opportunity rapid charge), the charging current is considerably higher (maximum of 40% of rated Ah). This allows the user to pump in more energy in a PSOC battery in a short time thus getting a higher energy throughput after every charge while compared to a normal opportunity charged battery.
FEATURES
· Standard design with round tube positives manufactured with a more robust process.
· ORC batteries are equipped with more robust negatives which enables the batteries to take full advantage of fast opportunity and normal opportunity charging capabilities.
· Our ORC is air agitation equipped to maintain cooler battery & better charging capabilities.
· Comes in bolted connection with thicker flexible cable connectors.
· Special TPE twin molded post seal to avoid leakage and accommodate all connectors.
ADVANTAGES OVER CONVENTIONAL BATTERIES
· Opportunity Rapid Charge ORC Traction Batteries enables up to two work-shift operation with a single ORC battery.
· Opportunity charging refers to the new ORC battery system being able to receive partial ‘top-up’ charges several times during a work cycle, if required.
· ORC battery cells may be recharged intermittently for short periods (15 - 60 minutes) during the operating shifts, at normal current or high current (up to 0.4C Amps), followed by a full normal recharge at end of shift.
· Replace regular lead-acid traction batteries in same tray size, without adding any ballast.
· Existing battery charger can be used or a higher rated one up to 0.4C Amps (40A per 100AH) for rapid opportunity charging (15-60 minutes).
· Extended operating time using a single battery with intermittent opportunity rapid chargers.
