Industrial Washer

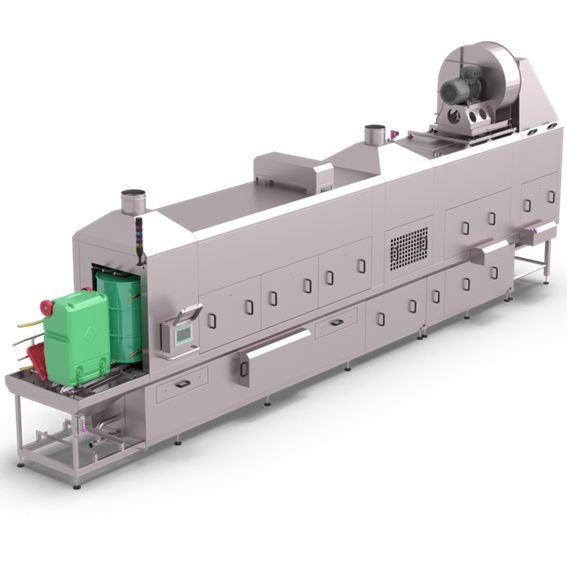

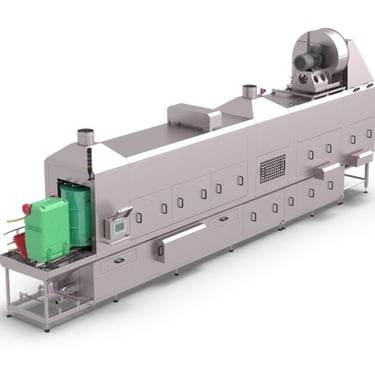

Tunnel Conveyor washer

Our Tunnel Jet washers offer a continuous in-line washing solution for baskets and boxes. Our machines are powerful enough to clean a host of leftover remnants such as fruit, vegetables and small bits of plastic.

Our washers adopt the very best cleaning solutions which provide effective and environmentally friendly washes. The washing process is carried out via stainless steel, quick release fan jets – using washing pressures of 60-80psi. This ensures that all surfaces of the product are thoroughly cleaned.

Our continuous development program ensures that remains at the forefront of washing technology. We are able to minimise utility usage and provide improved wash quality. This has been cemented by our inclusion on the Water Technology list. All washers are developed in conjunction with food hygienists, to ensure we are compliant with the latest standardWhile typical conveyor washers are thought to be very inefficient, our parts washer is designed to be the most energy efficient, conveyor cleaning system on the market today.

Engineered for lean manufacturing, reduces floor space requirements while providing exceptional cleaning and drying performance. We used a common sense approach to component choice and placement for quick and efficient access and servicing. All stages are insulated and compartmentalized with individually adjustable exhaust dampers, reducing system heat loss.

The entire unit has been engineered and manufactured from the ground up to be flexible, durable, simple to use and easy to maintain. We design and manufacture high quality pallet washers to efficiently clean pallets of all sizes. Our pallet washing systems are manufactured from high grade stainless steel and incorporate the latest hygienic design principles, making them the ideal investment for a wide range of industries including logistics, food and pharmaceutical sectors.

From simple standalone units through to fully integrated systems, we can manufacture a machine to suit your needs. TUNNEL PLANTS ARE CHARACTERIZED BY HIGH PRODUCTIVITY AND FLEXIBILITY. They are usually used in production where the quantity of pieces to be treated is very high and speed is a fundamental parameter. This plant is composed of several consecutive phases where the pieces pass through thanks to a motorized transport system.

This version of Tunnel has a MOTORIZED TRANSPORT SYSTEM ON OVAL ROUTE, therefore useful when loading and unloading must be done in the same area. SPRAY WASHING VERSION - HT (heating up to 80° C)

AREAS OF APPLICATION

•  Mechanical / Aviation industry

•  Surface treatment

•  Electronics / Chemicals industry

NUMBER OF TANKS

•  Single tank

•  2 tanks

•  3 tanks

CONTROL

•  PLC with color touchscreen

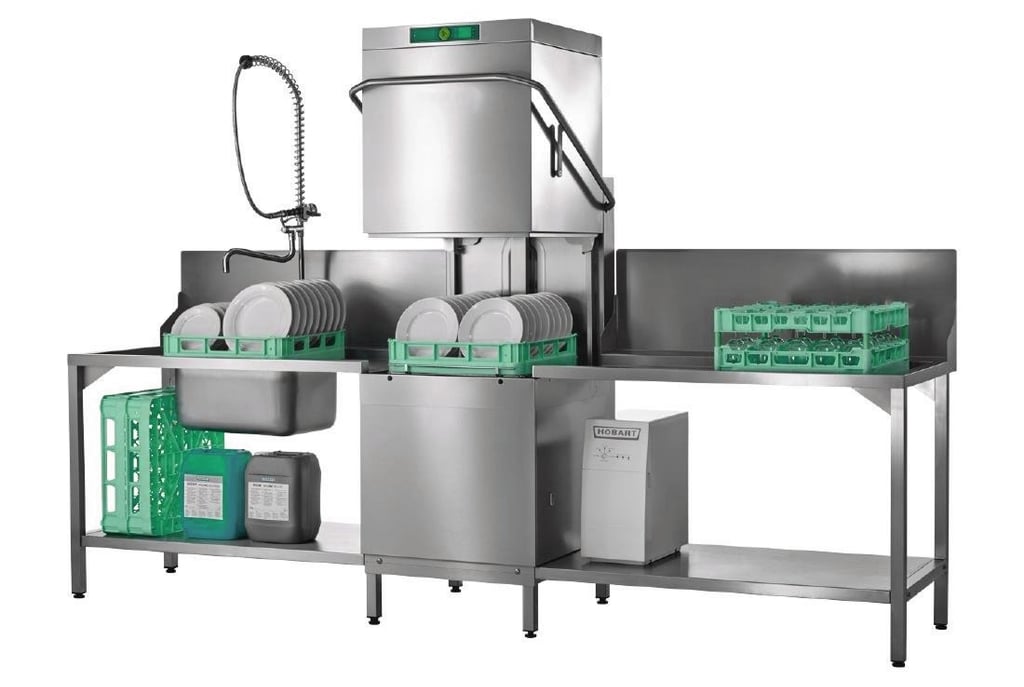

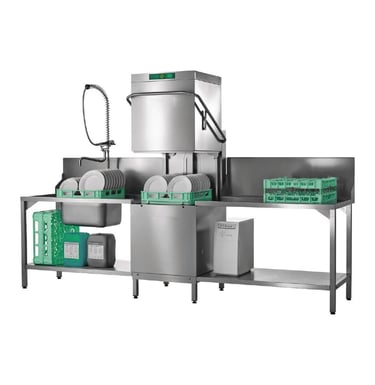

Commercial Utensil Washers

Commercial Utensil Washers

We provide utensil washers for the commercial industries. This includes restaurants, bakeries, butcheries or any environment where items need to be washed in bulk. Our machines are ideal for those looking to clean a large volume of pots, utensils and other wares.

They are also perfectly suited for gastronorm washing. Gastronorm containers are key components in catering environments and are used regularly throughout the preparation and service of food. Due to their heavy use, it’s essential that gastronorm containers and other cookware can be cleaned quickly and efficiently. Our utensil washers are designed to perform this exact task, eliminating the need for manual washing and delivering exceptional results on a consistent basis. Standard Machine Sizes

• 800 series Basket size 800 x 800

• 1200 series Basket size 800 x 1200

• 1600 series Basket size 800 x 1600

Our machines are purposely designed to deliver power and performance and are built to the highest of standards. And because of this, the entire washing process can be achieved within a short time frame, with each item washed and efficiently rinsed.

Product Features

Cleaning is completed via top and bottom rotary arms.

Fitted with quick release, stainless steel nozzles to give full coverage of the items to be washed.

The detergent wash cycle is followed by a hot pumped rinse (up to 85°c) in order to remove detergent residue and to assist in flash drying.

Operator maintained items such as filters and level probes are accessible from outside the wash chamber, for ease of use.

Manufactured with a double skinned, gas strut assisted and electrically interlocked access door. This ensures operator safety and the ease of loading.

Our washers have wheels attached to the machine frame, allowing the unit to be easily moved. Especially useful for cleaning around and under the machine in high-risk applications.

A PLC (programmable logic controller) linked to an operator HMI (human machine interface) allows a wide range of wash times and cycles.

Heating media within the wash tank can be either electric or steam.

• Machine Height (with door open) mm830x915x1890H/2150H

• Cycle Length 2-4-6 max 10min

• Wash Space mm650x700x650H

• Construction Double panel

• Machine Interior Self-cleaning

• Rinse-aid dispenser Standard

• Wash pump 1600W (2,2Hp.)

• Rinse pump 550W

• Detergent dispenser On Request

• Break tank system Standard

• Electrical connection 400V 3N ~ 50Hz

• Total power 10620 W

• Boiler heating element 9000 W

• Tank heating element 6000 W

• Tank capacity 82 l.

• Boiler capacity 14,5 l.

• Water supply 2 ÷ 4 bar Ø 3/4 "G

• Water consumption per cycle 4,5 l.

• Drain hose connection Ø 1 1/2 "G

• Acoustic pressure level < 70 db (A)

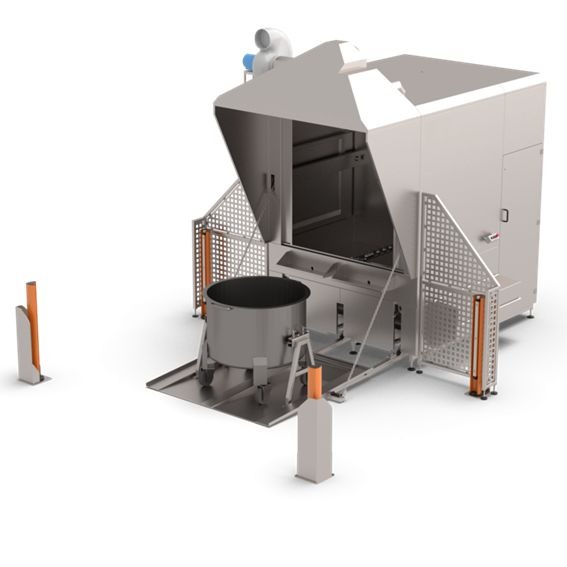

Cabinet washer

The Cabinet Washer range consists of various models of utensil washers capable of satisfying all washing requirements for the bakery, butchery, ice cream, catering and food industry sectors.

Solid, user-friendly, reliable machines that, thanks to a new electronic system, can optimise and simplify work for operators in the sector.

Perfect Hygiene

• The interior of the machine is completely rounded without right angles

• Ample filtering surfaces in steel are easy to remove

• Suction pump filter to protect the wash pump and prevent leftovers from depositing in the wash circuit

• Membrane switch keyboard and display with completely flat surface, guaranteeing maximum hygiene.

• User Friendly

• Split door perfectly counterbalanced, easy to open

• Height of rack loading with door open 900 mm

• Structure with double panelling in 3-mm thick satin finished stainless steel AISI 304

• Revolving wash and rinse arms in stainless steel AISI 304

• Easy-extraction wash racks

• Excellent accessibility to the machine interior to remove wash/rinse arms, tank and suction pump filters

• Thermal and acoustic insulation on request

• Safety

• Digital display advises of correct functioning of cycle, temperatures and tank filling

• Low-voltage electronic control to minimise danger during maintenance and repair work

• Keyboard and display panel splash-proof with IP67 protection

• Cycle-stoppage microswitch in case of accidental door opening

• Cutting Edge Electronics

• Electronic control to program wash-cycle phases, temperatures and times

• Digital display shows wash phases and temperatures

• Self-diagnosis system for machine functioning

• Machine operation can be selected via the start button or by closing the door in cases of intensive usage

• Internal self-cleaning functionMachine Height (with door open) mm990x915x1890H/2150H

• Cycle Length 2-4-6 max 10min

• Wash Space mm810x700x650H

• Construction Double Panel

• Machine Interior Self-Cleaning

• Rinse-aid dispenser Standard

• Wash pump 2350W

• Rinse pump 550W

• Detergent dispenser On request

• Break tank system Standard

• Electrical connection 400V 3N ~ 50Hz

• Total power 11350W

• Boiler heating element 9000W

• Tank heating element 6000W

• Tank capacity 86 l.

• Boiler capacity 14,5 l.

• Water supply 2 ÷ 4 bar Ø 3/4 "G

• Water consumption per cycle 5 l.

• Drain hose connection Ø 1 1/2 "G

• Acoustic pressure level < 70 db (A)

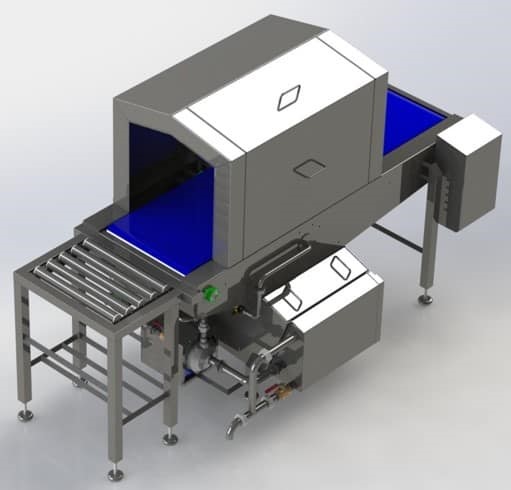

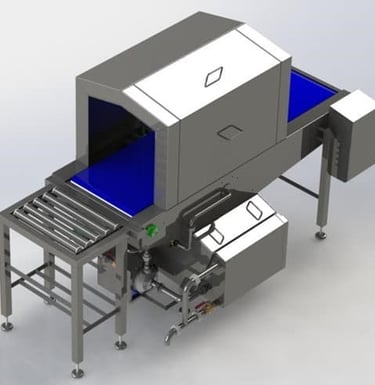

Tunnel Sanitizer

We are a leading manufacturer of sanitising tunnels and disinfection machines. These machines are suitable for all businesses and organisations that need to sanitise the goods, items or products they work with. We aim to offer you a solution that can help reduce the risk of contamination and increase environmental safety all suited to your needsOur sanitising tunnels are constructed using high grade stainless steel – an easy to clean material, which does not support the growth of bacteria and other pathogens.

We eliminate the use of stitch welding, pop rivets and silicone sealants to provide a crevice free machine. The risk of bacterial growth and cross contamination is kept to a minimum, providing great hygienic qualities.

• Blue coloured modular belt with an open design, allowing free drainage.

• Inverter controlled motor for speed adjustment.

• Automatic level control on the reservoir for fill and pump protection.

• Centrifugal pump with stainless steel impeller and housing.

• sanitiser injector.

• Sloping surfaces for added hygiene benefits.

• Through wall installation.

• Stainless steel construction, with food grade bearings.

• Recirculation and filtration of sanitising solution, minimising water and sanitation costs.

• Photocell on discharge which stops the conveyor in the absence of an operator.

  Options

• Lift up ends, minimising clean down times.

• 316 stainless steel construction.

• Air knife on discharge for excess solution removal.

• Bi-directional operation.

• Total Loss “misting” systems for delicate products.

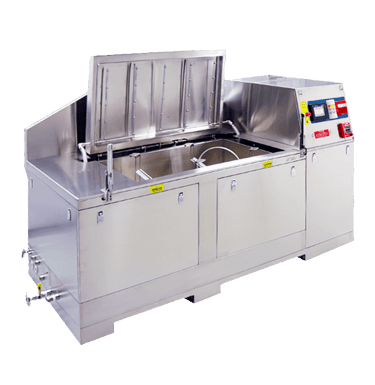

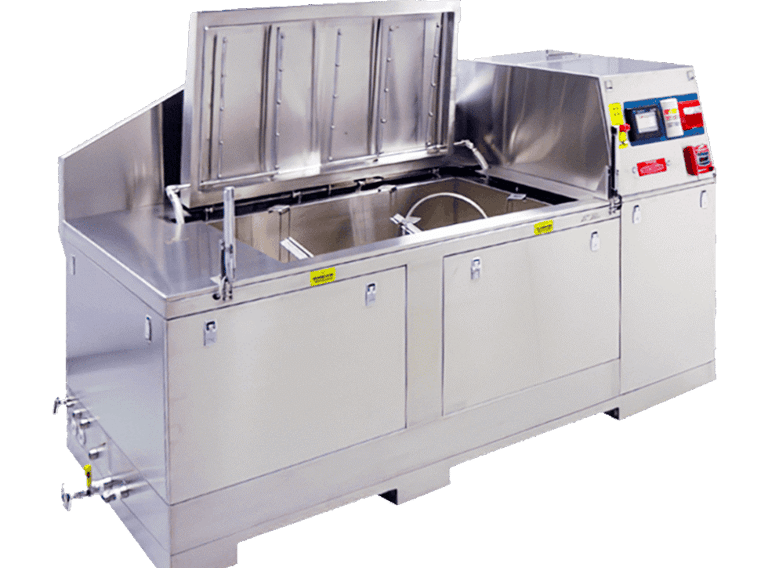

Ultrasonic washer

Our Ultrasonic washers offer a immersed tank washing solution for baskets and boxes. Our machines are powerful enough to clean a host of leftover remnants such as fruit, vegetables and small bits of plastic.ultrasonic cleaning system is an automated cleaning system that provides maximum cleaning efficiency through the use of high-pressure spray, part rotation, and ultrasonic energy. It will clean heavily soiled parts in a single machine rather than having to purchase a spray cabinet and an ultrasonic machine separately. It gives the ultimate in flexibility as you can either perform a single process or both, depending on your needs. The machine has a compact design and eliminates the manpower needs and safety risks of moving parts from washer to washer.

Our washers adopt the very best cleaning solutions which provide effective and environmentally friendly washes. The washing process is carried out via stainless steel Our continuous development program ensures that remains at the forefront of washing technology. We are able to minimise utility usage and provide improved wash quality. This has been cemented by our inclusion on the Water Technology list. All washers are developed in conjunction with food hygienists, to ensure we are compliant with the latest standardWhile typical conveyor washers are thought to be very inefficient, our parts washer is designed to be the most energy efficient, conveyor cleaning system on the market today.

Engineered for lean manufacturing, reduces floor space requirements while providing exceptional cleaning and drying performance. We used a common sense approach to component choice and placement for quick and efficient access and servicing. All stages are insulated and compartmentalized with individually adjustable exhaust dampers, reducing system heat loss.

The entire unit has been engineered and manufactured from the ground up to be flexible, durable, simple to use and easy to maintain. We design and manufacture high quality pallet washers to efficiently clean pallets of all sizes. Our pallet washing systems are manufactured from high grade stainless steel and incorporate the latest hygienic design principles, making them the ideal investment for a wide range of industries including logistics, food and pharmaceutical sectors.

From simple standalone units through to fully integrated systems, we can manufacture a machine to suit your needs.

BY HIGH PRODUCTIVITY AND FLEXIBILITY. They are usually used in production where the quantity of pieces to be treated is very high and speed is a fundamental parameter..

AREAS OF APPLICATION

• Mechanical / Aviation industry

• Surface treatment

• Electronics / Chemicals industry

NUMBER OF TANKS

• Single tank

• 2 tanks

• 3 tanks

CONTROL

• PLC with colour touchscreen

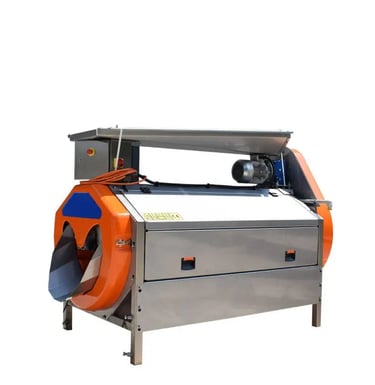

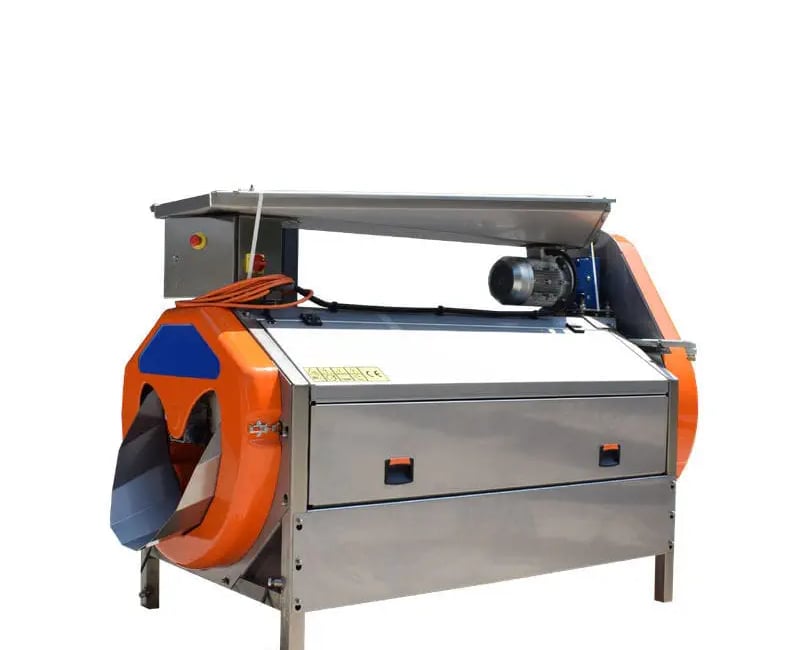

Vegetable Drum washing

Drum washing machine is used to wash Vegetable and other root products.

The machine consists of a rod drum and frame. By choosing a certain distance between the rods, the maximum size of the impurities to be separated is determined.

The cleaning operation is based on a combination of water and mutual rubbing together of products. In order to optimize the rubbing effect, the quantity of product can be regulated by a sliding plate at the discharge side of the drum. By hand or automatically. Cleaning with water is achieved by means of sprays and/or water bath.

Both possibilities are freely adjustable. In this way you can choose the optimal cleaning method for each kind of contamination, without increasing water consumption.

Features:

• various rod spacings possible

• driven by bands or wheels

• with or without product height adjustment

• with or without water level adjustment

• with or without dirt reception hopper

We delivers tailor-made machines. Therefore capacity and dimensions will depend on your product and specific requirements. All our machines are constructed of stainless steel wherever possible and comply with the stringent, international standards in the field of safety and hygiene.)

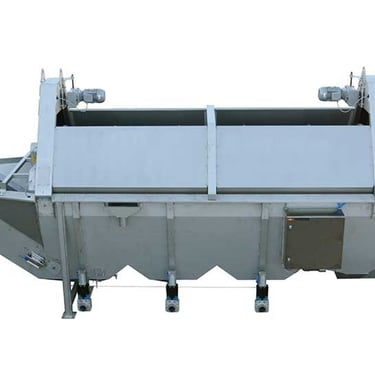

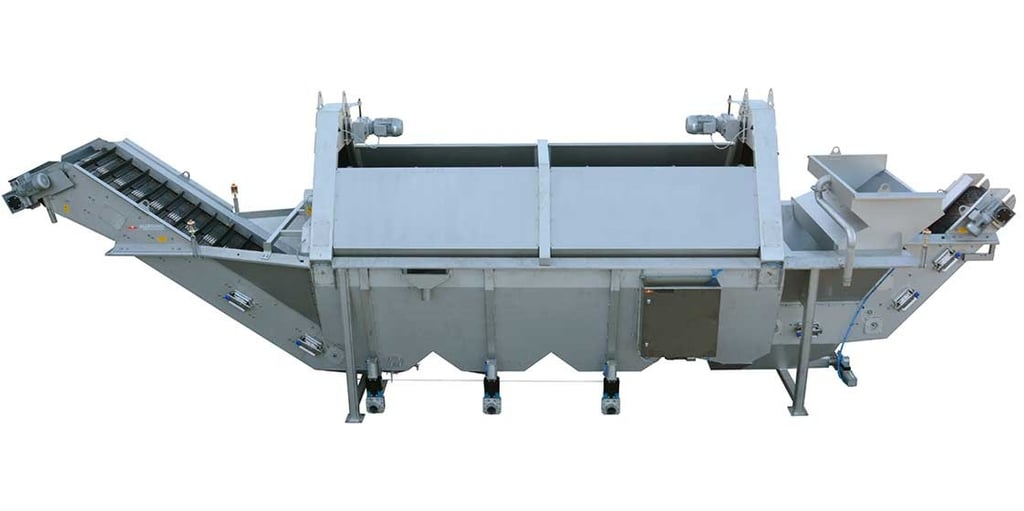

Vegetable washing machine

Vegetable washing machine is designed for small- and medium sized vegetable processing companies for washing and mixing vegetables. The vegetable washer is suitable for thoroughly washing both floating and sinking vegetables. The machine suits perfectly with the belt-cutting machine, the conveyor belt and the centrifugal dryer in a vegetable processing line.

To start washing, the vegetables are either transported to the washing tank of the spiral washer by a conveyor belt or thrown in manually. In the washing tank, the vegetables are washed very intensively by a system of a powerful pump and water nozzles in the side wall (for circulation) and in the back headboard (for propulsion). After that, the vegetables are transported over the vibrating sieve. At this stage the vegetables get an extra ‘shower’ with clean water by the sprinklers. The overflowing water is removed through the perforated soil to the filter tank. All the sand and vegetable leftovers are filtered out, whereupon the water is recycled to the washing tank of the vegetable washer.

Washing and mixing vegetables

Both sinking and floating vegetables can be washed with the vegetable washing machine In addition, this machine can also be used for mixing salads. The whirl and flow can be adjusted separately with butterfly valves. In this way the vegetables can be mixed homogenously. And after opening the butterfly valve for flow, the vegetables can be transported out of the spiral washer through the vibrating sieve conveyor.

Sorting out vegetables optional

The vibrating sieve of the vegetable washing machine is able to sort out the small unwanted pieces among cut vegetables. All vibrating decks are customizable. This means that the customer can decide the diameter size of the perforation in the deck and thereby controlling the size of the unwanted product to be filtered. The decks are also very easy to interchange on the vegetable washing machine.

Vibrating deck – Custom size perforation: this vibrating sieve is perfectly suited for sorting out the small unwanted pieces among diced and sliced products. A brief list of examples are: melon dices, chili pepper slices/rings, carrot dices, onion dices, and paprika dices.

Vibrating deck – Standard perforation: this vibrating sieve is used when the product does not have to be sorted out. The 3 mm perforation size of this vibrating deck is perfectly suited to only filter the washing water from the product.

Advantages

• Easy to operate vegetable washer

• Excellent washing result with a very low germ count

• Extremely solid construction

• A perfectly hygienic finish

• Easy to clean

• Cleaning and hygiene

• The perforated bottom of the vibrating sieve can be easily dismantled using pre-tensioners.

• The screen plate and bulkheads of the filter tank can be removed easily, like the screen plate of the washing tank.

• All piping parts can be dismantled very quickly and without tools by means of the tri-clamps. They have no screw thread on the pipe ends, and therefore are much more hygienic than the common used dairy fittings (nut/coupling nut).

• Because of the use of tri-clamps, butterfly valve, and high quality welding, all piping and fitting comply to the strictest rules and regulations of the pharmaceutical and dairy industry.

• The machine can be cleaned quickly, thoroughly and hygienically, because of the smoothly finished surfaces and the lack of ‘dirty angles’.

• All external wiring is bundled neatly on stainless steel rods, making it easy to keep it dirt free.

Technical data

• Capacity Up to 1000 kg/h

• Electrical data 3 Ph / 400 V / 50 Hz / 4 A

• Power 1.94 kW

• Dimensions (LxWxH) 2690 x 1000 x 1790 mm

• Weight 361 kg

• Water capacity 465 L

• Water connection ¾” hose for filling, ½” hose for after sprinkling

• Multi-stage vegetable washing solutions

The vegetable washing machine can also be integrated into a multi-stage washing solution. This is especially useful for cleaning vegetables with a higher dirt content because the integration of every additional washing stage will contribute to an even cleaner product and to a very low germ count. The amount of washing stages can be tailored to the meet the customer’s demand.
